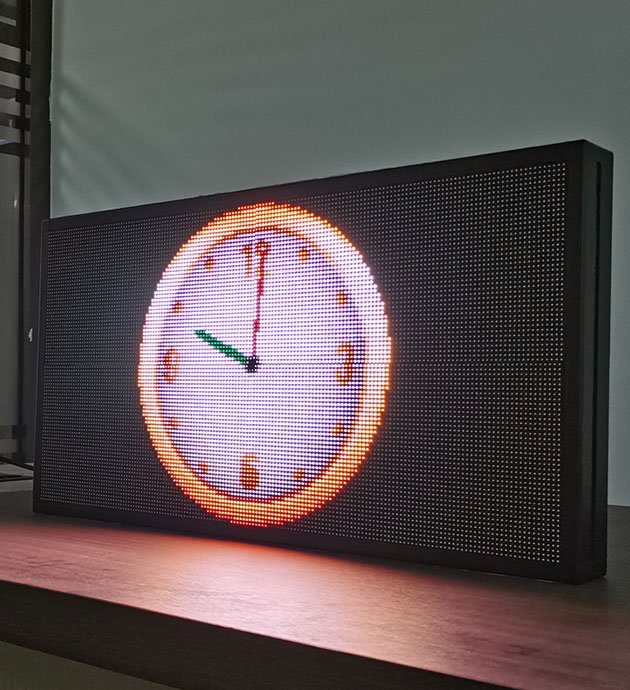

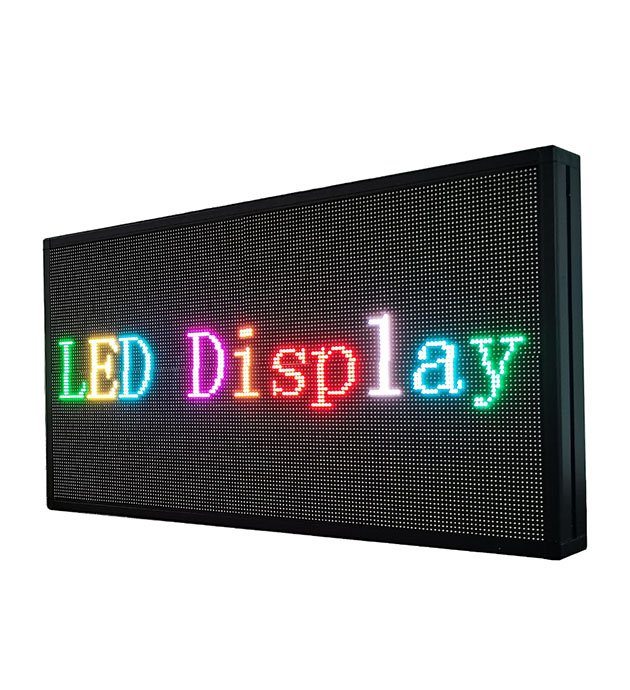

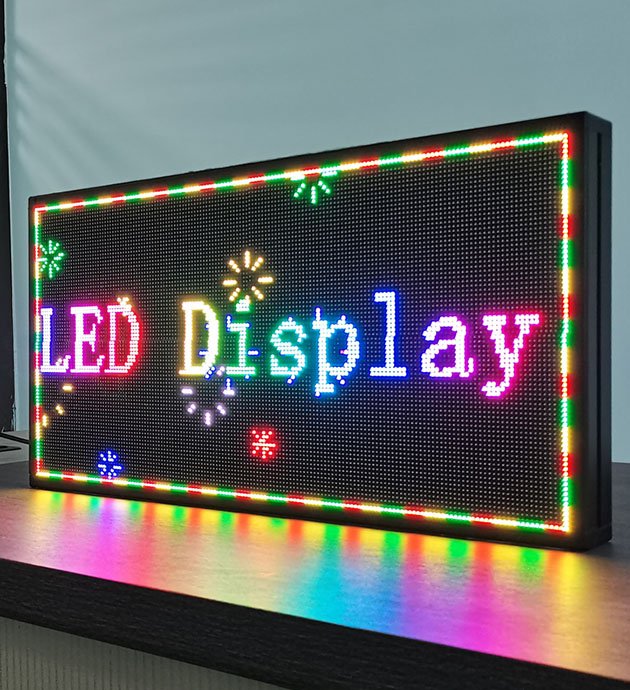

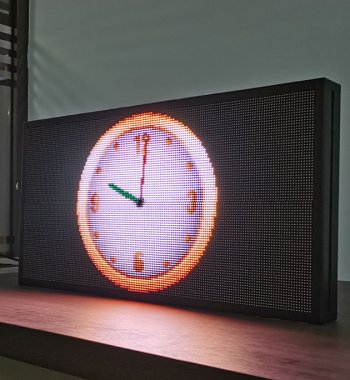

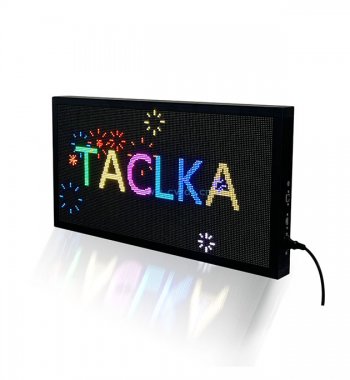

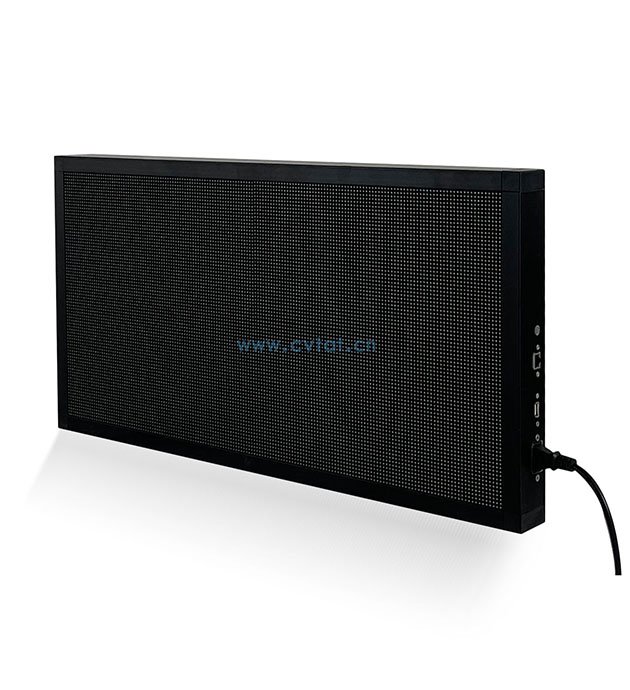

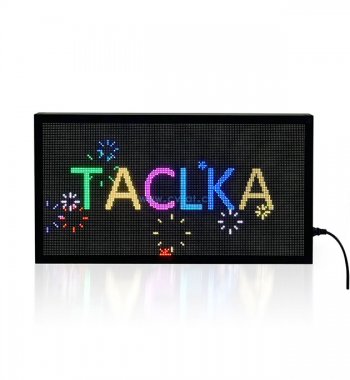

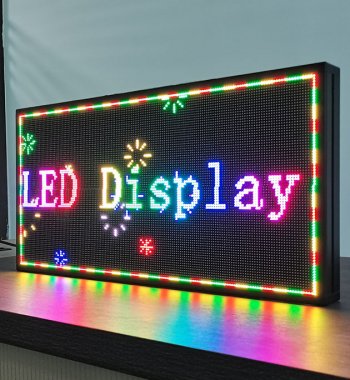

P4 outdoor LED screen

Product description:

· Size： 640*320mm

· Pixel： 160*80

· Water proof： NO

· Software： HDPlayer

· Environment： outdoor

· Display： text image video

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

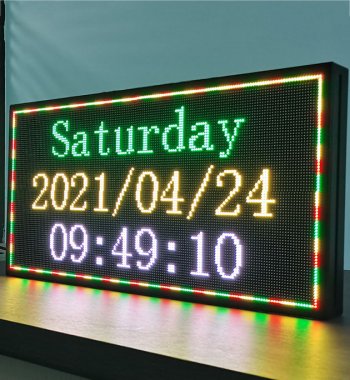

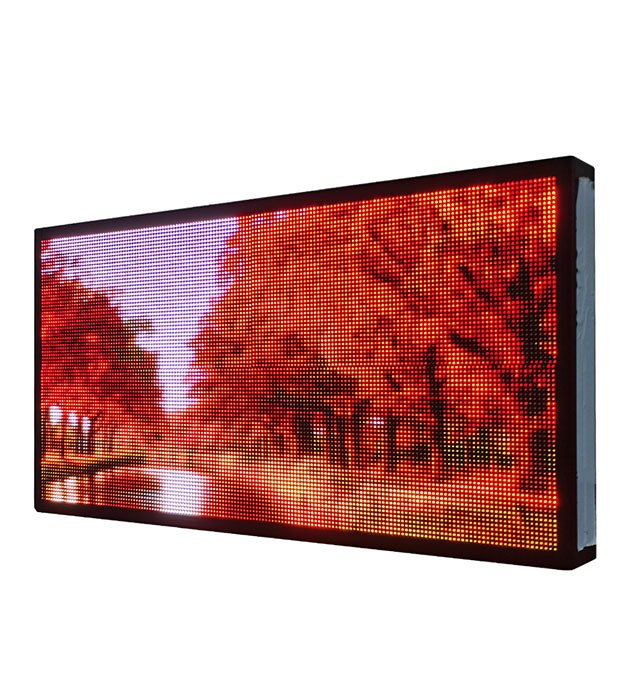

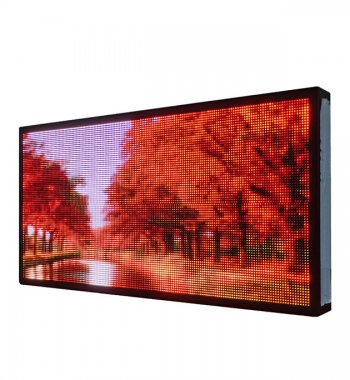

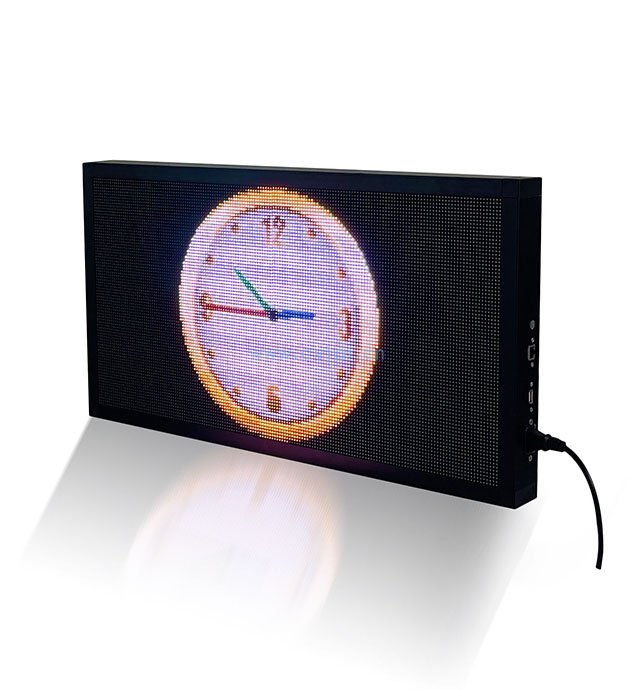

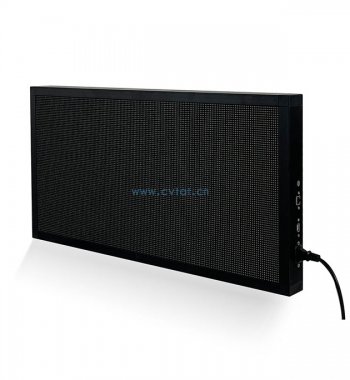

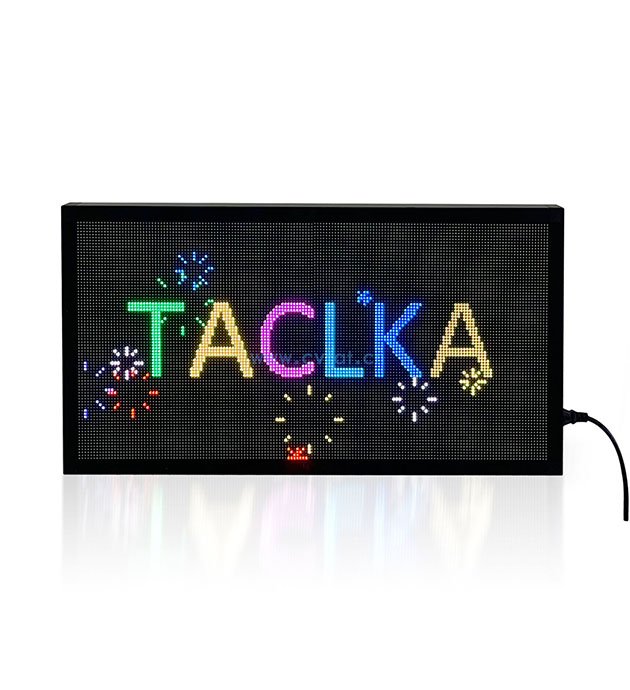

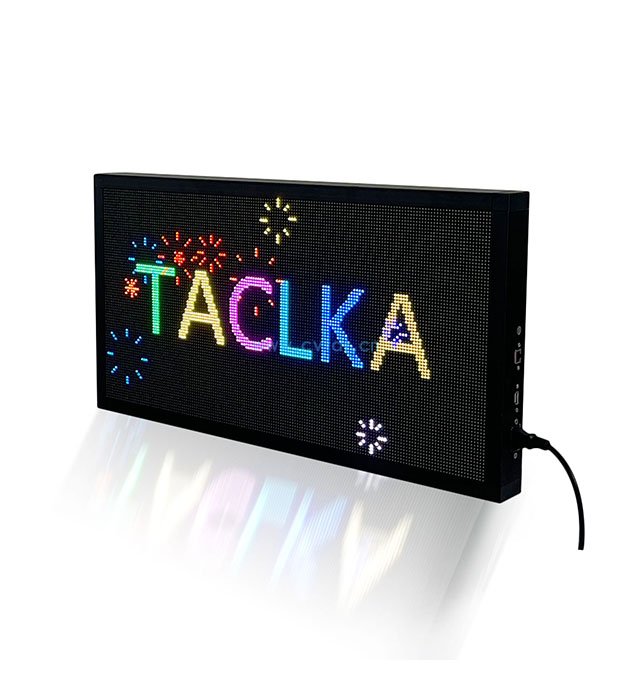

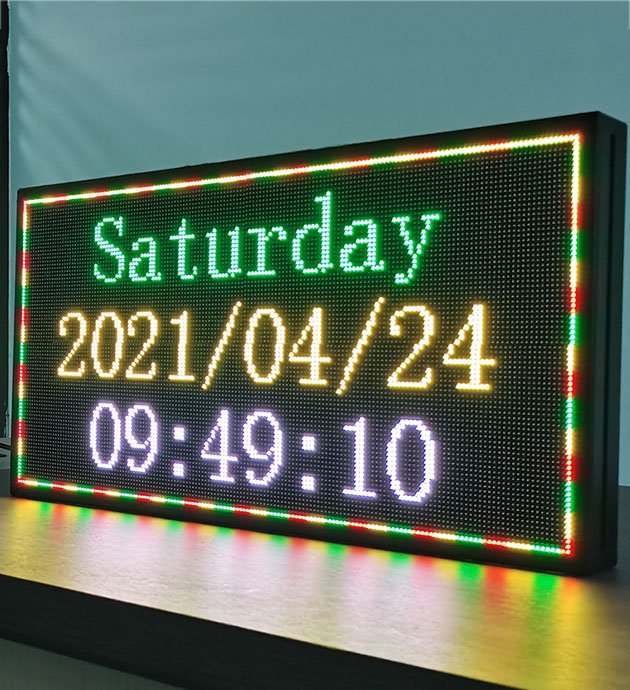

P4 outdoor full color Programmable scrolling LED screen,

size 640*320mm, pixel arrangement 160*80, RGB full color, portable and easy to use.


Specification

OUTDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP4-10S
Module size320mm*160mm
Pixel pitch4mm
Pixels Density62500 dots/m2
Pixel configuration1R1G1B
Package modeSMD1921
Pixel resolution80dots(W)*40dots(H)
Max Power40W
Module thickness16mm
Drive typeConstant drive
Scan mode1/10扫描  1/10scan
Port typeHUB75
Brightness of white balance≥5500cd/m2
Best viewing distance4M～50M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageAC110V～220V±10%
Average Power consumption<320W/㎡
Max.Power consumption<800W/㎡
Current<20mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
