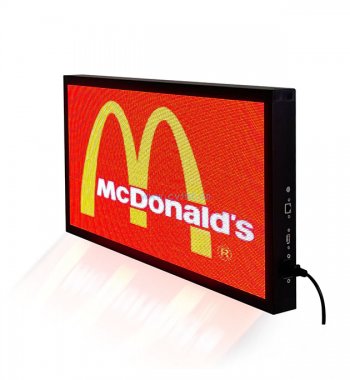

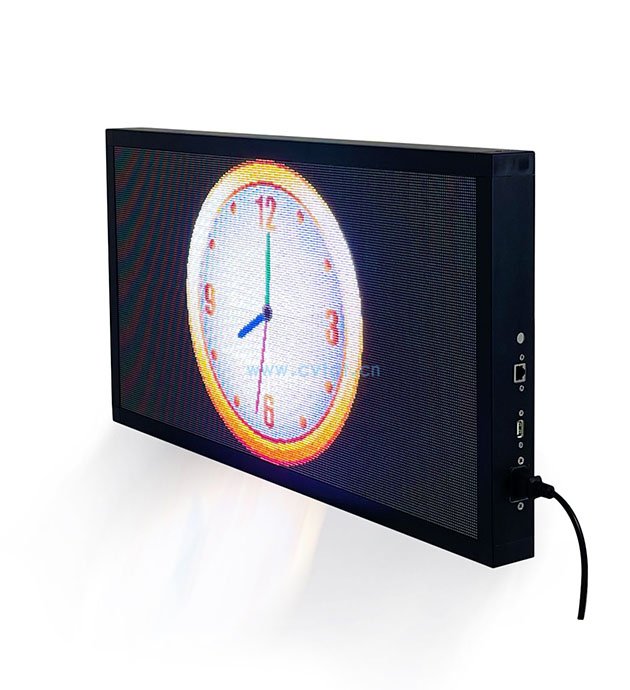

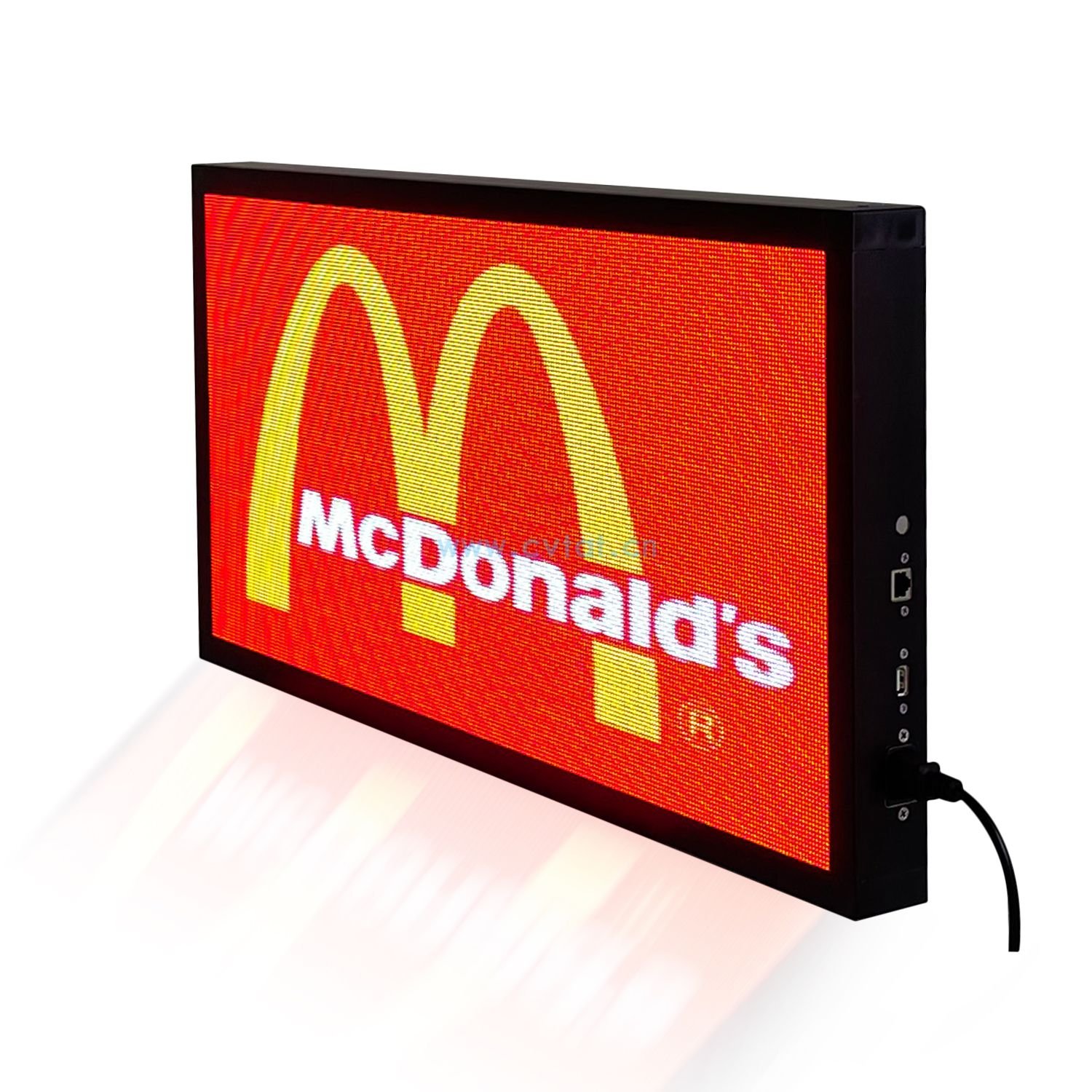

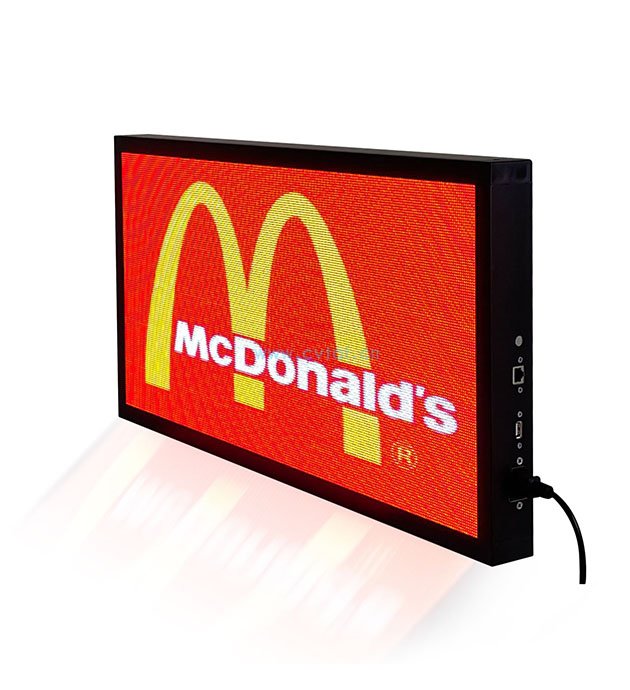

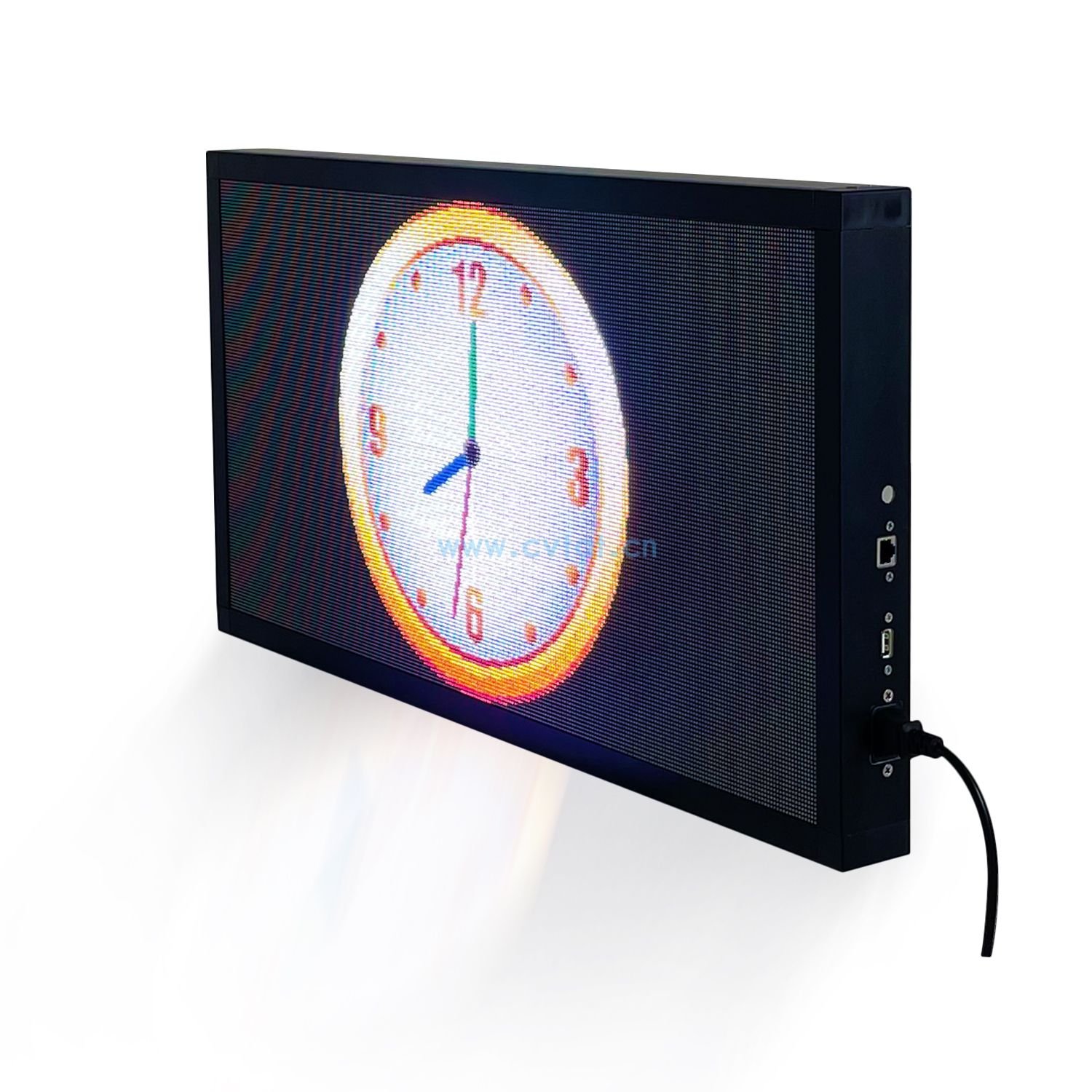

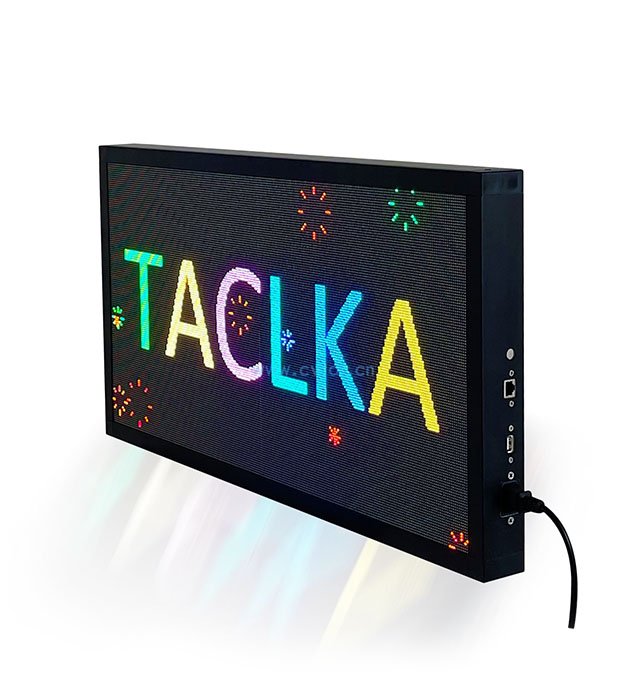

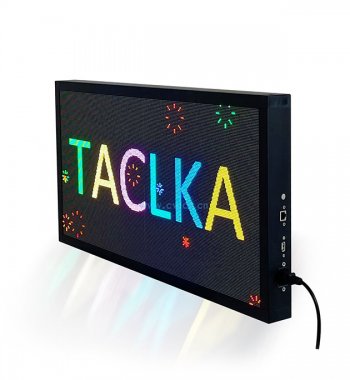

P2.5 outdoor LED screen

Product description:

· Size： 640*320mm

· Pixel： 256*128

· Water proof： NO

· Software： HDPlayer

· Environment： outdoor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

P2.5 outdoor full color LED display module board,

 size 320*160 mm, pixel arrangement 128*64, RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz.


P2.5 outdoor LED screen-3

Specification

OUTDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2.5-32S
Module size320mm*160mm
Pixel pitch2.5mm
Pixels Density160000 dots/m2
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution128dots(W)*64 dots(H)
Max Power 32W
Weight0.425kg
Drive typeConstant drive
Scan mode 1/32scan
Port typeHUB75E
Best viewing distance3M～20M
Best viewing angle 140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
PowerRelative humidity10%-95%
Working voltageDV 5V
Average Power consumption<240W/㎡
Main technical  parameterMax.Power consumption<620W/㎡
Current<18mA(single LED)
Driving deviceConstant drive IC 恒流驱动
Refresh frequency>1920HZ
65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
