B2 LED screen

Product description:

· Size： 384*192mm

· Pixel： 128*64

· Water proof： NO

· Software： HD2020

· Environment： indoor

· Display： text time

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

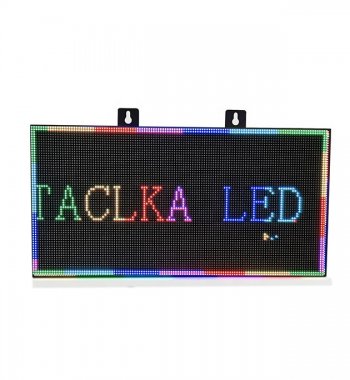

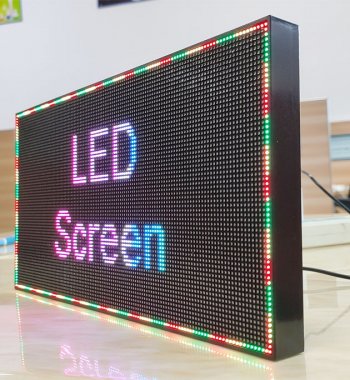

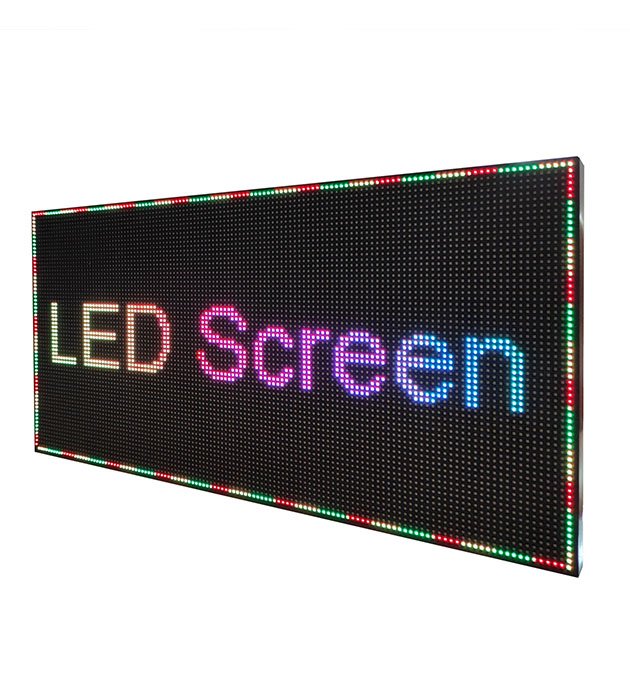

Here are some details related to CVTAT B2 LED Screen:

1.Programmable small LED screen, Total pixels 128*64 dots,The resolution is lower than LCDs and TVs, and the brightness is higher than them, It is this pros and cons that make the displayed content grainy enough to be viewed from a distance.

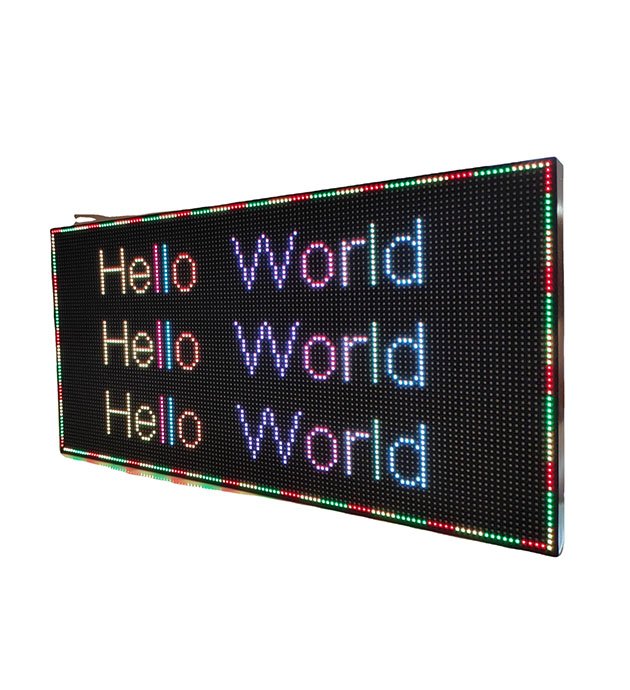

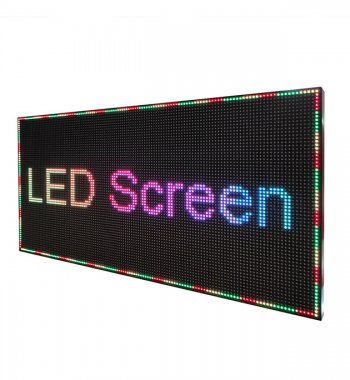

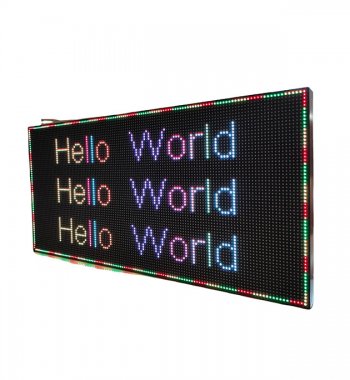

2.display full-color text, text can be added with background, text can be scrolled，Text Ads Scrollable Suitable for advertising Signs.

3.Multiple playback styles, please watch the demo video.

4.Requires a certain amount of hands-on ability.

 please be sure to follow the operation instructions for the first use

5.Attention：Please remember your WiFi password, once forgotten it cannot be recovered.




Display time




Display Count




Calendar, countdown

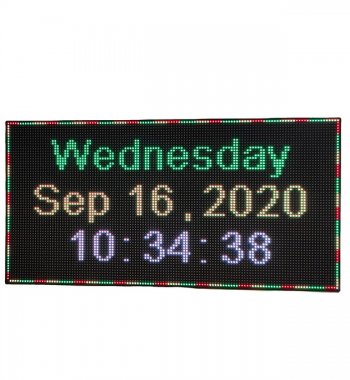

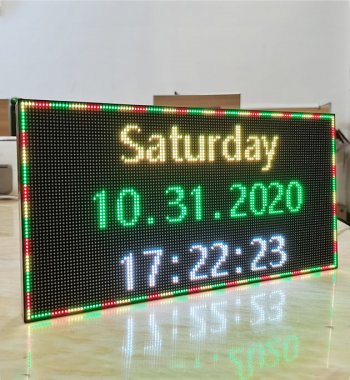

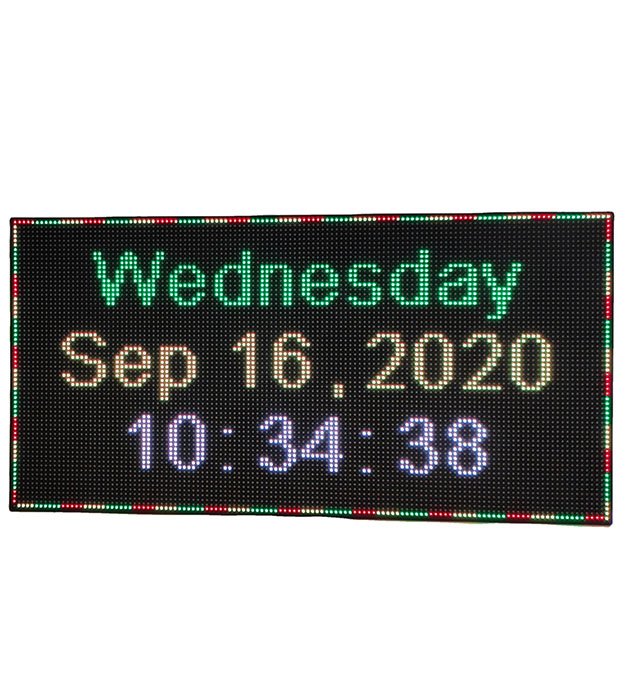

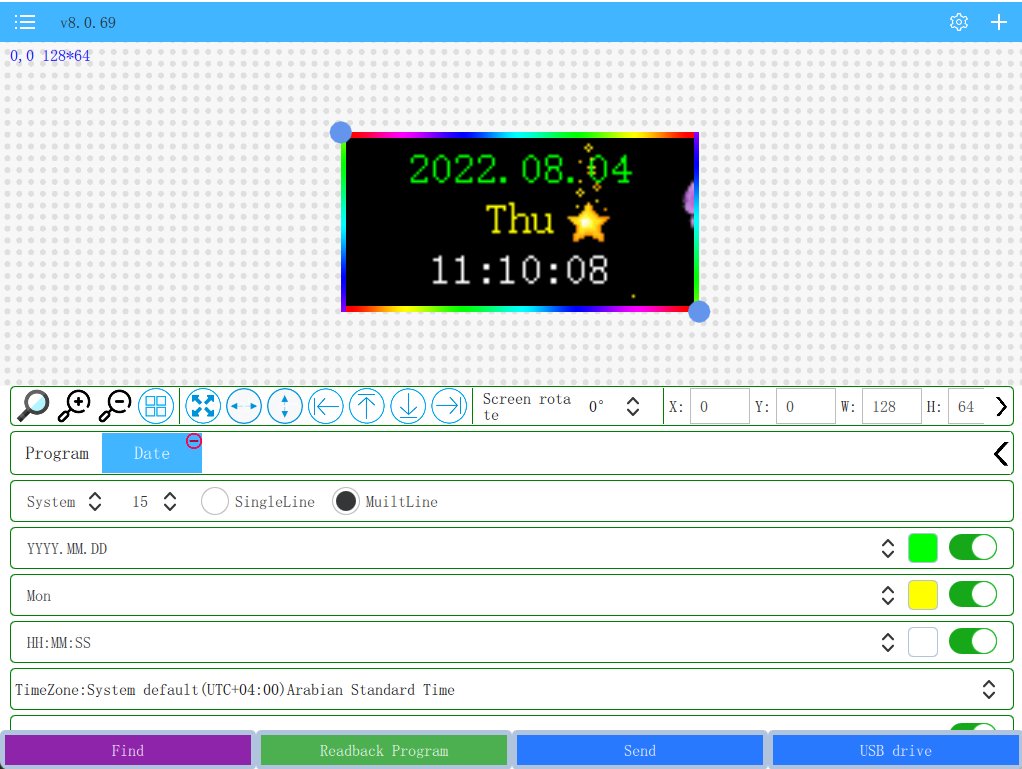

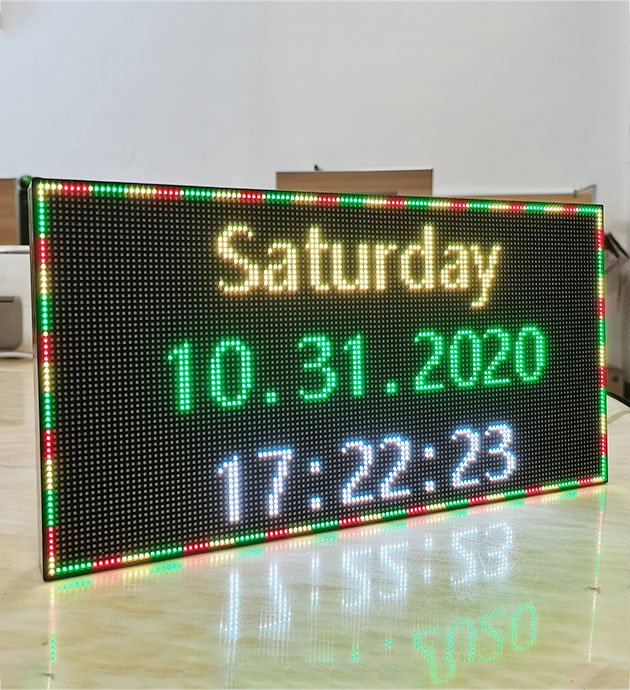

Calendar function:

Display electronic clock, support proofreading time, date, day of the week, time, you can set different colors separately

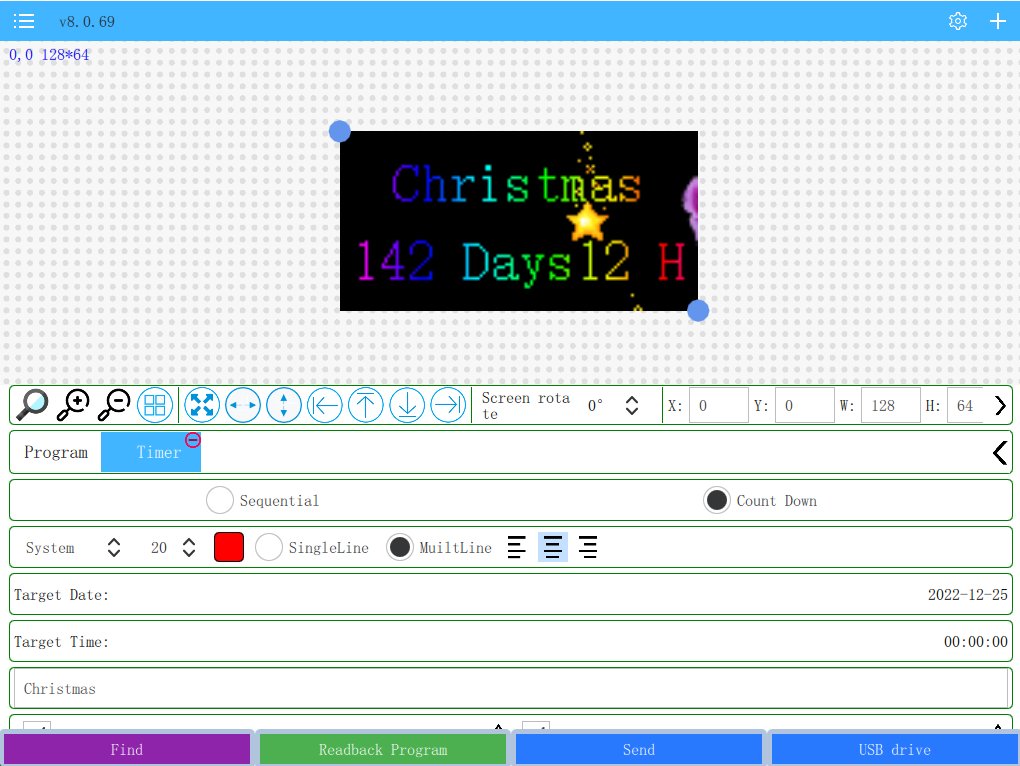

Timing function:

Support positive timing, countdown


Pay special attention

No other functions，does not support images and videos, No Internet function, mobile phone or PC connected to its WiFi hotspot,

Communicate with it to send the text you want to display

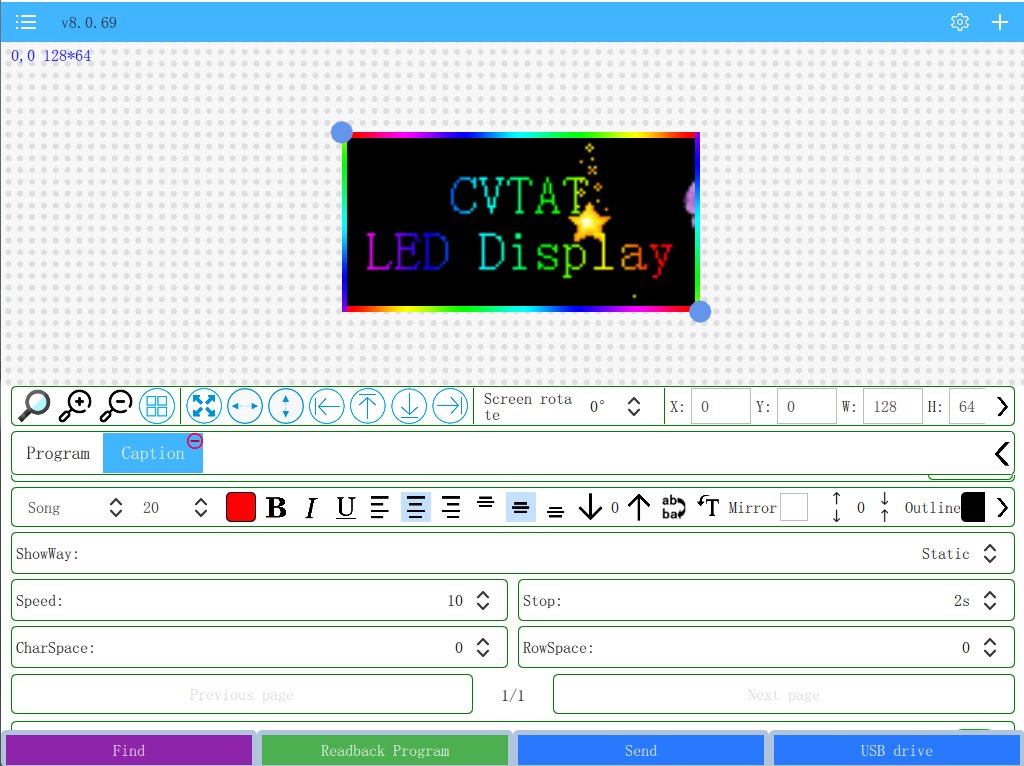

Download the programming software according to the manual website

Software supports Android, iOS, Windows（Linux and MAC are not supported）

Powered by external power adapter

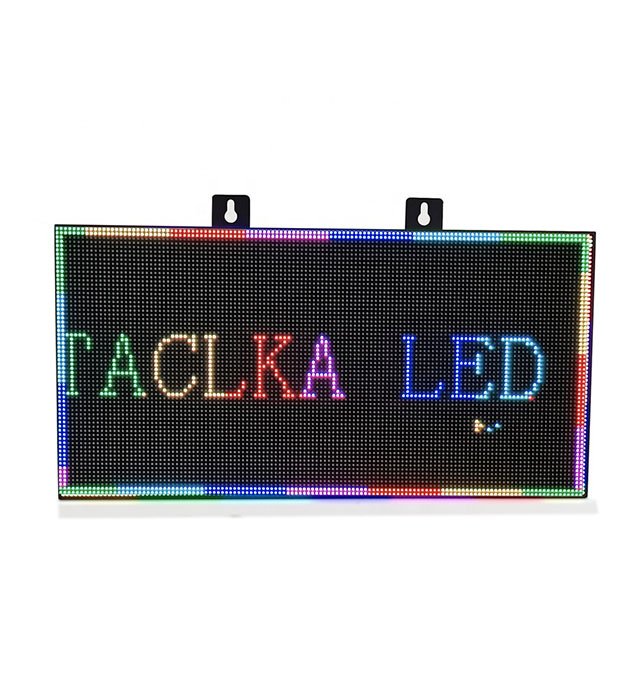

Installation method: hanging on the wall, standing on the desktop

Size: 384*20*192mm (L*W*H)

Weight: 0.5kg without adapter

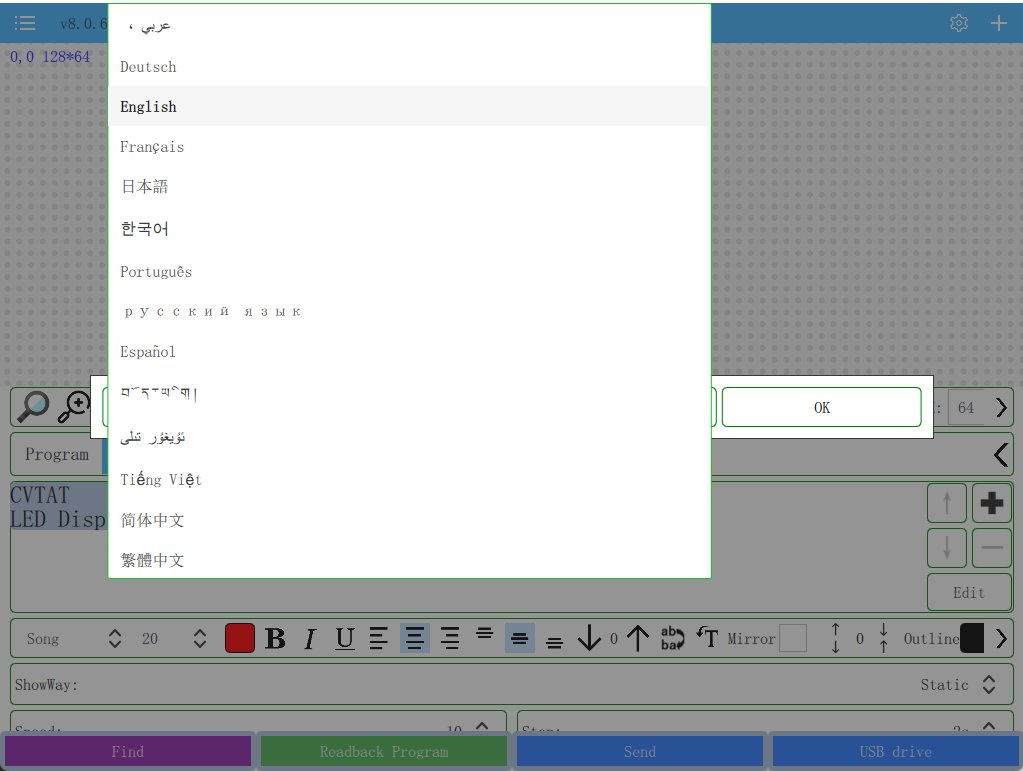

Language：English,Arab,Bulgaria,France,Germany,Indonesia,Indy,Iran,Italy,Japan,Korea, Mongolia,Poland,Portugal,Romania,Russa,Serbian,Spain,Thailand,Turkey,Vietna




Include:

Small led display*1

Power adapter*1

Operation guide*1




Specification

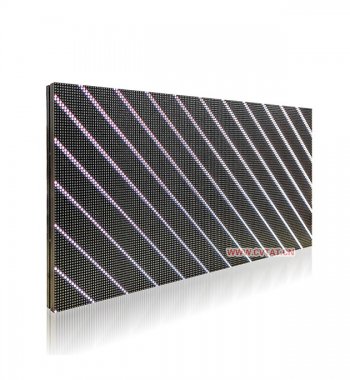

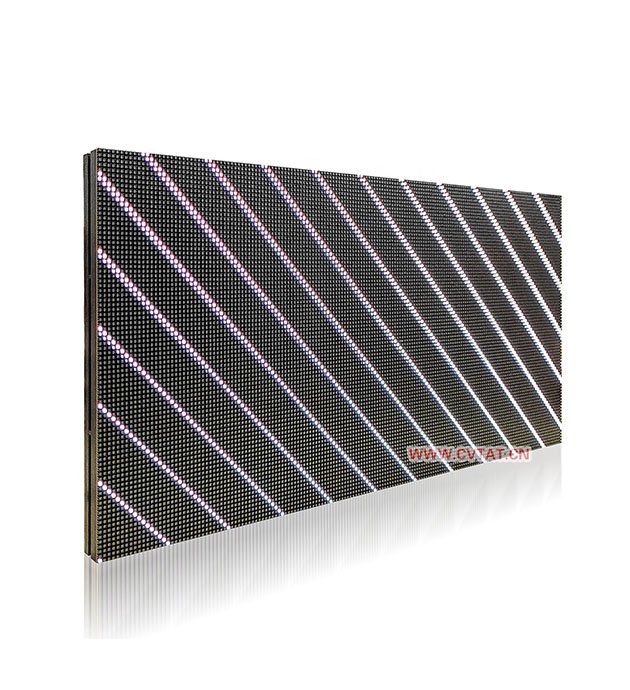

INDOOR P3 SMD 3IN1 TECHNICAL  PARAMETERS
Unit ModuleItemParameter
Model NumberP3-32S
Module size384mm*192mm
Pixel pitch3mm
Pixels Density111111 dots /㎡
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution128dots(W)*64 dots(H)
Max Power23W
Weight0.42kg
Drive typeConstant drive
Scan mode1/32scan
Port typeHUB75E
Brightness of white balance≥1200cd/m2
Best viewing distance3M～20M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<270W/㎡
Max.Power consumption<680W/㎡
Current<18mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>3840HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
