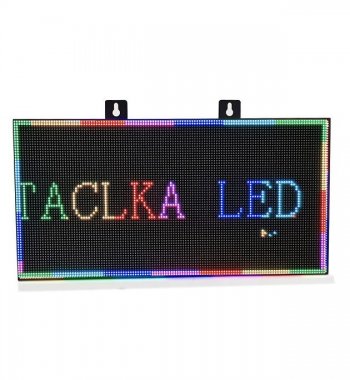

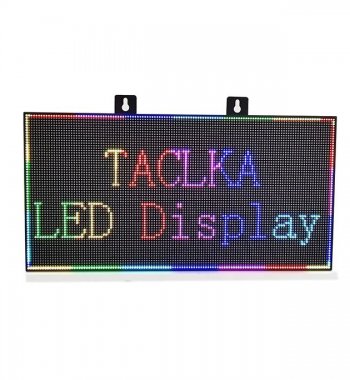

A1 LED screen

Product description:

· Model： A1

· Size： 320*160mm

· Pixel： 128*64

· Water proof： NO

· Software： RHXPlus

· Environment： indoor

· Display： text time Positive/Countdown

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Here are some details related to CVTAT A1 LED Billboard:

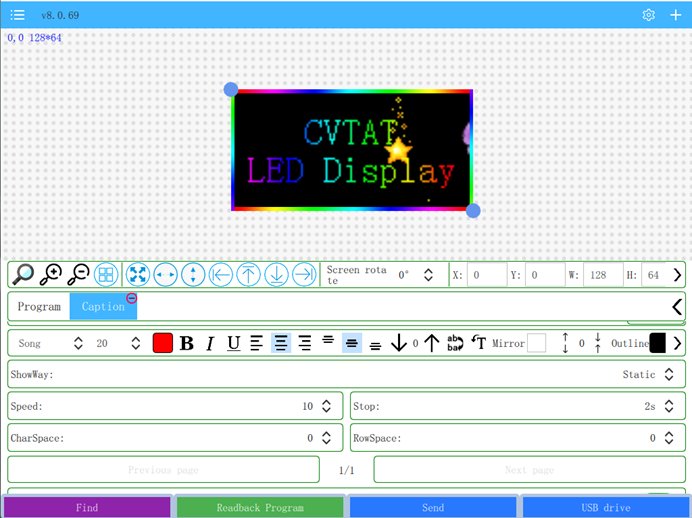

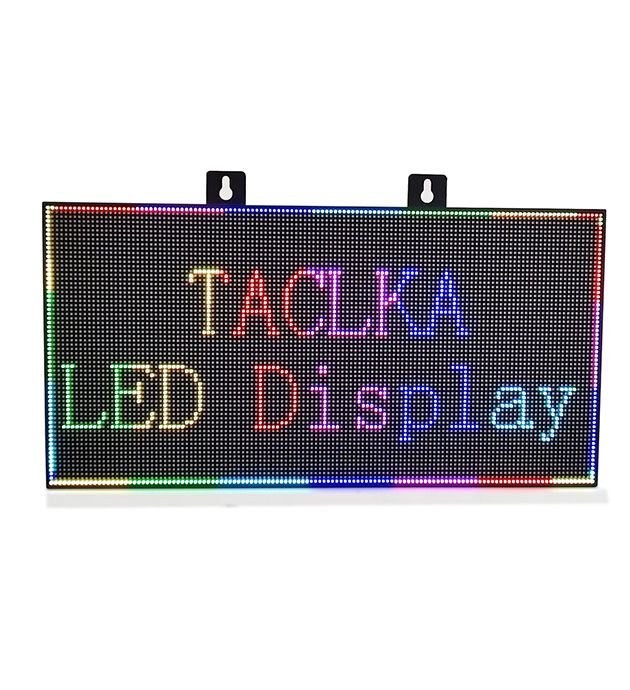

Programming text


Display full-color text

1.programmable small led screen, Total pixels 128*64 dots,The resolution is lower than LCDs and TVs, and the brightness is higher than them. In fact, it is this pros and cons that make the displayed content grainy enough to be viewed from a distance.

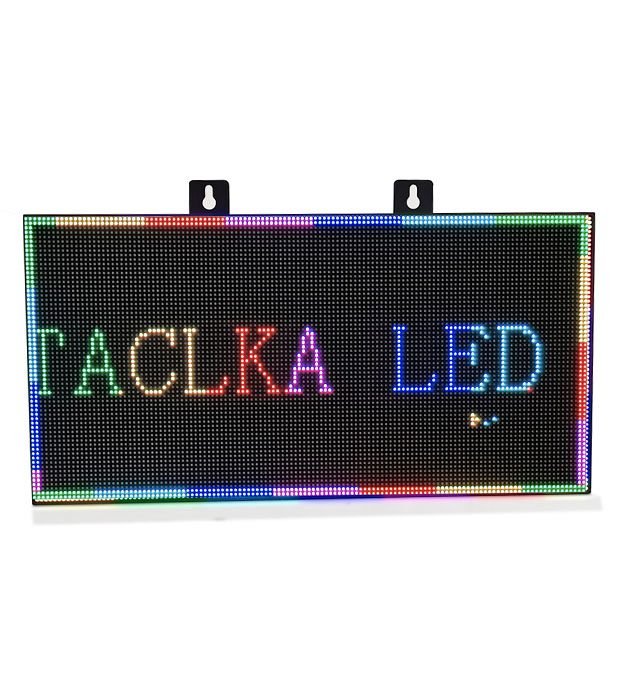

2.Display full-color text, text can be added with background, text can be scrolled，Text Ads Scrollable Suitable for advertising Signs.

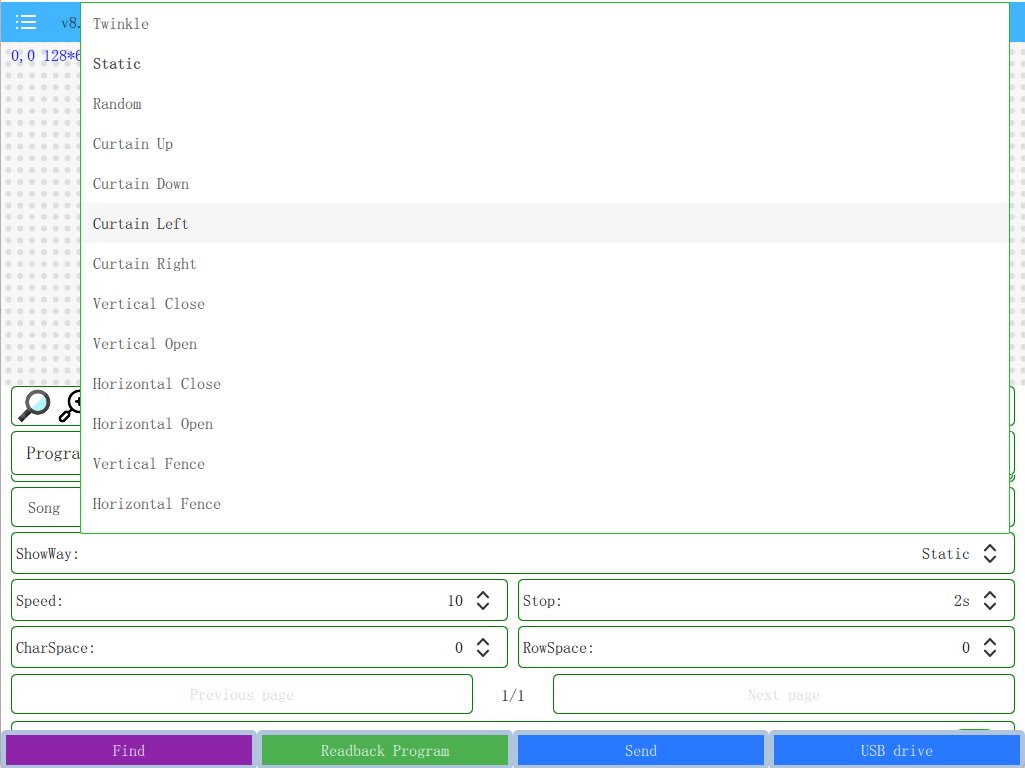

3.Multiple playback styles, please watch the demo video.

4.Requires a certain amount of hands-on ability.

please be sure to follow the operation instructions for the first use

5.Please remember your WiFi password, once forgotten it cannot be recovered

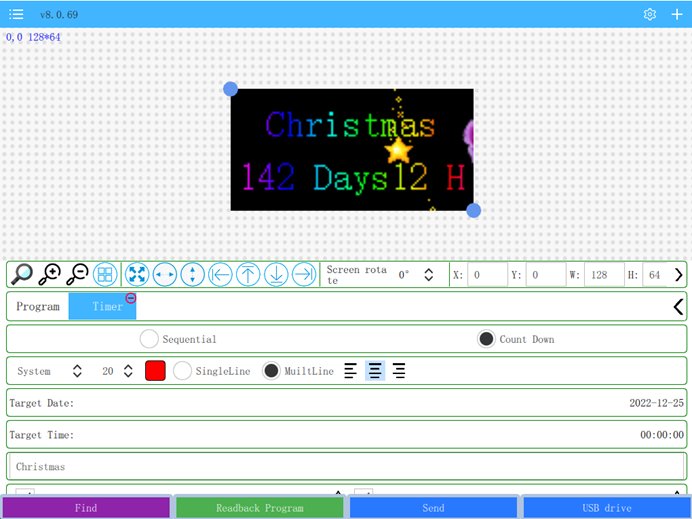

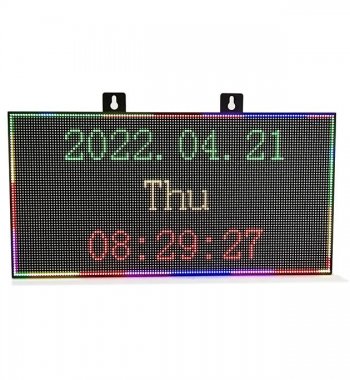

Programming calendar, countdown

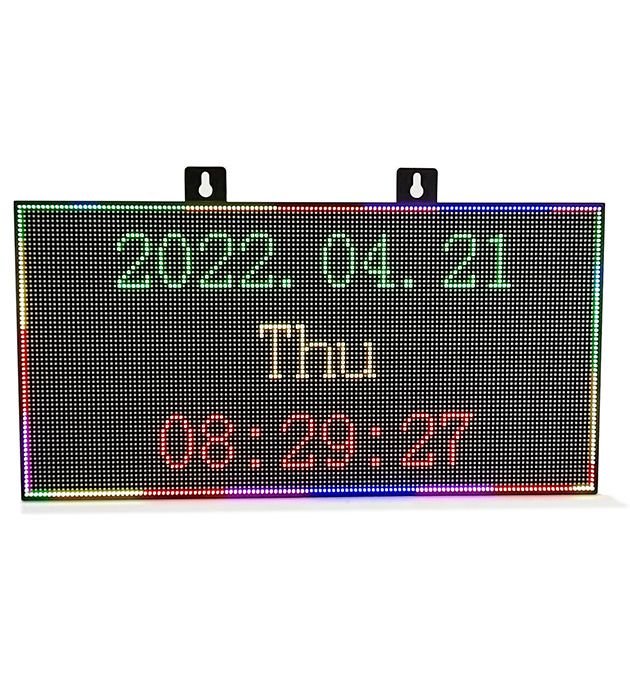

Calendar, countdown

Calendar function:

Display electronic clock, support proofreading time, date, day of the week, time, you can set different colors separately

Timing function:

Support positive timing, countdown


Pay special attention

No other functions，does not support images and videos, No Internet function, mobile phone or PC connected to its WiFi hotspot,

Communicate with it to send the text you want to display

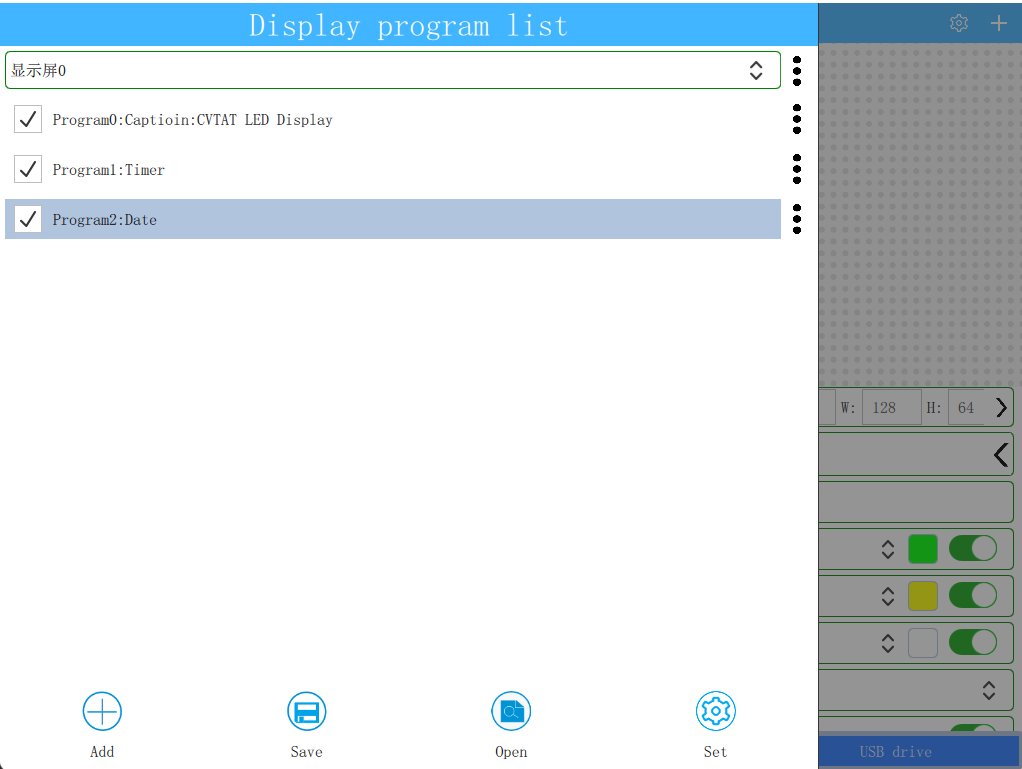

Download the programming software according to the manual website

Software supports Android, iOS, Windows（Linux and MAC are not supported）

Powered by external power adapter

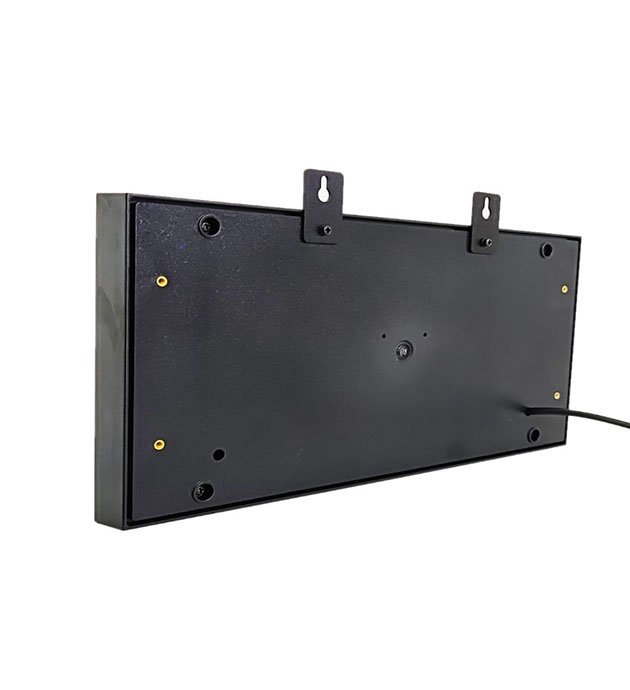

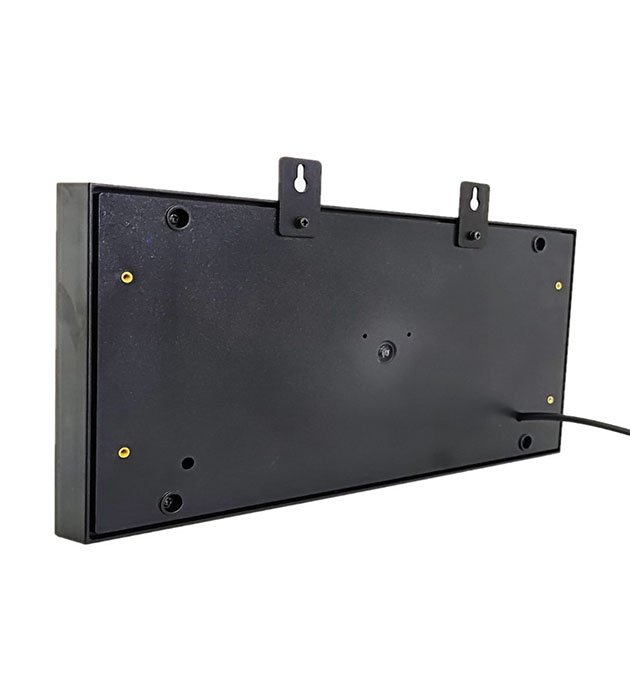

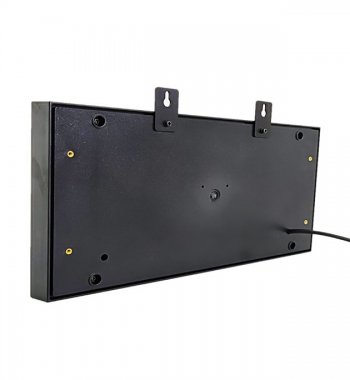

Installation method: hanging on the wall, standing on the desktop


image image

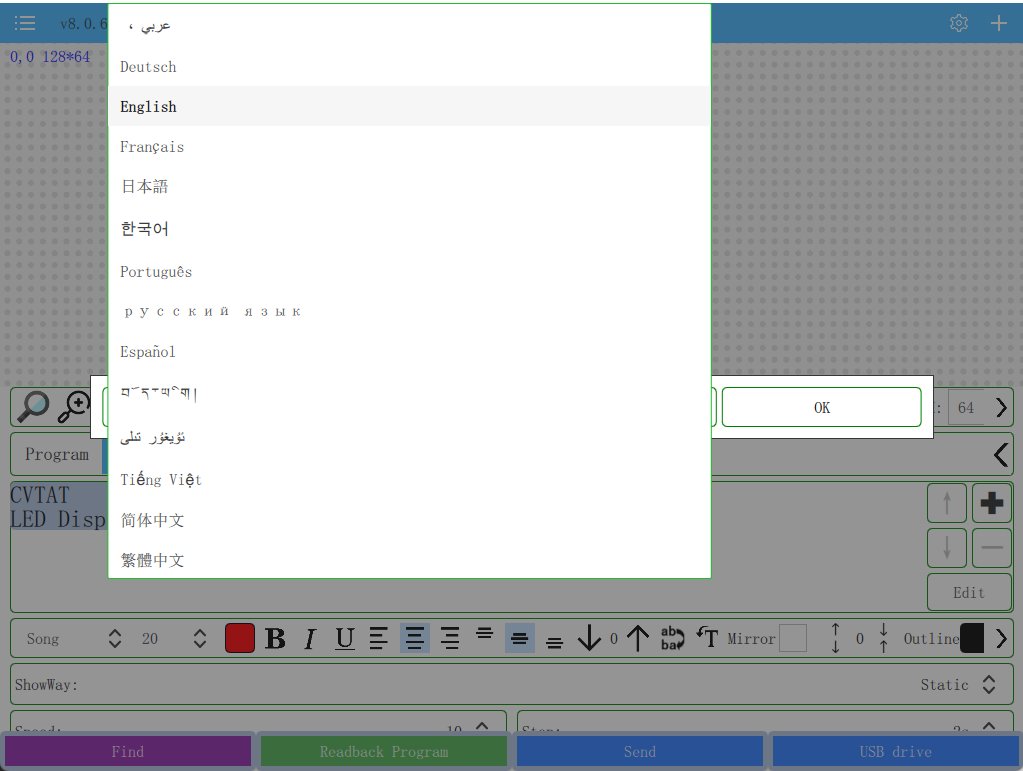

Language：

Arabic,German,English,French,Japanese,Korean,Portuguese,Russian,Spanish,Spanish,Vietnamese

Size: 320*20*160mm (L*W*H)

Weight: 0.5kg without adapter


Include:

Small led display*1

Power adapter*1

Operation guide*1


Specification

INDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2.5-32S
Module size320mm*160mm
Pixel pitch2.5mm
Pixels Density160000 dots/m2
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution128dots(W)*64 dots(H)
Max Power 32W
Weight0.425kg
Drive typeConstant drive
Scan mode 1/32scan

Port typeHUB75E
Best viewing distance3M～20M
Best viewing angle 140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
Powerworking:-20℃～+50℃
Relative humidity10%-95%
Working voltageDV 5V
Average Power consumption<240W/㎡
Main technical  parameterMax.Power consumption<620W/㎡
Current<18mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
Color65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
