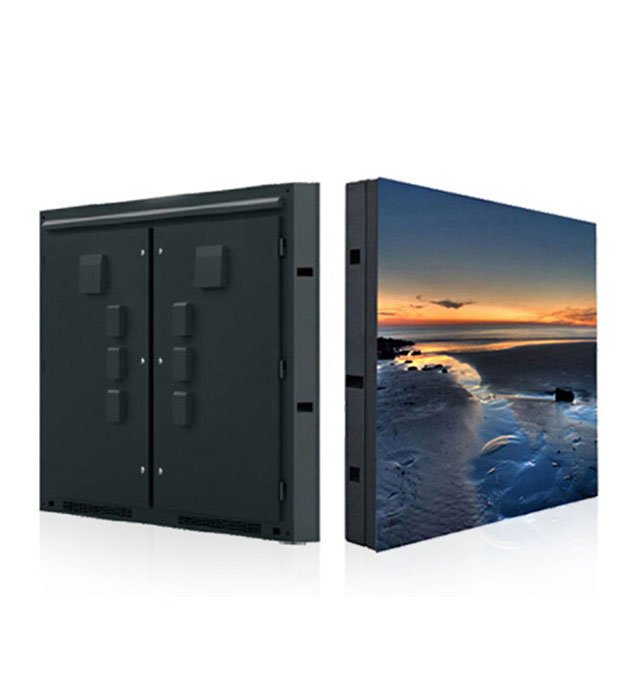

P10 Outdoor Waterproof Iron Cabinet

Product description:

· LED Module： P10

· Module Size： 320*160mm

· Module Pixel： 32*16

· Cabinet Pixel： 96*96

· Cabinet Size： 960*960mm

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details



Standard Cabinet Size 960mm x960mm

960mm outdoor fixed installation LED display,adopts 960mmx960mm standard size cabinetdesign,150mm ultra-thin thickness, uniformly fixed installation LED display.


Standard size LED MODULE 320x160mm

960x960mm LED display with panel Standard size:320x160mm.Standard LED displays are quick toinstall and maintain. Changing the pixel spacing isalso very convenient, just change the units becausethey have the same unit size and structure.


Professional cabin design

Full fixed outdoor LED display products are lighterin weight, LED display with quick lock function,compact structure, easy to install, no gaps. Theuser-friendly handlebar design makes it easy tomove the cabinet.


High refresh rate, contrast andbrightness

The LED display has high brightness, high contrast.high refresh rate of lC drive and high grayscale.The LED display screen has high definition images,clear video display and excellent picture quality.

Advanced chassis features

The outdoor installed LED display cabinet, made ofiron material heat treatment, and covered withwaterproof anti-corrosion protective film, canextend the service life, improve heat resistance. Inaddition, the cabinet has high rigidity, excellentresistance to wind and cold, and can withstand thetwelfth hurricane. And the size of the outdoor LEDdisplay cabinet can be customized according tocustomers conditions. Contact us for more information.



Waterproof and abrasion resistant

All-weather outdoor environment. With the uniqueprotection technology to make the screen up tolP65 level, it can work normally in any weather!High degree of protection guarantees lP65.durability, reliability, anti-UV and static.


Excellent heat leakage and water resistance

The outdoor LED screen installed features specialair inlet, air outlet heat dissipation and waterproofstructure, excellent water resistance, uniquestructure design for cooling and completely quiet operation.

Wide viewing angle

The viewing angle is up to 120degrees bothvertically and horizontally, providing a wide viewingangle. Both 120 degrees of horizontal and verticalviewing angle. Looking from any angles, the imagewill still be natural and clear in the LED display.



Specification

OUTDOOR P10 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP10
Module size320mm*160mm
Pixel pitch10mm
Pixels Density10000 dots /m2
Pixel configuration1R1G1B
Package modeSMD3535
Pixel resolution32dots(W)*16 dots(H)
Max Power45W
Module thickness17.05mm
Weight0.51kg
Drive typeConstant drive
Scan mode1/2scan  1/4scan
Port typeHUB75
Brightness of white balance≥6500cd/m2
Best viewing distance10M～50M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<350W/㎡
Max.Power consumption<880W/㎡
Current<20mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>960HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch
