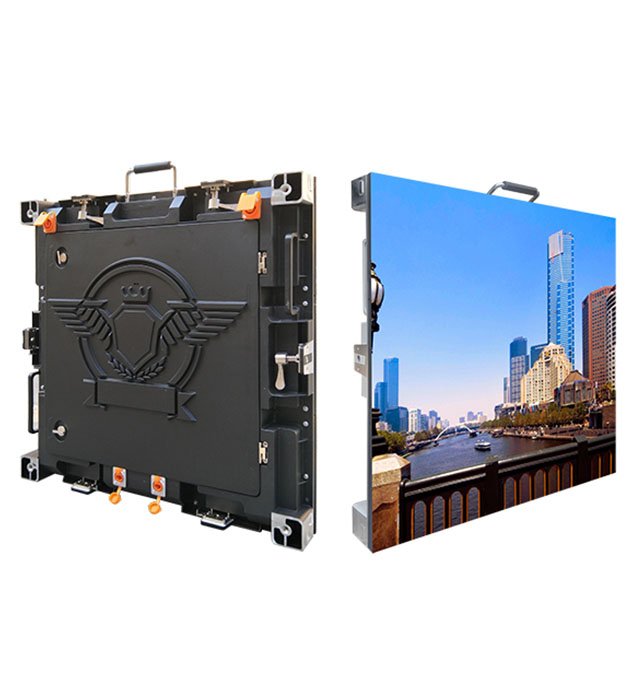

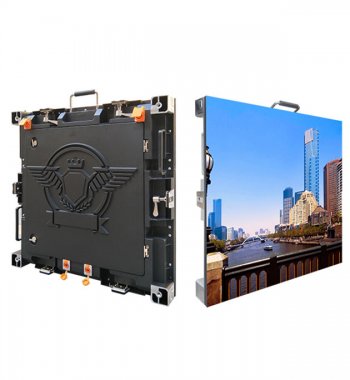

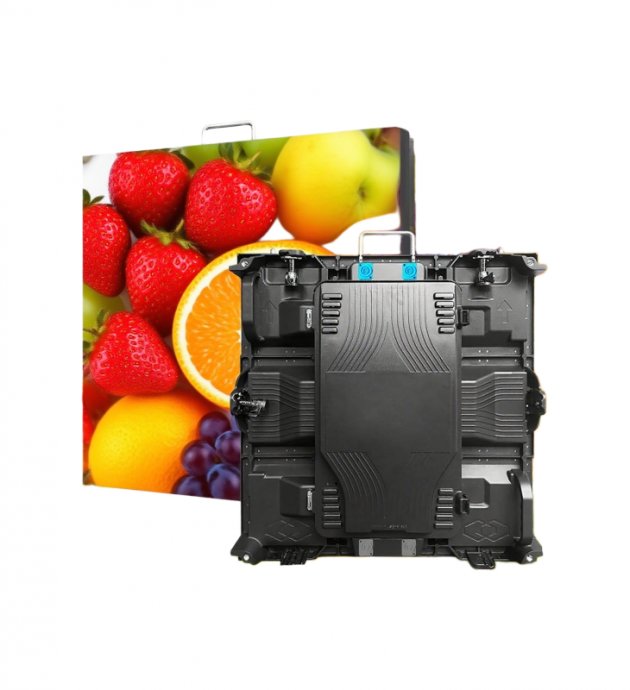

Here are some details related to CVTAT P6 outdoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

Product Application

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.

OUTDOOR P6 SMD 3IN1 TECHNICAL PARAMETERS
Unit Module	Item	Parameter
	Model Number	P6-8S
	Module size	192mm*192mm
	Pixel pitch	6mm
	Pixels Density	27777点/m2
	Pixel configuration	1R1G1B
	Package mode	SMD3535 / SMD2727
	Pixel resolution	32dots(W)*32dots(H)
	Max Power	28W
	Module thickness	17.05mm
	Weight	0.369kg
	Drive type	Constant drive
	Scan mode	1/8scan
	Port type	HUB75
	Brightness of white balance	≥6500cd/m2
	Best viewing distance	6M～40M
	Best viewing angle	160°(W) 120°(H)
	Temperature	storage:-35℃～+85℃
	Temperature	working:-20℃～+50℃
	Relative humidity	10%-95%
Power	Working voltage	DC 5V
	Average Power consumption	<380W/㎡
	Max.Power consumption	<950W/㎡
	Current	<20mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>1800HZ
	Grey scale/colors	16384gray level/16.7M colors
	MTBF	>9000hours
	Lifespan	>100000hours
	Power switch	Automatic switch
