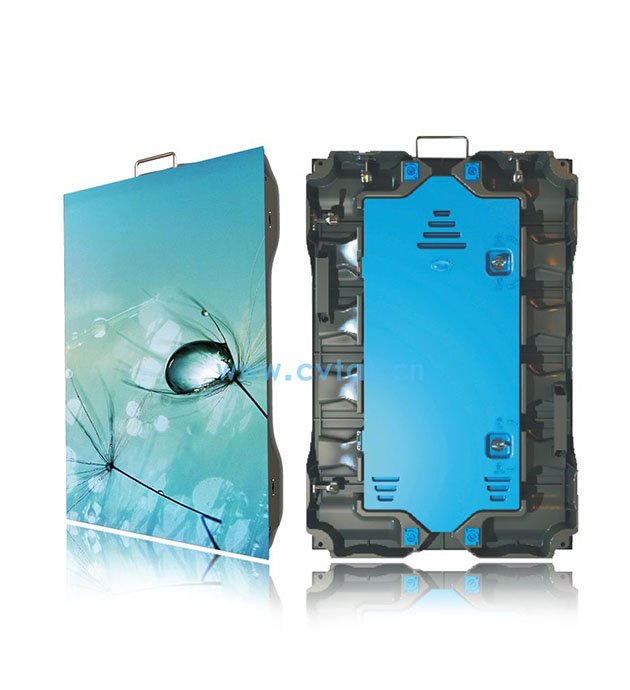

P4 Outdoor Waterproof Die Casting Aluminum Rental Cabinet

Search ...

Here are some details related to CVTAT P4 outdoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

Product Application

Long life Span

Warter Proof

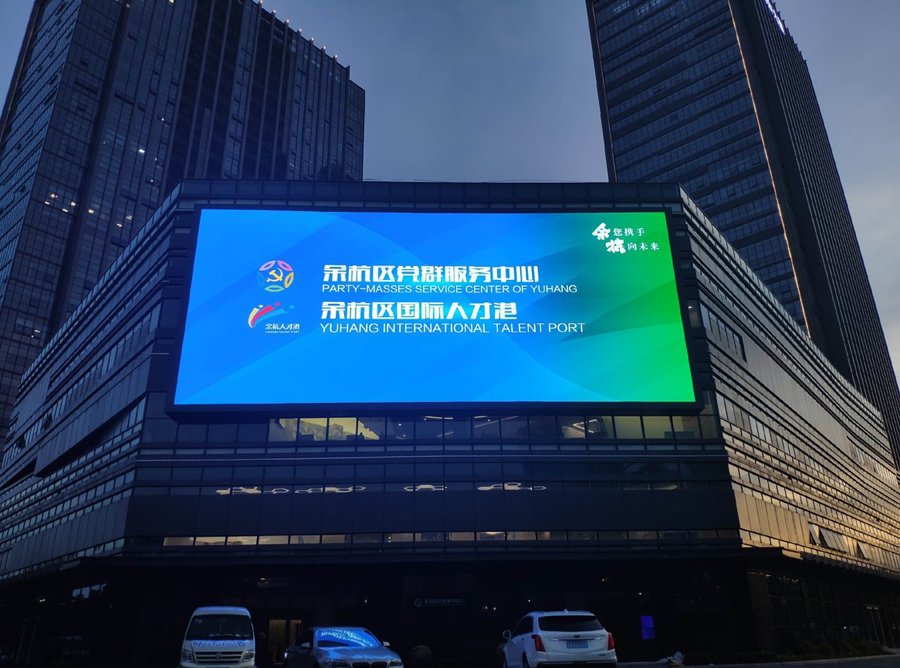

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.

OUTDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Unit Module	Item	Parameter
	Model Number	P4-10S
	Module size	320mm*160mm
	Pixel pitch	4mm
	Pixels Density	62500 dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD1921
	Pixel resolution	80dots(W)*40dots(H)
	Max Power	40W
	Module thickness	16mm
	Drive type	Constant drive
	Scan mode	1/10扫描 1/10scan
	Port type	HUB75
	Brightness of white balance	≥5500cd/m2
	Best viewing distance	4M～50M
	Best viewing angle	160°(W) 120°(H)
	Temperature	storage:-35℃～+85℃
	Temperature	working:-20℃～+50℃
	Relative humidity	10%-95%
Power	Working voltage	AC110V～220V±10%
	Average Power consumption	<320W/㎡
	Max.Power consumption	<800W/㎡
	Current	<20mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>1920HZ
	Grey scale/colors	16384gray level/16.7M colors
	MTBF	>9000hours
	Lifespan	>100000hours
	Power switch	Automatic switch
