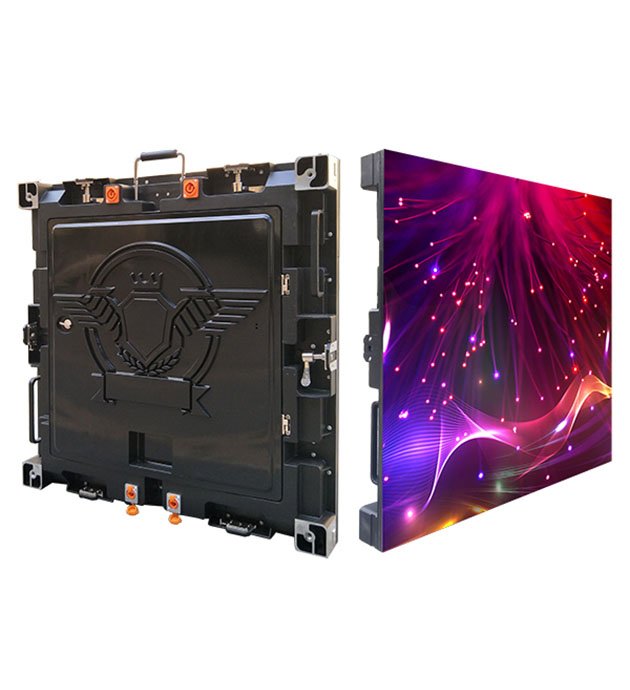

P5 indoor die-casting aluminum rental cabinet

Product description:

· LED Module： P5

· Module Size： 320*160mm

· Module Pixel： 64*32

· Cabinet Pixel： 192*192

· Cabinet Size： 960*960mm

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Here are some details related to CVTAT P5 indoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

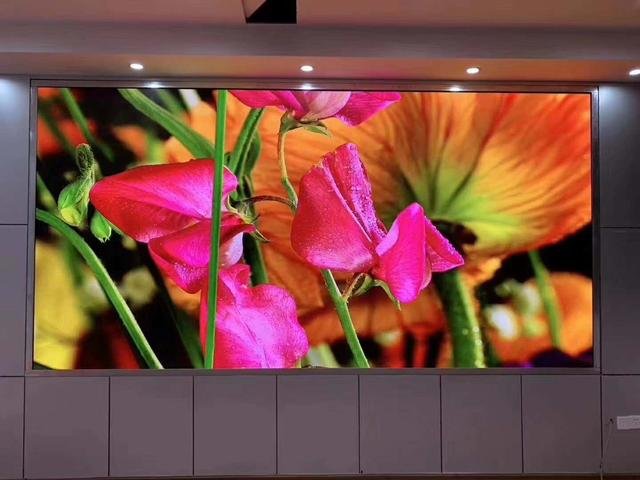

Product Application

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.



Specification

INDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP5-16S
Module size320mm*160mm
Pixel pitch5mm
Pixels Density40000点/m2
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution64dots(W)*32dots(H)
Max Power23W
Weight0.3kg
Drive typeConstant drive
Scan mode1/16scan
Port typeHUB75
Brightness of white balance≥1000cd/m2
Best viewing distance5M～30M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<200W/㎡
Max.Power consumption<500W/㎡
Current<18mA(single LED)
 Main technical  parameterDriving deviceConstant drive  IC
Refresh frequency>1960hz
Grey scale/colors4096gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
