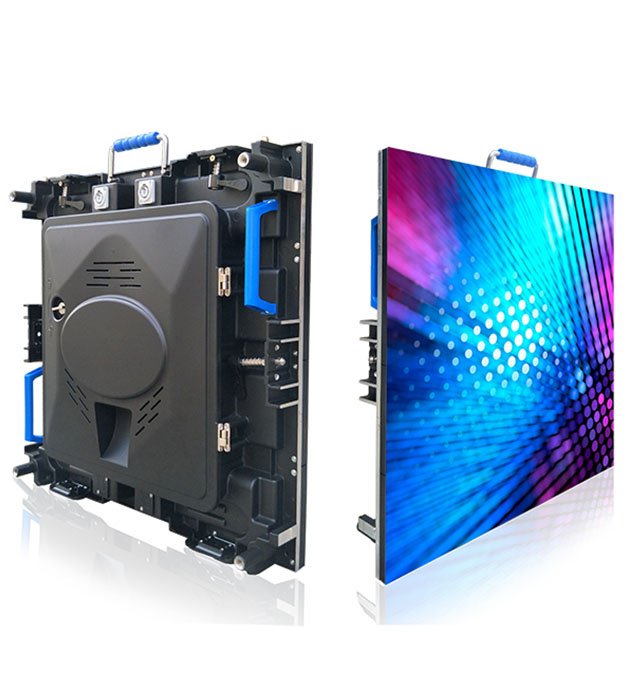

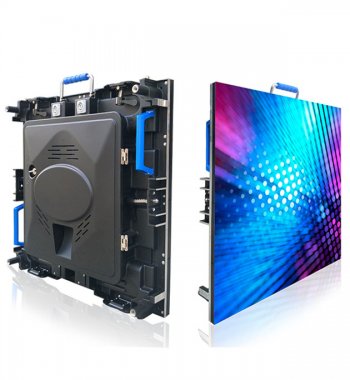

P4 indoor die-casting aluminum rental cabinet

Search ...

Here are some details related to CVTAT P2.976 indoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

Product Application

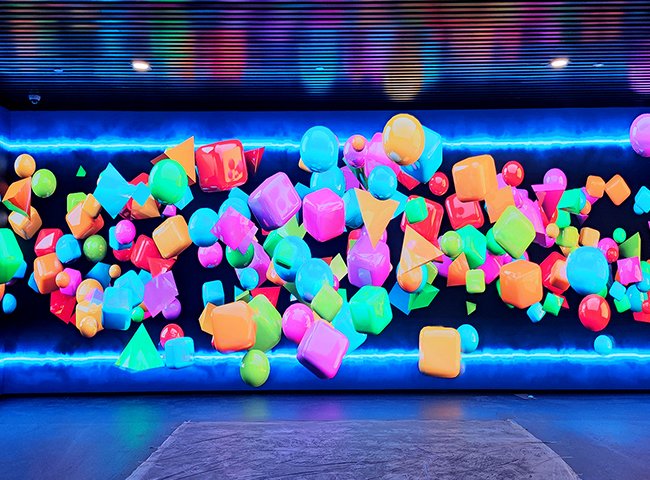

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.

INDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Unit Module	Item	Parameter
	Model Number	P4-20S
	Module size	320mm*160mm
	Pixel pitch	4mm
	Pixels Density	62500 dots / ㎡
	Pixel configuration	1R1G1B
	Package mode	SMD2121
	Pixel resolution	80 dots(W)*40 dots(H)
	Max Power	25W
	Weight	0.242kg
	Drive type	Constant drive
	Scan mode	1/20scan
	Port type	HUB75
	Brightness of white balance	≥800cd / ㎡
	Best viewing distance	4M～20M
	Best viewing angle	160°(W) 120°(H)
	Temperature	storage:-35℃～+85℃
	Temperature	working:-20℃～+50℃
	Relative humidity	10%-95%
Power	Working voltage	DC 5V
	Average Power consumption	<280W/㎡
	Max.Power consumption	<700W/㎡
	Current	<18mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>1920HZ
	Grey scale/colors	16384gray level/16.7M colors
	MTBF	>9000hours
	Lifespan	>100000hours
	Power switch	Automatic switch
