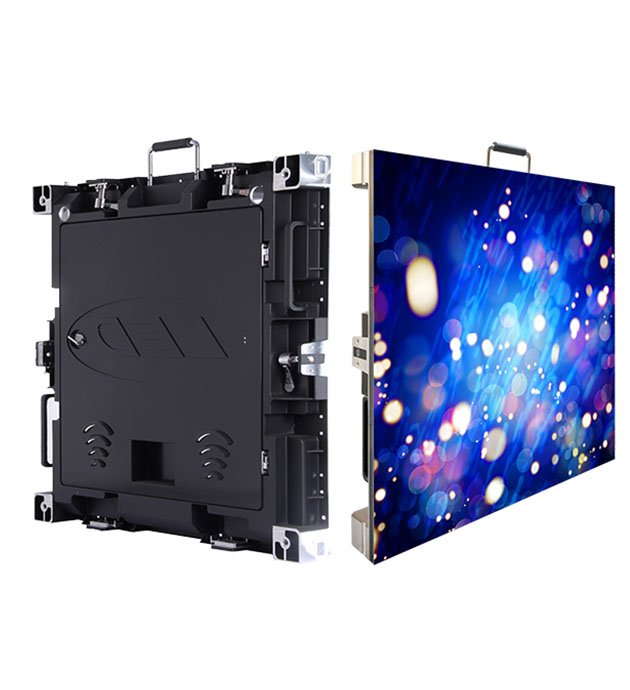

P3 indoor die-casting aluminum rental cabinet

Search ...

Here are some details related to CVTAT P1.86 indoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

Product Application

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.

INDOOR P3 SMD 3IN1 TECHNICAL PARAMETERS
Unit Module	Item	Parameter
	Model Number	P3-32S
	Module size	192mm*192mm
	Pixel pitch	3mm
	Pixels Density	111111 dots /㎡
	Pixel configuration	1R1G1B
	Package mode	SMD2121
	Pixel resolution	64dots(W)*64 dots(H)
	Max Power	23W
	Weight	0.31kg
	Drive type	Constant drive
	Scan mode	1/32scan
	Port type	HUB75E
	Brightness of white balance	≥1200cd/m2
	Best viewing distance	3M～20M
	Best viewing angle	160°(W) 120°(H)
	Temperature	storage:-35℃～+85℃
	Temperature	working:-20℃～+50℃
	Relative humidity	10%-95%
Power	Working voltage	DC 5V
	Average Power consumption	<270W/㎡
	Max.Power consumption	<680W/㎡
	Current	<18mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>3840HZ
	Grey scale/colors	16384gray level/16.7M colors
	MTBF	>9000hours
	Lifespan	>100000hours
	Power switch	Automatic switch
