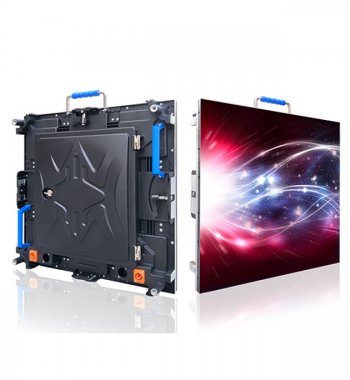

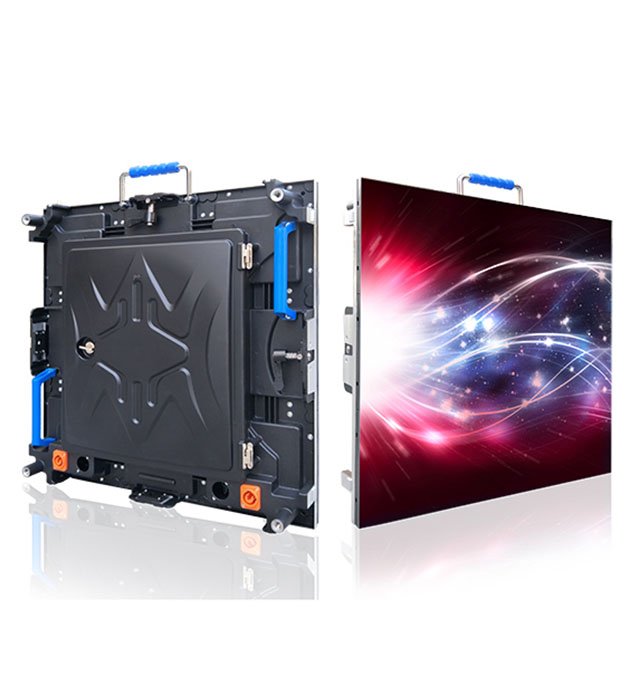

P2.5 indoor die-casting aluminum rental cabinet

Product description:

· LED Module： p2.5

· Module Size： 320*160mm

· Module Pixel： 128*64

· Cabinet Pixel： 256*256

· Cabinet Size： 640*640mm

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Here are some details related to CVTAT P1.86 indoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area


Product Application

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.

Specification

INDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2.5-32S
Module size320mm*160mm
Pixel pitch2.5mm
Pixels Density160000 dots/m2
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution128dots(W)*64 dots(H)
Max Power 32W
Weight0.425kg
Drive typeConstant drive
Scan mode 1/32scan
Port typeHUB75E
Best viewing distance3M～20M
Best viewing angle 140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
PowerRelative humidity10%-95%
Working voltageDV 5V
Average Power consumption<240W/㎡
Main technical  parameterMax.Power consumption<620W/㎡
Current<18mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
Color65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
