P2 indoor die-casting aluminum rental cabinet

Search ...
aboutBanner

Products

-1_0000_P2 indoor LED Cabinet
-1_0000_P2 indoor LED Cabinet

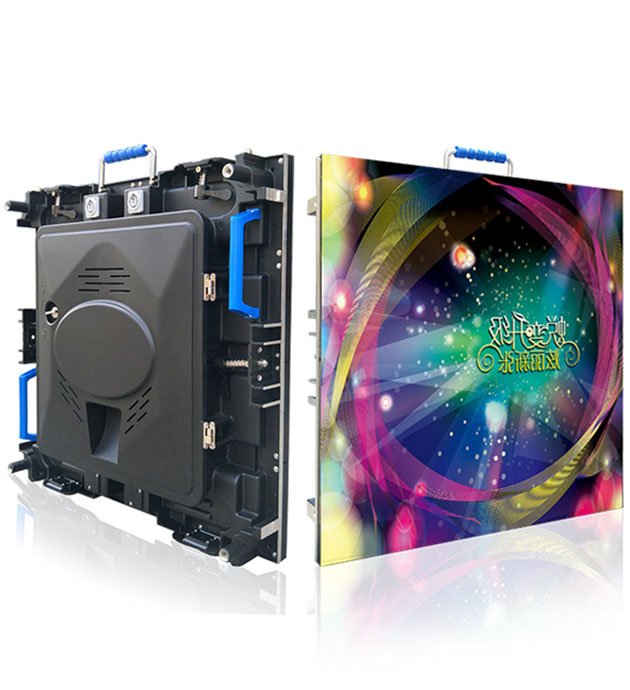

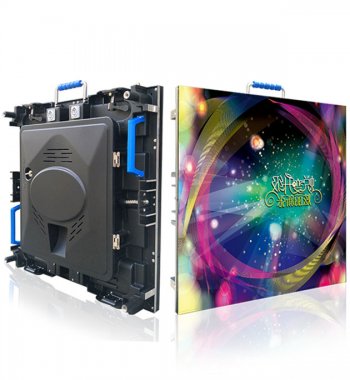

P2 indoor die-casting aluminum rental cabinet

Product description:

· LED Module： P2

· Module Size： 320*160mm

· Module Pixel： 160*80

· Cabinet Pixel： 320*320

· Cabinet Size： 640*640mm

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Here are some details related to CVTAT P1.86 indoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

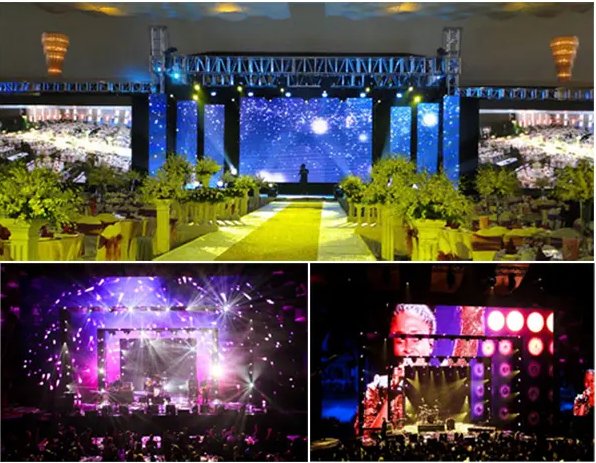

Product Application

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.



Specification

INDOOR P2 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2-40S
Module size320mm*160mm
Pixel pitch2mm
Pixels Density250000 dots/m2
Pixel configuration1R1G1B
Package modeSMD 3IN1 -1515
Pixel resolution160dots(W)*80 dots(H)
Max Power 23W
Weight0.452KG
Drive typeConstant drive
Scan mode 1/40scan
Port typeHUB320/HUB75
Best viewing distance2M～10M
Best viewing angle 140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
PowerRelative humidity10%-95%
Working voltageDV 5V
Average Power consumption<280W/㎡
Main technical  parameterMax.Power consumption<700W/㎡
Current<15mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!

Inquire Now
