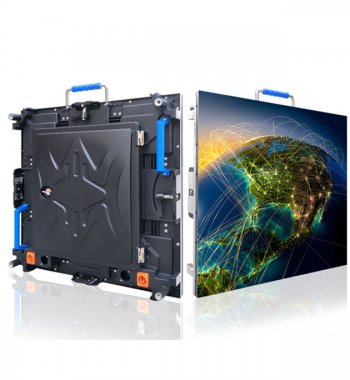

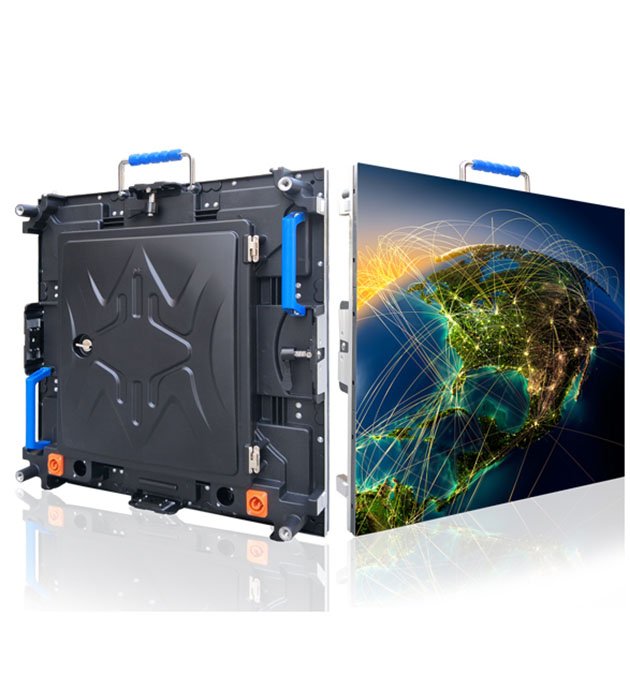

P1.875 indoor die-casting aluminum rental cabinet

Search ...

Here are some details related to CVTAT P1.875 indoor LED Cabinet:

Easy to change

Rental & fixed

Rental screen standardization

Quick unloading and installation

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

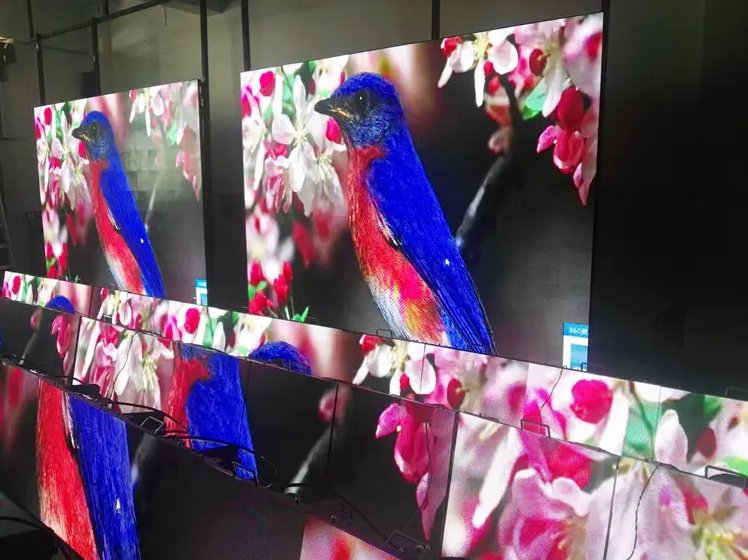

Product Application

Exhibition halls, hotels, weddings, outdoor stages, concerts, conferences and other places.

INDOOR P1.875 SMD 3IN1 TECHNICAL PARAMETERS
Unit Module	Item	Parameter
	Model Number	P1.875-64S
	Module size	250mm*250mm
	Pixel pitch	1.875mm
	Pixels Density	284444 dots /m2
	Pixel configuration	1R1G1B
	Package mode	SMD 3IN1 -1515
	Pixel resolution	128dots(W)*128 dots(H)
	Max Power	30W
	Module thickness	18mm
	Weight	0.6KG
	Drive type	Constant drive
	Scan mode	1/64scan
	Port type	HUB75E
	Brightness of white balance	≥800cd/㎡
	Best viewing distance	2M～10M
	Best viewing angle	140°(W) 120°(H)
	Temperature	storage:-35℃～+85℃
	Temperature	working:-20℃～+50℃
	Relative humidity	10%-95%
Power	Working voltage	DV 5V
	Average Power consumption	<260W/㎡
	Max.Power consumption	<800W/㎡
	Current	<15mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>3200HZ
	Grey scale/colors	65536gray level/16.7M colors
	MTBF	>9000hours
	Lifespan	>100000hours
	Power switch	Automatic switch
