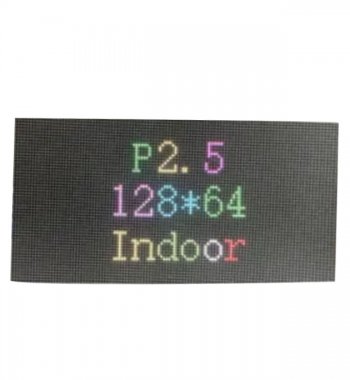

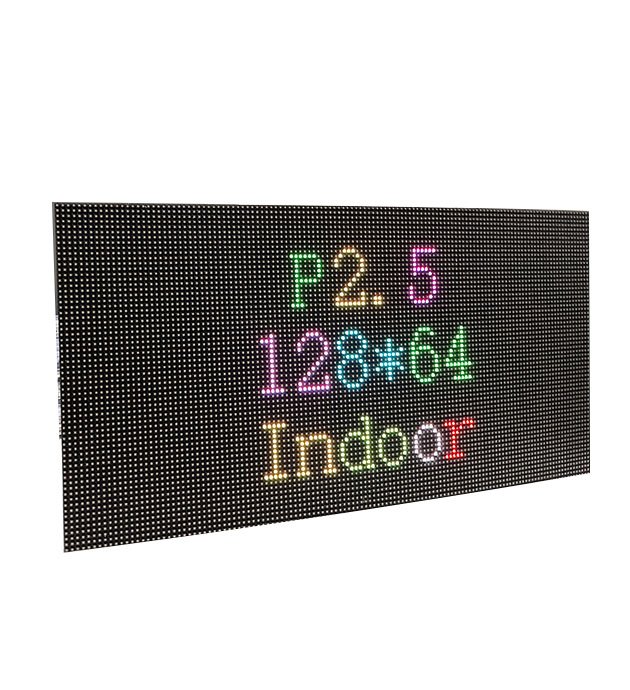

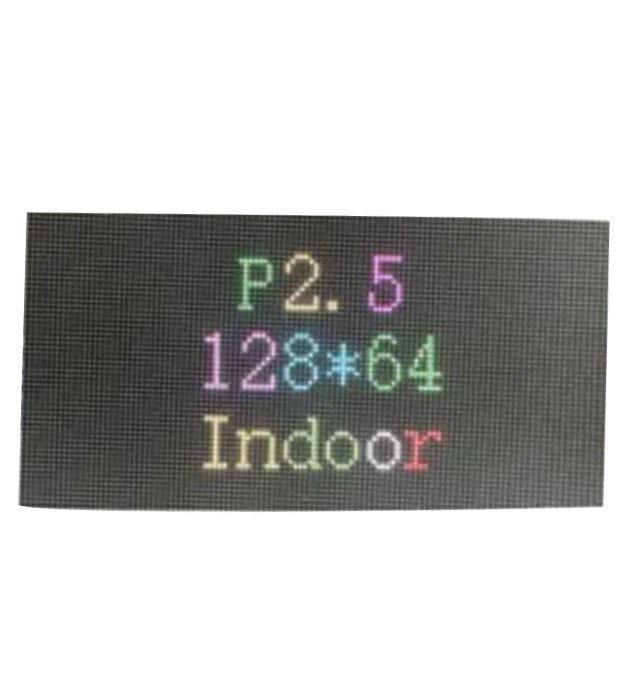

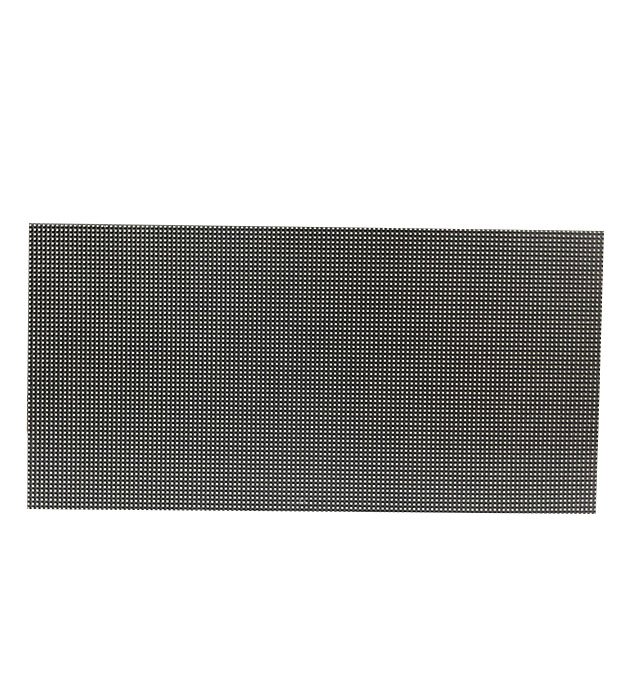

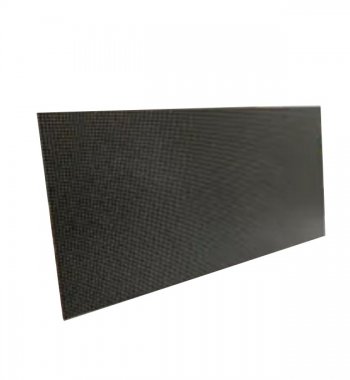

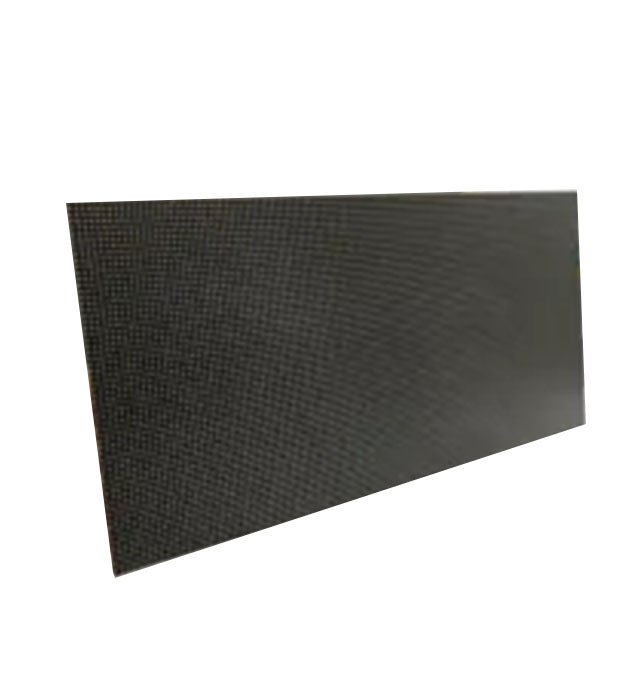

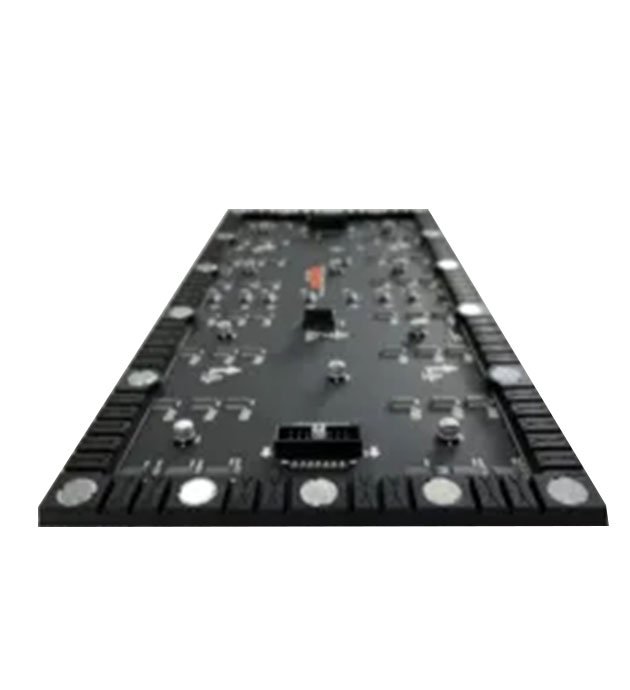

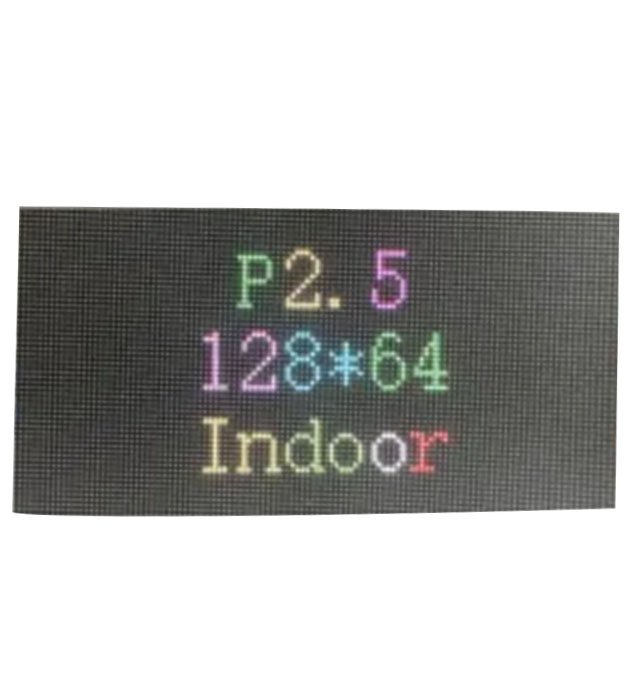

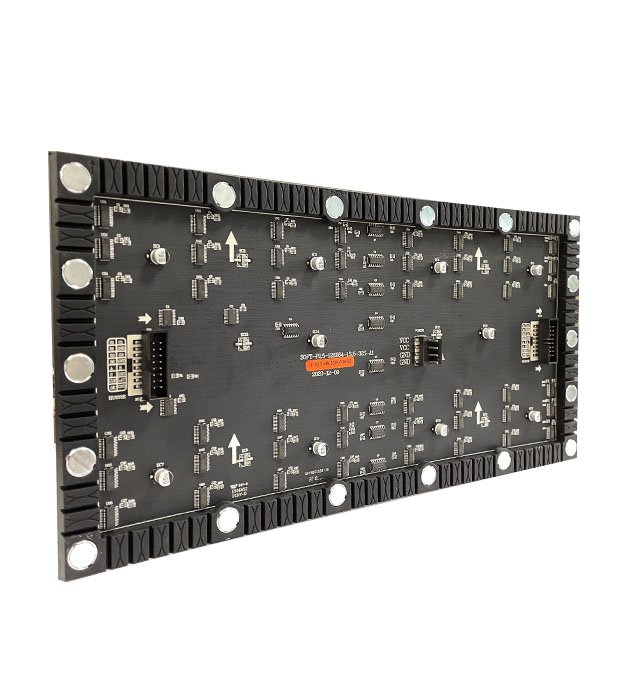

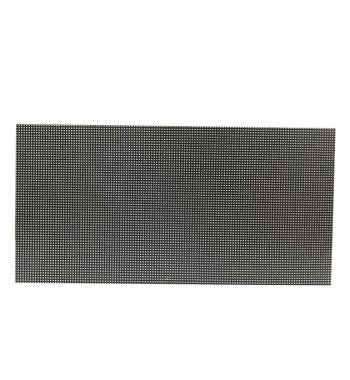

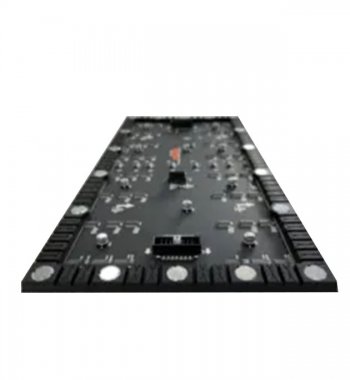

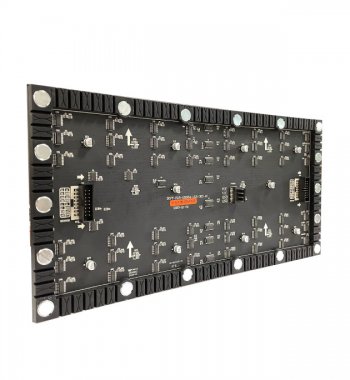

Indoor P2.5 Flexible LED Panel RGB Curved Flexible LED Modules

Product description:

· Model Number： P2.5 soft

· Module size： 320*160mm

· Pixel resolution： 128*64

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

P2.5 indoor Flexible full color LED Panel, smooth surface, good flatness can provide you super visual enjoyment…




Specification

Unit ModuleItemParameter
Model NumberP2.5-32S
Module size320mm*160mm
Pixel pitch2.5mm
Pixels Density160000/㎡
Pixel configuration1R1G1B
Package modeSMD 3IN1 -2121
Pixel resolution128dots(W)*64 dots(H)
Max Power32W
Weight0.452kg
Drive typeConstant drive
Scan mode1/32scan
Port typeHUB75E
Brightness of white balance≥800cd/m2
Working voltageDC 5V
Average Power consumption<240W/㎡
Max.Power consumption<620W/㎡
Current<18mA(single LED)
Best viewing distance3M～20M
Best viewing angle140°(W) 120°(H)
PowerGrey scale/colors65536gray level/16.7M colors
MTBF>9000hours
Power switchAutomatic switch
Main technical parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
MTBF>9000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
