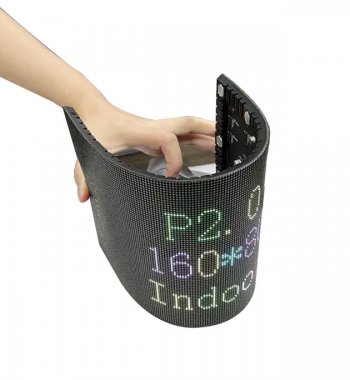

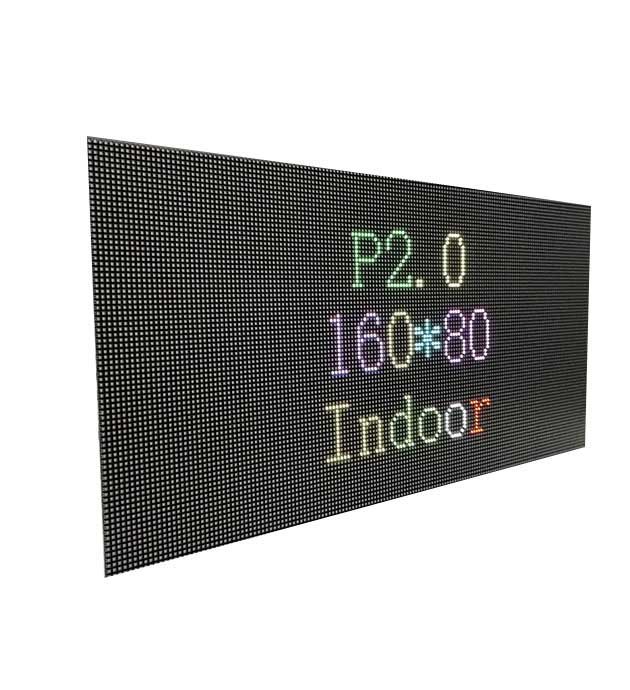

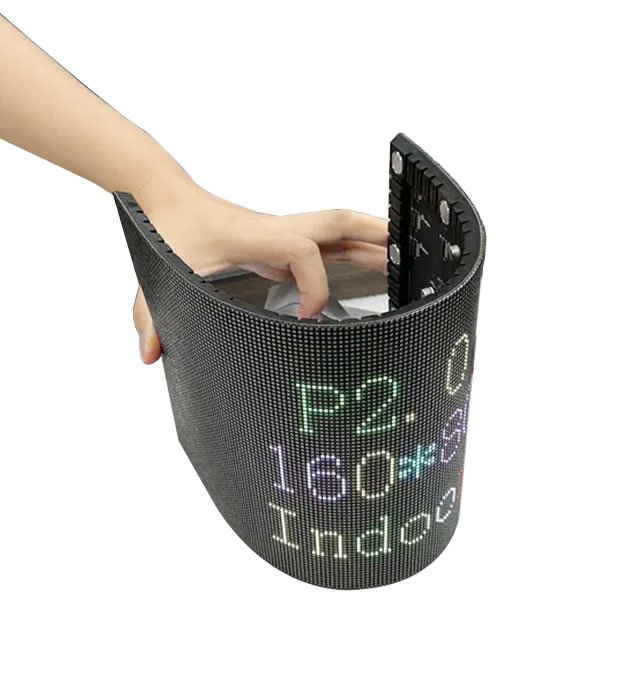

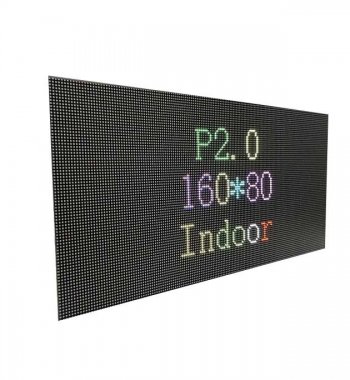

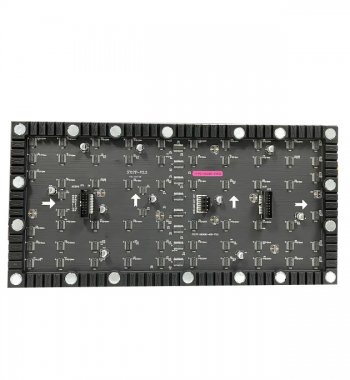

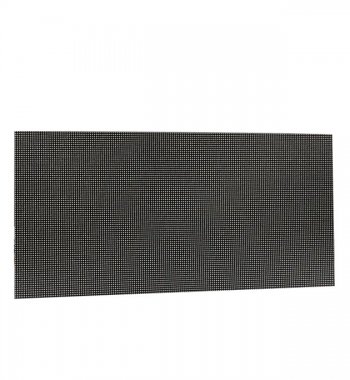

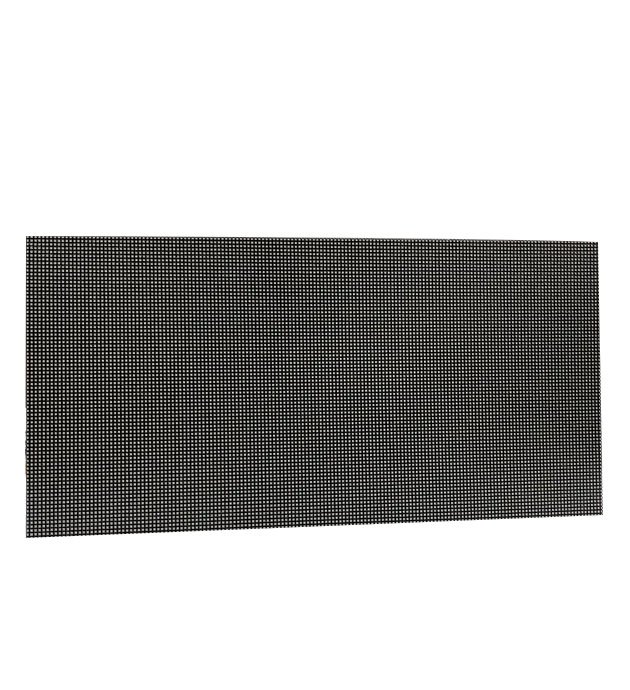

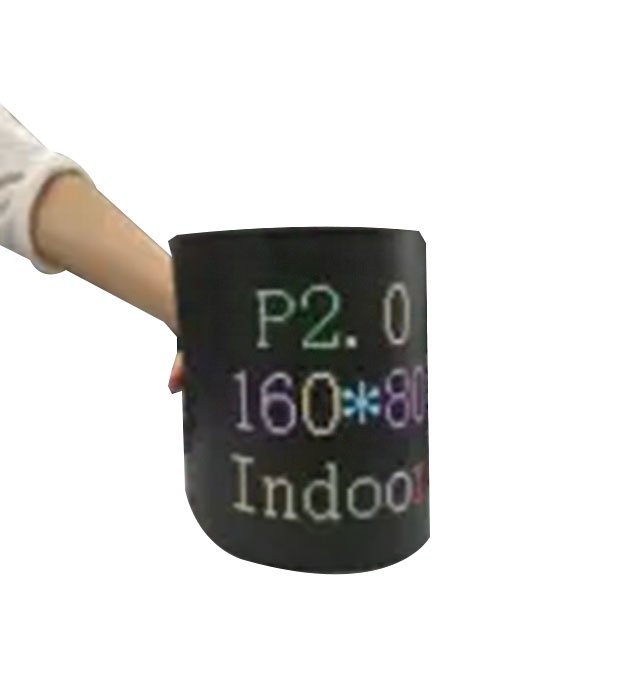

Indoor P2 Flexible LED Panel RGB Curved Flexible LED Modules

Product description:

· Model Number： P2soft

· Module size： 320*160mm

· Pixel resolution： 160*80

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

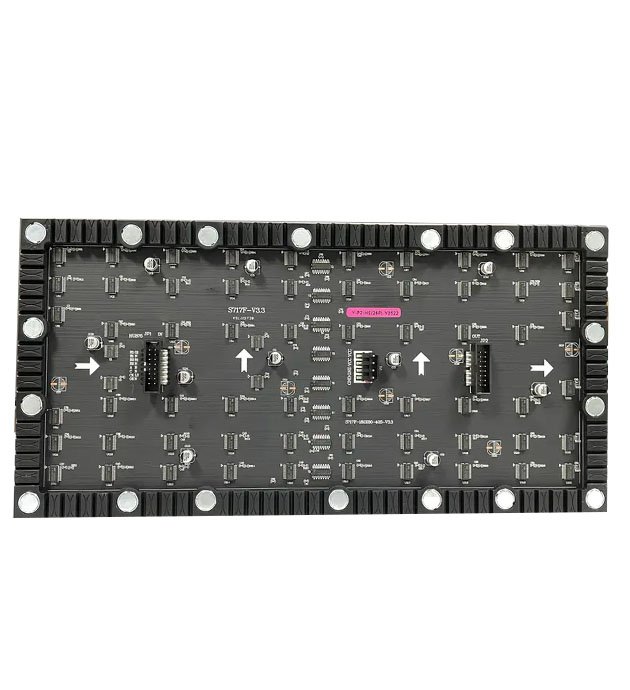

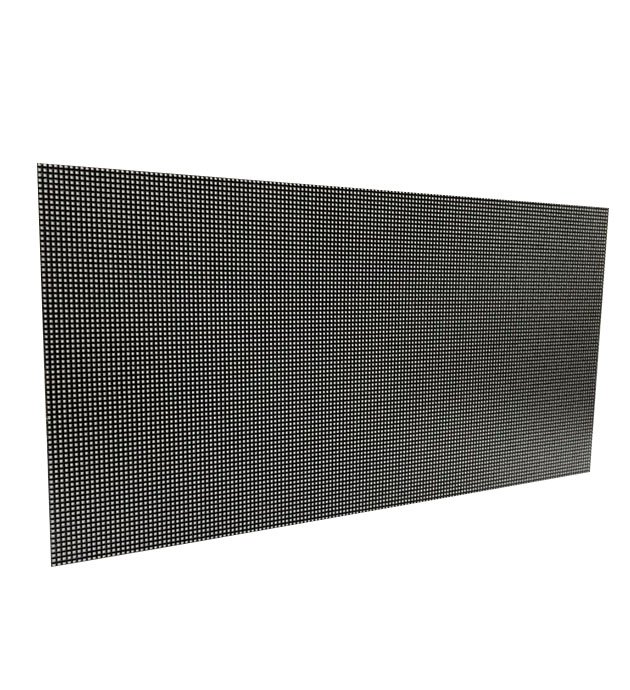

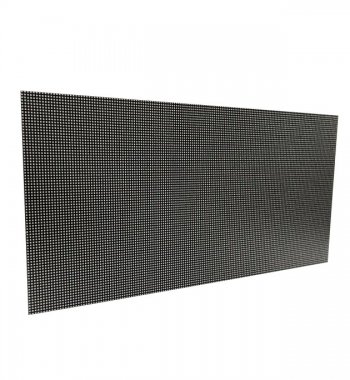

P2 indoor Flexible full color LED Panel,

smooth surface, good flatness can provide you super visual enjoyment…

未标题-1_0002_P2 soft-4


Specification

Unit ModuleItemParameter
Model NumberP2-40S
Module size320mm*160mm
Pixel pitch2mm
Pixels Density250000/㎡
Pixel configuration1R1G1B
Package modeSMD 3IN1 -1515
Pixel resolution160dots(W)*80 dots(H)
Max Power23W
Weight0.452kg
Drive typeConstant drive
Scan mode1/40scan
Port typeHUB320/HUB75
Brightness of white balance≥800cd/m2
Working voltageDC 5V
Average Power consumption<280W/㎡
Max.Power consumption<439W/㎡
Current<15mA(single LED)
Best viewing distance2M～10M
Best viewing angle140°(W) 120°(H)
PowerGrey scale/colors65536gray level/16.7M colors
MTBF>9000hours
Power switchAutomatic switch
Main technical parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
MTBF>9000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
