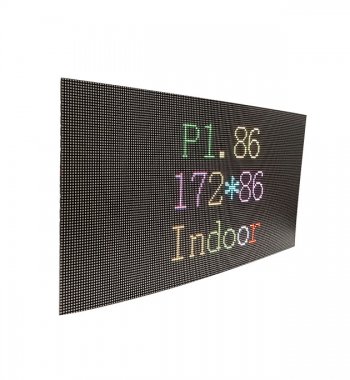

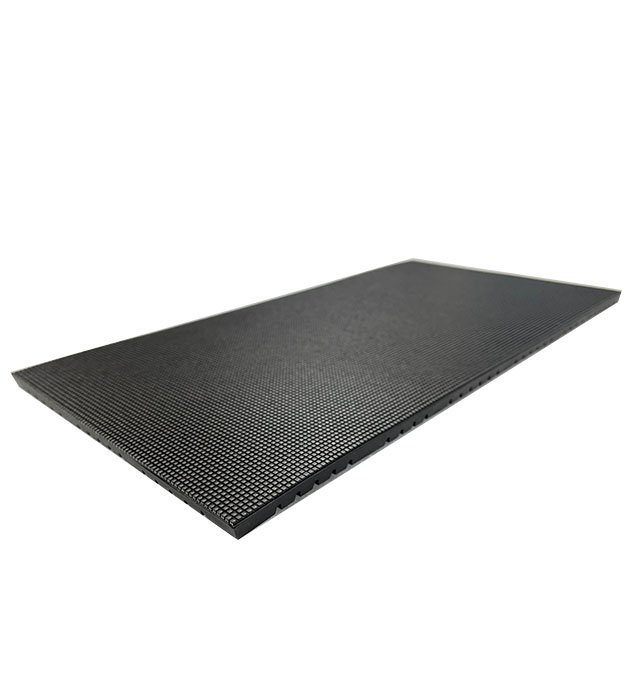

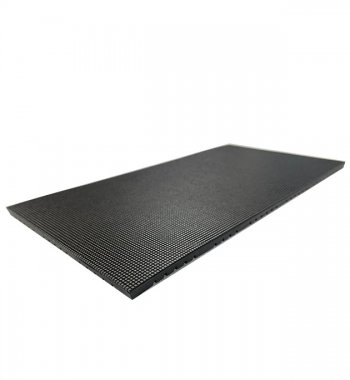

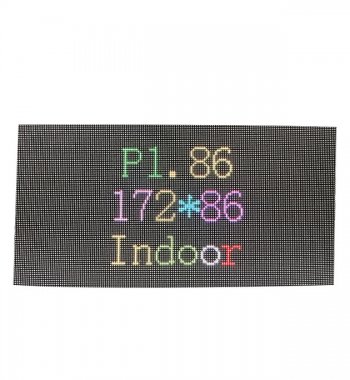

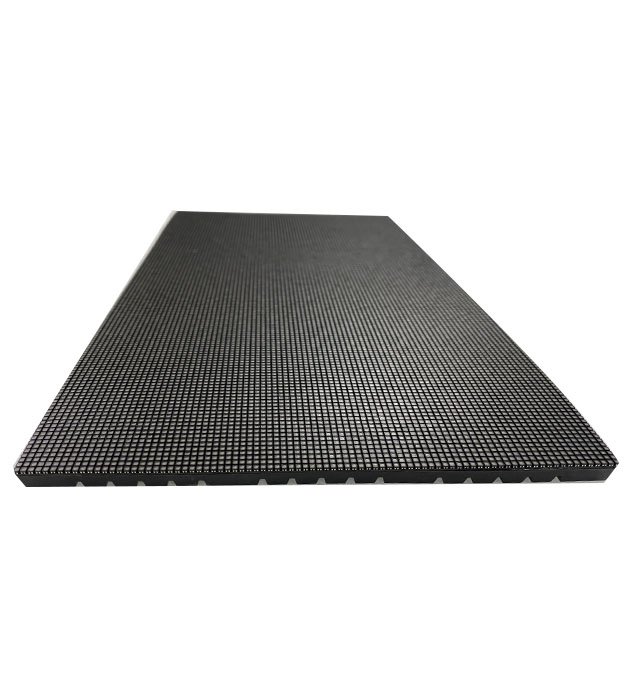

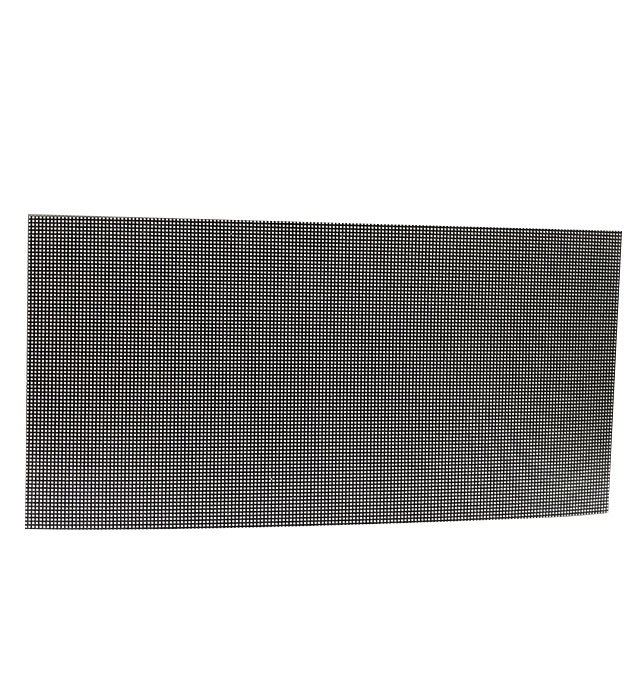

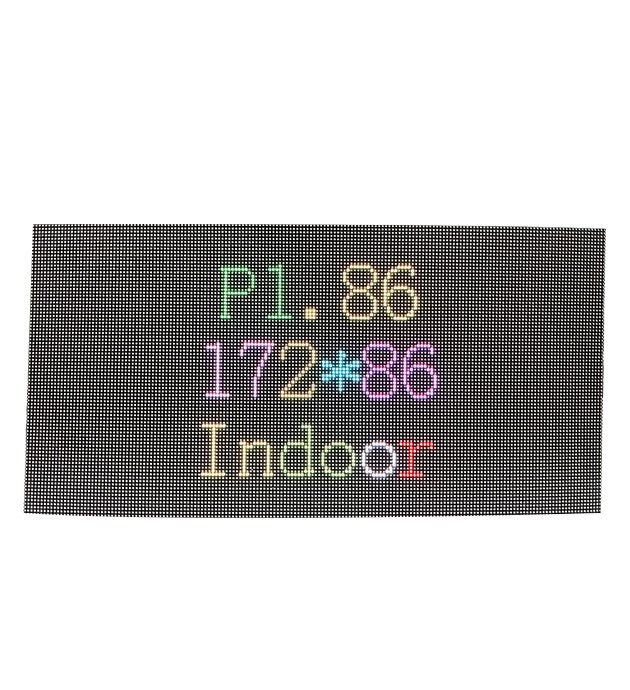

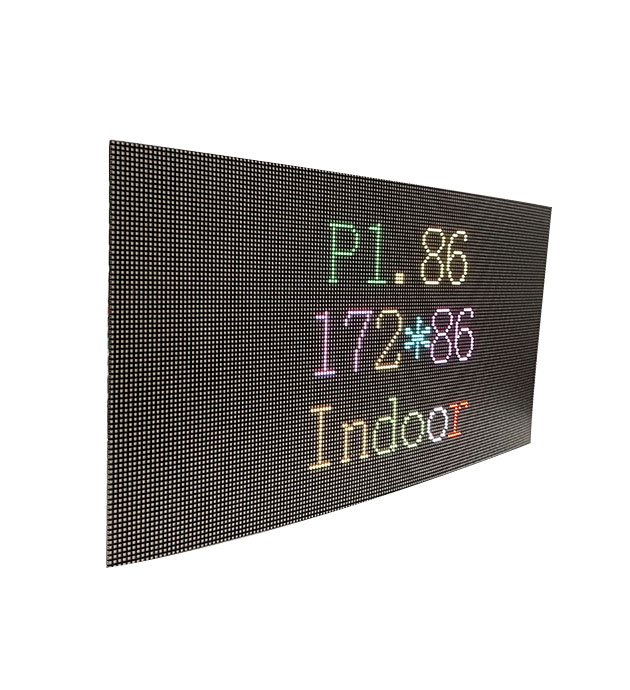

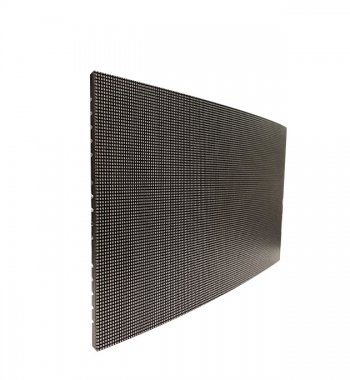

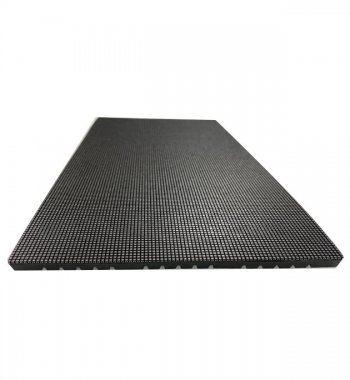

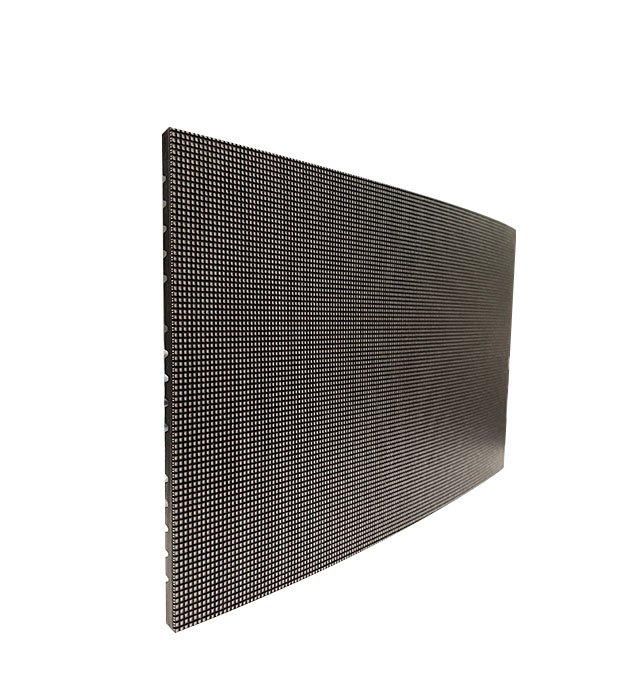

Indoor P1.86 Flexible LED Panel RGB Curved Flexible LED Modules

Product description:

· Model Number： P1.86soft

· Module size： 320*160mm

· Pixel resolution： 172*86

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

P1.86 indoor Flexible full color LED Panel,

smooth surface, good flatness can provide you super visual enjoyment…



Advantage:

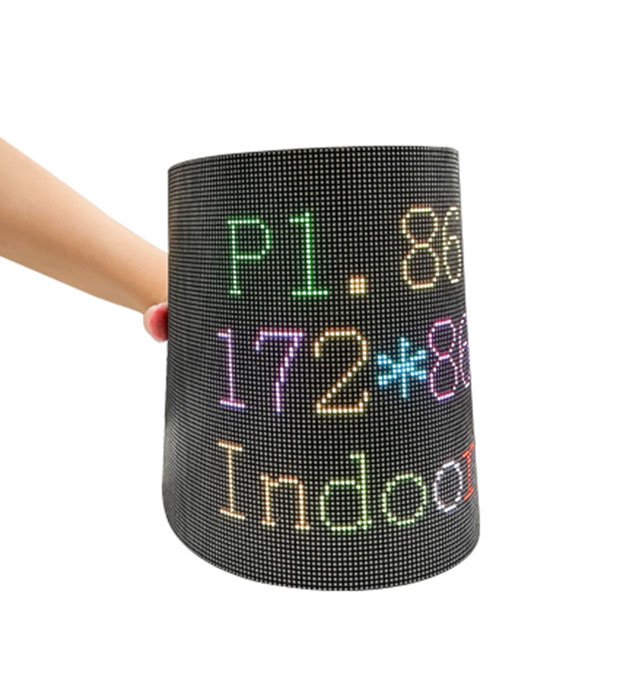

Compared with traditional hard modules, soft modules have the following advantages: Flexible and bendable:

The soft module uses a flexible substrate material, which can be bent and folded to meet the installation needs of irregular shapes. It can adapt to unconventional display scenarios such as arcs and cylinders.

Thin and portable:

the soft module is relatively thin and light, easy to carry and install. It can be used in occasions that need to be set up and dismantled quickly, such as exhibitions, events, etc.

High flexibility:

The soft module can realize screen designs of various shapes, such as arc, wave, three-dimensional shape, etc., providing more creative and unique display effects.

Impact resistance and folding resistance:

The soft module uses flexible materials, which have good impact resistance and folding resistance, which can reduce the risk of damage to a certain extent.

Energy saving and environmental protection:

the soft module has low energy consumption, uses efficient LED technology, saves energy and reduces the impact on the environment.

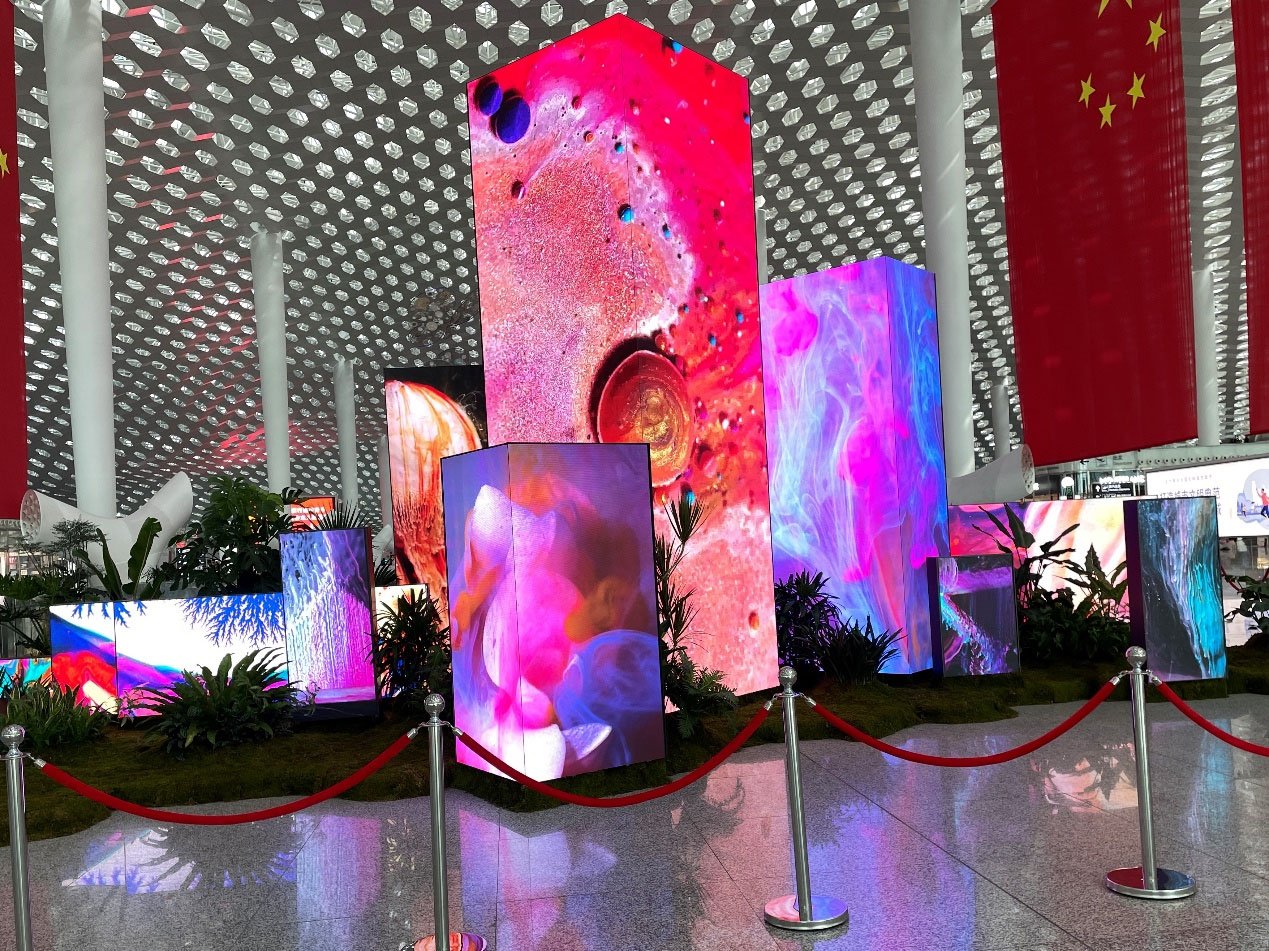

Where are Soft LED modules used?

Soft LED modules can be applied in many aspects and places.

Building exterior walls and facades:

Soft LED modules can be flexibly attached to curved or irregularly shaped exterior walls or facades of buildings to achieve a gorgeous appearance. It can be used in commercial buildings, shopping malls, hotels, theaters, etc.

Stage and performing arts venues:

Soft LED modules can be used for stage backgrounds, stage decorations and large performing arts venues. Due to its flexibility and bendability, it can create a variety of creative visual effects, providing shocking and unforgettable stage performances.


Specification

1.1 Pixel Structure Diagram

A：Schematic Chart
Structure description: Each pixel adopts 1 red 1 green 1 blue three-in-one surface-mounted light-emitting tube
The lamp package: SMD1515
B： Professional Analysis
Analysis ItemProfessional analysis content
Color analysisTo achieve the best white balance effect in color matching, the requirements about light brightness of LED lamp with color matching is strict, and the color matching ratio of red, green and blue brightness is R:G:B=3:6:1


1.2 Pixel Index

Tube colorPackageSpecification（Typical value, specific to selected lamp）
R(Red)1515HUF: 618-623nm, IV 27-32.4mcd, 1.7-2.2V, 5mA
G(Green)HUF: 524-527nm, IV 92-110mcd, 2.5-3.1V, 3mA
B(Blue)HUF: 465~468nm, IV 17-20.4mcd, 2.5-3.1V, 3mA


1.3 Technical Parameters

ItemTechnical Parameters
1. Pixel tubePixel pitch: 1.86mm
Pixel density: 288906 dots/m2
Primary color: red+green+blue
Pixel color configuration: 1R1G1B
Package: 1515
2. Unit ModuleUnit module resolution: width 172 dots × height 86 dots
Unit module size: 320*160mm
Unit module pixel number: 14792 dots/module
Scanning method: 43S
Input voltage: DC5V
Maximum current: 5A
3. Unit CabinetCabinet size: 640*480mm
Number of unit modules: width 2 modules * height 3 modules= 6 pieces
Physical resolution: 344*258 dots
Maximum power: 200W
Average power: 120W
Receiving card: Compatible with main manufacturers in the market, such as Novastar, Colorlight, Linsn, HD, etc.
Working voltage: 220V±15％
Viewing angle: 120°±10°
Storage temperature: -30℃～+60℃
Working temperature: -20℃～+45℃
Relative humidity: 10% to 95%
Net weight: 7.5Kg
4. Control SystemControl host: Intel 10th generation above i3/I5/I7
Operating system: WIN 7/ 8/10/11
Control mode: synchronous control or asynchronous control
Graphics card: DVI/HDMI independent graphics card
5. Main technical parameters1) Drive device: FM6363 constant current drive
2) Scanning method: 1/43 scan
3) Refresh frequency: ≥1920～3840Hz
4) Frame frequency: ≥60Hz
5) Grayscale/Color: 16.7M colors in 14-bit grayscale
6) Brightness: 600cd/m2
7) Brightness adjustment method: 256 levels adjustable by software
8) Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
9) The control system adopts: PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
10) MTBF: 1000 hours
11) Lifespan: 100,000 hours
12) Flatness: ≤0.5mm between any adjacent pixels; splicing gap between modules <1mm;
13) Uniformity: bright pixel light and smooth brightness of modules
14) Noise rate: <0.0001
15) Switching power supply load: 5V/40A
16) Computer display mode: 1280×1024
17) Effective communication distance: network cable 100m (without relay), multi-mode fiber 500m, single-mode fiber 20km


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
