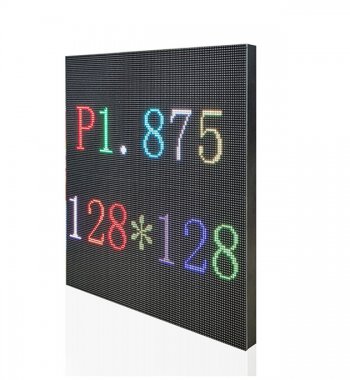

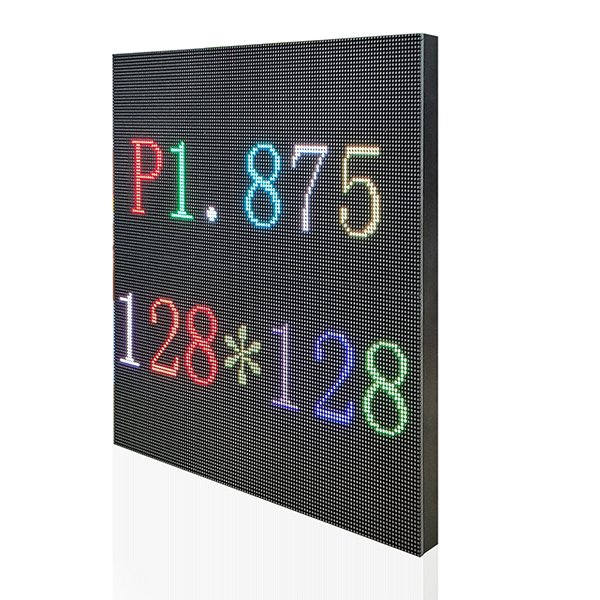

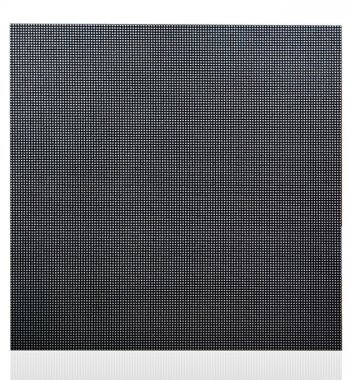

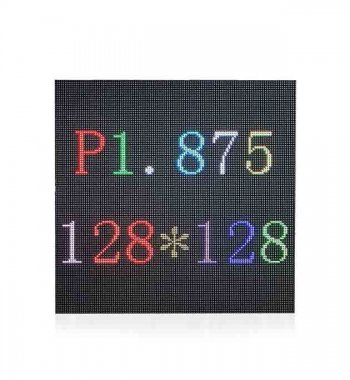

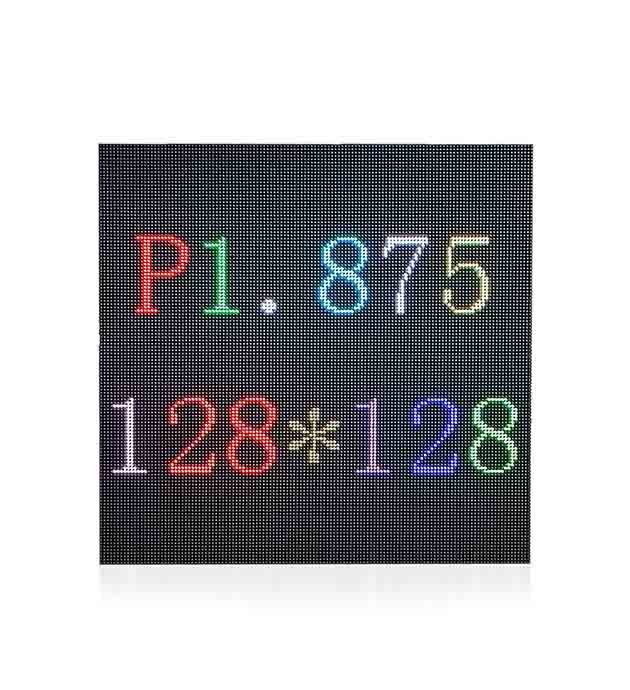

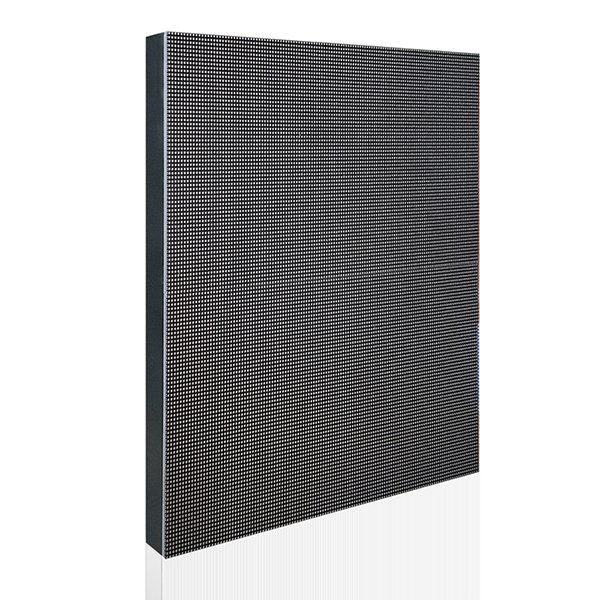

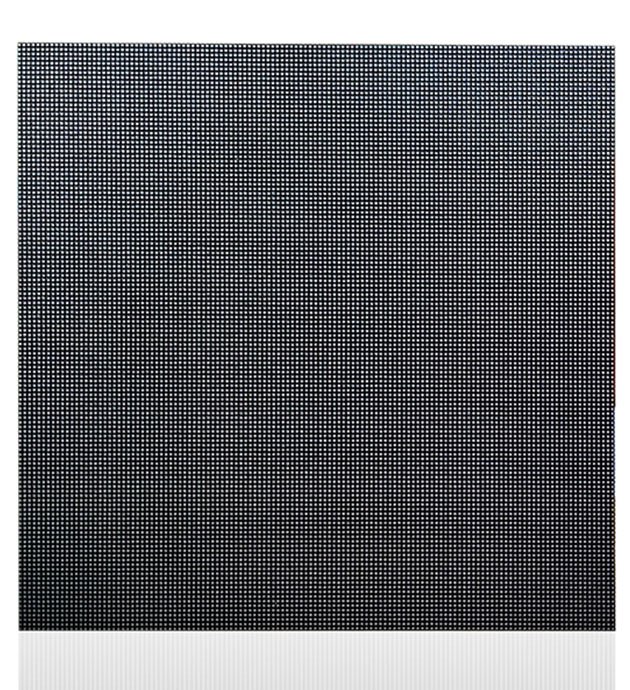

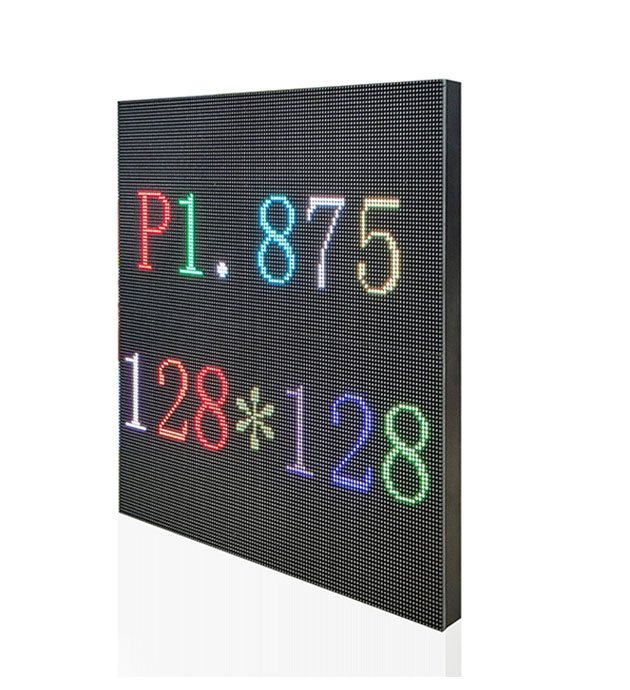

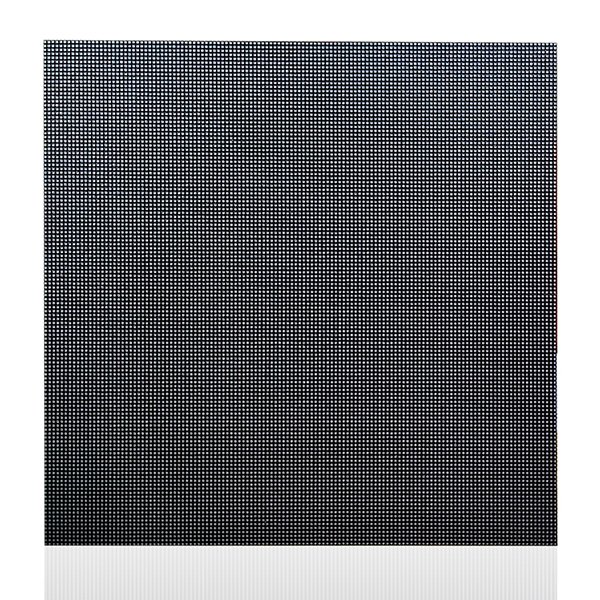

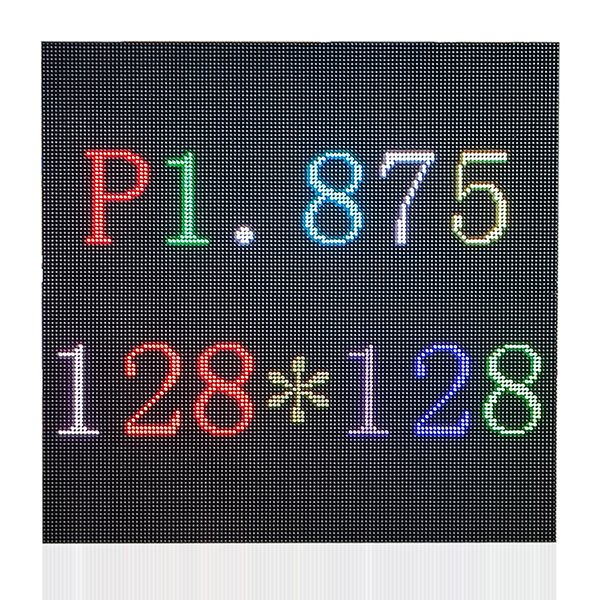

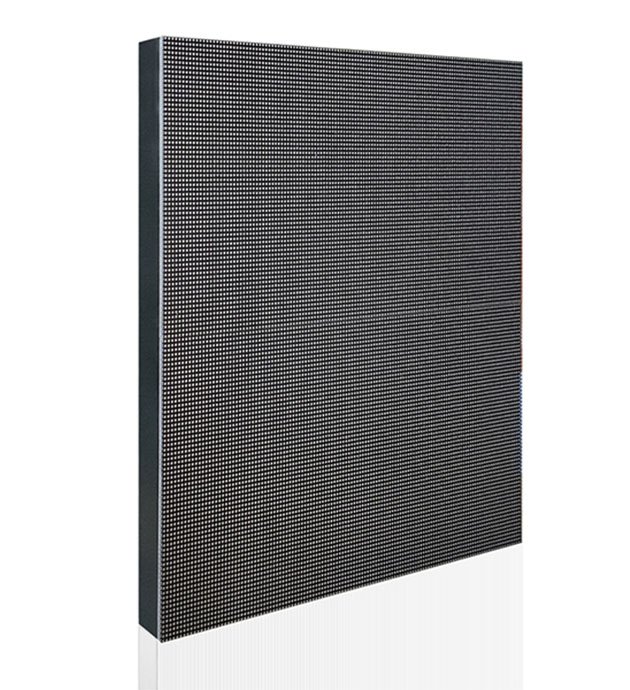

P1.875 Indoor RGB LED Display Screen Panel 240x240mm

Product description:

· Model Number： P1.875

· Module size： 240*240mm

· Pixel Resolution： 128*128

· Certicificate: CE,RoHS,FCC

· Color：1R1G1B

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Full Color P1.875 LED Display Module , high quality led display module for indoor led display panel.

High brightness, low energy consumption, long life, reliable and stable, convenient application, simple maintenance, can bring higher quality image display effect and better user experience to users.




Specification

INDOOR P1.875 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP1.875
Module size240mm*240mm
Pixel pitch1.875mm
Pixels Density284444 dots/m2
Pixel configuration1R1G1B
Pixel resolution128 dots(W)*128 dots(H)
Max Power 25W
Module thickness15mm（Without magnetic column）
27mm（Include magnetic column）
Weight0.232kg
Drive typeConstant drive
Scan mode 1/32scan
Port typeHUB75E
Best viewing distance2M～20M
Best viewing angle 160°(W) 120°(H)
PowerTemperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
Working voltageDV 5V
Average Power consumption<320W/㎡
Main technical  parameterMax.Power consumption<780W/㎡
Current<18mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
