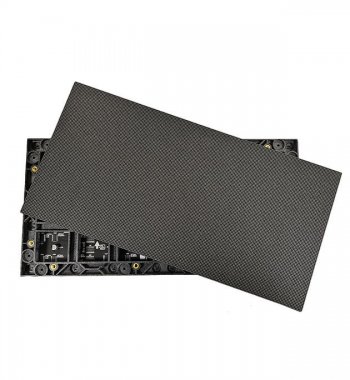

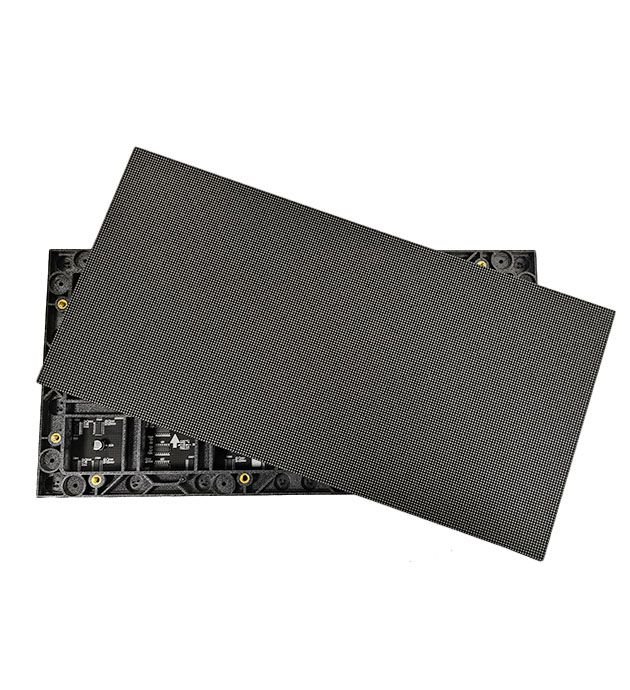

P1.538 Indoor LED Display Screen Panel

Product description:

· Model Number： P1.538

· Module size：320*160mm

· Pixel configuration: 1R1G1B

· Pixel Resolution: 208*104

· Certicificate: CE,RoHS,FCC

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

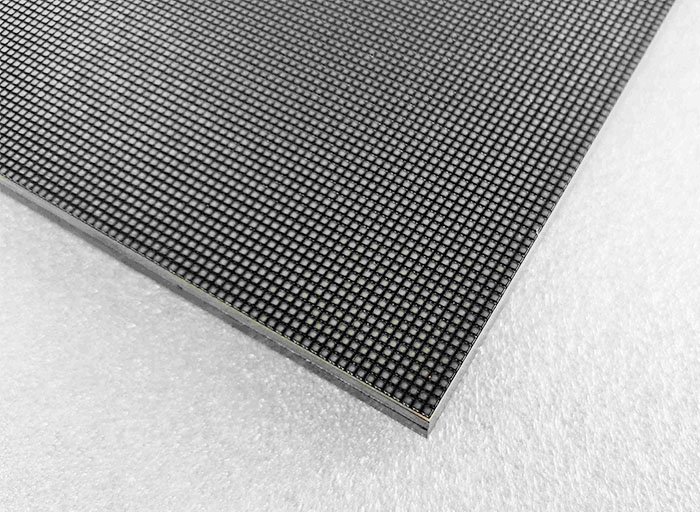

Full Color P1.538 Indoor RGB LED Display Screen Panel ，high quality led display module for indoor led display.

High brightness, low energy consumption, long life, reliable and stable, convenient application, simple maintenance, can bring higher quality image display effect and better user experience to users.


Specification

INDOOR P1.538 SMD TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP1.538
Module size320mm*160mm
Pixel pitch1.538mm
Pixels Density422754dots/m2
Pixel configuration1R1G1B
Pixel resolution208 dots(W)*104 dots(H)
Max Power23W
Module thickness13mm
Weight0.452KG
Drive typeConstant drive
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors65536 level,can display 16.7M colors
65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
