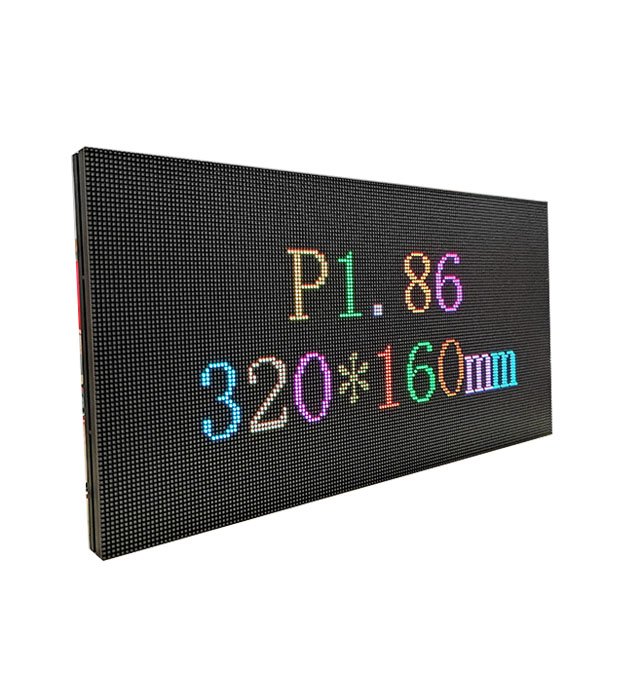

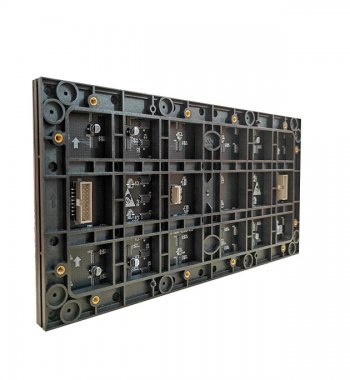

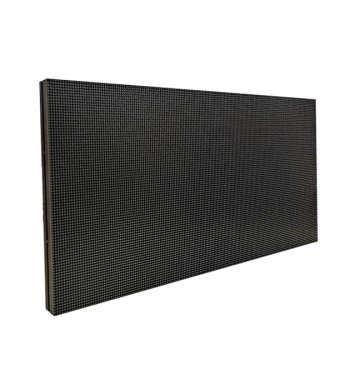

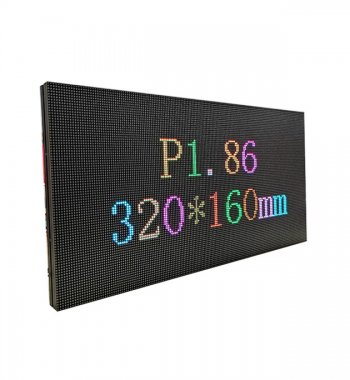

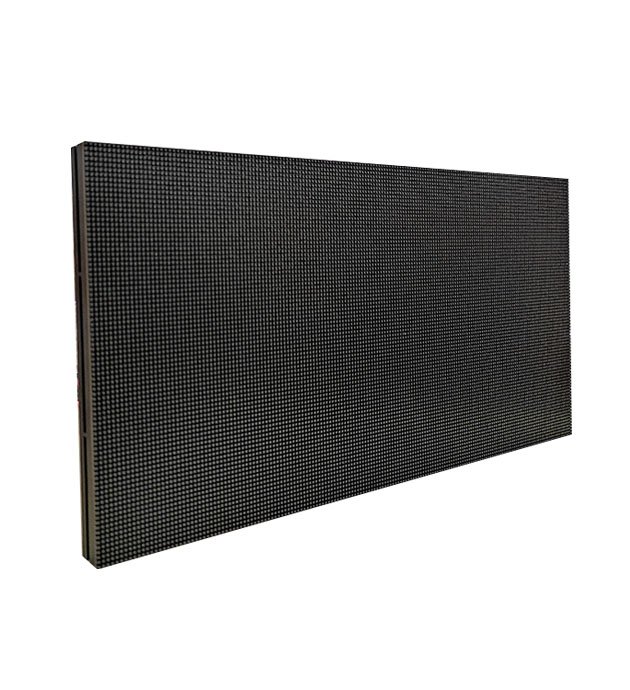

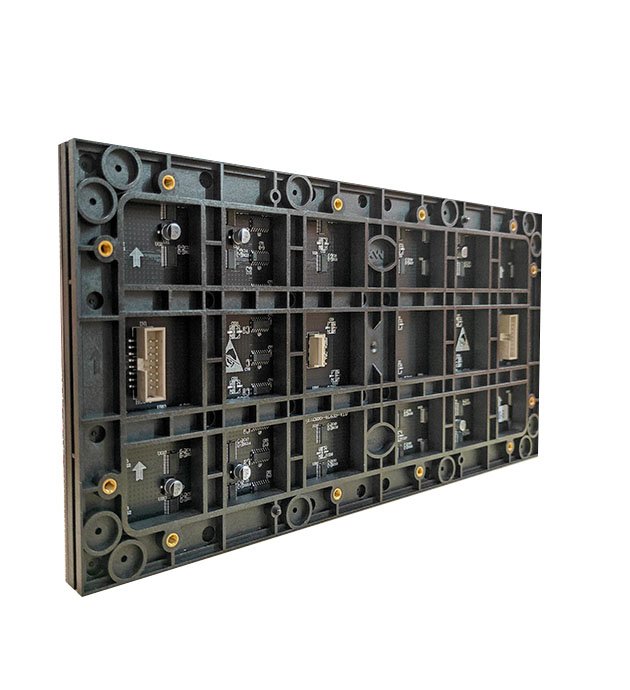

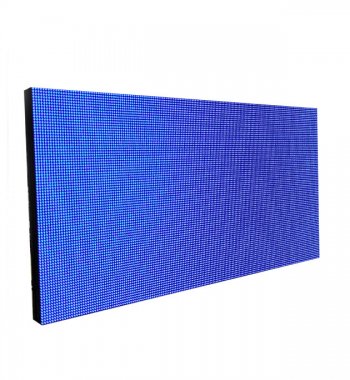

P1.86 Indoor RGB LED Display Screen Panel

Product description:

· Model Number： P1.86

· Module size：320*160mm

· Pixel configuration: 1R1G1B

· Pixel Resolution: 172*86

· Certicificate: CE,RoHS,FCC

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Full Color P1.86 Indoor RGB LED Display Screen Panel ，high quality led display module for indoor led display.

High brightness, low energy consumption, long life, reliable and stable, convenient application, simple maintenance, can bring higher quality image display effect and better user experience to users.

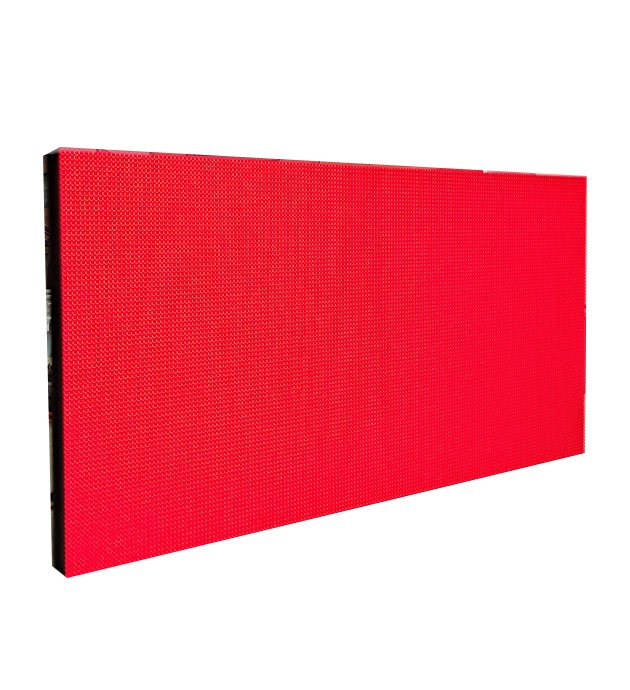

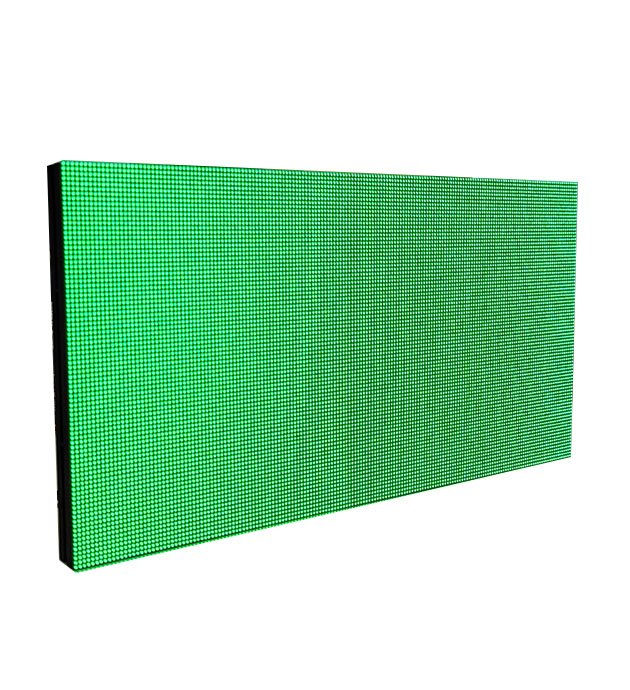

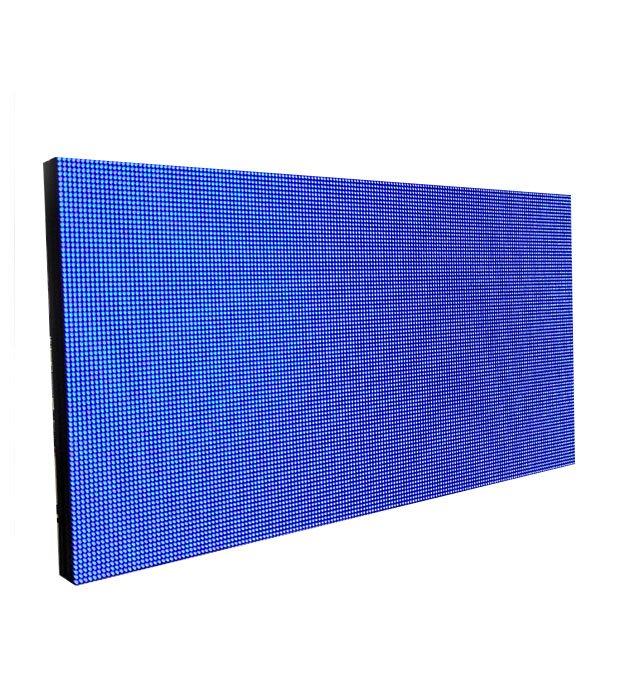

Various color testing, high resolution, high quality

Specification

INDOOR P1.86 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP1.86
Module size320mm*160mm
Pixel pitch1.86mm
Pixels Density289050dots/m2
Pixel configuration1R1G1B
Pixel resolution172 dots(W)*86 dots(H)
Max Power23W
Module thickness13mm
Weight0.452KG
Drive typeConstant drive
Main technical  parameterDriving deviceConstant drive IC
Brightness of white balance≥600cd/㎡
Refresh frequency>3840HZ
Grey scale/colors65536 level,can display 16.7M colors
65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch
Lamp beadsNationstar
Chip ModelSM16380


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
