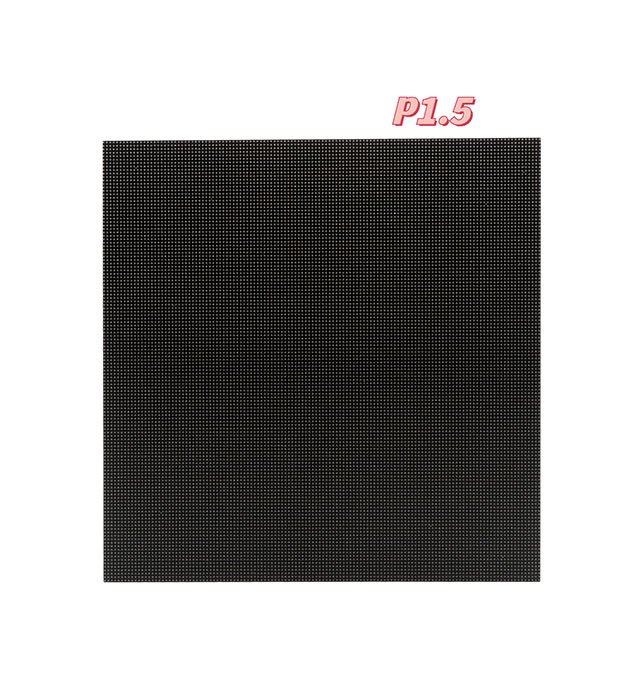

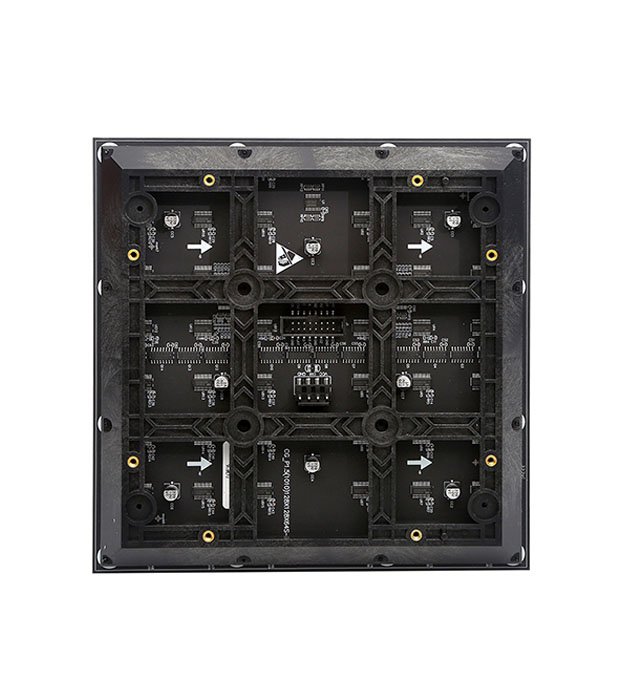

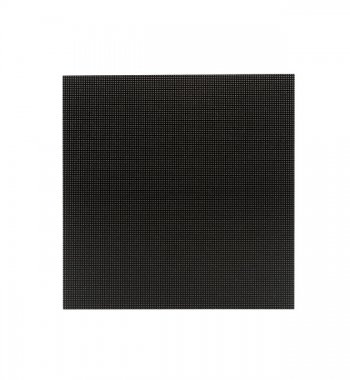

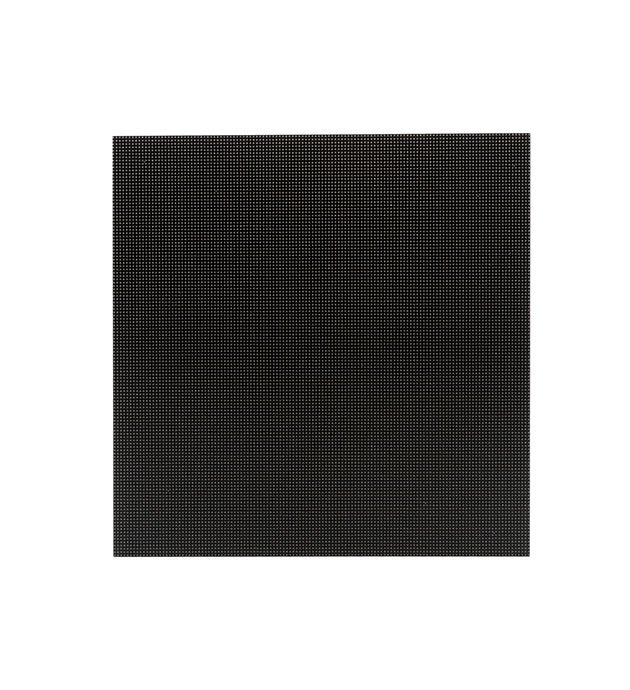

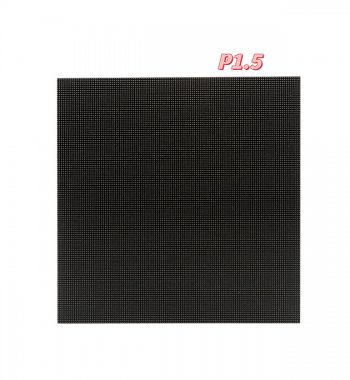

P1.5 Indoor Right Angle LED Display Panel

Product description:

• Module Number: P1.5

• Module Size: 192x192mm

• Pixel Resolution: 128x128

• Certicificate: CE,RoHS,FCC

• Color: 1R1G1B

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Full Color P1. 5 Indoor Right Angle LED Display Module Designed For 90 degree Led Video Wall

Specification

INDOOR P1.5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP1.5-64S
Module size192mm*192mm
Pixel pitch1.5mm
Pixels Density444444dots/m2
Pixel configuration1R1G1B
Package modeSMD 3IN1 -1010
Pixel resolution128dots(W)*128 dots(H)
Max Power23W
Module thickness13mm
Weight0.452KG
Drive typeConstant drive
Scan mode1/64scan
Best viewing distance2M～10M
Best viewing angle140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors65536 level,can display 16.7M colors
65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
