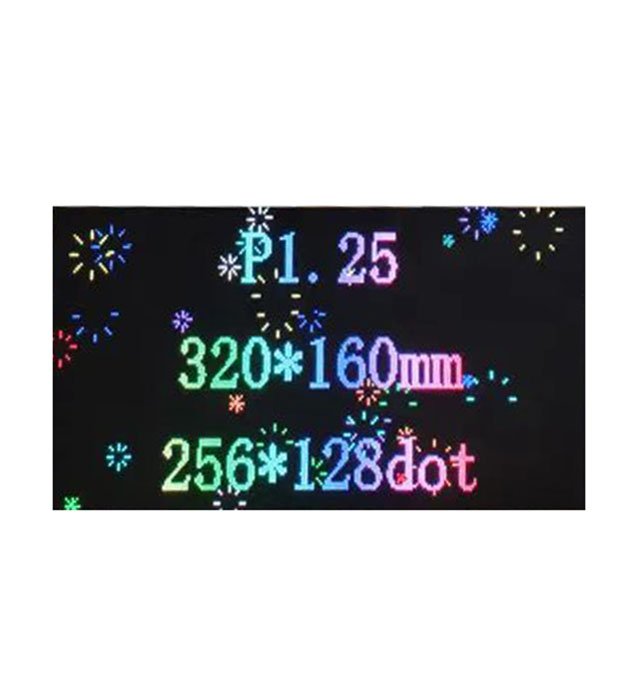

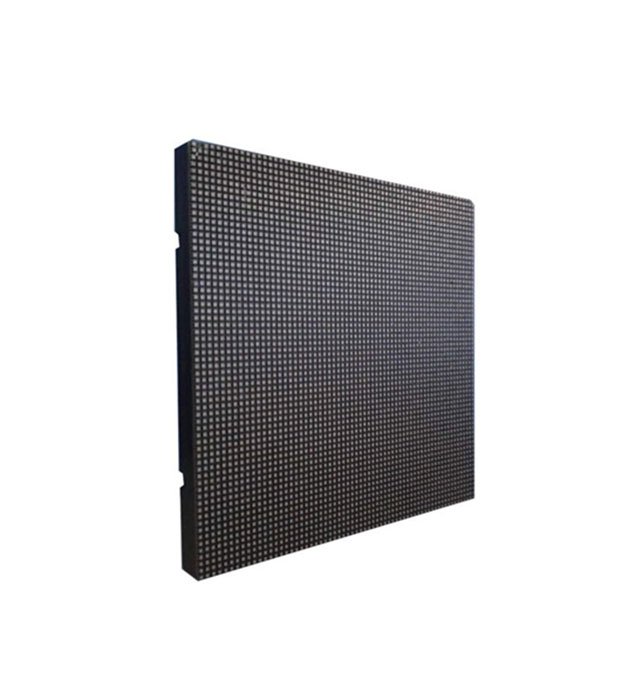

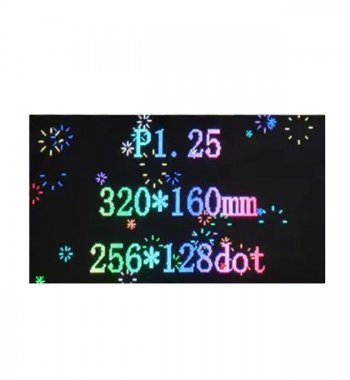

Full Color P1.25 Indoor LED Display Module 320x160mm

Product description:

• Module Number: P1.25

• Module Size: 320x160mm

• Pixel Resolution: 256x128

• Certicificate: CE,RoHS,FCC

• Color: 1R1G1B

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Full Color P1.25 Indoor LED Display Module 320x160mm

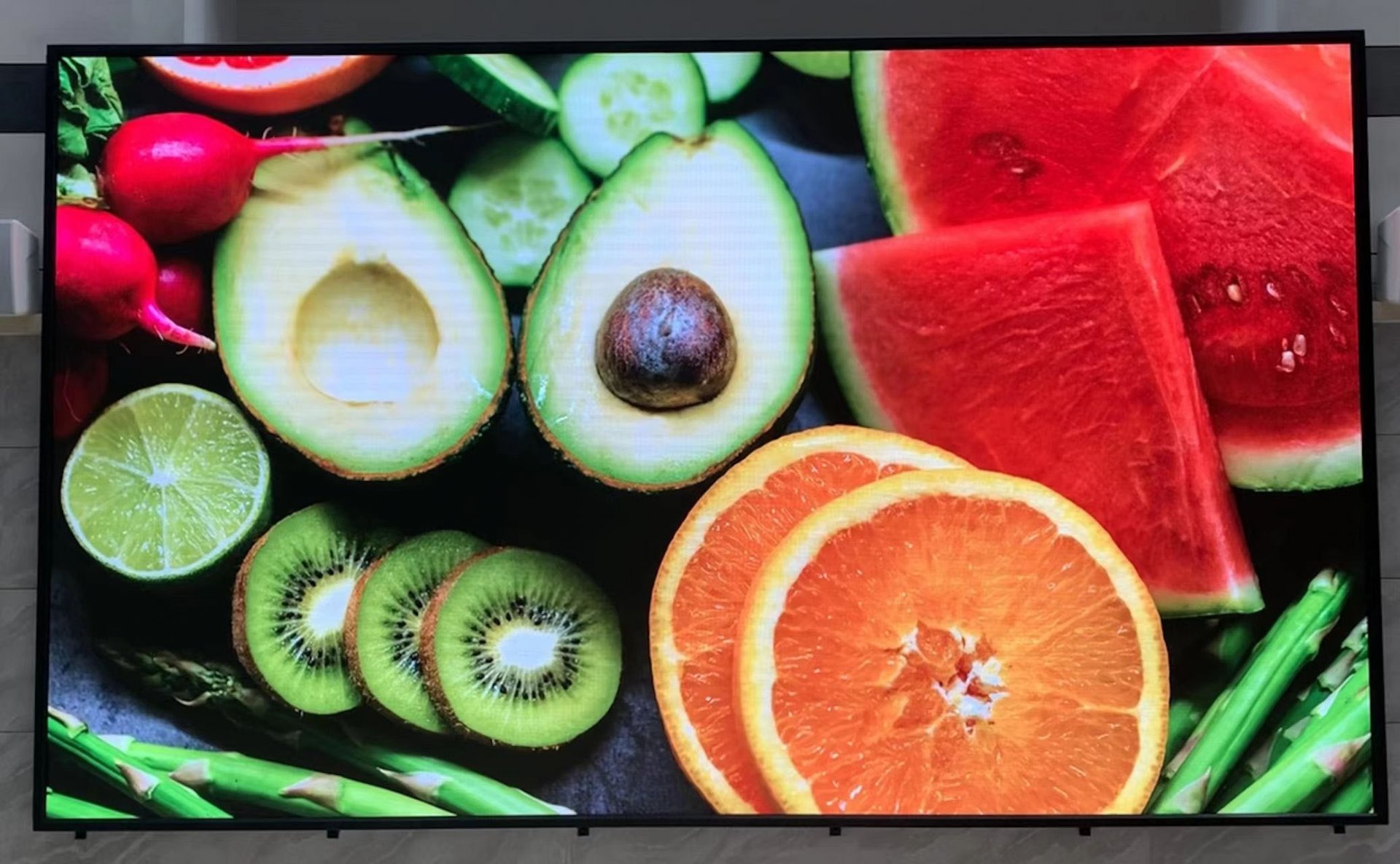

Full Color HD P1.25 Indoor LED Display Panel, high quality for many kinds of use.

Specification

INDOOR P1.25 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP1.25-64S
Module size320mm*160mm
Pixel pitch1.25mm
Pixels Density640000dots/m2
Pixel configuration1R1G1B
Package modeSMD 3IN1 -1010
Pixel resolution256dots(W)*128 dots(H)
Max Power23W
Module thickness13mm
Weight0.452KG
Drive typeConstant drive
Scan mode1/64扫描 1/64scan
Port typeHUB320
Brightness of white balance≥800cd/㎡
Best viewing distance2M～10M
Best viewing angle140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<280W/㎡
Max.Power consumption<439W/㎡
Current<15mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors65536 level,can display 16.7M colors
65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
