P10 Outdoor LED Display panel full colour LED Screen module 320x160mm

Product description:

· Model Number： P10 outdoor

· Module size： 320*160mm

· Pixel resolution： 32*16

· Certicificate: CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

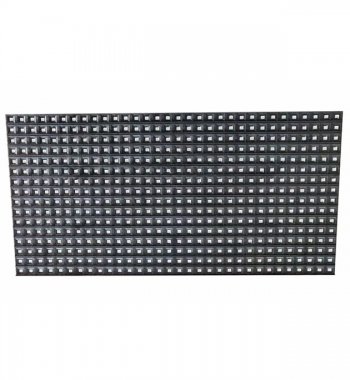

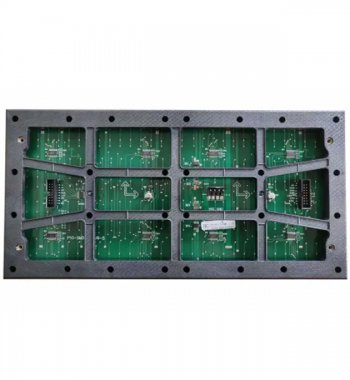

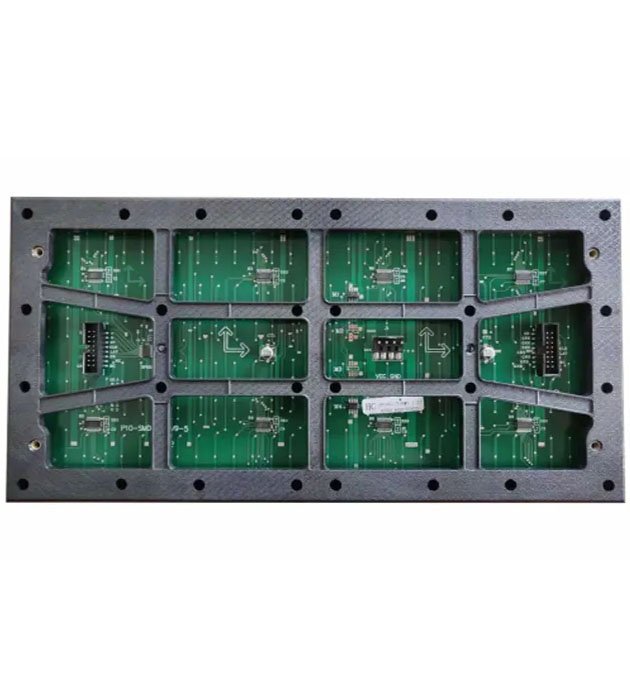

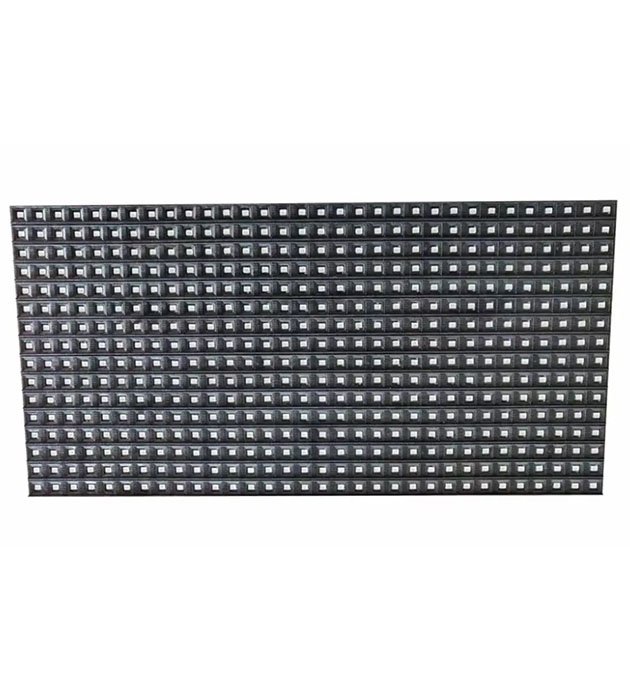

P10 outdoor full color LED display module board, size 320*160mm,

pixel arrangement 32*16, RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz.


未标题-1_0002_IN-P1.538 320X160mm-1未标题-1_0000_IN-P1.538 320X160mm-3

未标题-1_0001_IN-P1.538 320X160mm-2未标题-1_0003_IN-P1.538 320X160mm-4



1.outdoor P10 is outdoor conventional LED Screen products, we suggest to go with 960*960 outdoor LED cabinet.

2.All outdoor P10 modules use HUB75

3.Temperature requirement:

1) Storage temperature range: -20 ° C – 60 ° C, over 30 ° C needs to do cooling treatment.

2) Lamp surface temperature (working time): ≤85°C, temperature control equipment is required to be installed when temperature exceeding the standard

4.Metal components of the screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10Ω. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.

5.It’s not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.

The magnetic installation method cannot guarantee the flatness and the performance of the led screen.

Module is likely to deform under extremely cold weather.

6. It is forbidden to assemble the module under the condition of power on, the module should be assembled on the wall.

7. More than 65% RH and in the resurgence weather, the screen must be lighted on more than 2H every week.

8. If problems are found, they should be dealt with in time to reduce the damage caused by the wet environment to the display screen.






Specification

OUTDOOR P10 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP10
Module size320mm*160mm
Pixel pitch10mm
Pixels Density10000 dots /m2
Pixel configuration1R1G1B
Package modeSMD3535
Pixel resolution32dots(W)*16 dots(H)
Max Power45W
Module thickness17.05mm
Weight0.51kg
Drive typeConstant drive
Scan mode1/2scan  1/4scan
Port typeHUB75
Brightness of white balance≥6500cd/m2
Best viewing distance10M～50M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<350W/㎡
Max.Power consumption<880W/㎡
Current<20mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>960HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!

Inquire Now
