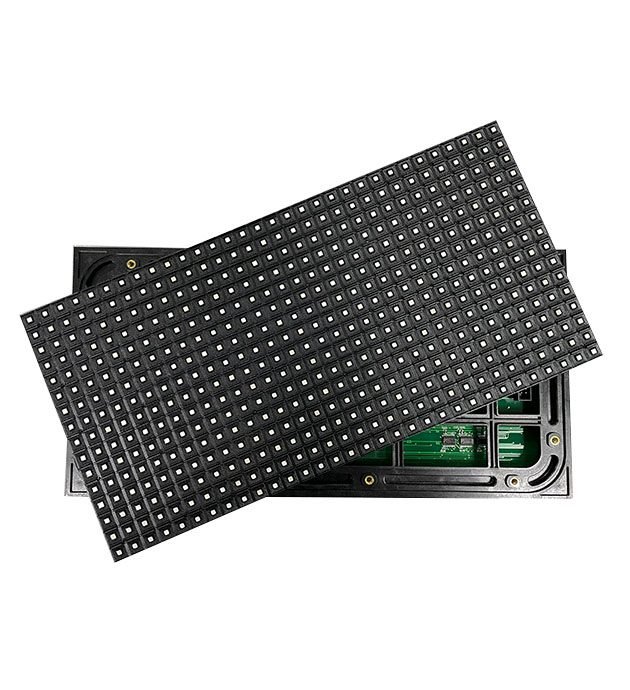

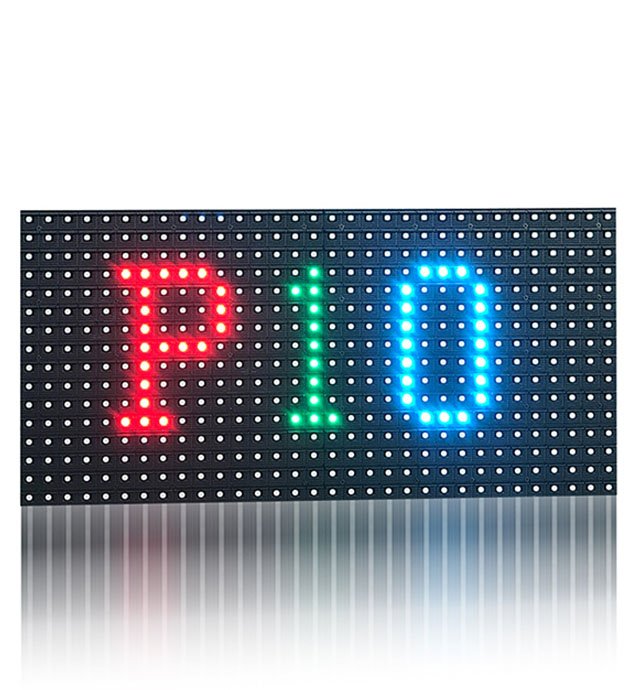

P10 Outdoor LED Display panel full colour LED Screen module 320x160mm

Product description:

· Model Number： P10 outdoor

· Module size： 320*160mm

· Pixel resolution： 32*16

· Certicificate: CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

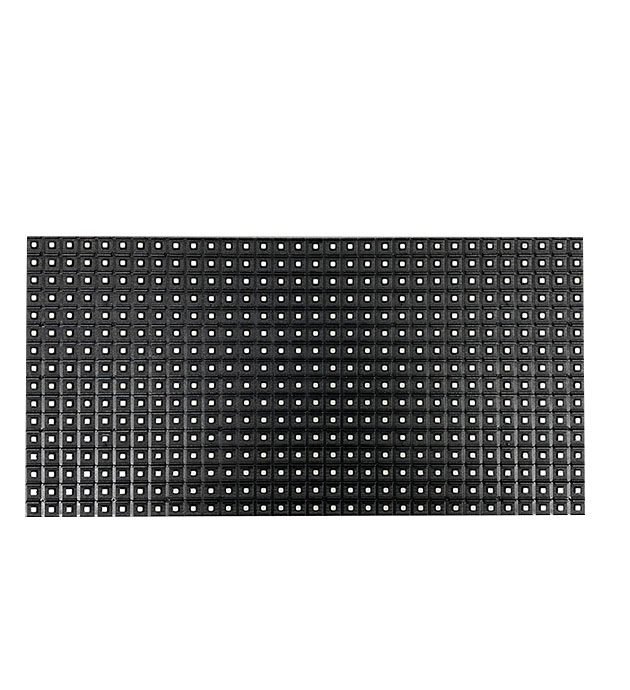

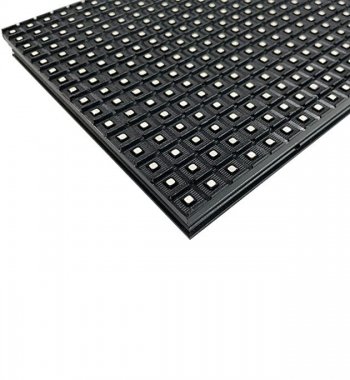

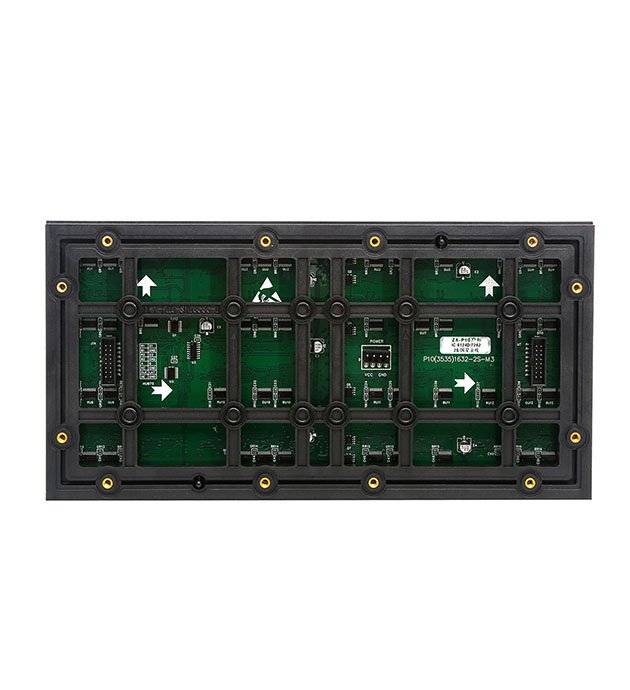

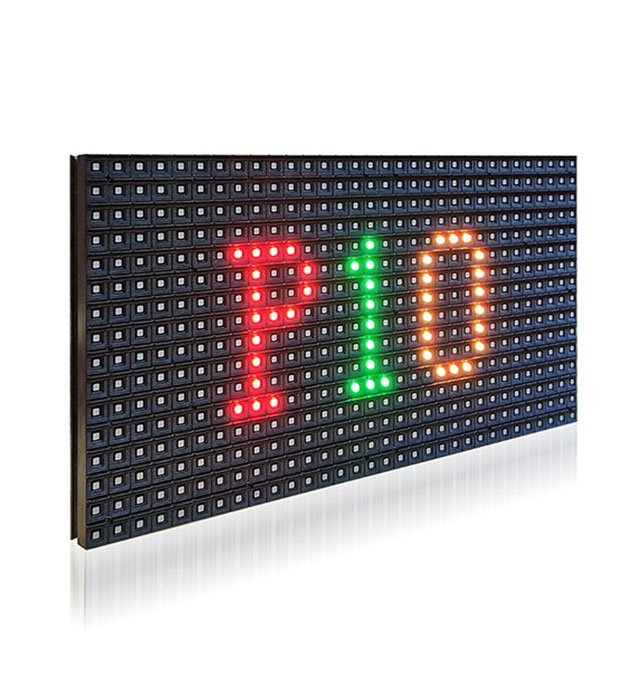

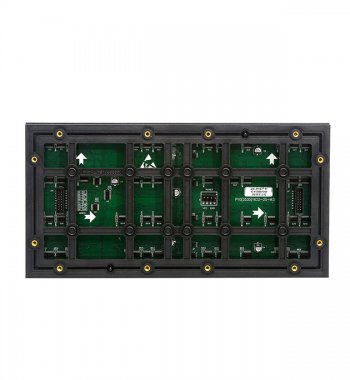

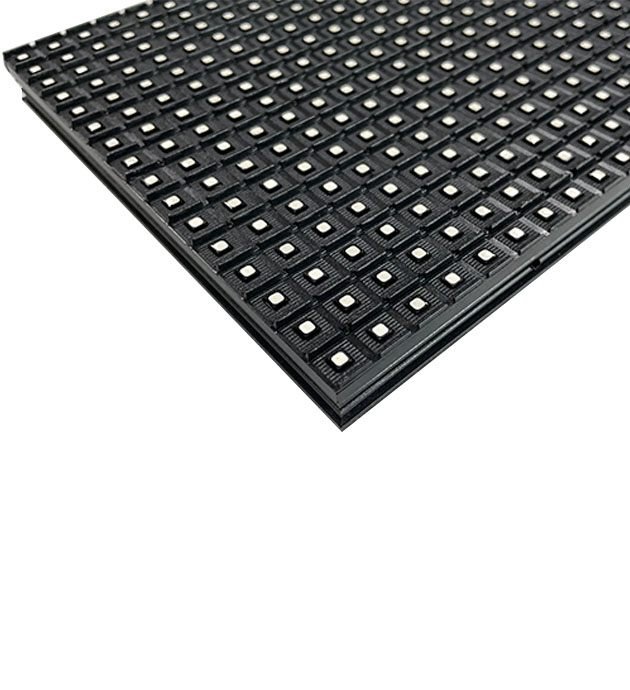

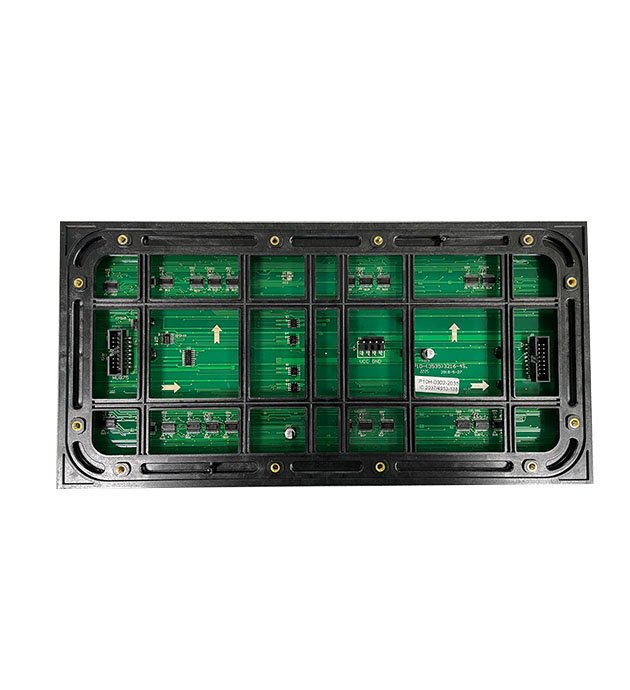

P10 outdoor full color LED display module board, size 192*192mm, pixel arrangement 32*16,

 RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz.


未标题-1_0002_IN-P1.538 320X160mm-1未标题-1_0000_IN-P1.538 320X160mm-3

未标题-1_0001_IN-P1.538 320X160mm-2未标题-1_0003_IN-P1.538 320X160mm-4

Specification

OUTDOOR P10 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP10
Module size320mm*160mm
Pixel pitch10mm
Pixels Density10000 dots /m2
Pixel configuration1R1G1B
Package modeSMD3535
Pixel resolution32 dots(W)*16 dots(H)
Max Power45W
Module thickness17.05mm
Weight0.51kg
Drive typeConstant drive
Scan mode1/2scan  1/4scan
Port typeHUB75
Brightness of white balance≥6500cd/m2
Best viewing distance10M～50M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<350W/㎡
Max.Power consumption<880W/㎡
Current<20mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>960HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
