P8 Outdoor LED Display panel full colour LED Screen module 256x128mm

Product description:

· Model Number： P8 outdoor

· Module size： 256*128mm

· Pixel resolution： 32*16

· Certicificate: CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

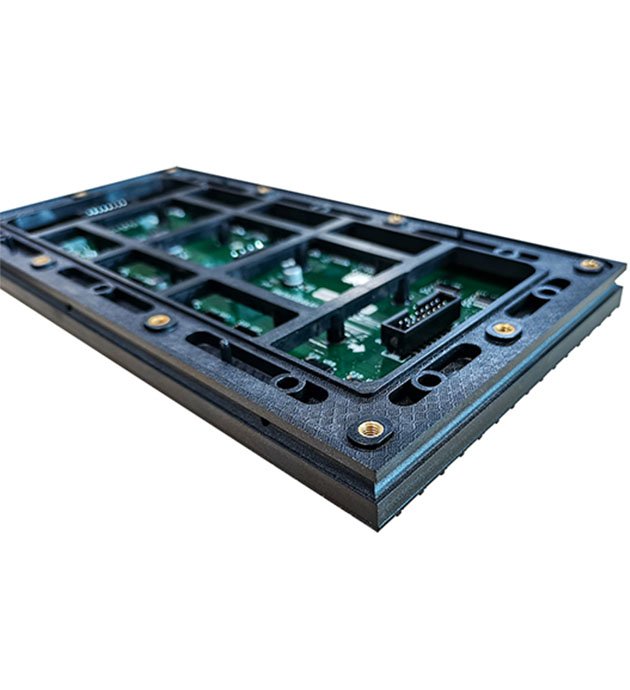

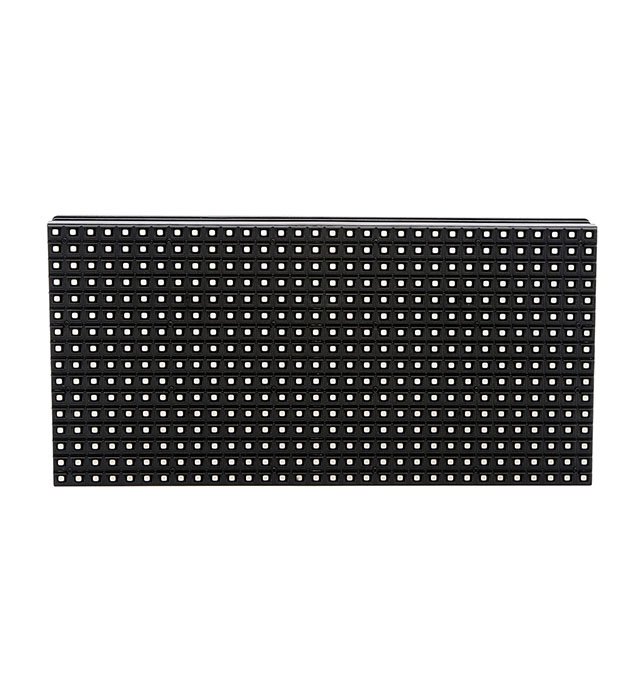

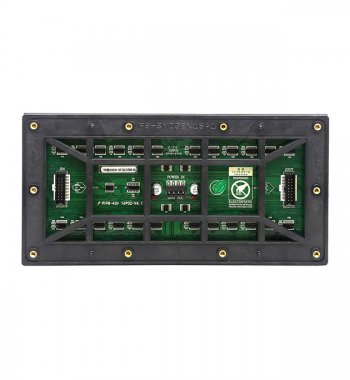

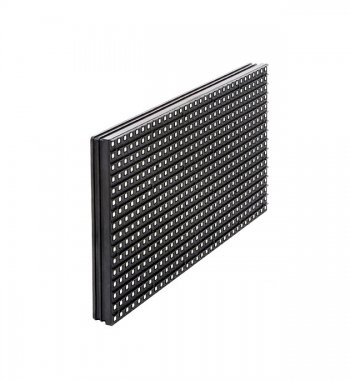

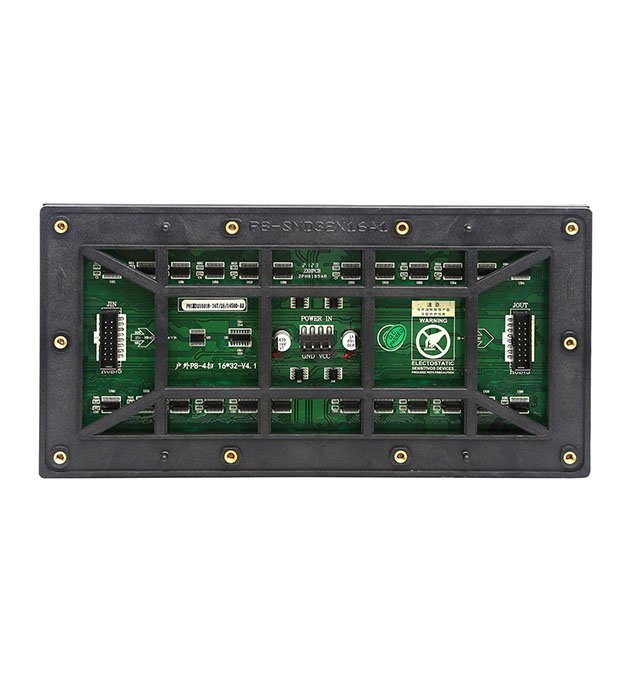

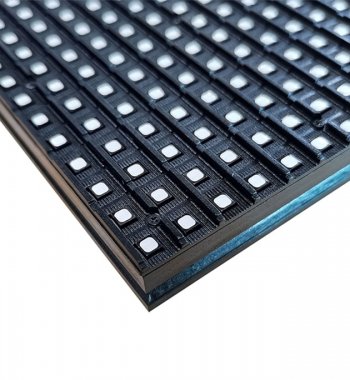

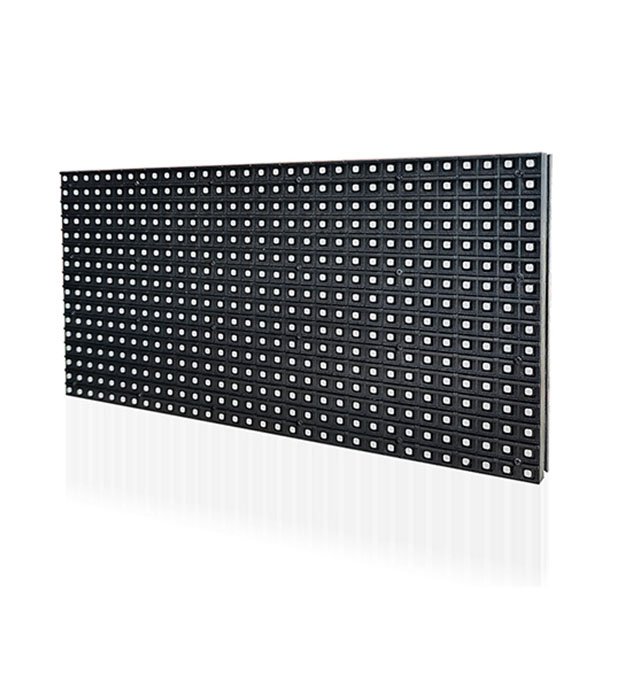

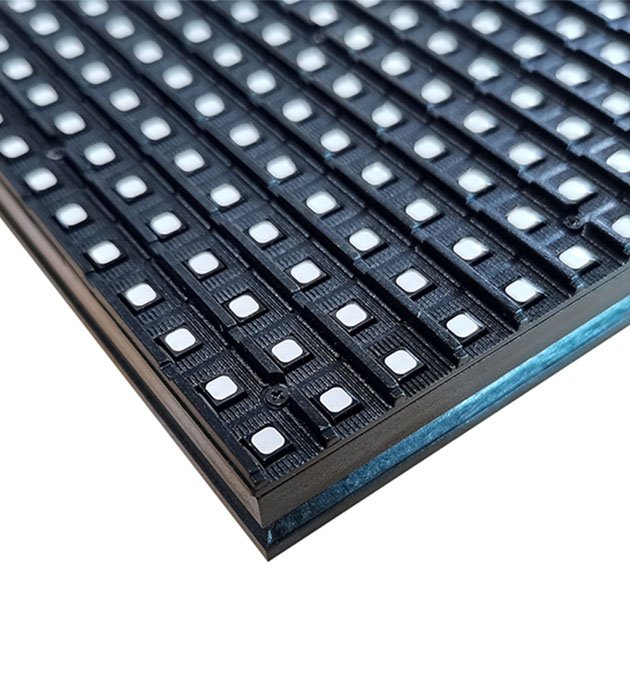

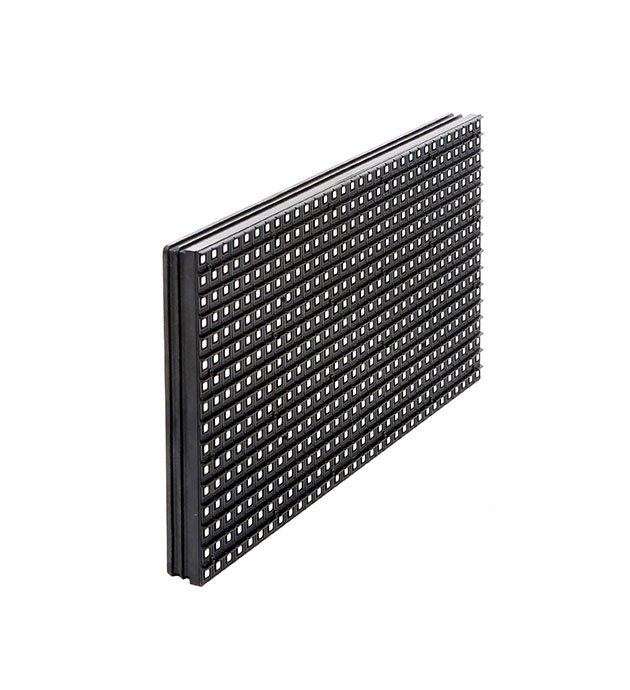

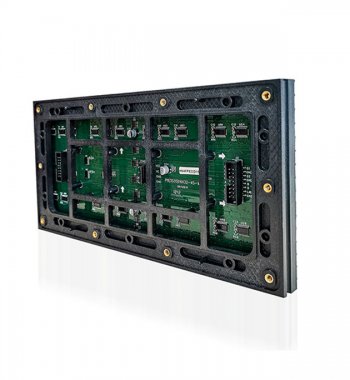

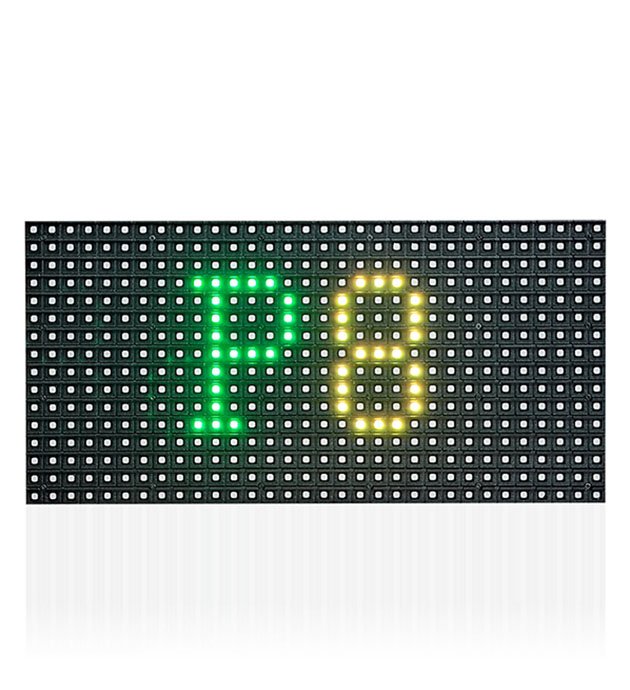

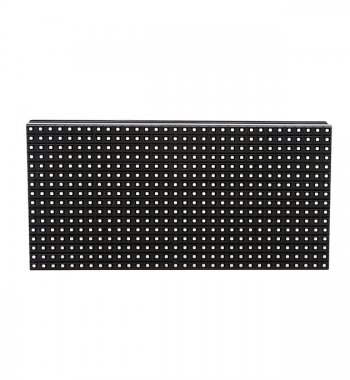

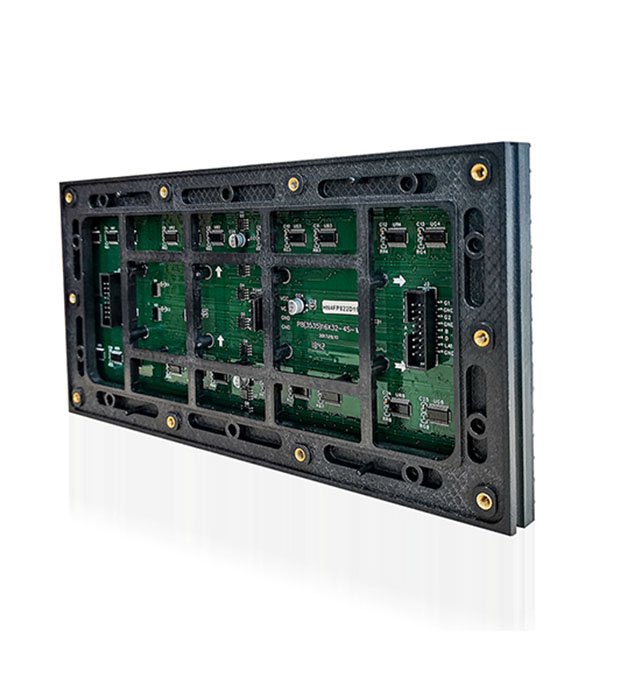

P8 outdoor full color LED display module board, size 256*128mm, pixel arrangement 32*16,

RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz.

-1_0008_1-1_0006_3

Remarks & Key Precautions

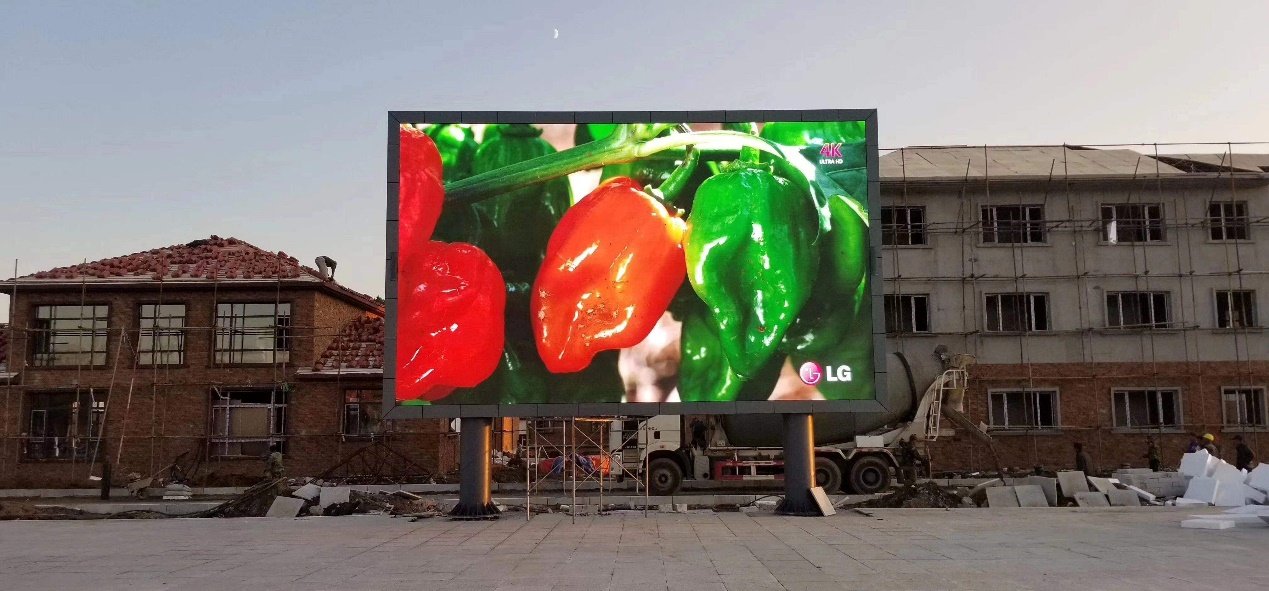

1.outdoor P8 is popular outdoor LED module, we suggest to go with 960*960 outdoor LED iron cabinet.

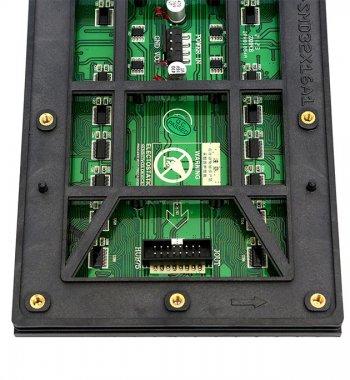

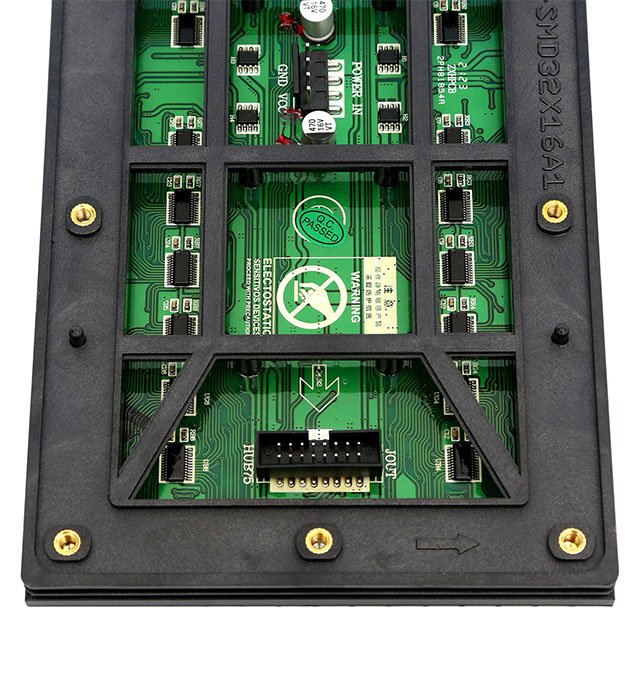

2.All outdoor P8 modules use HUB75

3.Temperature requirement:

1) Storage temperature range: -10 ° C – 30 ° C, over 30 ° C needs to do cooling treatment.

2) Lamp surface temperature (working time): ≤85°C, temperature control equipment is required to be installed when temperature exceeding the standard

4.Metal components of the LED screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10Ω. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.

5.It’s not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.

The magnetic installation method cannot guarantee the flatness and the performance of the led screen.

Module is likely to deform under extremely cold weather.

6. The led module cannot be directly connected to 220V, and the module’s positive and negative poles connection must be right.

7.When the display screen is not in use for a long time, it is necessary to reduce the brightness of the whole screen by 50% in advance and play it for 12 hours, and preheat it for “dehumidification” 12H to avoid damaging the light tube after the LED screen is damped.

8. Before the maintenance of the display, it is necessary to turn off the main power of the screen before the operation.



Specification

OUTDOOR P8 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP8-4S
Module size256mm*128mm
Pixel pitch8mm
Pixels Density15625 dots /m2
Pixel configuration1R1G1B
Package modeSMD3535/SMD2727
Pixel resolution32dots(W)*16 dots(H)
Max Power28W
Module thickness17.05mm
Weight0.343kg
Drive typeConstant drive
Scan mode1/4scan
Port typeHUB75
Brightness of white balance≥5500cd/m2
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1800HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch
Working voltageDC 5V ±10%


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
