P6.67 Outdoor LED Display panel full colour LED Screen module 320x160mm

Product description:

· Model Number： P6.67

· Module size： 320*160mm

· Pixel： 48*24

· Certicificate: CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

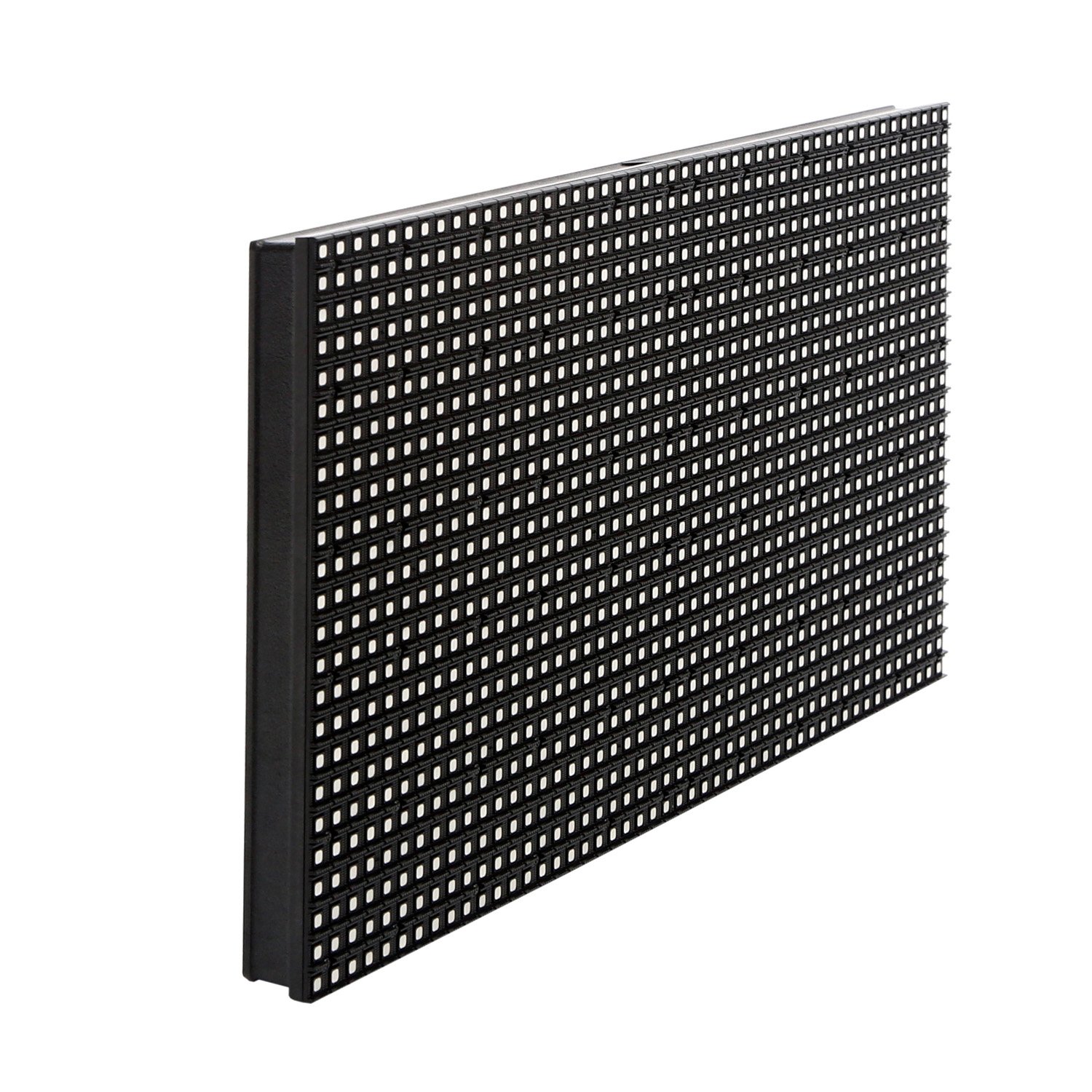

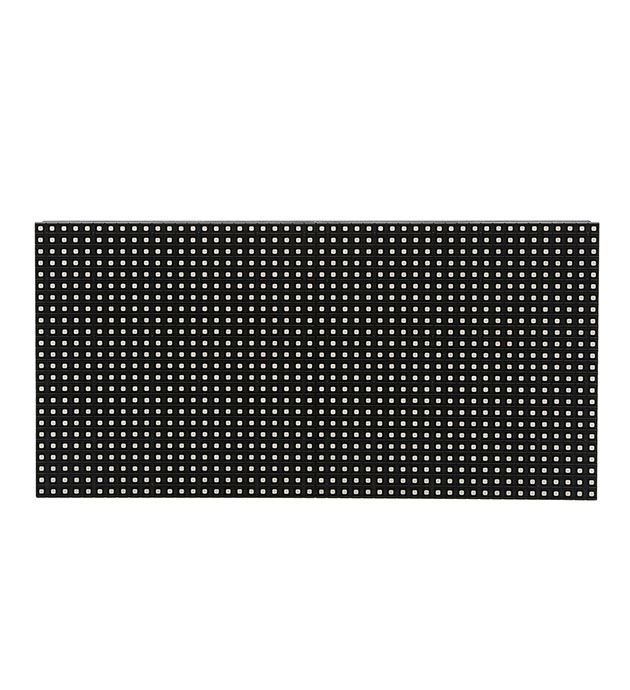

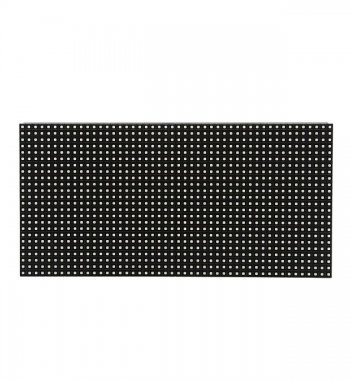

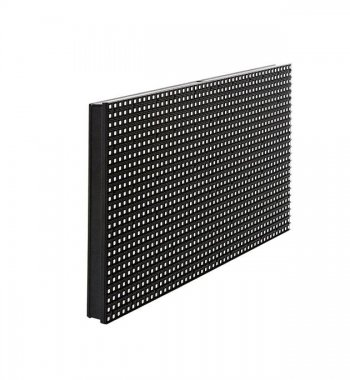

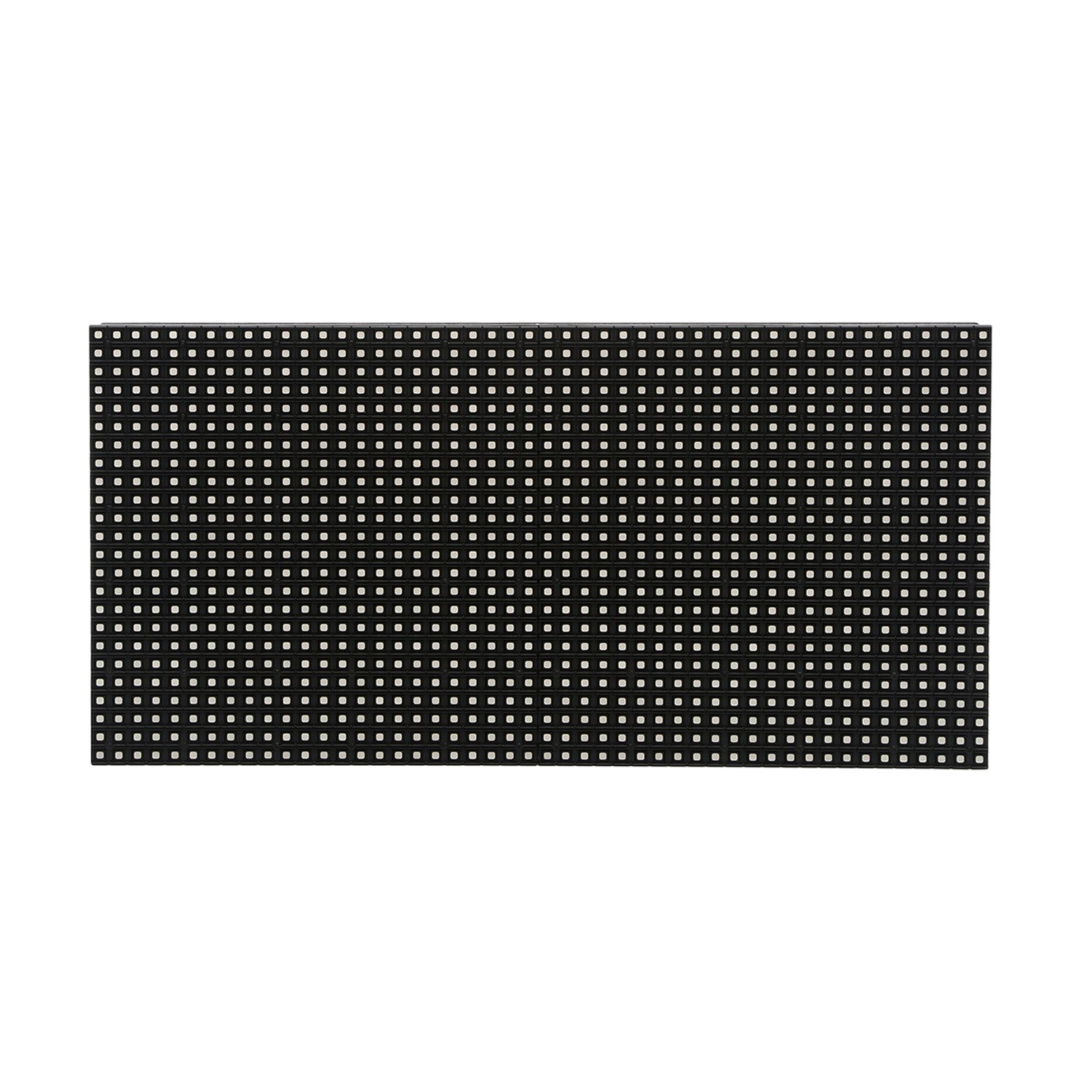

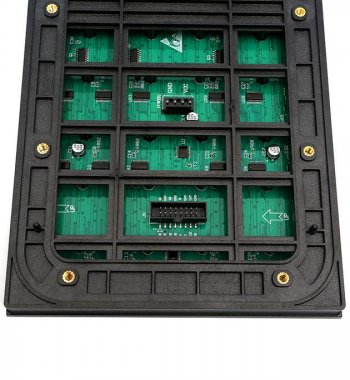

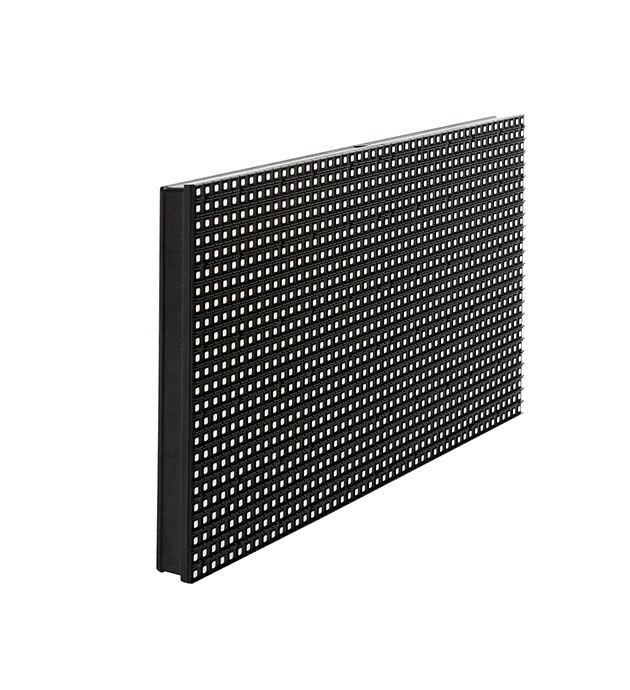

P6.67 outdoor full color LED display module board, size 320*160 mm,

pixel arrangement 48*24, RGB full color, conventional driver IC, support most control cards on the market.

Remarks & Key Precautions

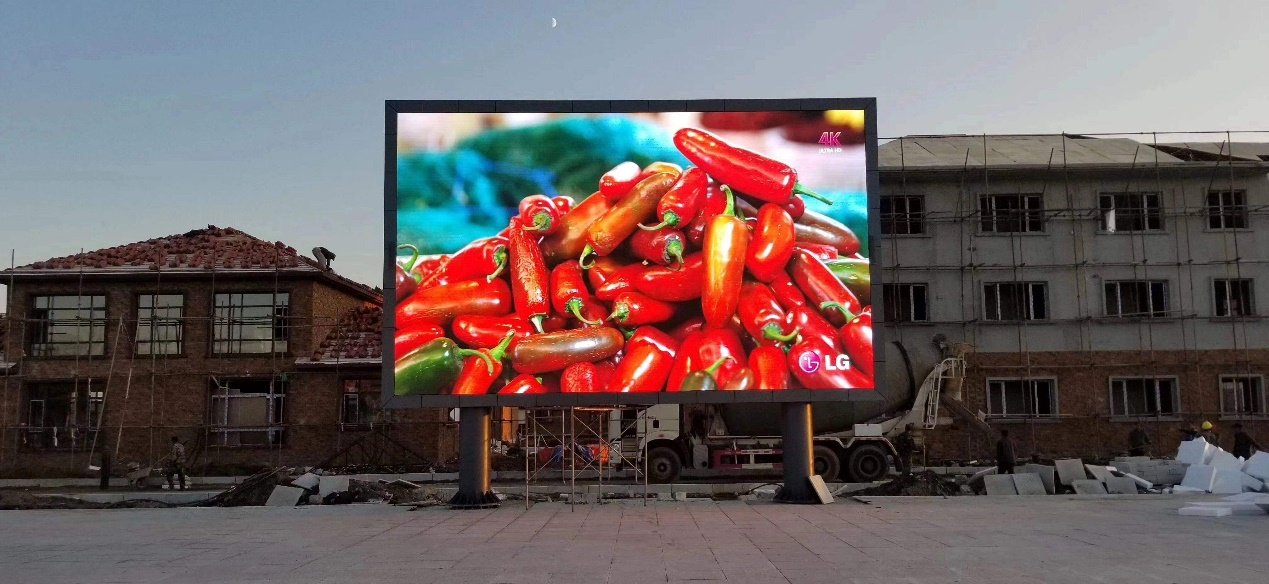

1.outdoor P6.67 is outdoor conventional LED Screen products, we suggest to go with 960*960 outdoor LED cabinet.

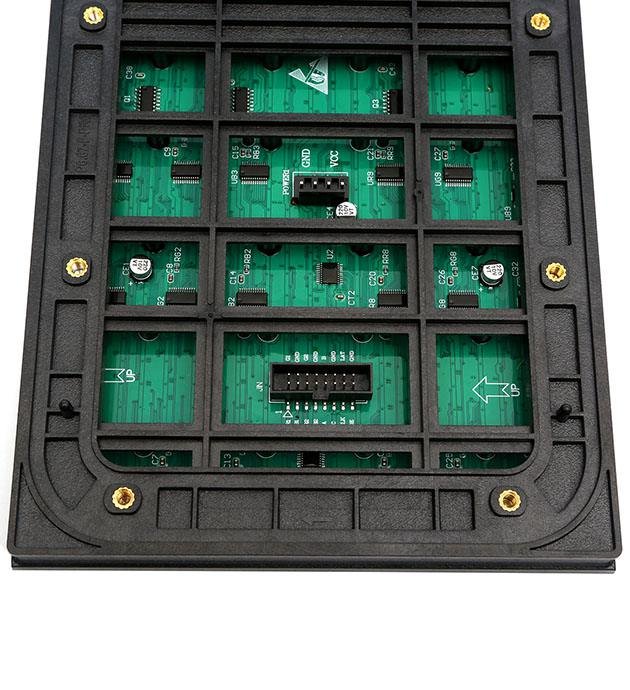

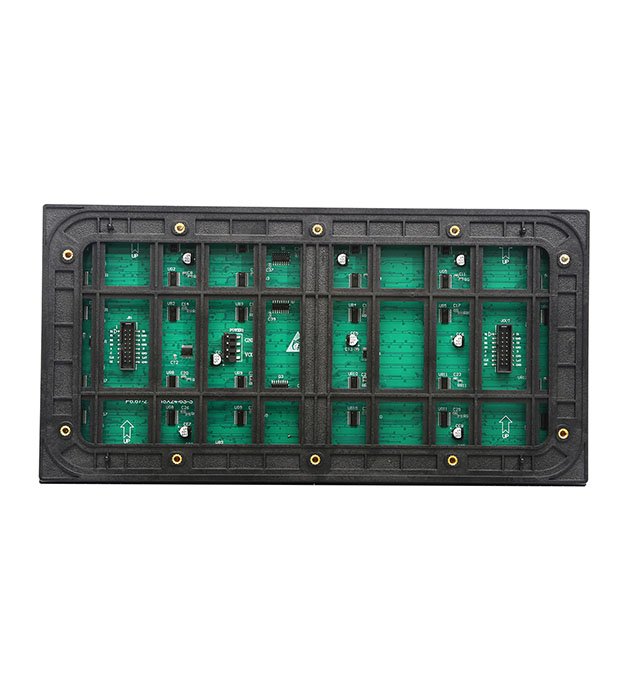

2.All outdoor P6.67 modules use HUB75

3.Temperature requirement:

1) Storage temperature range: -10 ° C – 30 ° C, over 30 ° C needs to do cooling treatment.

2) Lamp surface temperature (working time): ≤85°C, temperature control equipment is required to be installed when temperature exceeding the standard

4.Metal components of the screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10Ω. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.

5.It’s not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.

The magnetic installation method cannot guarantee the flatness and the performance of the led screen.

Module is likely to deform under extremely cold weather.

6. It is forbidden to assemble the module under the condition of power on, the module should be assembled on the wall.

7. More than 65% RH and in the resurgence weather, the screen must be lighted on more than 2H every week.

8. If problems are found, they should be dealt with in time to reduce the damage caused by the wet environment to the display screen.



Specification

OUTDOOR P6,67 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP6.67
Module size320mm*160mm
Pixel pitch6.67mm
Pixels Density22477 dots /m2
Pixel configuration1R1G1B
Package modeSMD2727  SMD2525
Pixel resolution48dots(W)*24dots(H)
Max Power40W
Module thickness17.05mm
Weight0.5kg
Drive typeConstant drive
Port typeHUB75
Brightness of white balance≥6500cd/m2
Best viewing distance6M～100M
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
