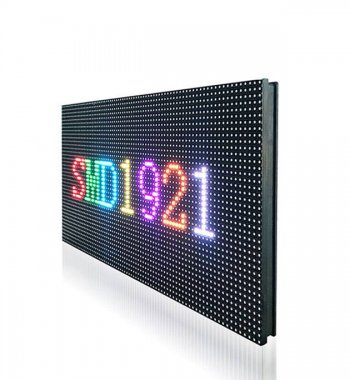

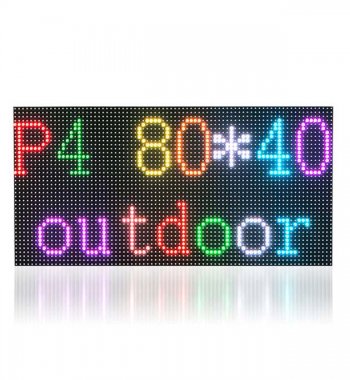

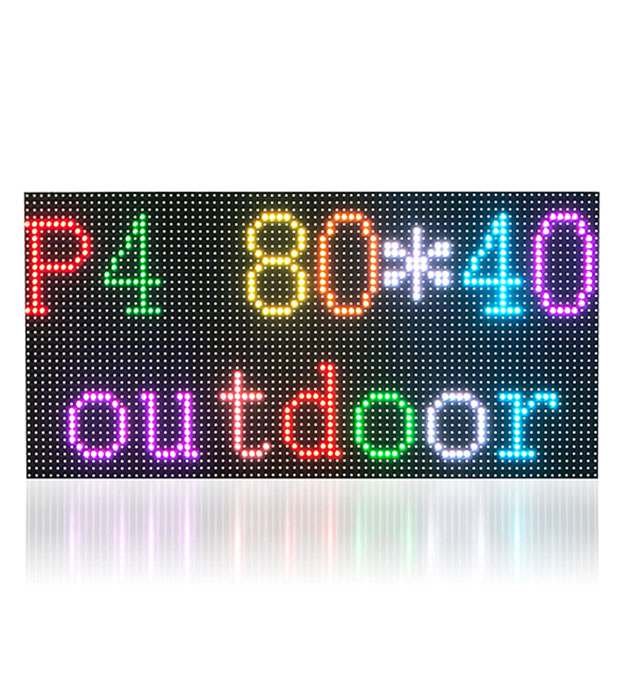

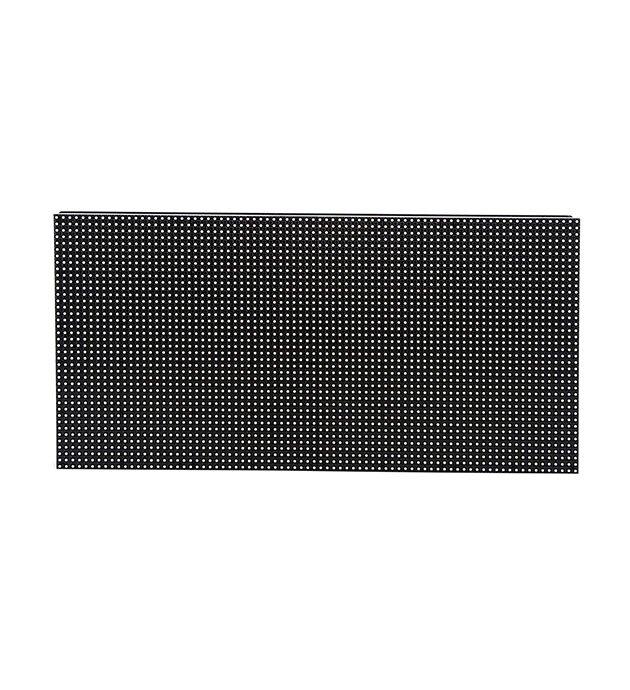

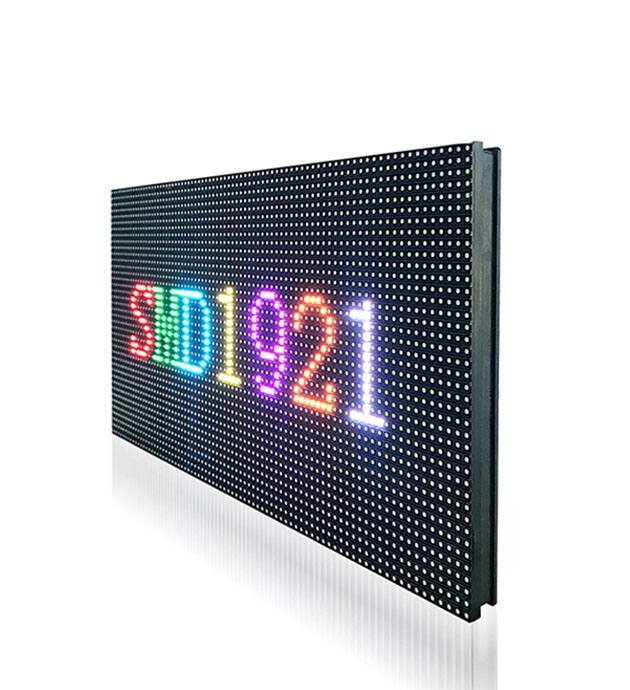

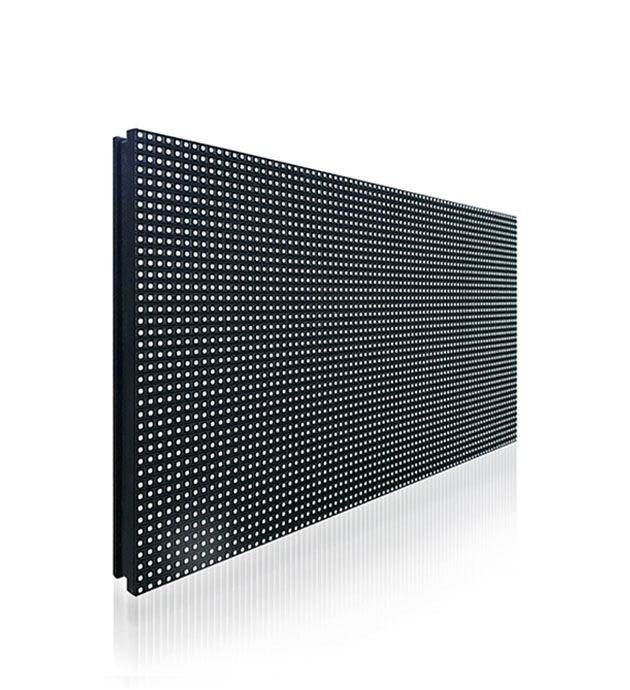

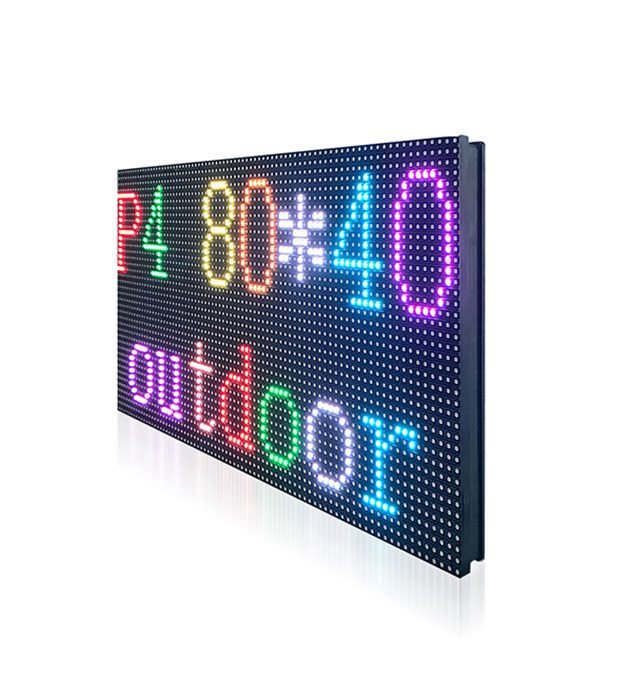

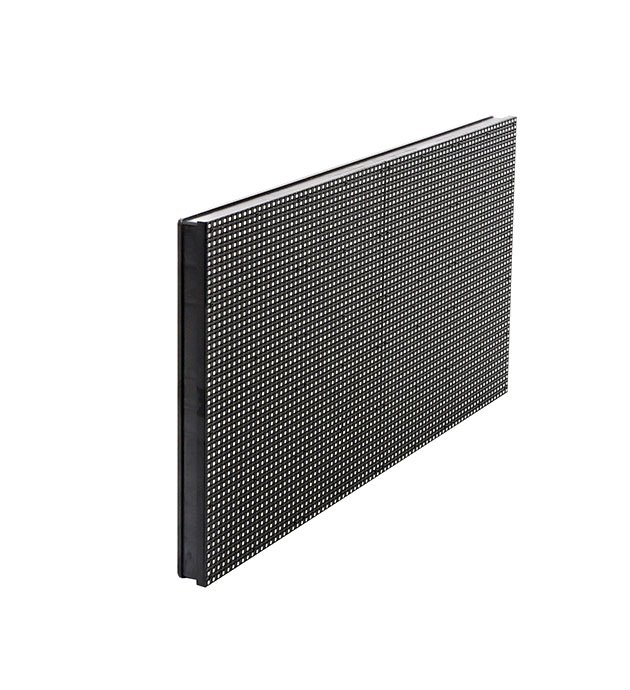

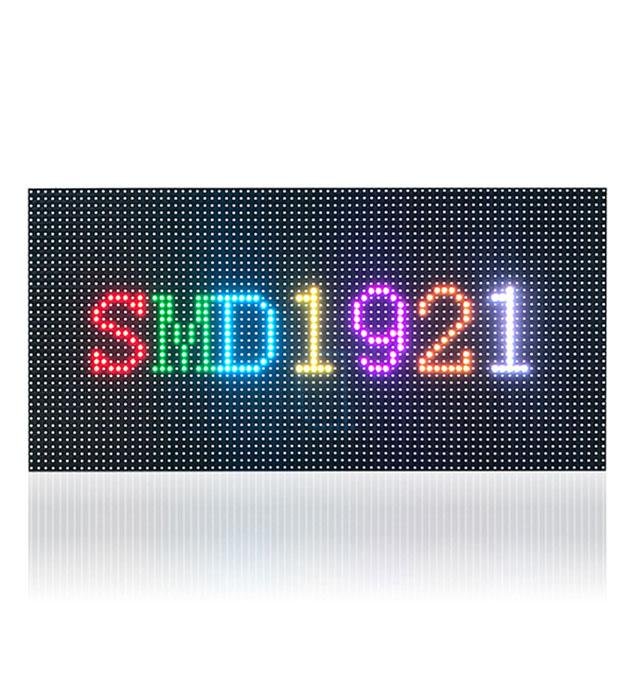

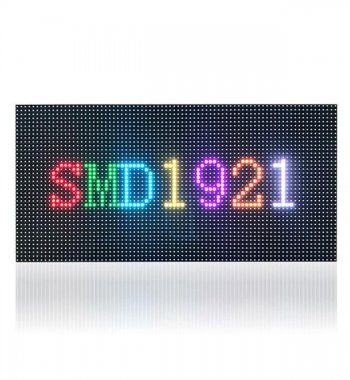

P4 Outdoor LED Display panel full colour LED Screen module 320x160mm

Product description:

· Model Number： P4

· Module size： 320*160mm

· Pixel： 80*40

· Certicificate:  CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

P4 outdoor full color LED display module board, size 320*160m m, pixel arrangement 80*40,

RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz.

Remarks & Key Precautions

1.P4 Outdoor LED Panel is relative small pixel, we suggest to go with 960*960 outdoor Die-cast aluminum cabinet.

2.All outdoor P4 modules use HUB75

3.Temperature requirement:

1) Operating temperature range: -30 ° C -60 ° C, other temperature range, need to install temperature control equipment.

2) Lamp surface temperature (working time): ≤85°C, temperature control equipment is required to be installed when temperature exceeding the standard

4.Metal components of the screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10Ω. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.

5.It’s not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.

The magnetic installation method cannot guarantee the flatness and the performance of the led screen.

Module is likely to deform under extremely cold weather.

6. Please do not display static picture or text, for this may cause LED lamp brightness go down seriously or LED lamp die. Please play moving pictures or text.Application.

7. In the range of 10% to 65% RH relative humidity, the screen should be lighted on more than 2H every half month

8. After the heavy rain, the display screen should be checked in time to see whether there is dampness, water droplets, water vapor and other problems inside the display screen.



Specification

OUTDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP4-10S
Module size320mm*160mm
Pixel pitch4mm
Pixels Density62500 dots/m2
Pixel configuration1R1G1B
Package modeSMD1921
Pixel resolution80dots(W)*40dots(H)
Max Power40W
Module thickness16mm
Drive typeConstant drive
Scan mode1/10scan
Port typeHUB75
Brightness of white balance≥5500cd/m2
Best viewing distance4M～50M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageAC110V～220V±10%
Average Power consumption<320W/㎡
Max.Power consumption<800W/㎡
Current<20mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
