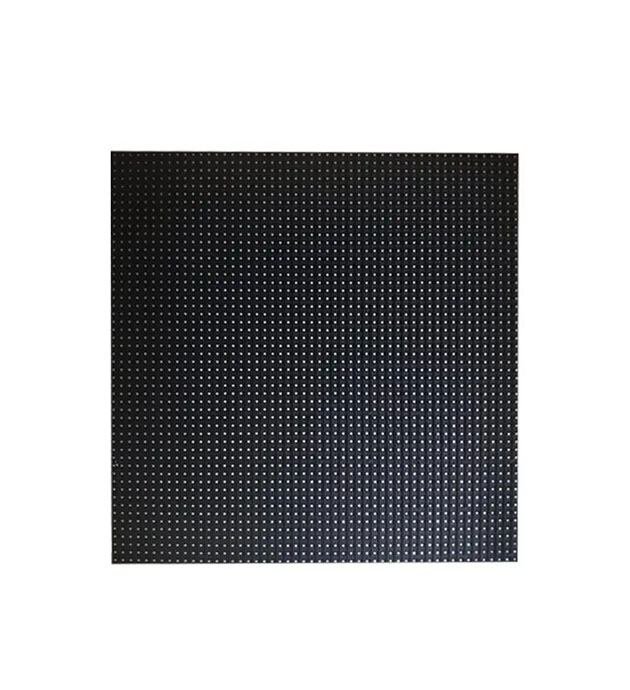

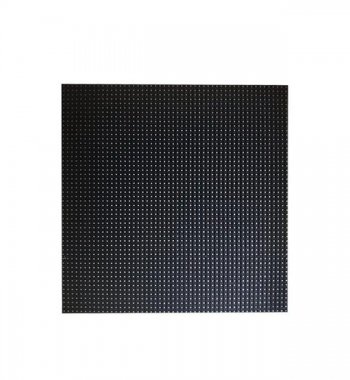

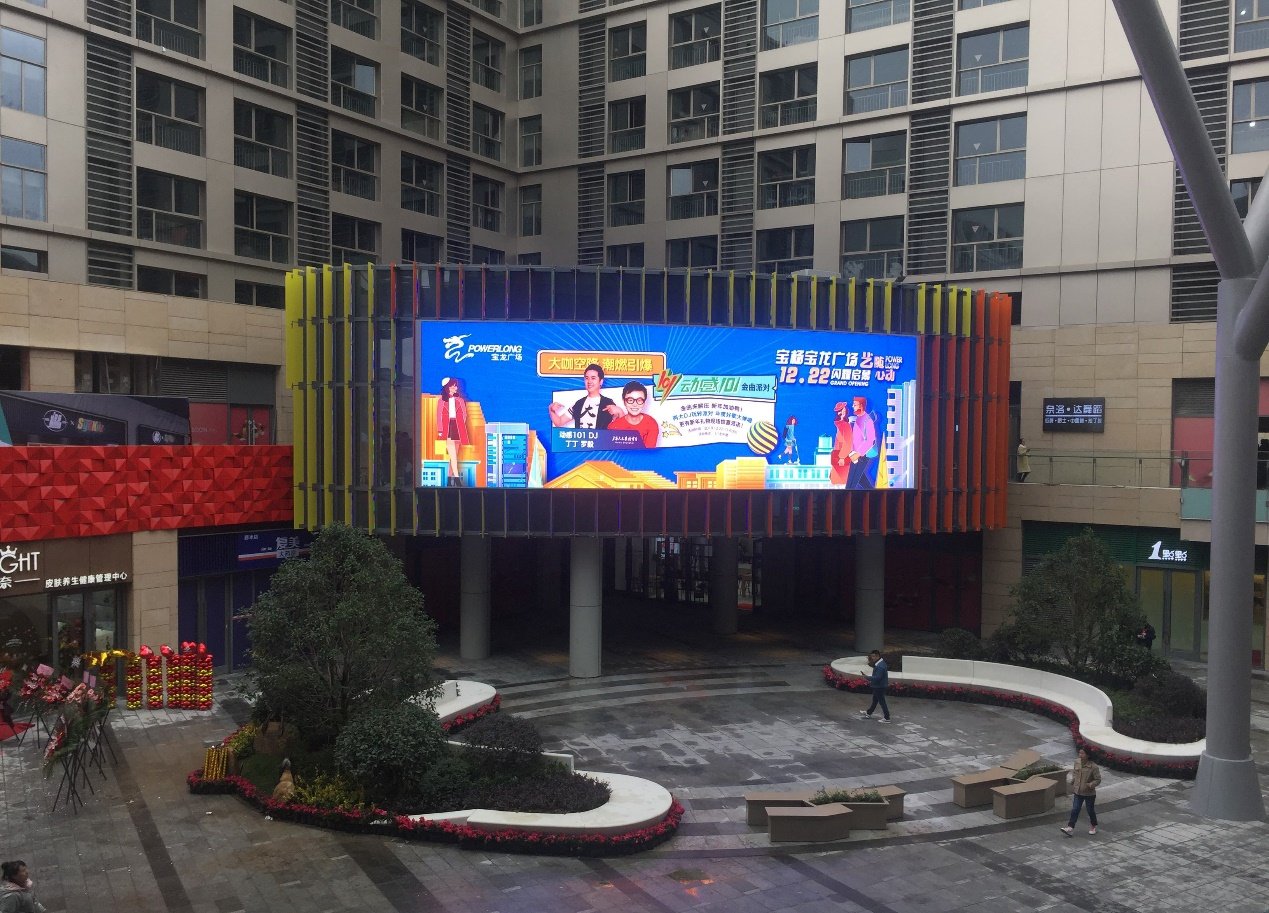

P4.81 Outdoor LED Display panel full colour LED Screen module 256x128mm

Product description:

· Model Number： P4.81

· Module size： 250*250mm

· Pixel resolution： 52*52

· Certicificate: CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

P4.81 outdoor full color LED display module board, size 250*250 mm, pixel arrangement 52*52,

RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz.


Remarks & Key Precautions

1.P4.81 Outdoor LED Panel is relative small pixel, we suggest to go with 500*500/500*1000mm outdoor Die-cast aluminum cabinet.

2.All outdoor P4.81 modules use HUB75

3.Temperature requirement:

1) Operating temperature range: -30 ° C -60 ° C, other temperature range, need to install temperature control equipment.

2) Lamp surface temperature (working time): ≤85°C, temperature control equipment is required to be installed when temperature exceeding the standard

4.Metal components of the screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10Ω. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.

5.It’s not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.

The magnetic installation method cannot guarantee the flatness and the performance of the led screen.

Module is likely to deform under extremely cold weather.

6. Please do not display static picture or text, for this may cause LED lamp brightness go down seriously or LED lamp die. Please play moving pictures or text.Application.

7. In the range of 10% to 65% RH relative humidity, the screen should be lighted on more than 2H every half month

8. After the heavy rain, the display screen should be checked in time to see whether there is dampness, water droplets, water vapor and other problems inside the display screen.



Specification

1.1 Pixel Structure Diagram


A：Schematic Chart

Structure description: Each pixel adopts 1 red 1 green 1 blue three-in-one surface-mounted light-emitting tube
The lamp package: SMD2727
B： Professional Analysis
Analysis ItemProfessional analysis content
Color analysisTo achieve the best white balance effect in color matching, the requirements about light brightness of LED lamp with color matching is strict, and the color matching ratio of red, green and blue brightness is R:G:B=3:6:1



1.2 Pixel Index


Tube colorPackageSpecification（Typical value, specific to selected lamp）
R(Red)2727HUF: 618-623nm, IV 27-32.4mcd, 1.7-2.2V, 5mA
G(Green)HUF: 524-527nm, IV 92-110mcd, 2.5-3.1V, 3mA
B(Blue)HUF: 465~468nm, IV 17-20.4mcd, 2.5-3.1V, 3mA



1.3 Technical Parameters

ItemTechnical Parameters
1. Pixel tubePixel pitch: 4.81mm
Pixel density: 43264 dots/m2
Primary color: red+green+blue
Pixel color configuration: 1R1G1B
Package: 2727
2. Unit ModuleUnit module resolution: width 52 dots × height 52 dots
Unit module size: 250*250mm
Unit module pixel number: 2704 dots/module
Scanning method: 13S
Input voltage: DC5V
Maximum current: 7.5A
3. Unit CabinetCabinet size: 500*1000mm
Number of unit modules: width 2 modules * height 4 modules= 8 pieces
Physical resolution: 104*208 dots
Maximum power: 400W
Average power: 220W
Receiving card: Compatible with main manufacturers in the market, such as Novastar, Colorlight, Linsn, HD, etc.
Working voltage: 220V±15％
Viewing angle: 120°±10°
Storage temperature: -30℃～+60℃
Working temperature: -20℃～+45℃
Relative humidity: 10% to 95%
Net weight: 12.8Kg
4. Control SystemControl host: Intel 10th generation above i3/I5/I7
Operating system: WIN 7/ 8/10/11
Control mode: synchronous control or asynchronous control
Graphics card: DVI/HDMI independent graphics card
5. Main technical parameters1) Drive device: constant current drive
2) Scanning method: 1/13 scan
3) Refresh frequency: ≥1920Hz
4) Frame frequency: ≥60Hz
5) Grayscale/Color: 16.7M colors in 14-bit grayscale
6) Best view distance: 5～80m
7) Brightness: 4000cd/m2
8) Brightness adjustment method: 256 levels adjustable by software
9) Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
10) The control system adopts: PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
11) MTBF: 1000 hours
12) Lifespan: 100,000 hours
13) Flatness: ≤0.5mm between any adjacent pixels; splicing gap between modules <1mm;
14) Uniformity: bright pixel light and smooth brightness of modules
15) Noise rate: <0.0002
16) Switching power supply load: 5V/40A
17) Computer display mode: 1280×1024
18) Effective communication distance: network cable 100m (without relay), multi-mode fiber 500m, single-mode fiber 20km

The above parameters are reference values, please be subject to the actual parameters!
