P2.5 Outdoor RGB LED Display LED Screen Panel 160x160mm

Product description:

· Model Number： P2.5

· Module size： 160*160 mm

· Pixel Resolution：64*64

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

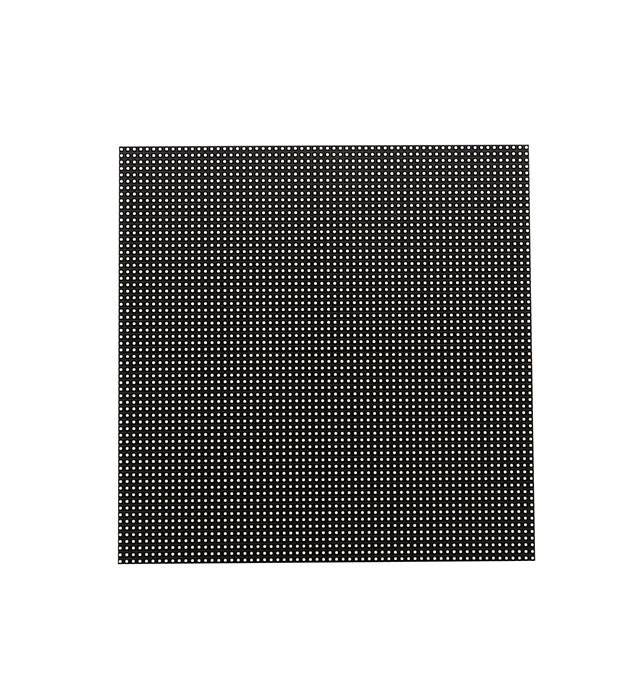

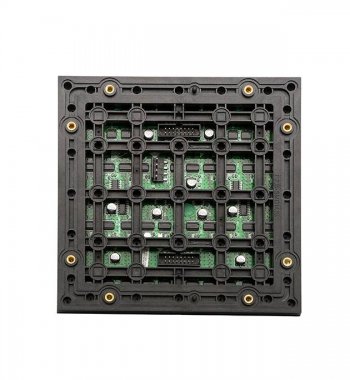

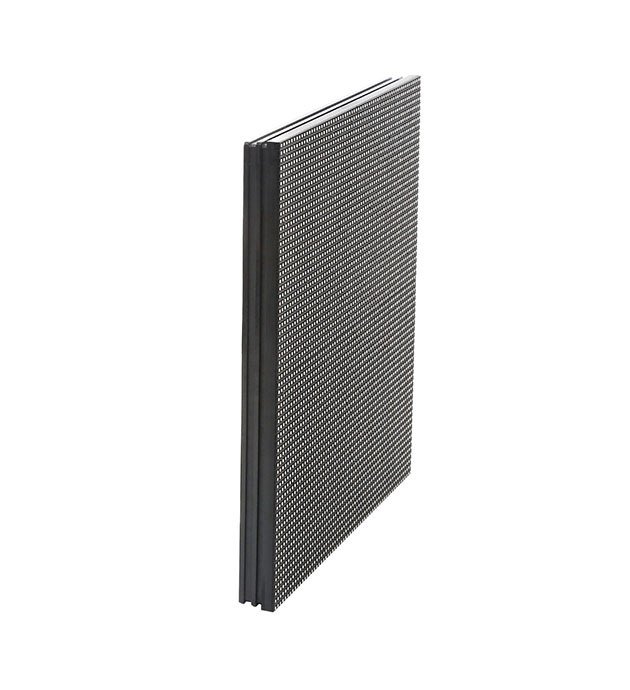

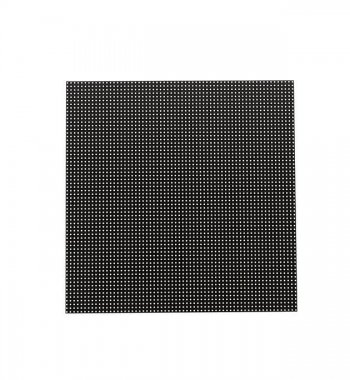

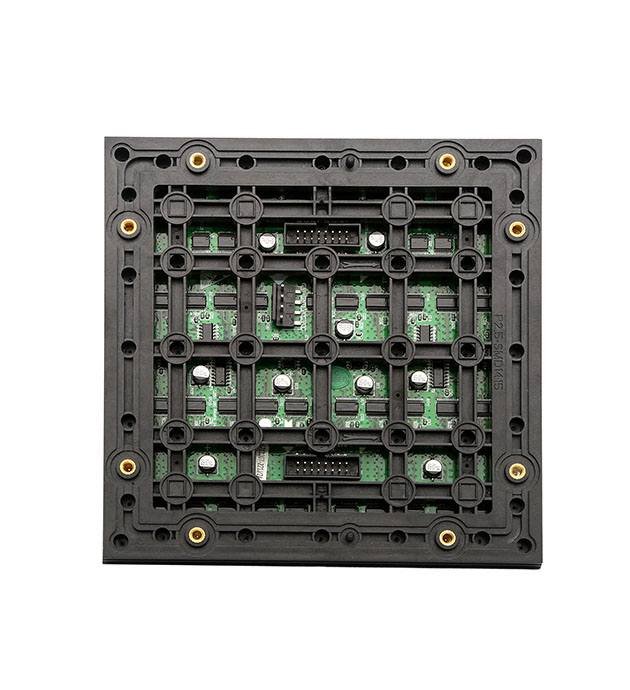

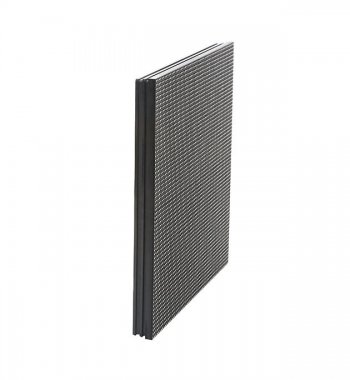

P2.5 outdoor full color LED display module board, size 160*160 mm, pixel arrangement 64*64,

RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz.

Remarks & Key Precautions

1.All outdoor P2.5 modules use HUB75

2.Temperature requirement:

1) Operating temperature range: -30 ° C -60 ° C, other temperature range, need to install temperature control equipment.

2) Lamp surface temperature (working time): ≤85°C, temperature control equipment is required to be installed when temperature exceeding the standard

3.Metal components of the screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10Ω. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.

4.It’s not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.

The magnetic installation method cannot guarantee the flatness and the performance of the led screen.

Module is likely to deform under extremely cold weather.

5. Please do not display static picture or text, for this may cause LED lamp brightness go down seriously or LED lamp die. Please play moving pictures or text Application.

6. In the range of 10% to 65% RH relative humidity, the screen should be lighted on more than 2H every half month

7. After the heavy rain, the display screen should be checked in time to see whether there is dampness, water droplets, water vapor and other problems inside the display screen.

Specification

OUTDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2.5-32S
Module size160mm*160mm
Pixel pitch2.5mm
Pixels Density160000 dots/m2
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution64dots(W)*64 dots(H)
Max Power 25W
Module thickness15mm（Without magnetic column）
27mm（Include magnetic column）
Weight0.232kg
Drive typeConstant drive
Scan mode 1/32scan
Port typeHUB75E
Best viewing distance3M～20M
Best viewing angle 160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
PowerRelative humidity10%-95%
Working voltageDV 5V
Average Power consumption<320W/㎡
Main technical  parameterMax.Power consumption<780W/㎡
Current<18mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
