P2 Outdoor RGB LED Display LED Screen Panel 160x160mm

Product description:

· Model Number： P2

· Module size： 160*160 mm

· Pixel Resolution：80*80

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

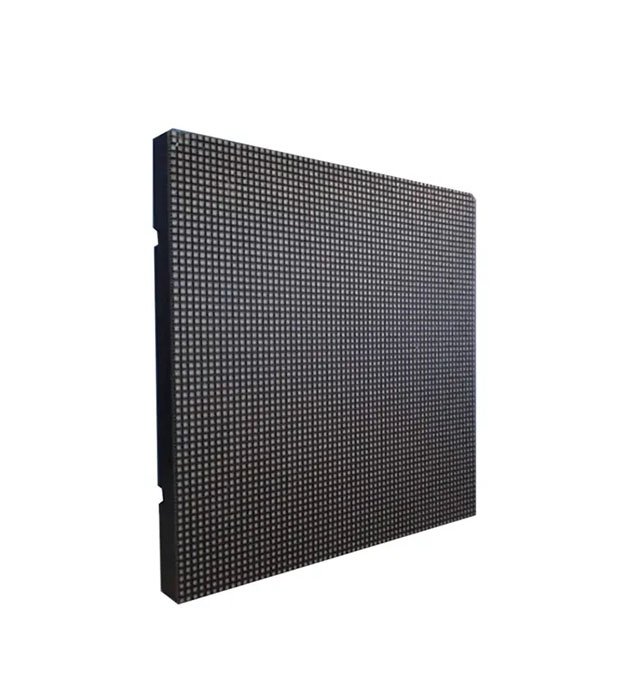

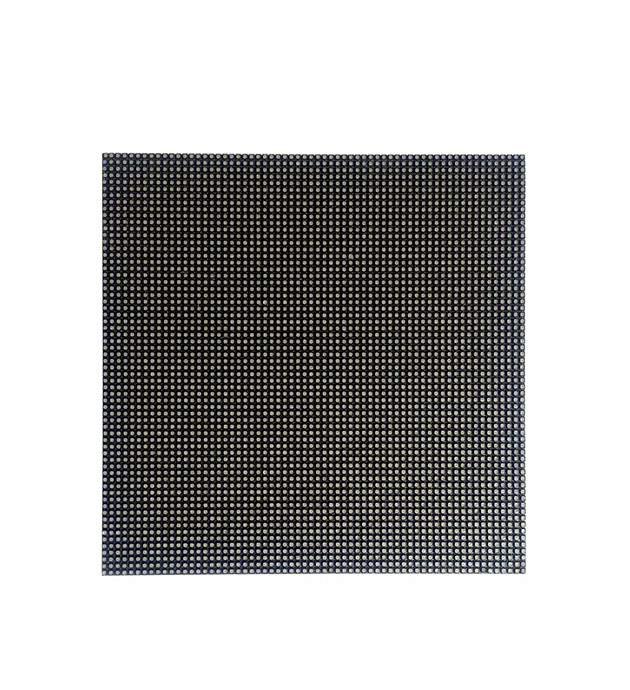

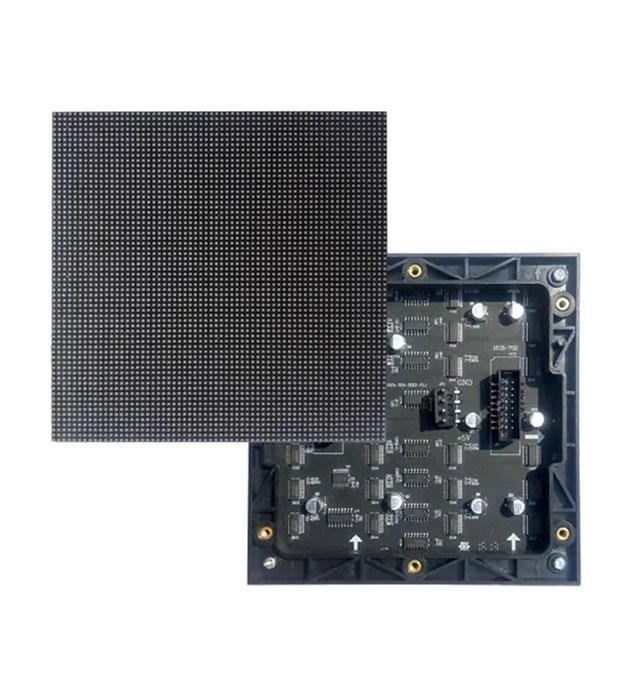

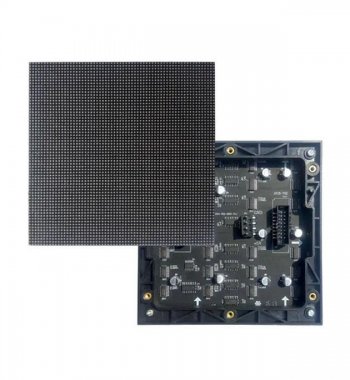

P2 outdoor full color LED display module board, size 160*160mm, pixel arrangement 80*80,

RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz

-1_0002_1-1_0000_3

Remarks & Key Precautions

1.indoor P2 LED module can go with 640*480mm LED cabinet.

2.Indoor P2 led module  uses HUB75E.

3.Temperature requirement:

1) Operating temperature range: -20℃-40℃ other temperature range, need to install temperature control equipment.

2) Lamp surface temperature(working period): ≤60℃, temperature control equipment is required to be installed when temperature exceeding the standard.

4.Humidity requirement:

Storage humidity range: 10% RH-60% RH, humidity over 60% RH requires dehumidification treatment.

5.Keep away from water: Indoor LED module have low level of protection, water can make the module short circuit, and leads to circuit device damage, so it is necessary to keep away from the water source.

6.Sweat or other liquid cannot be dripped on the display screen during disassembly and assembly operation. If it is dripped, then use alcohol to clean the product, to prevent the liquid from corroding the LED module.

7.The indoor full-color LED display contains a driver chip and an input buffer chip, which can display video, image and text information when connected to the led display control system

in order to ensure the service life of LED, do not display only still picture or still text for a long time, and cause the lamp tube brightness serious attenuation or cause a batch of dead lights, please play the rolling picture or


Specification

OUTDOOR P2 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2
Module size160mm*160mm
Pixel pitch2mm
Pixels Density250000 dots/m2
Pixel configuration1R1G1B
Package modeSMD 3IN1 -1515
Pixel resolution80dots(W)*80 dots(H)
Max Power 23W
Weight0.232KG
Drive typeConstant drive
Scan mode 1/40scan
Port typeHUB320/HUB75
Best viewing distance2M～10M
Best viewing angle 140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
PowerRelative humidity10%-95%
Working voltageDV 5V
Average Power consumption<280W/㎡
 Main technical  parameterMax.Power consumption<700W/㎡
Current<15mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
Color65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
