P10 Indoor LED Display Full Color LED Screen Module

Product description:

· Model Number： P10

· Module size： 320*160mm

· Colour： FullColor

· Pixel Resolution： 32*16

· Certicificate: CE,RoHS,FCC

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

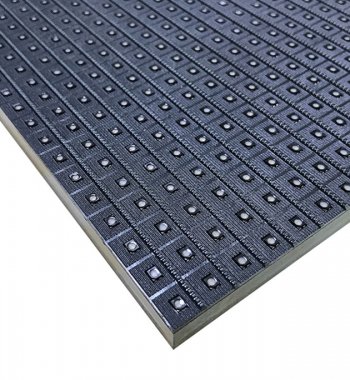

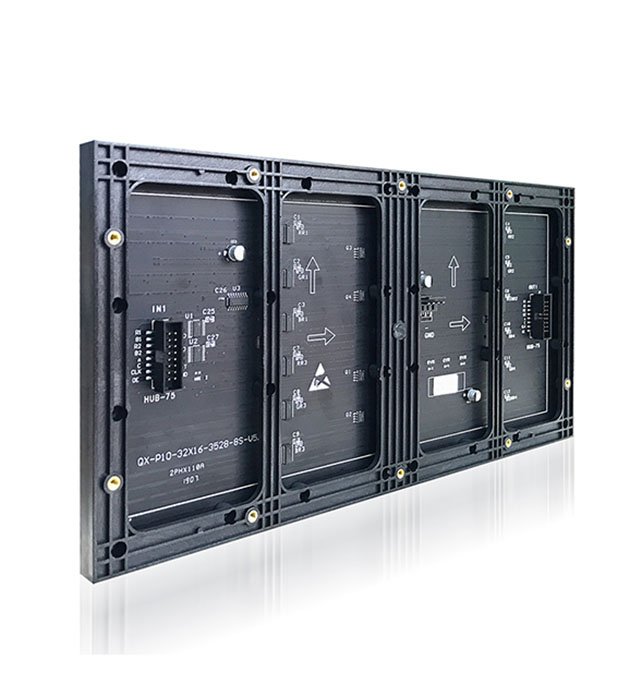

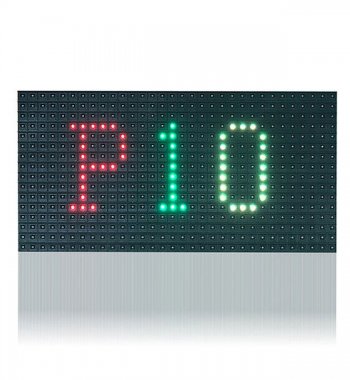

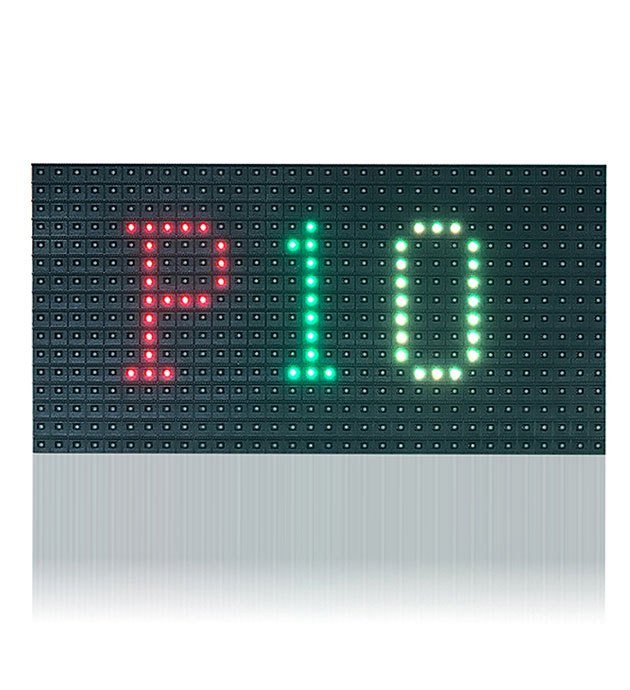

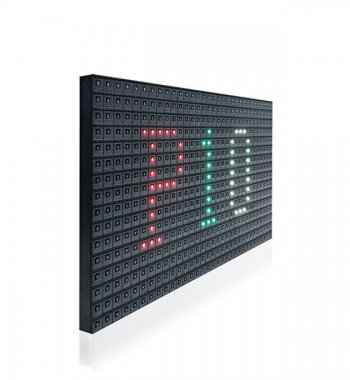

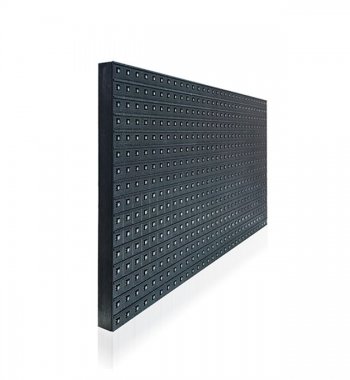

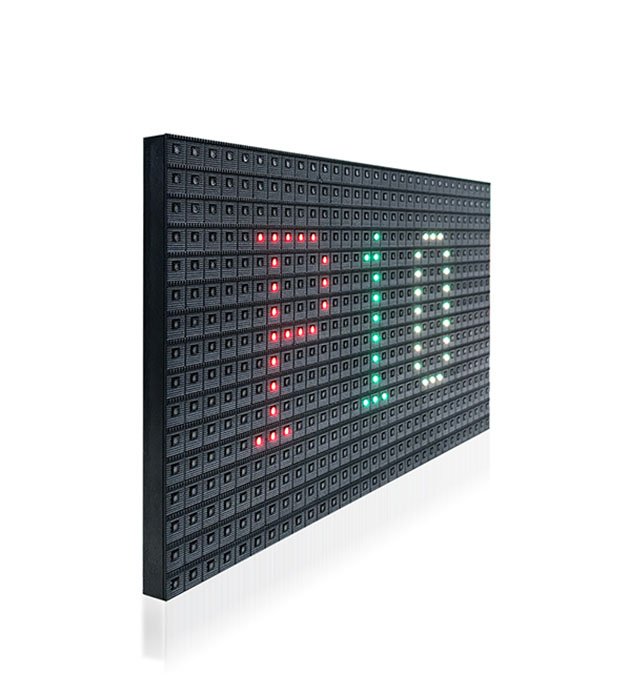

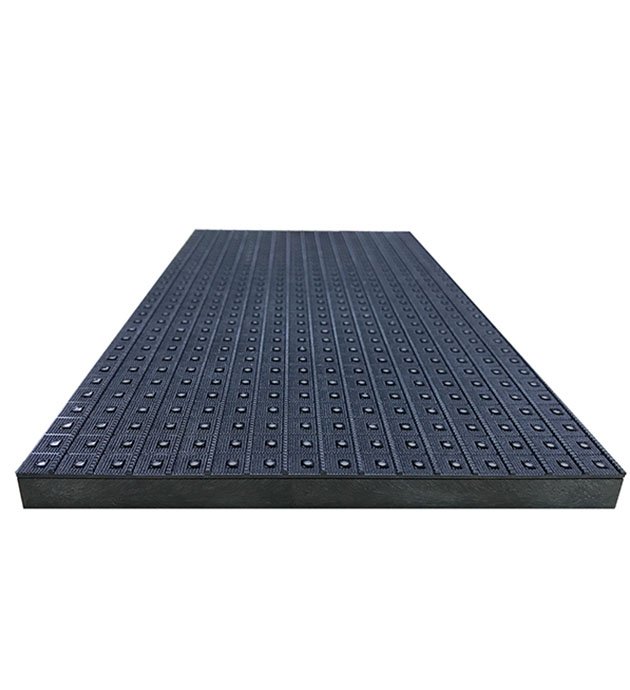

P10 indoor full color LED display module board, size 320*160mm,

pixel arrangement 32*16, RGB full color

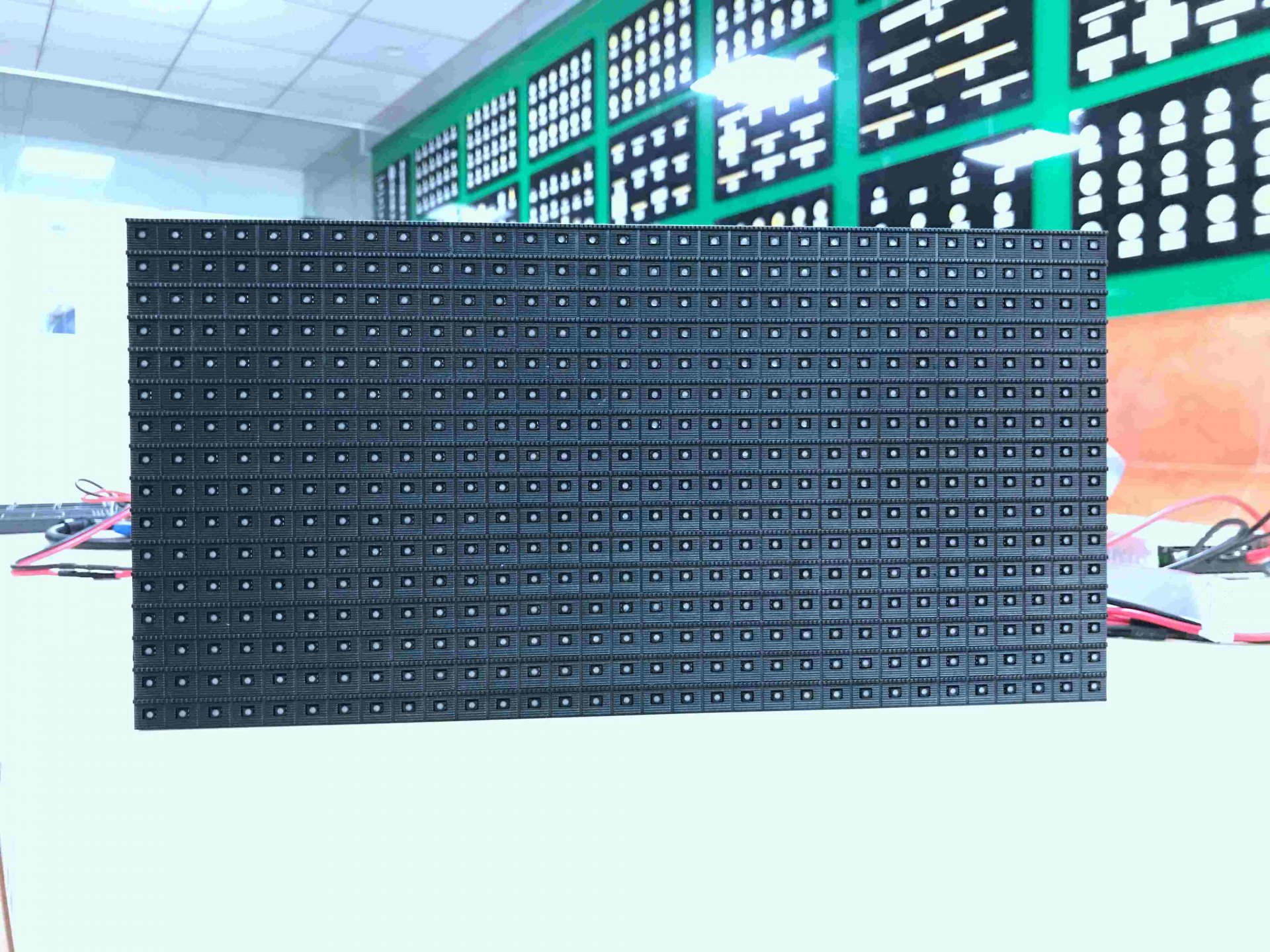

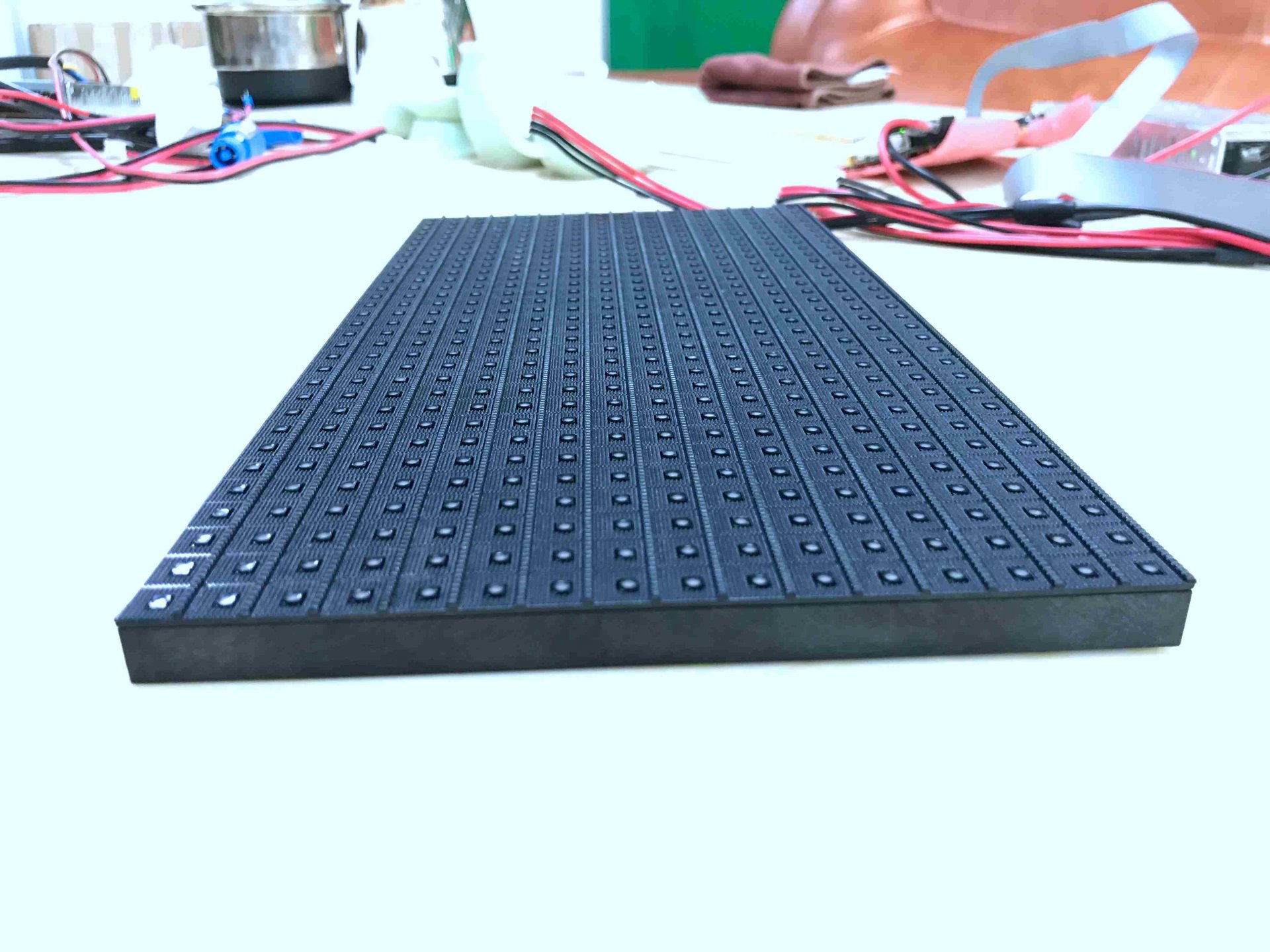

  IMG_1190.JPG  IMG_1194.JPG


Attention:

We recommend that you buy the same batch led modules at once for the Same led display. Because different batches of led modules have different brightness and display colors, even different config files.

If you want to build led screen, please buy enough LED Modules and Spare Parts.

LED Module including the Data & Power Cables.

LED Module Can Work With Linsn, Novastar, Colorlight, Huidu LED Conrol Card Etc.

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) before dispatch.




Specification

INDOOR P10 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP10
Module size320mm*160mm
Pixel pitch10mm
Pixels Density10000 dots/m2
Pixel configuration1R1G1B
Package modeSMD3528
Pixel resolution32dots(W)*16 dots(H)
Max Power15W
Module thickness17.05mm
Weight0.31kg
Drive typeConstant drive
Scan mode1/8 scan
Port typeHUB75
Brightness of white balance≥1500cd/m2
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch
Working voltageDC 5V ±10%


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
