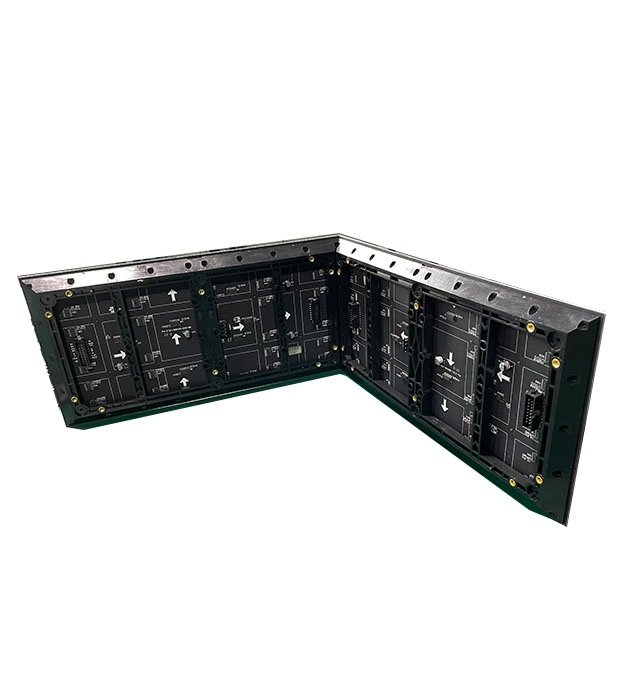

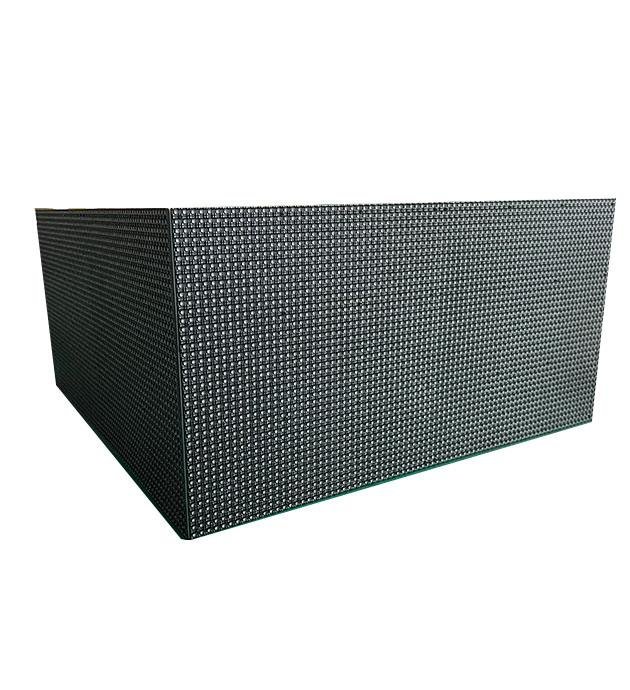

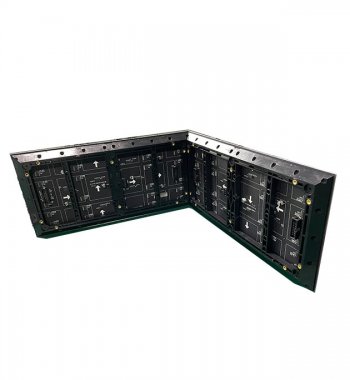

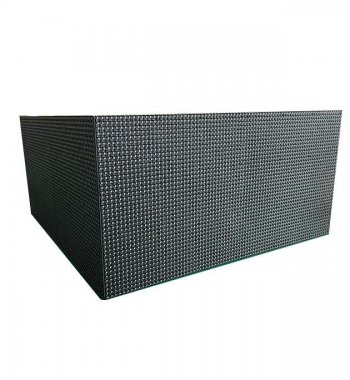

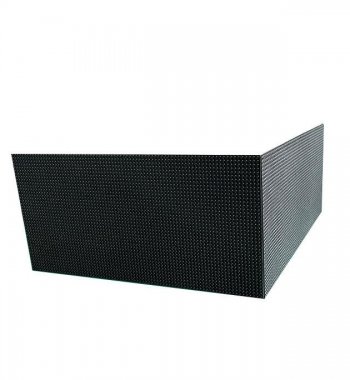

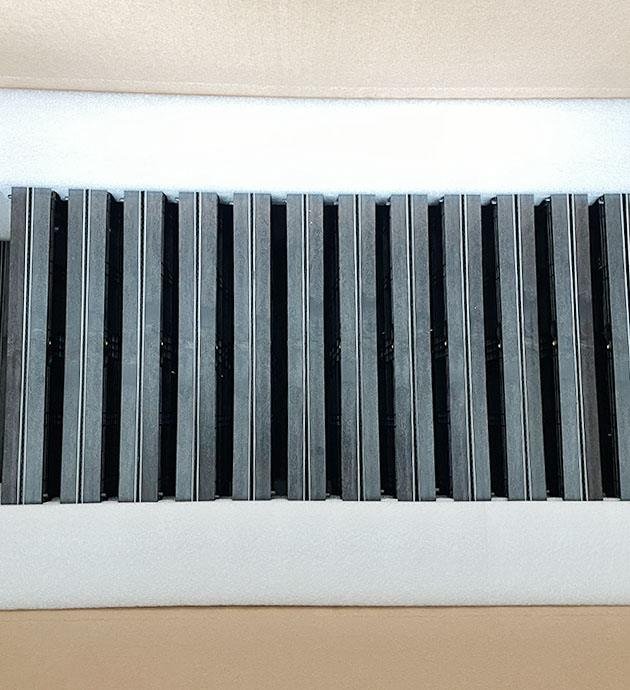

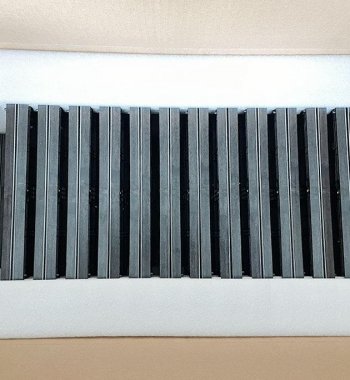

P4 Indoor Right Angle LED Display LED Screen Panel 320x160mm

Product description:

· Model Number： P4

· Module size： 320*160mm

· Pixel Resolution：80*40

· Certicificate: CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

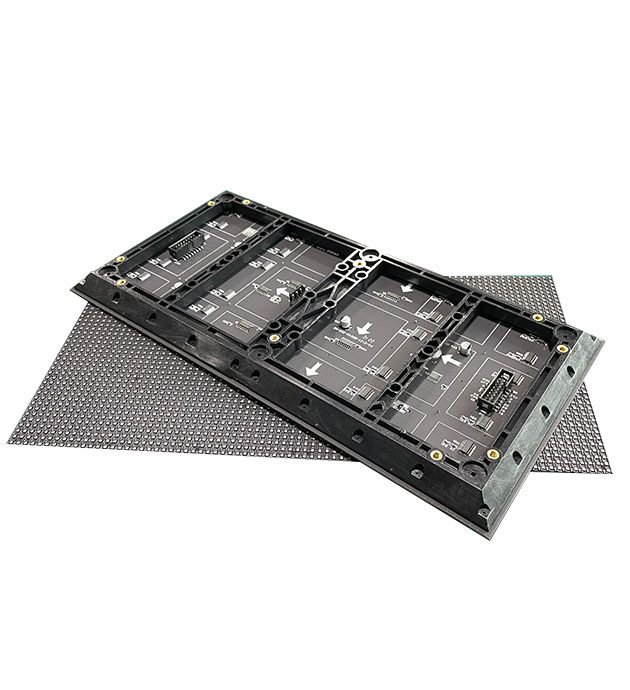

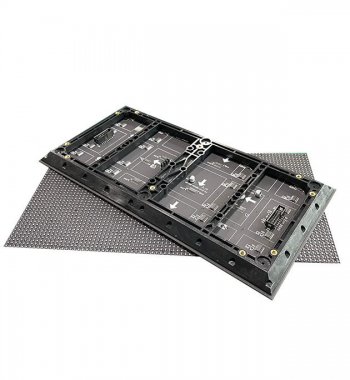

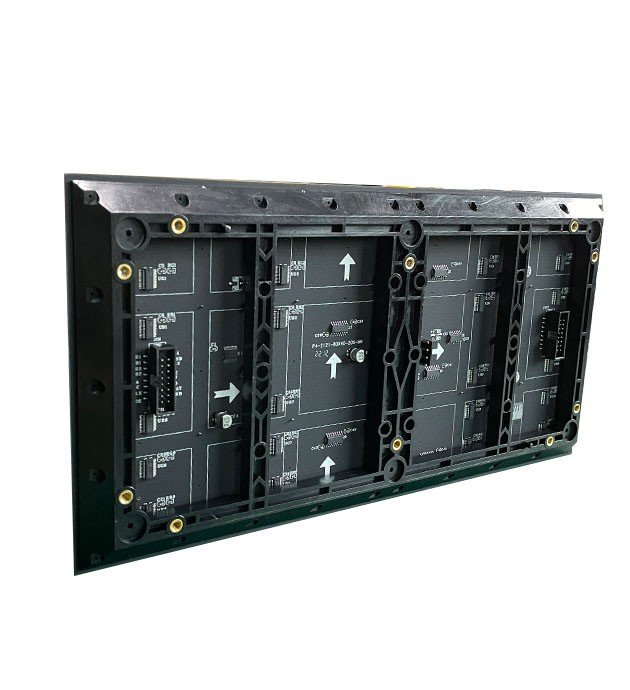

P4 indoor full color LED display module board, size 320*160mm, pixel arrangement 80*40,

RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz


Remarks & Key Precautions

1.indoor P4 LED module can go with 960*960mm LED cabinet.

2.Indoor P4 led module  uses HUB75E.

3.Temperature requirement:

1) Operating temperature range: -20℃-40℃ other temperature range, need to install temperature control equipment.

2) Lamp surface temperature(working period): ≤60℃, temperature control equipment is required to be installed when temperature exceeding the standard.

4.Humidity requirement:

Storage humidity range: 10% RH-60% RH, humidity over 60% RH requires dehumidification treatment.

5.Keep away from water: Indoor LED module have low level of protection, water can make the module short circuit, and leads to circuit device damage, so it is necessary to keep away from the water source.

6.Sweat or other liquid cannot be dripped on the display screen during disassembly and assembly operation. If it is dripped, then use alcohol to clean the product, to prevent the liquid from corroding the LED module.

7.The indoor full-color LED display contains a driver chip and an input buffer chip, which can display video, image and text information when connected to the led display control system

in order to ensure the service life of LED, do not display only still picture or still text for a long time, and cause the lamp tube brightness serious attenuation or cause a batch of dead lights, please play the rolling picture or text.

Specification

INDOOR P4 SMD 3IN1 TECHNICAL  PARAMETERS
Unit ModuleItemParameter
Model NumberP4-20S
Module size320mm*160mm
Pixel pitch4mm
Pixels Density62500 dots / ㎡
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution80 dots(W)*40 dots(H)
Max Power25W
Weight0.242kg
Drive typeConstant drive
Scan mode1/20scan
Port typeHUB75
Brightness of white balance≥800cd / ㎡
Best viewing distance4M～20M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<280W/㎡
Max.Power consumption<700W/㎡
Current<18mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
