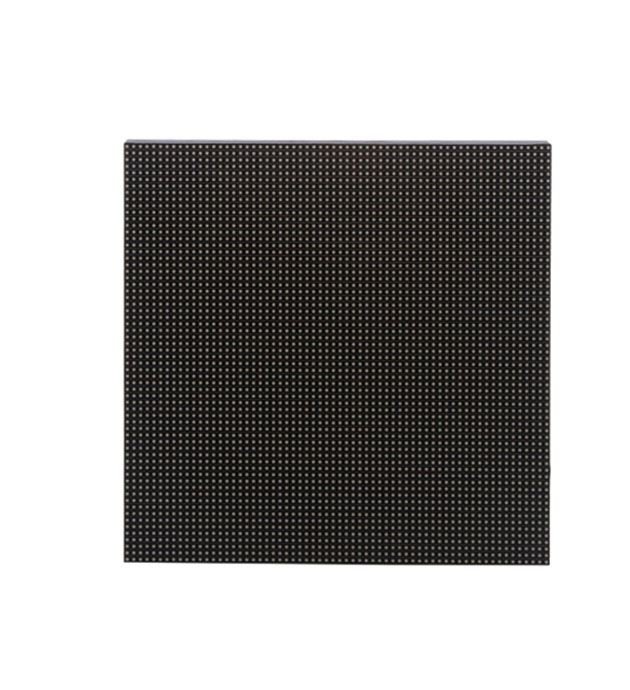

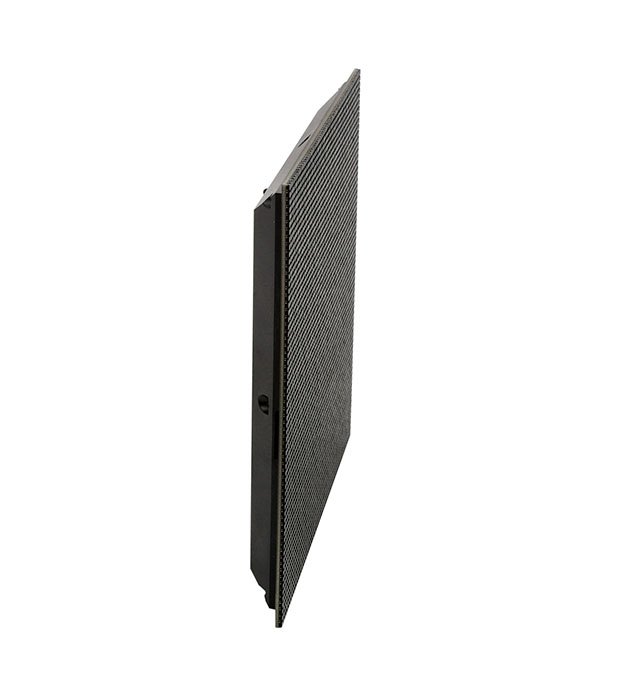

P3 Indoor Right Angle LED Display LED Screen Panel 192x192mm

Product description:

· Model Number： P3

· Module size： 192*192 mm

· Pixel Resolution：64*64

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

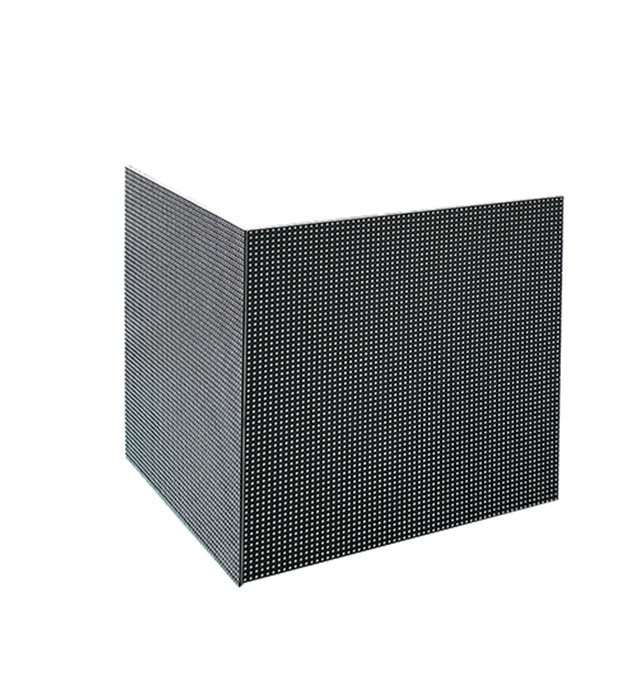

Full Color P3 LED Display Module Designed For 90 degree LED Display, high quality led display module for indoor led display panel.

High brightness, low energy consumption, long life, reliable and stable, convenient application, simple maintenance, can bring higher quality image display effect and better user experience to users.

Full Color HD P3 Indoor Right Angle LED Display Panel, high quality for many kinds of use.

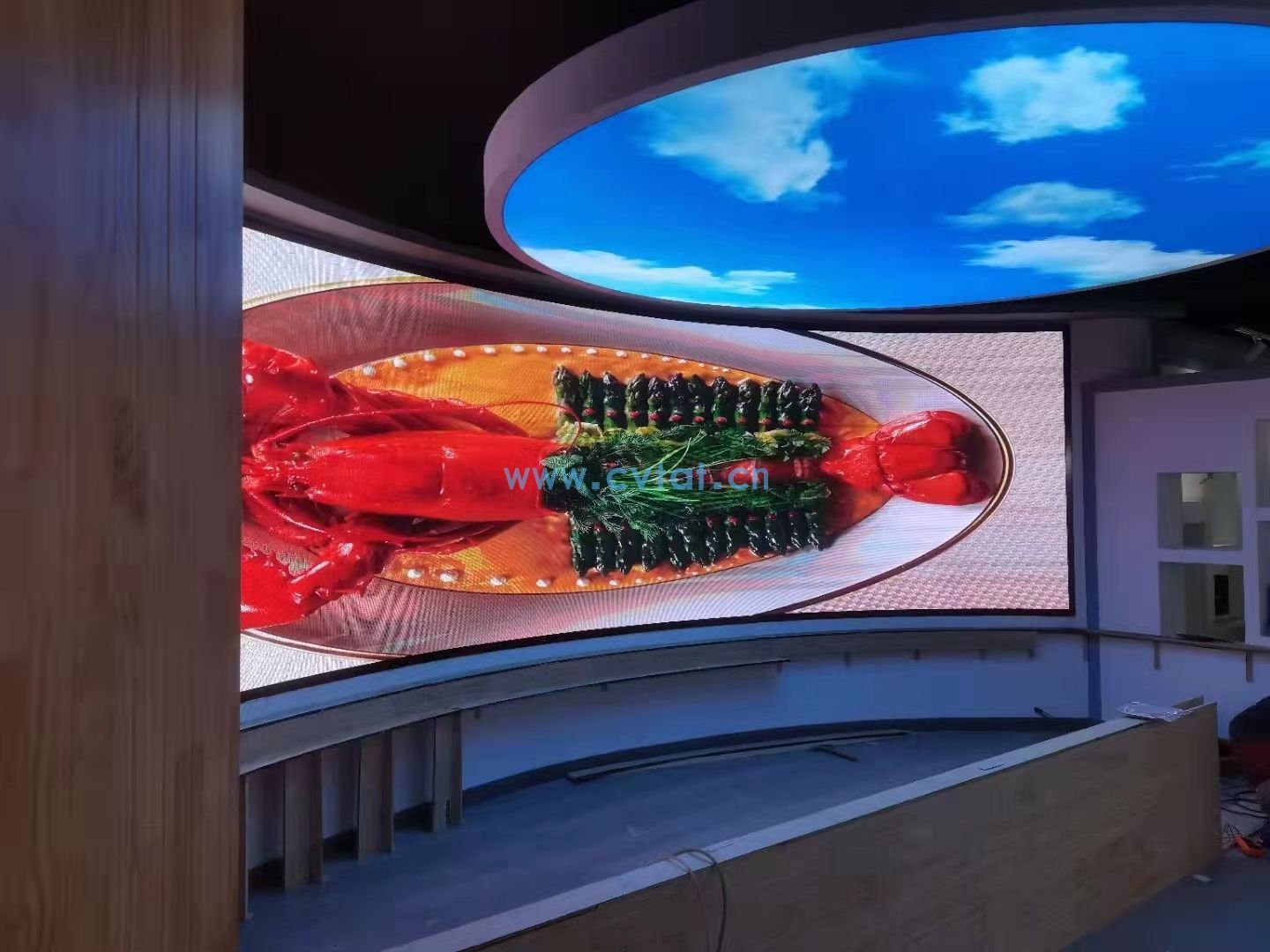

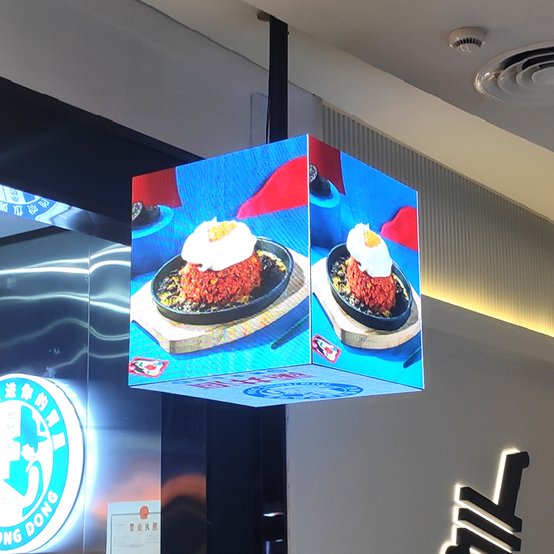

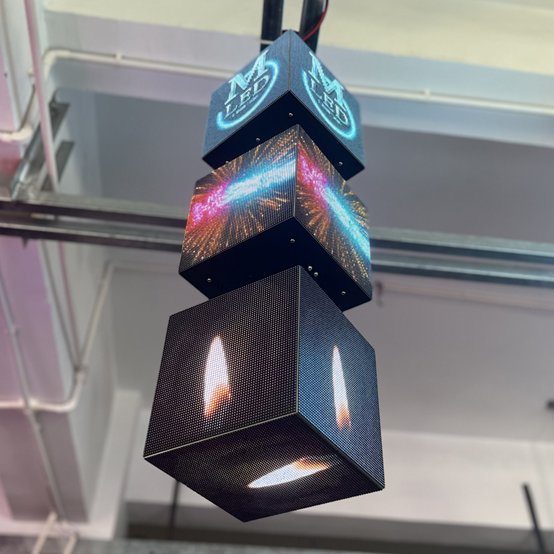

image  image


Remarks & Key Precautions

1.indoor P3 LED module can go with 576*576mm LED cabinet.

2.Indoor P3 led module  uses HUB75E.

3.Temperature requirement:

1) Operating temperature range: -20℃-40℃ other temperature range, need to install temperature control equipment.

2) Lamp surface temperature(working period): ≤60℃, temperature control equipment is required to be installed when temperature exceeding the standard.

4.Humidity requirement:

Storage humidity range: 10% RH-60% RH, humidity over 60% RH requires dehumidification treatment.

5.Keep away from water: Indoor LED module have low level of protection, water can make the module short circuit, and leads to circuit device damage, so it is necessary to keep away from the water source.

6.Sweat or other liquid cannot be dripped on the display screen during disassembly and assembly operation. If it is dripped, then use alcohol to clean the product, to prevent the liquid from corroding the LED module.

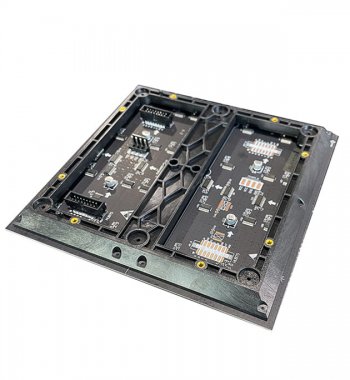

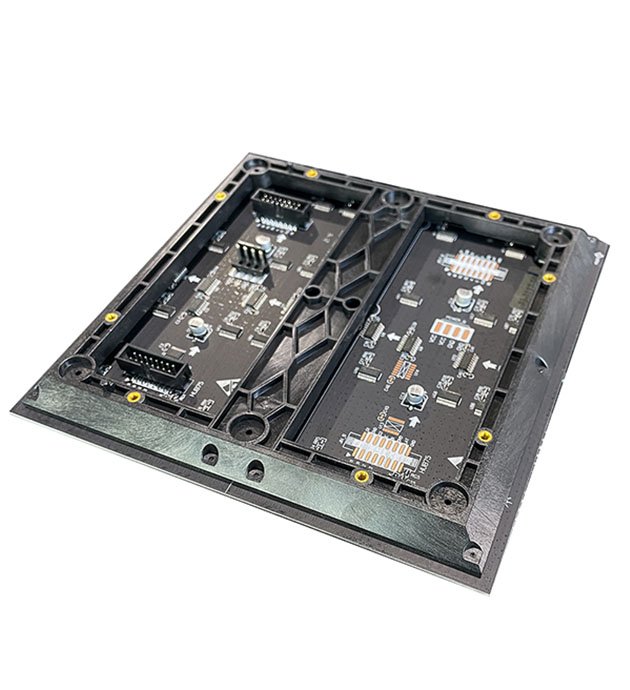

7.The indoor full-color LED display contains a driver chip and an input buffer chip, which can display video, image and text information when connected to the led display control system

in order to ensure the service life of LED, do not display only still picture or still text for a long time, and cause the lamp tube brightness serious attenuation or cause a batch of dead lights, please play the rolling picture or text.



Specification

INDOOR P3 SMD 3IN1 TECHNICAL  PARAMETERS
Unit ModuleItemParameter
Model NumberP3-32S
Module size192mm*192mm
Pixel pitch3mm
Pixels Density111111 dots /㎡
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution64dots(W)*64 dots(H)
Max Power23W
Weight0.31kg
Drive typeConstant drive
Scan mode1/32scan
Port typeHUB75E
Brightness of white balance≥1200cd/m2
Best viewing distance3M～20M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<270W/㎡
Max.Power consumption<680W/㎡
Current<18mA(single LED)
 Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>3840HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
