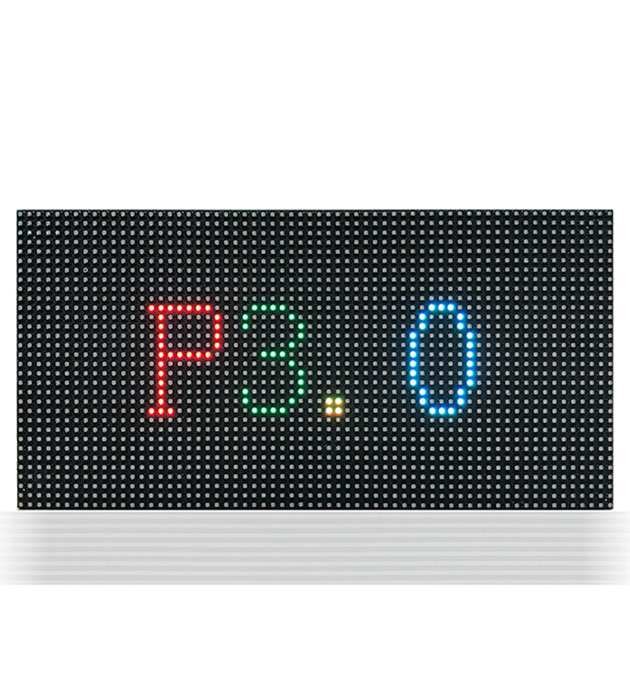

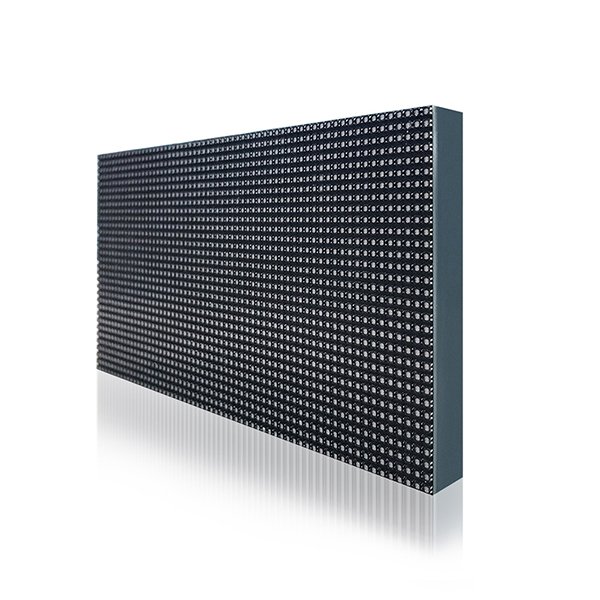

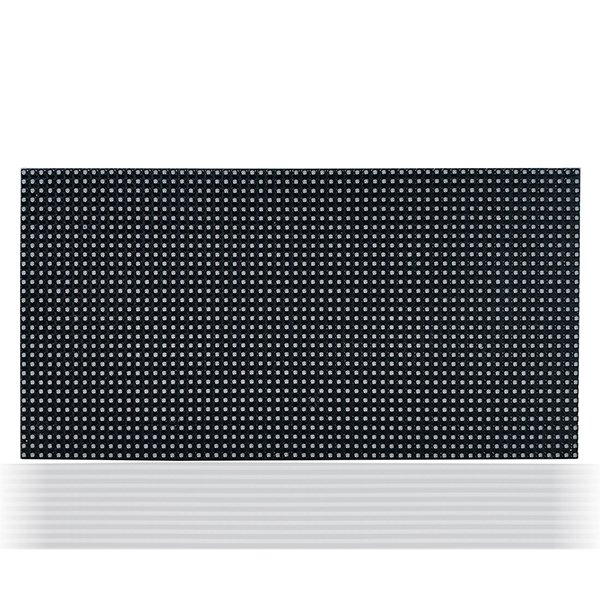

P3 Indoor RGB LED Display LED Screen Panel 192x96mm

Product description:

· Model Number： P3

· Module size： 192*96 mm

· Pixel Resolution：64*32

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

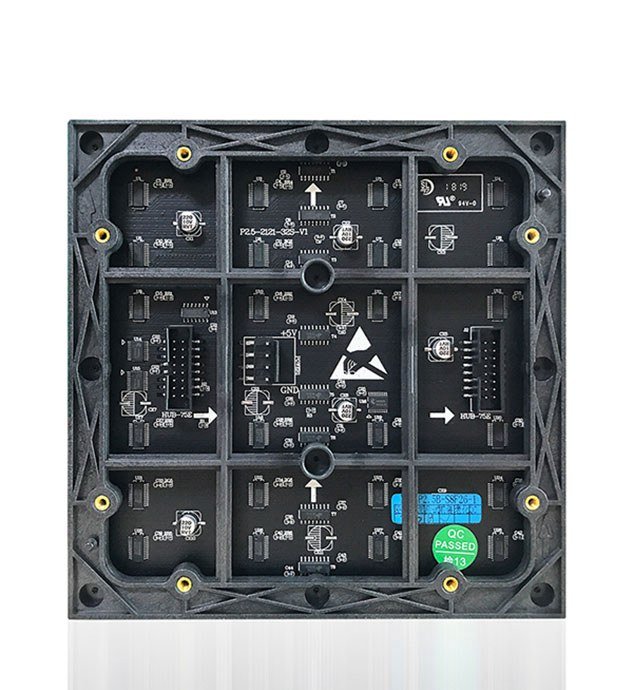

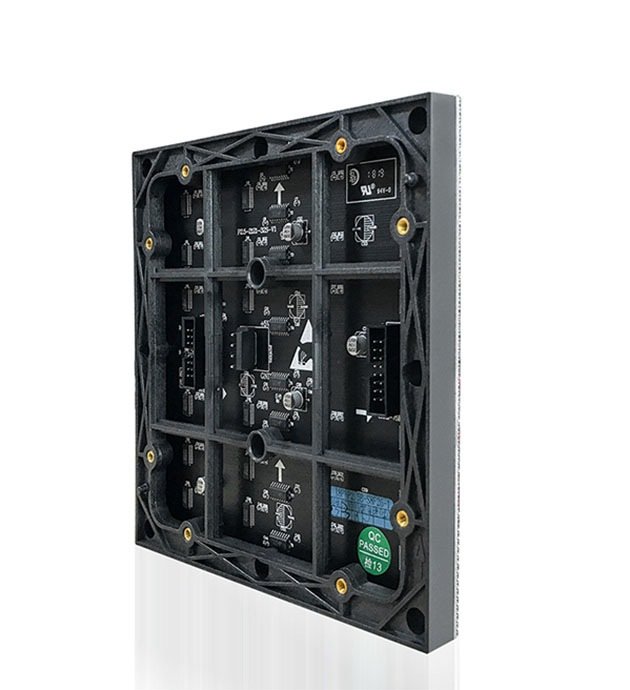

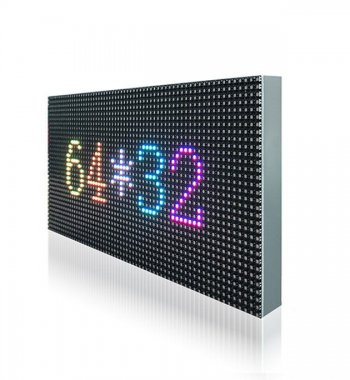

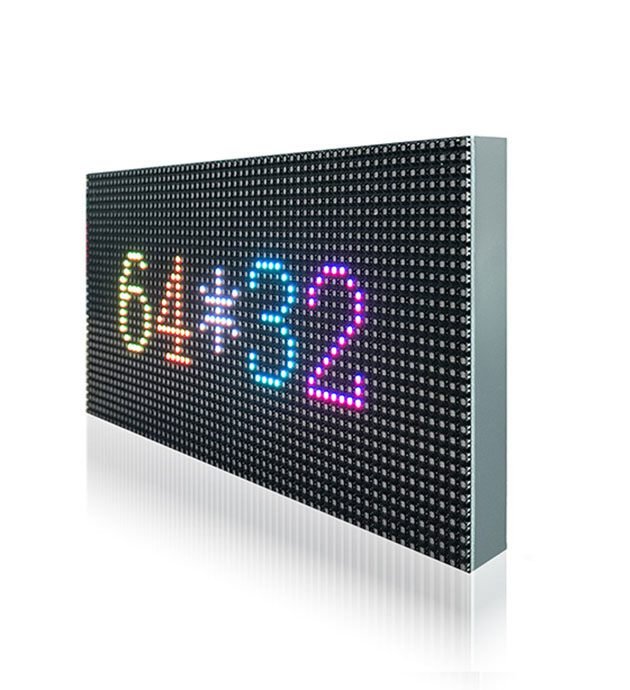

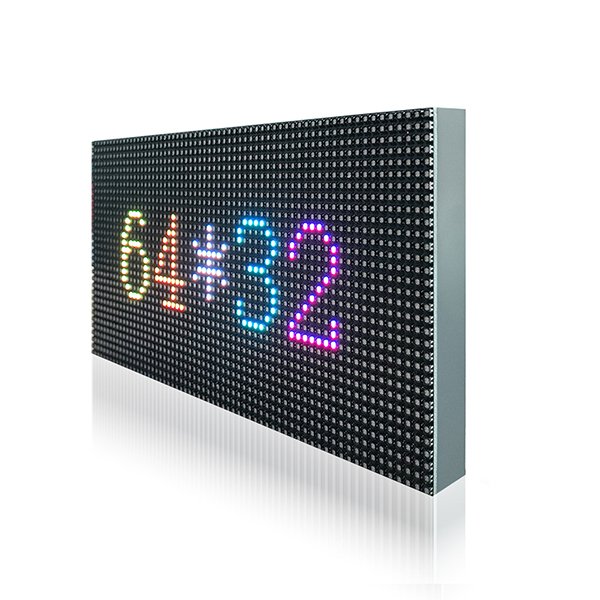

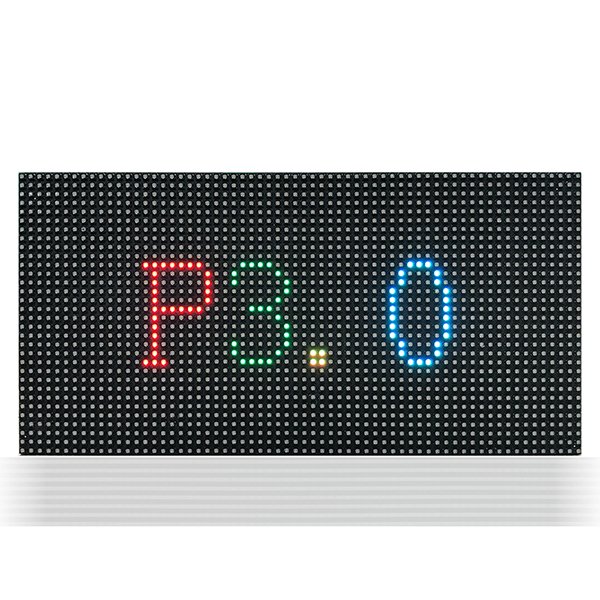

P3 indoor full color LED display module board, size 192*96 mm, pixel arrangement 64*32,

RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz


Remarks & Key Precautions

1.Temperature requirement:

1) Operating temperature range: -20℃-40℃ other temperature range, need to install temperature control equipment.

2) Lamp surface temperature(working period): ≤60℃, temperature control equipment is required to be installed when temperature exceeding the standard.

2.Humidity requirement:

Storage humidity range: 10% RH-60% RH, humidity over 60% RH requires dehumidification treatment.

3.Keep away from water: Indoor LED module have low level of protection, water can make the module short circuit, and leads to circuit device damage, so it is necessary to keep away from the water source.

4.Sweat or other liquid cannot be dripped on the display screen during disassembly and assembly operation. If it is dripped, then use alcohol to clean the product, to prevent the liquid from corroding the LED module.

5.The indoor full-color LED display contains a driver chip and an input buffer chip, which can display video, image and text information when connected to the led display control system

in order to ensure the service life of LED, do not display only still picture or still text for a long time, and cause the lamp tube brightness serious attenuation or cause a batch of dead lights, please play the rolling picture or text.


Specification

INDOOR P3 SMD 3IN1 TECHNICAL  PARAMETERS
Unit ModuleItemParameter
Model NumberP3-16S
Module size192mm*96mm
Pixel pitch3mm
Pixels Density111111 dots/㎡
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution64dots(W)*32 dots(H)
Max Power23W
Weight0.16kg
Drive typeConstant drive
Scan mode1/16scan
Port typeHUB75E
Brightness of white balance≥1200cd/m2
PowerWorking voltageDC 5V
Average Power consumption<270W/㎡
Max.Power consumption<680W/㎡
Current<18mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors16384gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch
