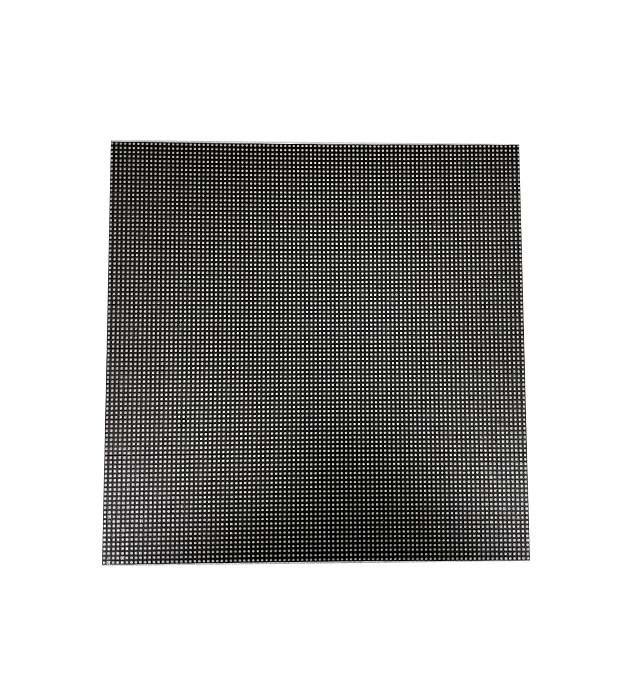

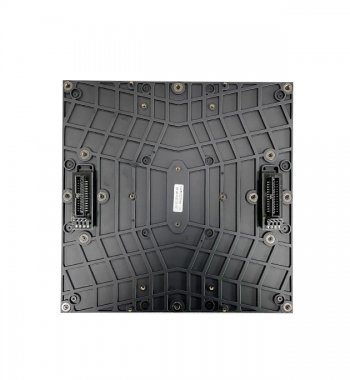

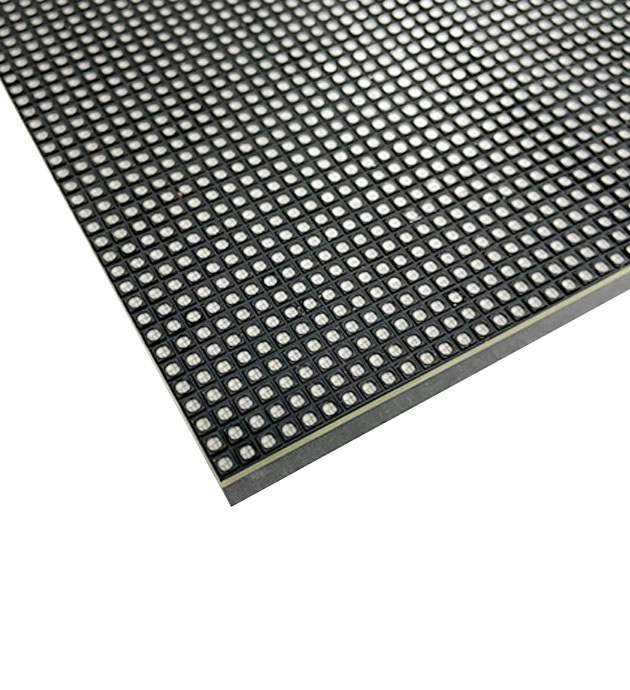

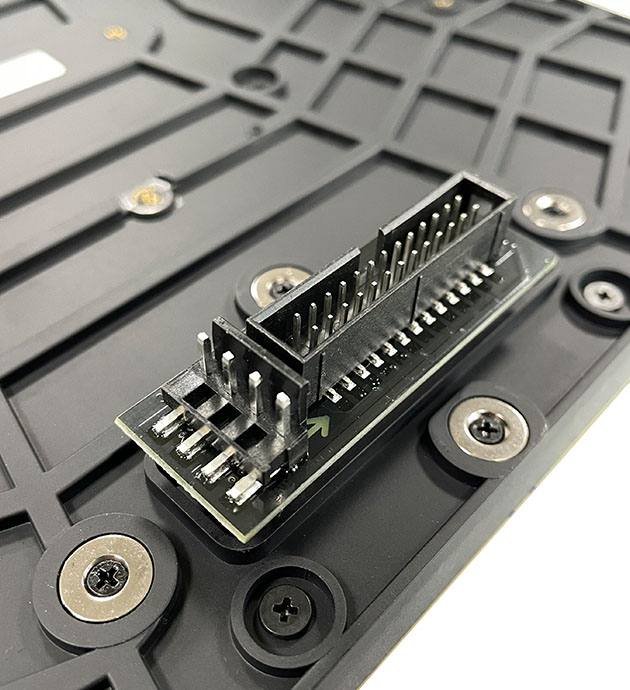

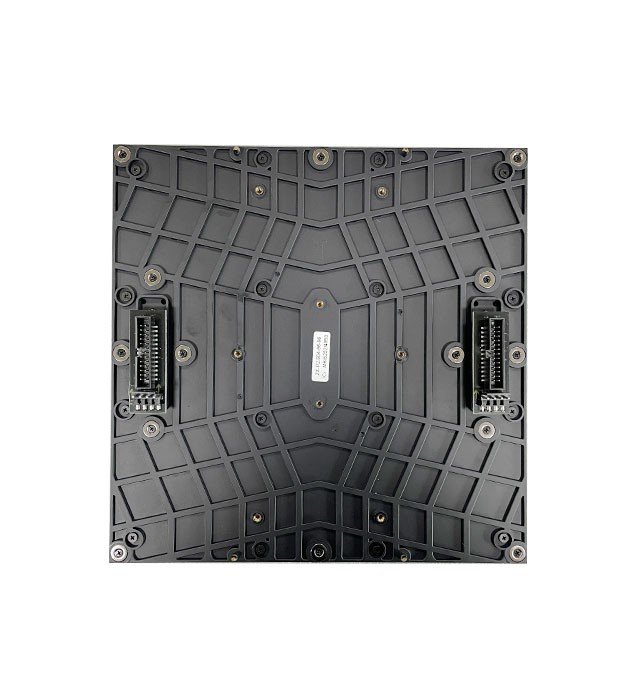

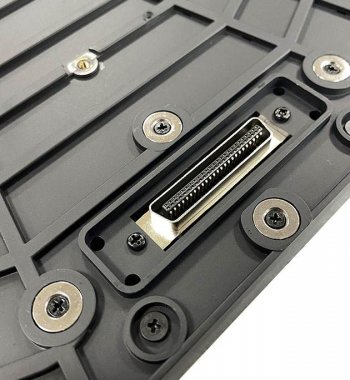

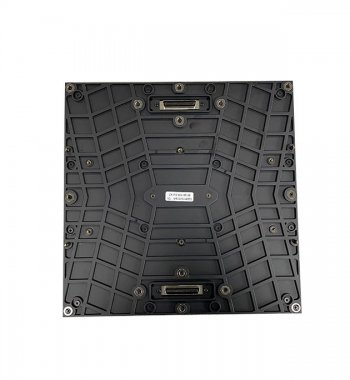

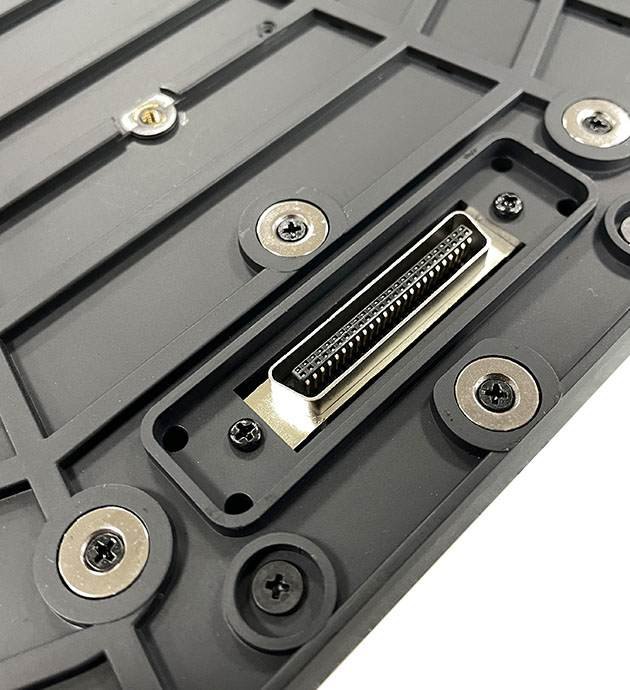

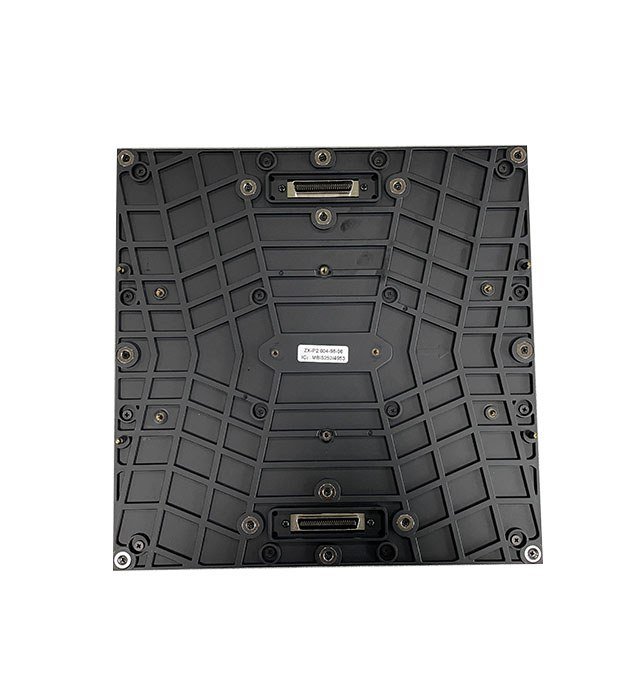

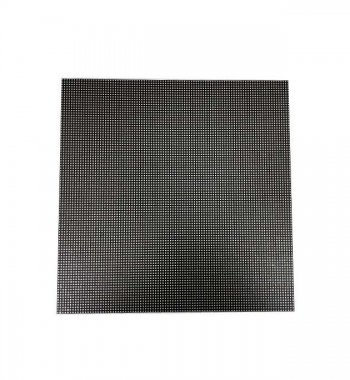

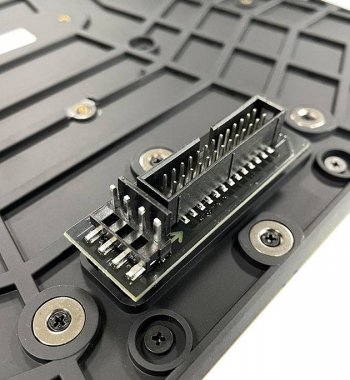

P2.604 Indoor RGB LED Display LED Screen Panel 250x250mm

Product description:

· Model Number： P2.604

· Module size： 250*250mm

· Pixel： 96*96

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

Full Color P2.604 LED Display Module

High brightness, low energy consumption, long life, reliable and stable, convenient application, simple maintenance, can bring higher quality image display effect and better user experience to users.


Remarks & Key Precautions

1.indoor P2.604 LED module can go with 500x500mm and 500x1000mm LED cabinet.

2.Indoor P2.5 led module’s Package: 1515.

3.Temperature requirement:

1) Operating temperature range: -20℃-45℃ other temperature range, need to install temperature control equipment.

2) Lamp surface temperature(working period): ≤60℃, temperature control equipment is required to be installed when temperature exceeding the standard.

4.Humidity requirement:

Storage humidity range: 10% RH-60% RH, humidity over 60% RH requires dehumidification treatment.

5.Keep away from water: Indoor LED module have low level of protection, water can make the module short circuit, and leads to circuit device damage, so it is necessary to keep away from the water source.

6.Sweat or other liquid cannot be dripped on the display screen during disassembly and assembly operation. If it is dripped, then use alcohol to clean the product, to prevent the liquid from corroding the LED module.

7.The indoor full-color LED display contains a driver chip and an input buffer chip, which can display video, image and text information when connected to the led display control system

in order to ensure the service life of LED, do not display only still picture or still text for a long time, and cause the lamp tube brightness serious attenuation or cause a batch of dead lights, please play the rolling picture or text.


Specification

1.1 Pixel Structure Diagram

A：Schematic Chart
Structure description: Each pixel adopts 1 red 1 green 1 blue three-in-one surface-mounted light-emitting tube
The lamp package: SMD1515
B： Professional Analysis
Analysis ItemProfessional analysis content
Color analysisTo achieve the best white balance effect in color matching, the requirements about light brightness of LED lamp with color matching is strict, and the color matching ratio of red, green and blue brightness is R:G:B=3:6:1


1.2 Pixel Index

Tube colorPackageSpecification（Typical value, specific to selected lamp）
R(Red)1515HUF: 618-623nm, IV 27-32.4mcd, 1.7-2.2V, 5mA
G(Green)HUF: 524-527nm, IV 92-110mcd, 2.5-3.1V, 3mA
B(Blue)HUF: 465~468nm, IV 17-20.4mcd, 2.5-3.1V, 3mA


1.3 Technical Parameters

ItemTechnical Parameters
1. Pixel tubePixel pitch: 2.604mm
Pixel density: 147456 dots/m2
Primary color: red+green+blue
Pixel color configuration: 1R1G1B
Package: 1515
2. Unit ModuleUnit module resolution: width 96 dots × height 96 dots
Unit module size: 250*250mm
Unit module pixel number: 9216 dots/module
Scanning method: 32S
Input voltage: DC5V
Maximum current: 5.5A
3. Unit CabinetCabinet size: 500*500mm
Number of unit modules: width 2 modules * height 2 modules= 4 pieces
Physical resolution: 192*192 dots
Maximum power: 200W
Average power: 80W
Receiving card: Compatible with main manufacturers in the market, such as Novastar, Colorlight, Linsn, HD, etc.
Working voltage: 220V±15％
Viewing angle: 120°±10°
Storage temperature: -30℃～+60℃
Working temperature: -20℃～+45℃
Relative humidity: 10% to 95%
Net weight: 7.7Kg
4. Control SystemControl host: Intel 10th generation above i3/I5/I7
Operating system: WIN 7/ 8/10/11
Control mode: synchronous control or asynchronous control
Graphics card: DVI/HDMI independent graphics card
5. Main technical parameters1) Drive device: constant current drive
2) Scanning method: 1/32 scan
3) Refresh frequency: ≥1200～1920Hz
4) Frame frequency: ≥60Hz
5) Grayscale/Color: 16.7M colors in 14-bit grayscale
6) Brightness: 800cd/m2
7) Brightness adjustment method: 256 levels adjustable by software
8) Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
9) The control system adopts: PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
10) MTBF: 1000 hours
11) Lifespan: 100,000 hours
12) Flatness: ≤0.5mm between any adjacent pixels; splicing gap between modules <1mm;
13) Uniformity: bright pixel light and smooth brightness of modules
14) Noise rate: <0.0001
15) Switching power supply load: 5V/40A
16) Computer display mode: 1280×1024
17) Effective communication distance: network cable 100m (without relay), multi-mode fiber 500m, single-mode fiber 20km

The above parameters are reference values, please be subject to the actual parameters!


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
