P2.5 Indoor RGB LED Display LED Screen Panel 320x160mm

Product description:

· Model Number：P2.5

· Module size：320*160mm

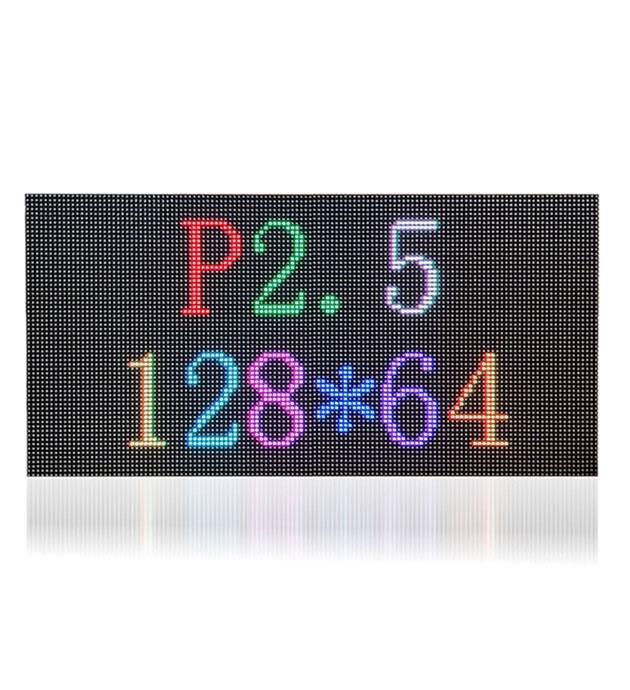

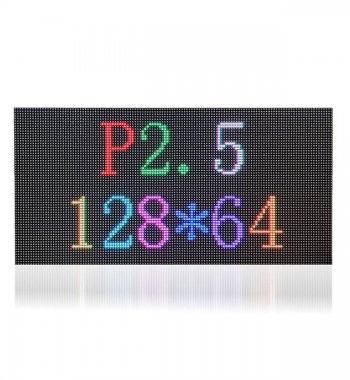

· Pixel resolution：128*64

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

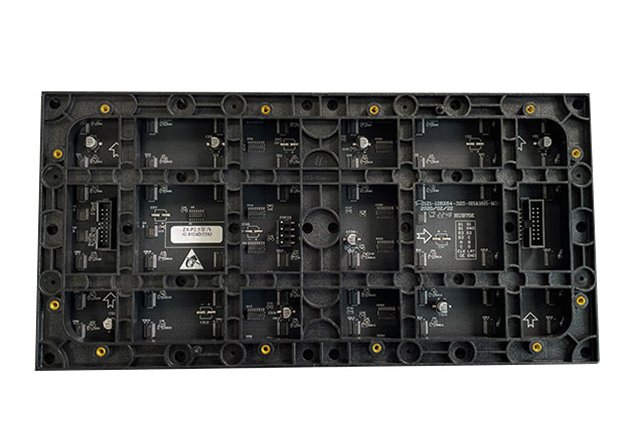

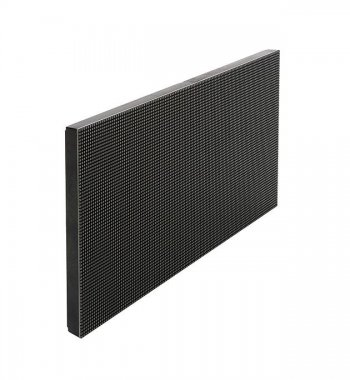

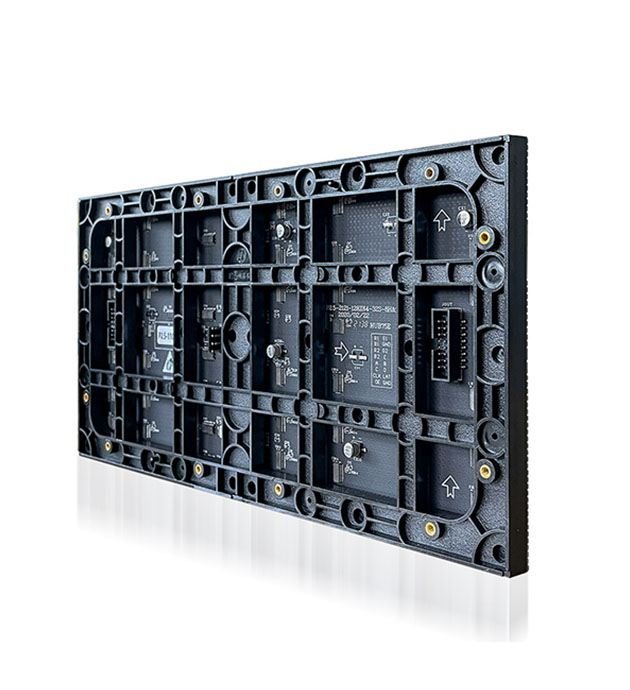

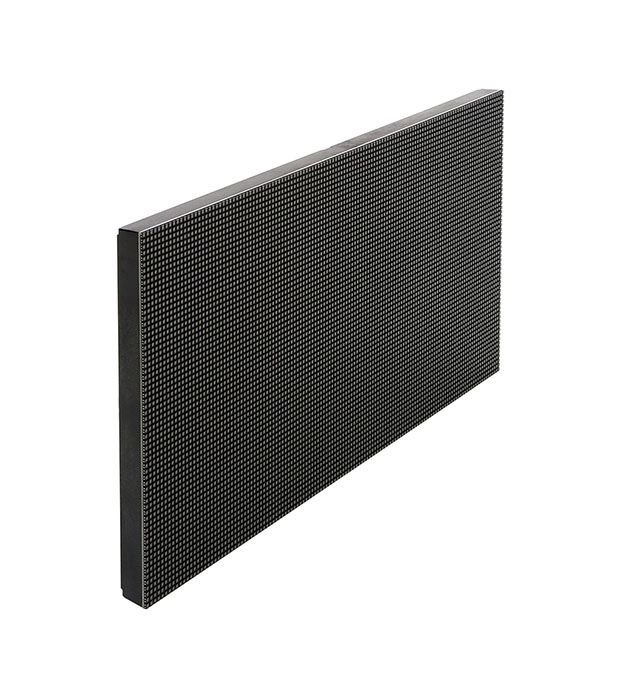

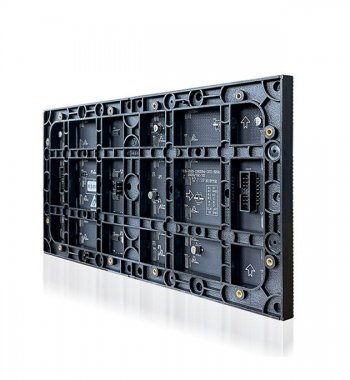

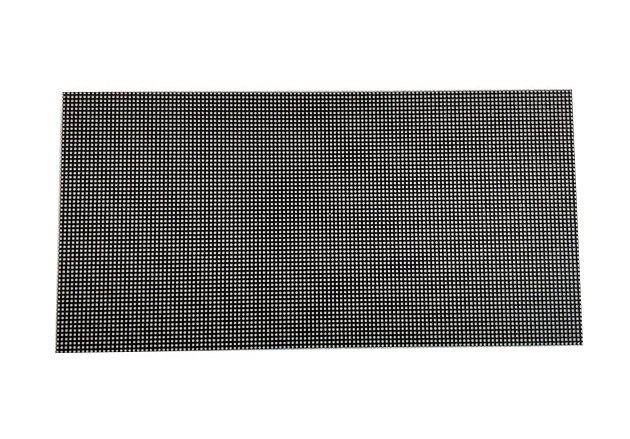

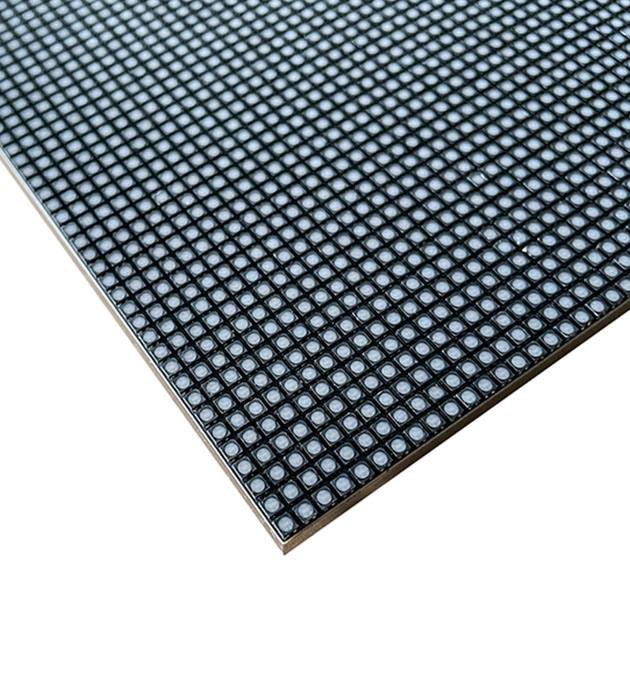

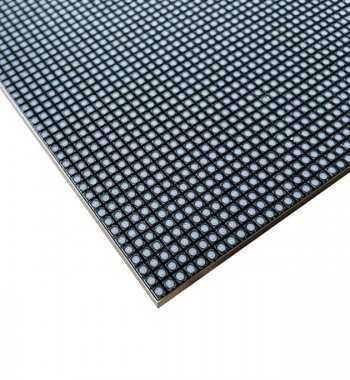

Full Color P2.5 LED Display Module

High brightness, low energy consumption, long life, reliable and stable, convenient application, simple maintenance, can bring higher quality image display effect and better user experience to users.


Remarks & Key Precautions

1.indoor P2.5 LED module can go with 640*480mm LED cabinet.

2.Indoor P2.5 led module  uses HUB75E.

3.Temperature requirement:

1) Operating temperature range: -20℃-40℃ other temperature range, need to install temperature control equipment.

2) Lamp surface temperature(working period): ≤60℃, temperature control equipment is required to be installed when temperature exceeding the standard.

4.Humidity requirement:

Storage humidity range: 10% RH-60% RH, humidity over 60% RH requires dehumidification treatment.

5.Keep away from water: Indoor LED module have low level of protection, water can make the module short circuit, and leads to circuit device damage, so it is necessary to keep away from the water source.

6.Sweat or other liquid cannot be dripped on the display screen during disassembly and assembly operation. If it is dripped, then use alcohol to clean the product, to prevent the liquid from corroding the LED module.

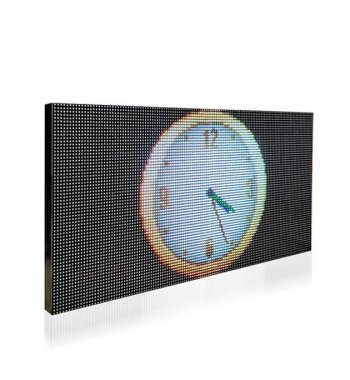

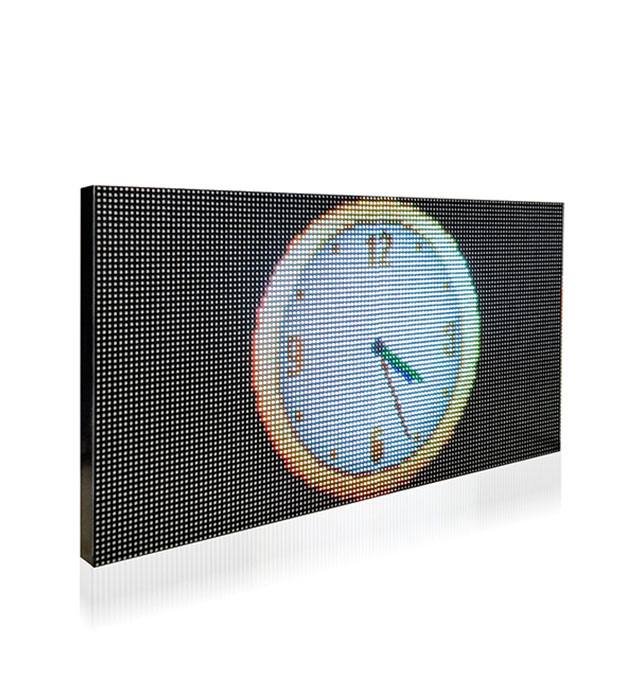

7.The indoor full-color LED display contains a driver chip and an input buffer chip, which can display video, image and text information when connected to the led display control system

in order to ensure the service life of LED, do not display only still picture or still text for a long time, and cause the lamp tube brightness serious attenuation or cause a batch of dead lights, please play the rolling picture or text.



Specification

P2.5 INDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2.5-32S
Module size320mm*160mm
Pixel pitch2.5mm
Pixels Density160000 dots /m2
Pixel configuration1R1G1B
Package modeSMD2121
Pixel resolution128dots(W)*64 dots(H)
Max Power32W
Weight0.425kg
Drive typeConstant drive
Scan mode1/32scan
Port typeHUB75E
Best viewing distance3M～20M
Best viewing angle140°(W) 120°(H)
Temperature-35℃～+85℃
working:-20℃～+50℃
Relative humidity10%-95%
PowerWorking voltageDC 5V
Average Power consumption<240W/㎡
Max.Power consumption<620W/㎡
Current<18mA(single LED)
Main technical  parameterDriving deviceConstant drive IC
Refresh frequency>1920HZ
Grey scale/colors65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
