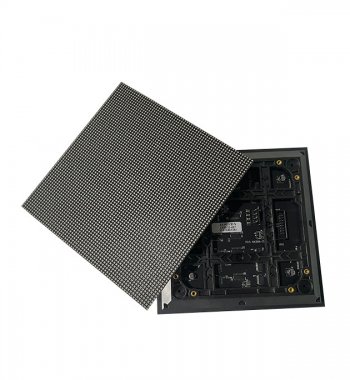

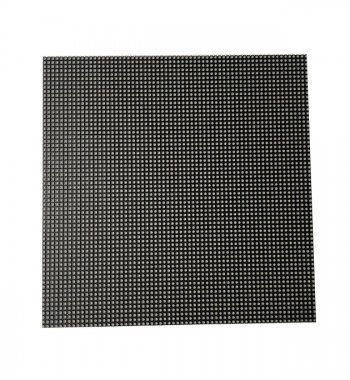

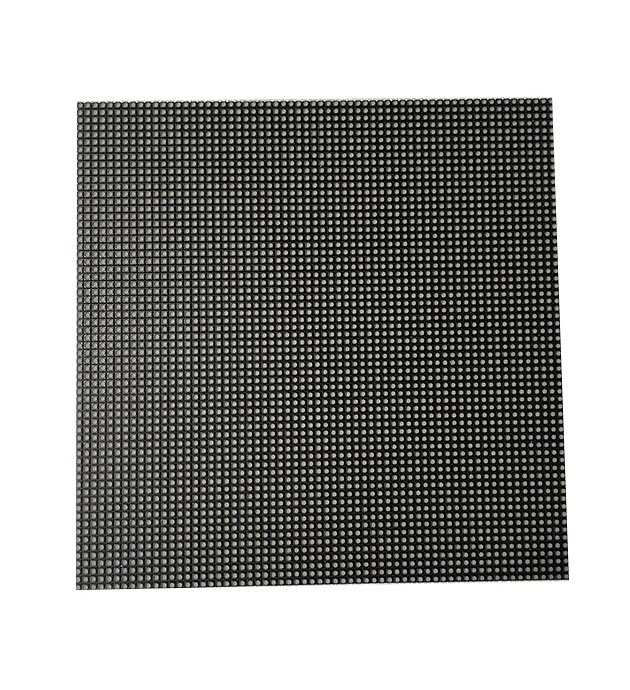

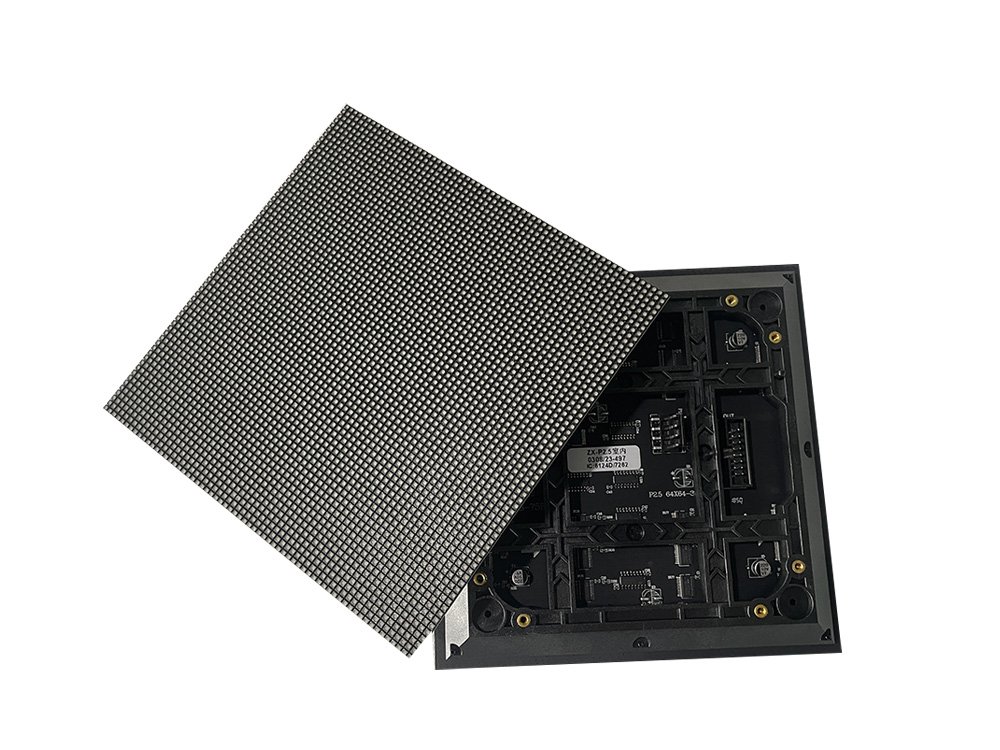

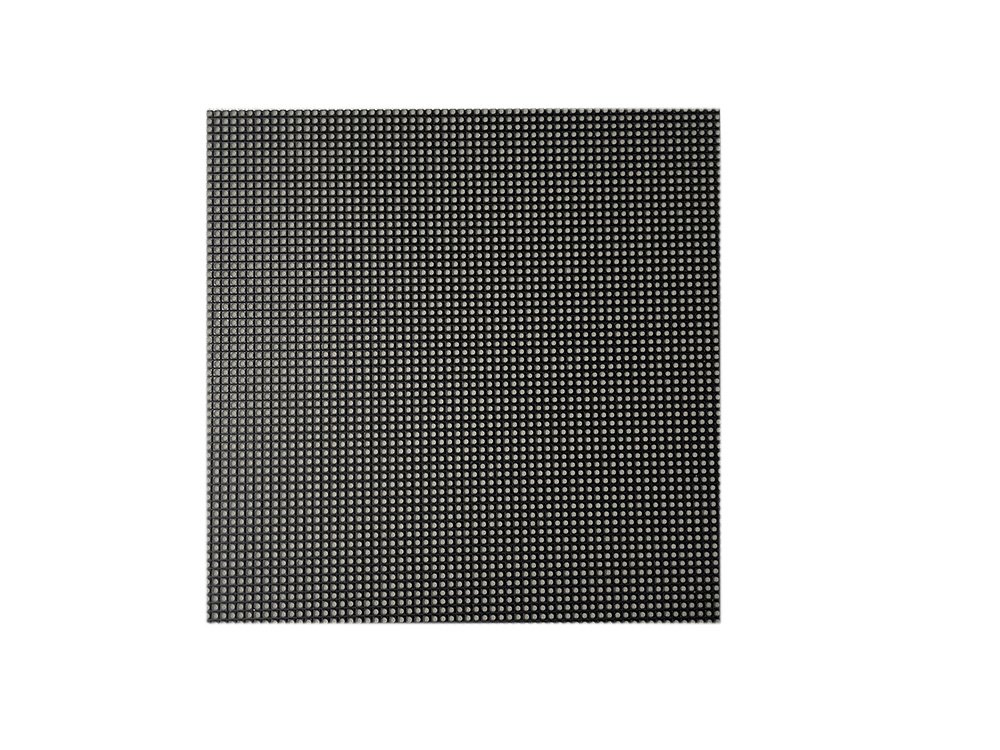

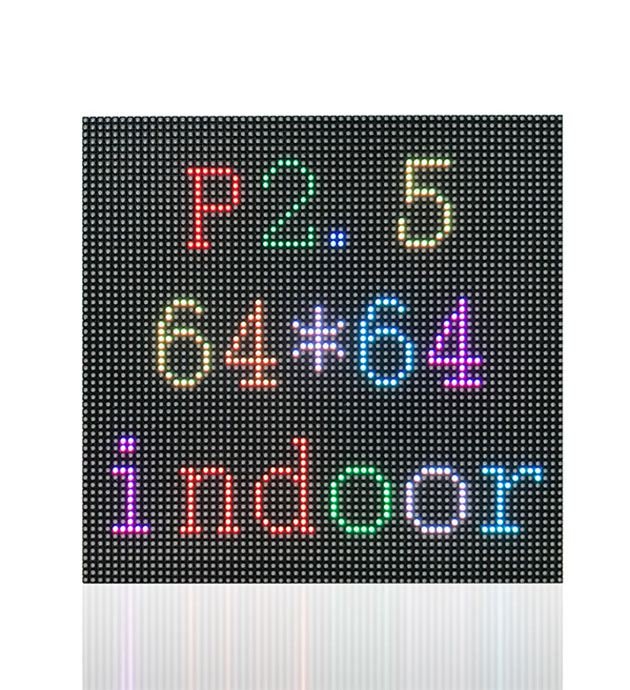

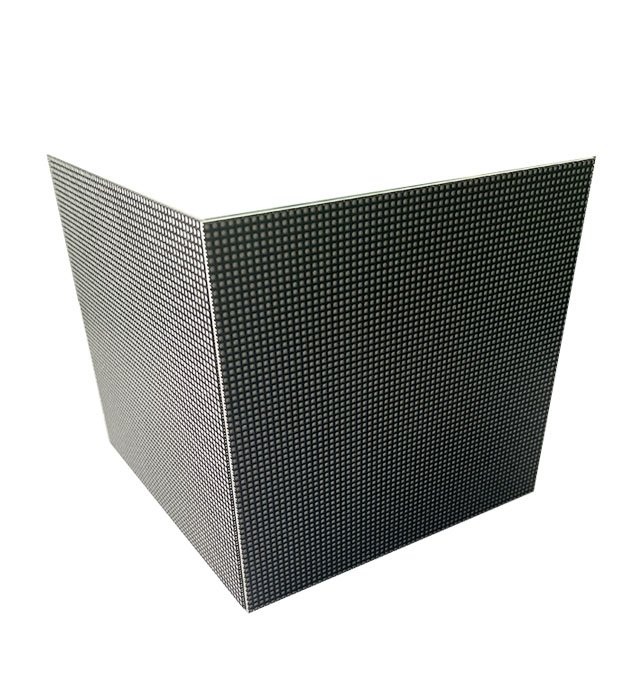

P2.5 Indoor Right Angle LED Screen Panel 160x160mm

Product description:

· Model Number： P2.5

· Module size：160*160mm

· Pixel Resolution：64*64

· Certicificate: CE,RoHS,FCC

· Colour： FullColor

Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

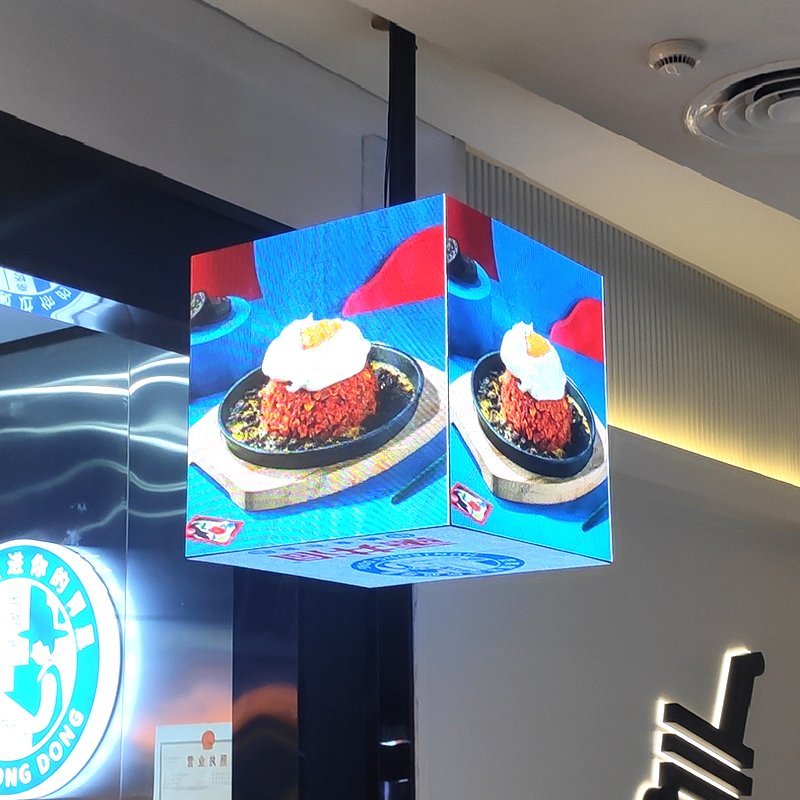

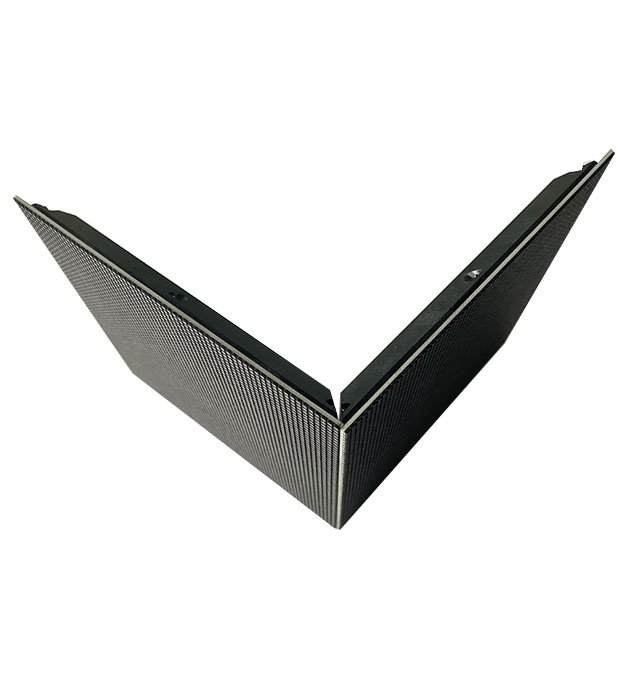

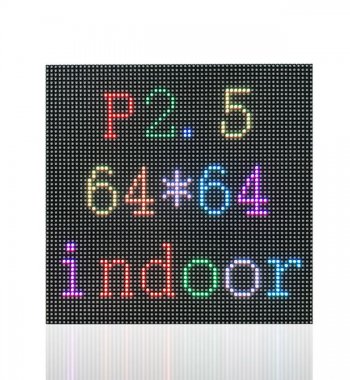

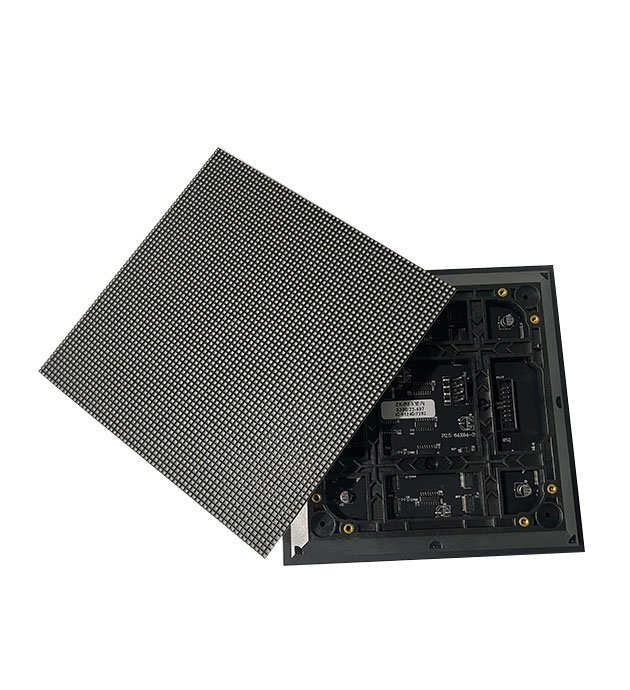

Full Color P2.5 LED Display Module Designed For 90 degree LED Display, high quality led display module for indoor led display panel.

High brightness, low energy consumption, long life, reliable and stable, convenient application, simple maintenance, can bring higher quality image display effect and better user experience to users.


Full Color HD P2.5 Indoor Right Angle LED Display Panel, high quality for many kinds of use.


Specification

INDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2.5-32S
Module size160mm*160mm
Pixel pitch2.5mm
Pixels Density160000 dots/m2
Pixel configuration1R1G1B
Pixel resolution64 dots(W)*64 dots(H)
Max Power 25W
Module thickness15mm（Without magnetic column）
27mm（Include magnetic column）
Weight0.232kg
Drive typeConstant drive
Scan mode 1/32scan
Port typeHUB75E
Best viewing distance2M～20M
Best viewing angle 160°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
PowerRelative humidity10%-95%
Working voltageDV 5V
Average Power consumption<320W/㎡
Main technical  parameterMax.Power consumption<780W/㎡
Current<18mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
