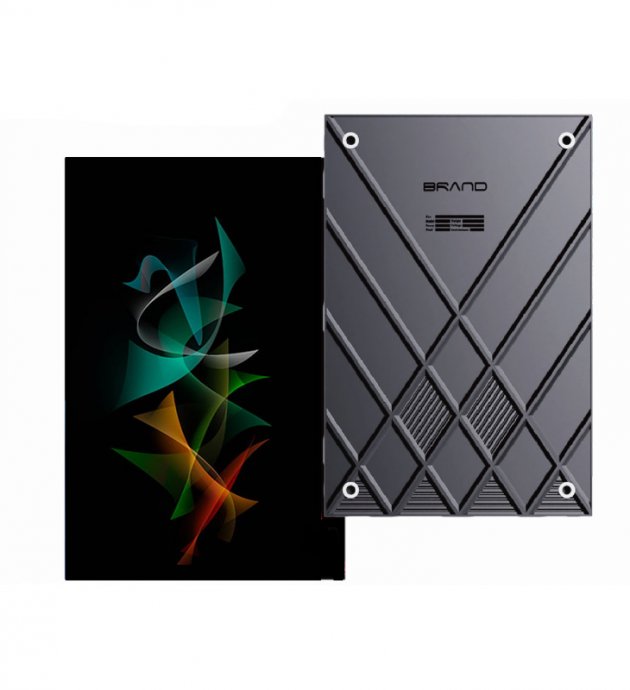

Standard Cabinet Size 320mm x480mm

640mmx480mm Standard size cabinet design.Suitablefor all LED display units.320x160mm Double-sidedlock design for more secure installation.

Standard size LED MODULE 320x160mm

320mmx480mm LED display with panel Standard size:320x160mm.Standard LED displays are quick toinstall and maintain. Changing the pixel spacing isalso very convenient, just change the units becausethey have the same unit size and structure.

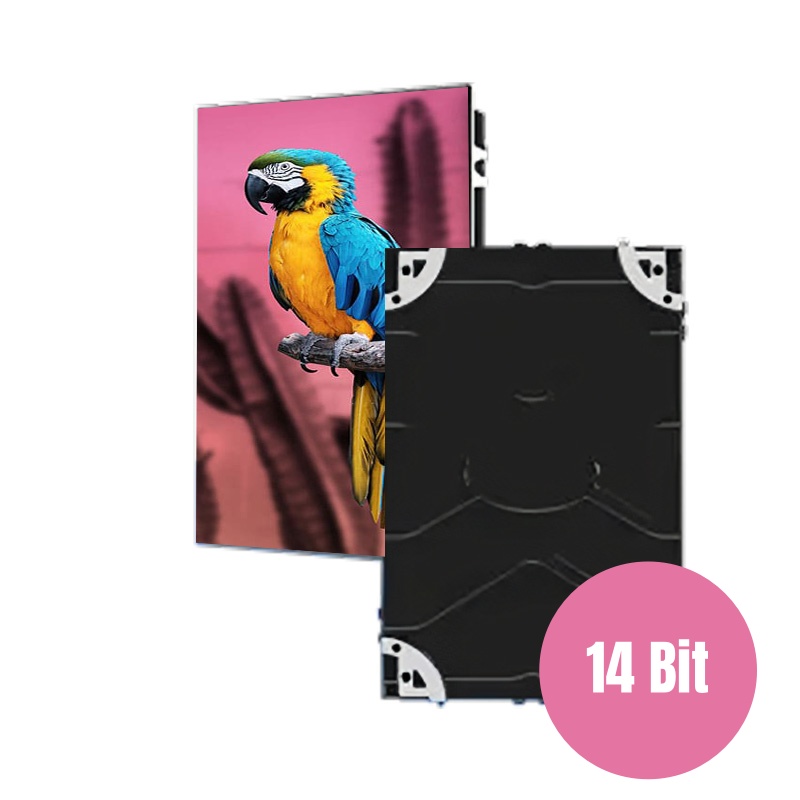

High contrast ratio and refresh rate

HD Indoor front service rental LED display with industry leading refresh rate of 3840Hz,It can display any HD video smoothly. Using a grayscale of at least 14 bits, photos or videos can bedelivered without compression or damage.

32-48-3_副本

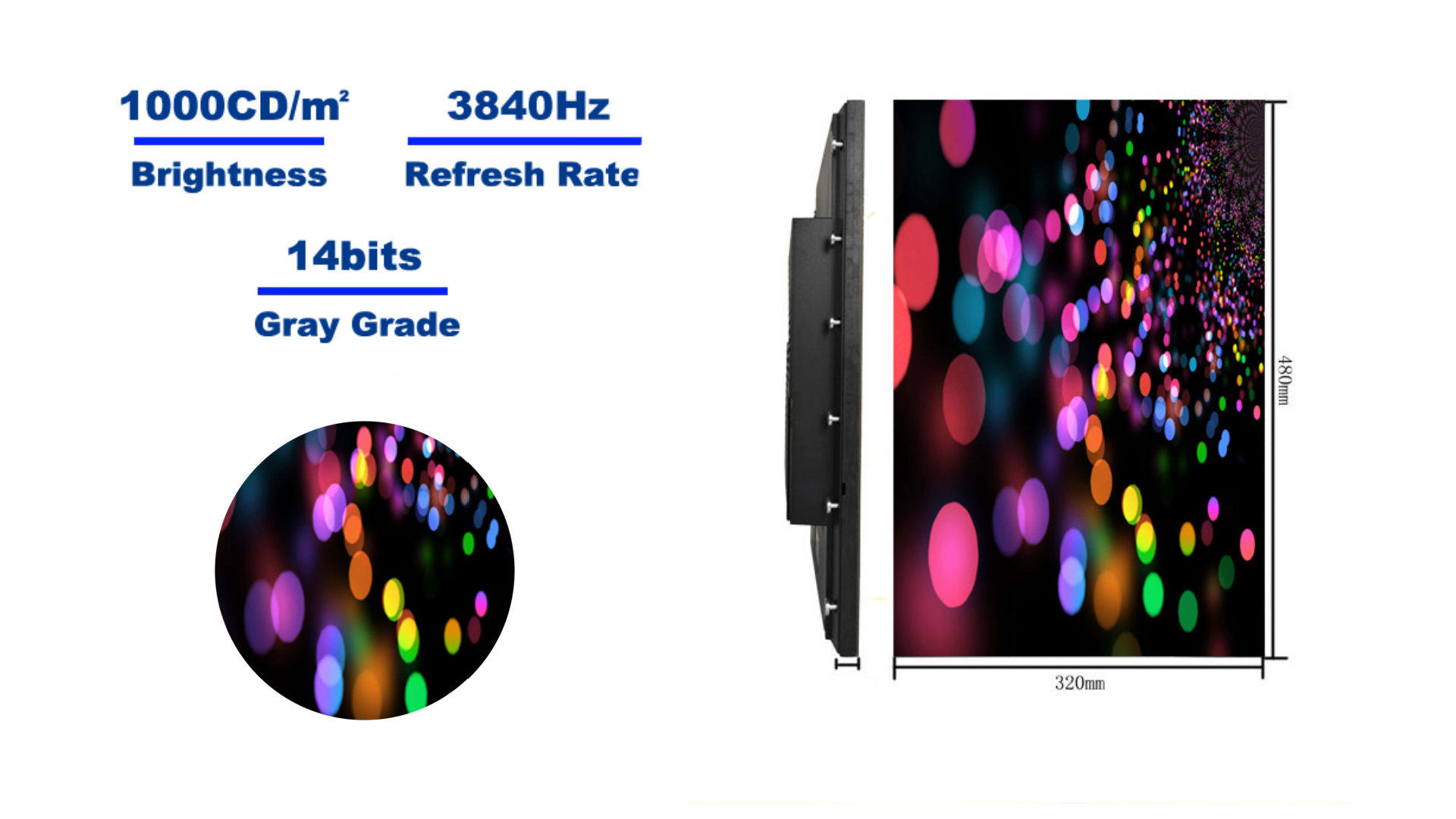

High refresh rate, high contrast,high brightness

Front service rental LED display has high brightness, highcontrast, high refresh rate, high gray scale.LED display with vivid picture, clean video screenand great picture quality.

3248-7

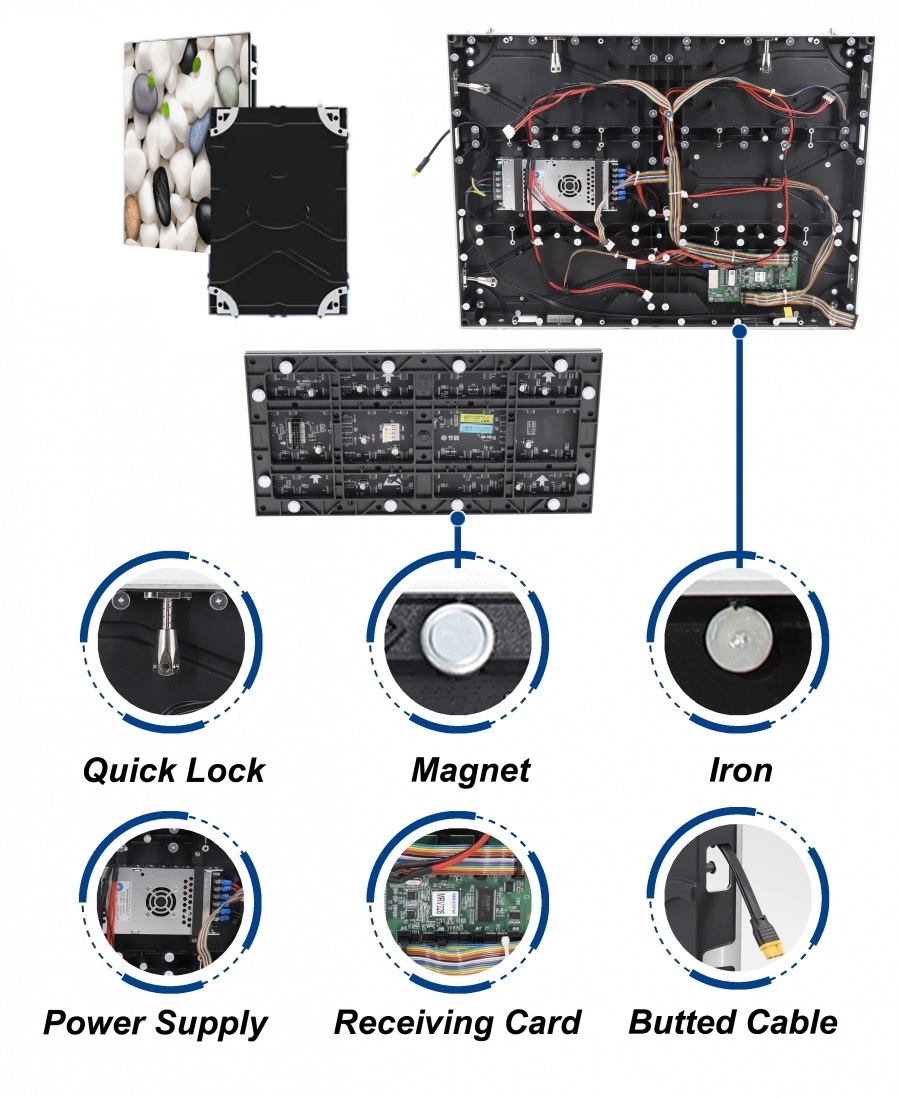

Perfect structural design

320mmx640mm die-casting aluminum indoor LED Display cabinet adapts full front service design, with LED modules size 320x160mm, LED power supplies and receiving card can be replaced in front easily. The LED modules are assembled in front with magnetic features.

3248-6

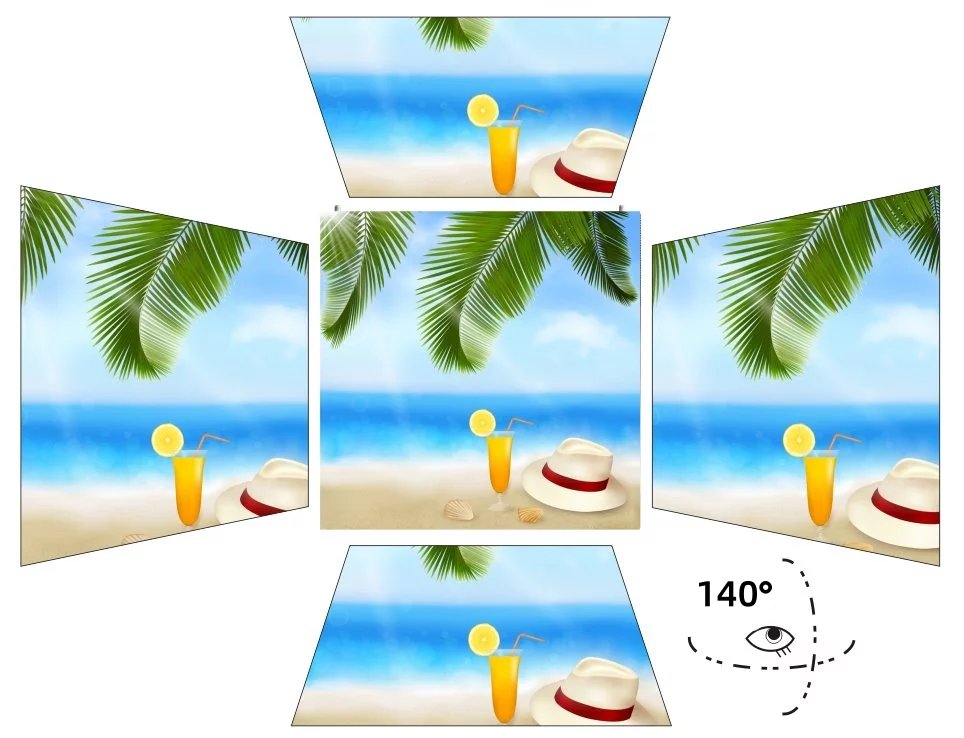

Wide viewing angle

The viewing angle is up to 140degrees bothvertically and horizontally, providing a wide viewingangle. Both 140 degrees of horizontal and verticalviewing angle. Looking from any angles, the imagewill still be natural and clear in the LED display.

Pixel Pitch	P2.5	P2	P1.86	P1.53	P1.25
LED type	SMD2121	SMD1515	SMD1515	SMD1212	SMD1010
Pixel density	160000	250000	288906	422500	640000
Module dimension	320*480mm
Module resolution	128*64 dots	160*80 dots	172*86 dots	208*104 dots	256*128 dots
Drive Method	1/32 scan	1/40 scan	1/43 scan	1/52 scan	1/64 scan
*Cabinet size(WH)**	320*640mm
Cabinet material	aluminum
Brightness	≥600 cd/㎡ Receive Customized
Viewing Angle	140*140
Grey Level	8-16 Bit
Refresh Rate	3840Hz 7680Hz Receive Customized
Power consumption(Avg.)	195W/㎡
Power consumption(Max.)	580W/㎡
Humidity-operating	10%～95%
Operating Temperature	-30°～60°C
Screen life	≥100000 hours
Controller	Sync or Async Novastar Linsn Colorlight Huidu
Certificates	CE,RoHS,FCC,EMC,LVD
Ingress Protection(IP)	IP54
