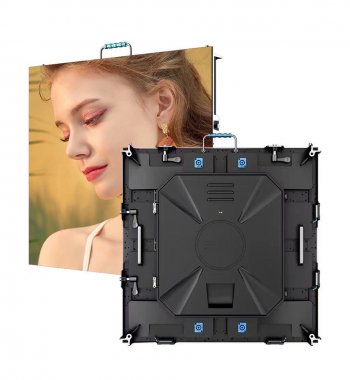

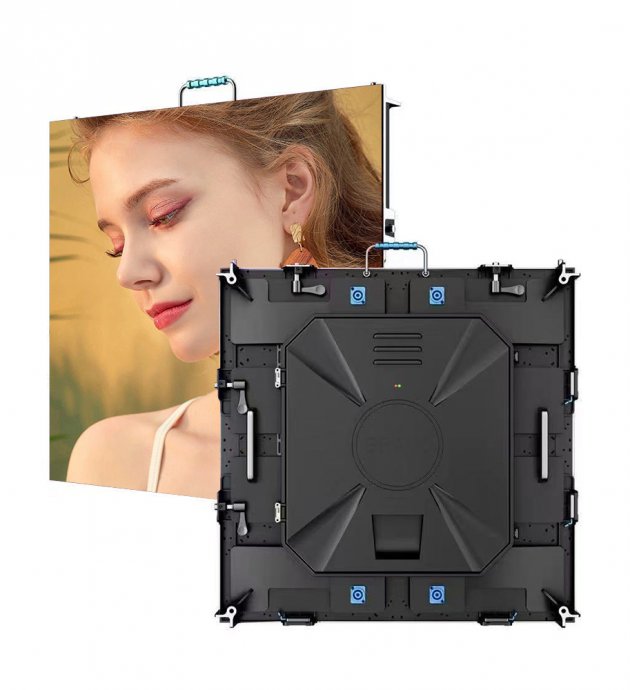

640*640mm Outdoor LED display aluminum cabinet

Product description:

· LED Module：  P2 P2.5 P3.076 P4 P5 P8 P10

· Module Size： 320*160mm

· Cabinet Size：  640*640mm



Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

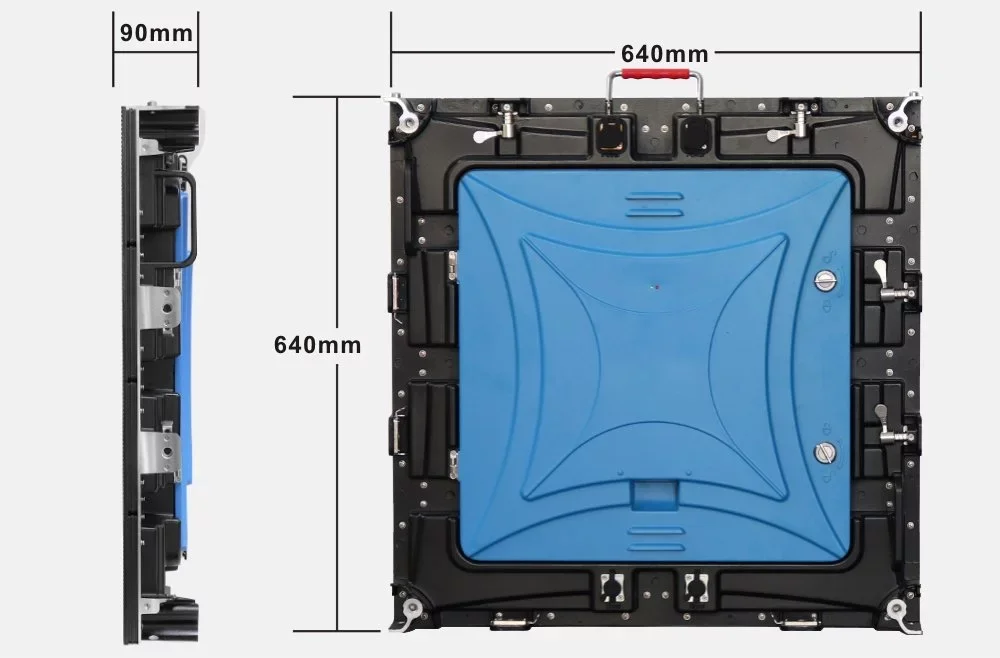

Standard Cabinet Size 640mm x640mm

640x640mm Standard size cabinet design.Suitablefor all LED display units.320x160mm Double-sidedlock design for more secure installation.


Standard size LED MODULE 320x160mm

640x640mm LED display with panel Standard size:320x160mm.Standard LED displays are quick toinstall and maintain. Changing the pixel spacing isalso very convenient, just change the units becausethey have the same unit size and structure.

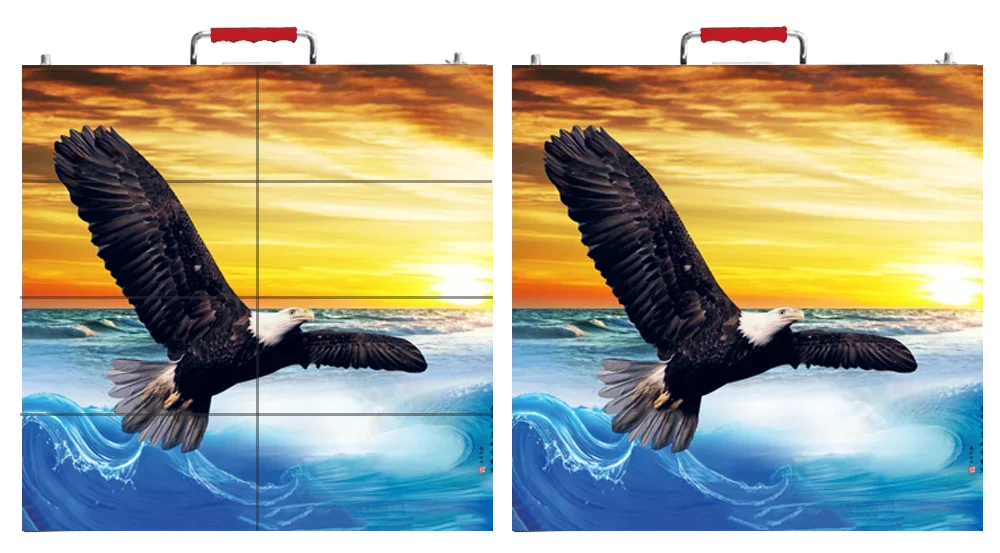

Smooth display and visual effects

The advanced assembled structure producessmooth display and visual effects, providing youwith the perfect visual performance you want fromyour LED display. lmage quality remains high dueto better quality display materials.


High contrast ratio and refresh rate

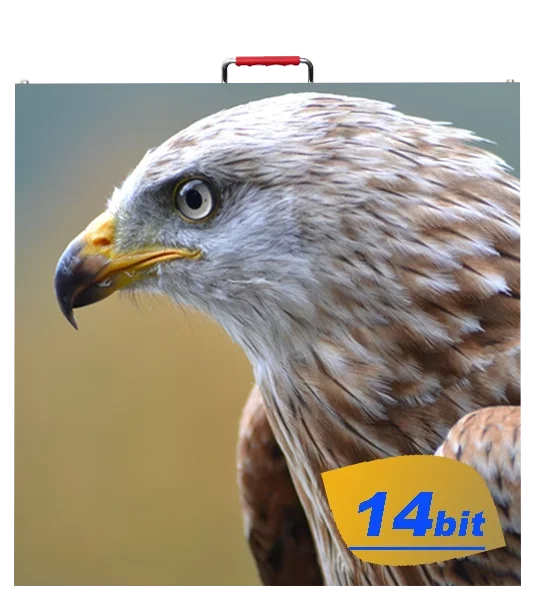

HD outdoor rental LED display with industryleading refresh rate of 3840Hz,It can display any HD video smoothly. Using a grayscale of at least 14 bits, photos or videos can bedelivered without compression or damage.

High refresh rate, high contrast,high brightness

Rental LED display has high brightness, highcontrast, high refresh rate, high gray scale.LED display with vivid picture, clean video screenand great picture quality.



IP65 waterproof and corrosion resistant

It is for outdoor use with high water level anddustproof level. lt can withstand some bad weatherduring outdoor events.

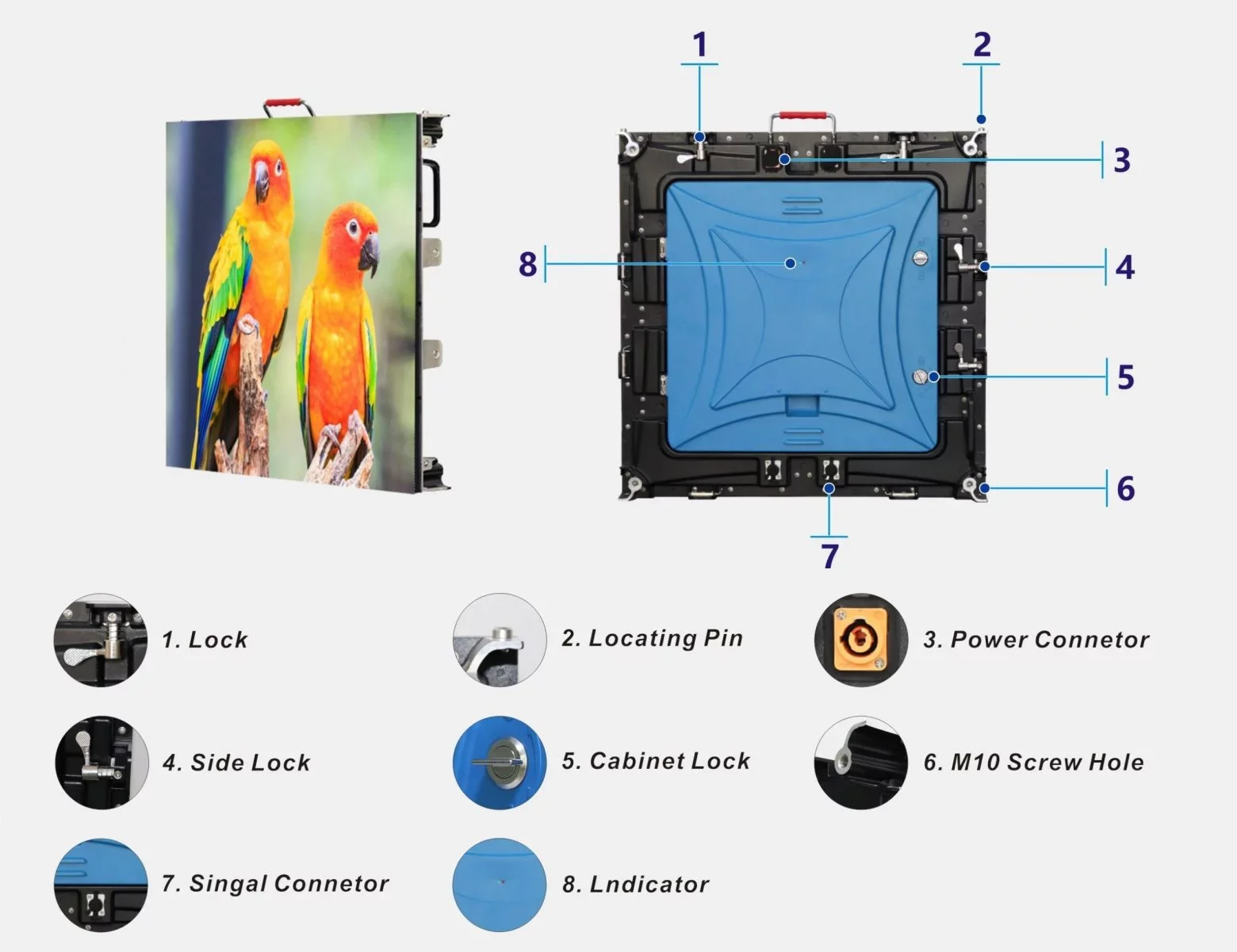

Perfect structural design

While adhering to the spirit of innovation, theOutdoor 640X640 SERlES Rental LED Displayexplains structure design and rigorous qualitytestingThe product has improved the design quality, andembodies the human-centred rule.

Excellent heat dissipation andwaterproof performance

It adopts special heat dissipation and waterproofstructure, which has excellent heat dissipationeffect, excellent waterproof effect, fanless designand completely silent operation.

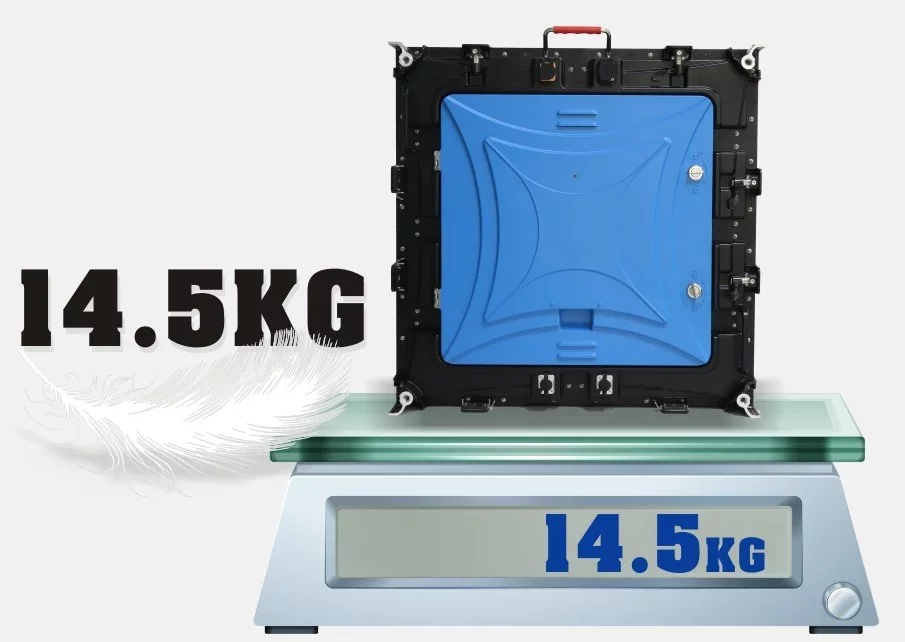

Ultra-lightweight cabins

The display weight is only 14.5kg, easy to transport,save cost, and the light weight is convenient forinstallation, assembly and disassembly.

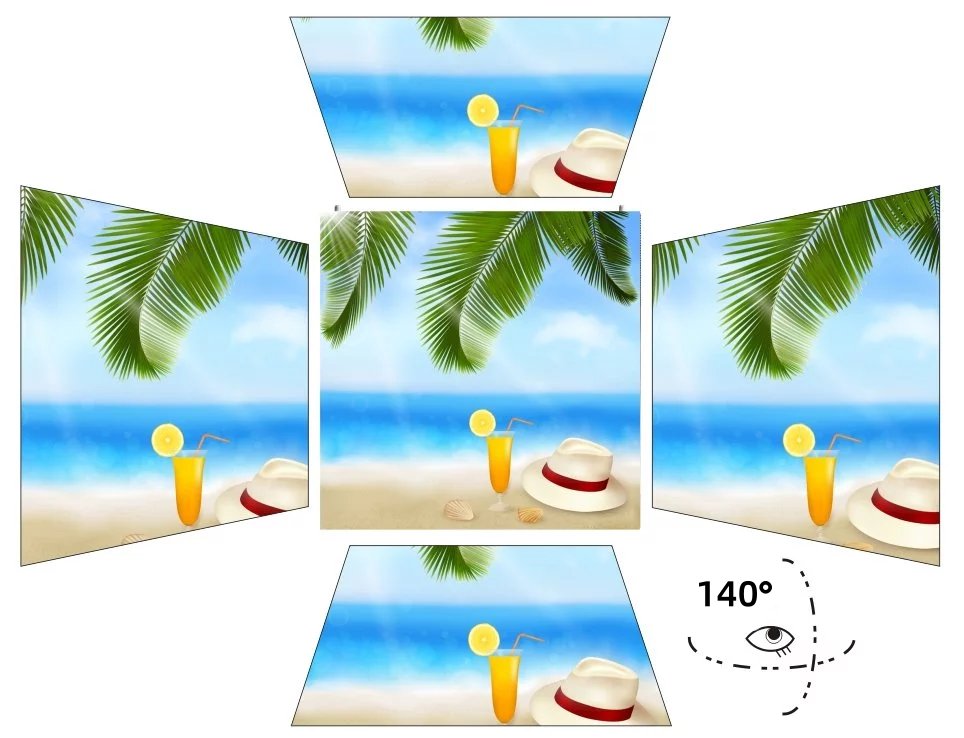

Wide viewing angle

The viewing angle is up to 140 degrees bothvertically and horizontally, providing a wide viewingangle. Both 140 degrees of horizontal and verticalviewing angle. Looking from any angles, the imagewill still be natural and clear in the LED display.

f950d89896447238a3876c79ef431eb6



Specification

Model

P2

P2.5

P4

P5

P8

P10

Pixel Pitch(mm)

2

2.5

4

5

8

10


Pixel Matrix Per
Sq.m

250000

160000

62500

40000

15625

10000

Pixel Configuration

SMD1515/141
5

SMD212
1/1415

SMD2121/19
21

SMD2121/1921

SMD3535

SMD3535/
2727

Scan

1/20

1/16

1/10

1/8

1/5

1/41/2

Brightness(cd/m)

1000/4500

Module Dimension

320×160mm

Cabinet Dimension

640x640mm

Cabinet Material

Die Casting Aluminum

Cabinet Weight

14.5KG

Power Con. (W/m)
(Max/Avg)

800W/200-300W

Service Access

Front/Rear

Refresh Rate(HZ)

≥3840HZ

Grey Scale (bit)

≥16bit

Viewing Angle(H/V)

120°/140°

IP Rate

IP43/IP65

Input Voltage(AC)

110V/220V
