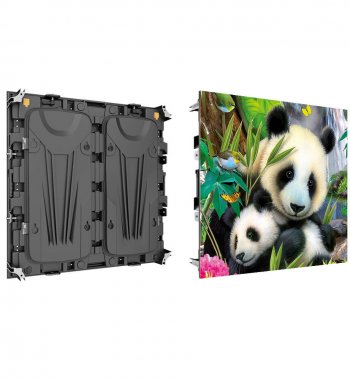

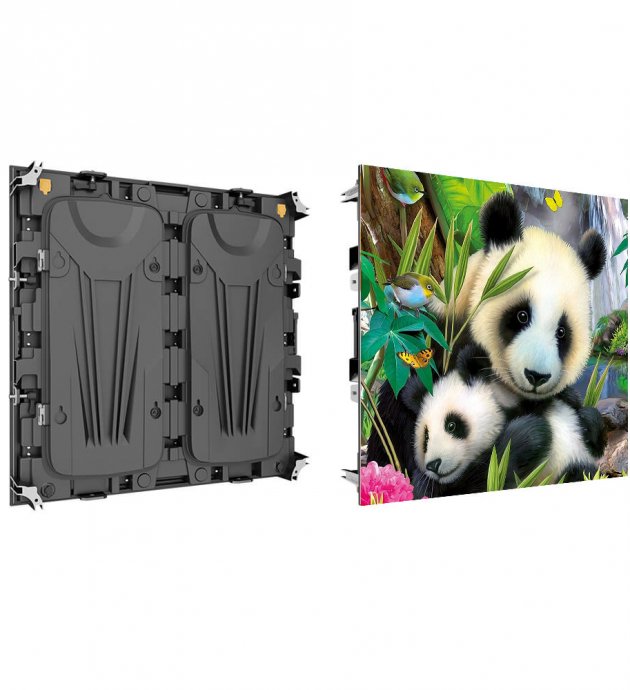

960*960mm Outdoor LED display aluminum cabinet

Product description:

· LED Module：  P2 P2.5 P3.076 P4 P5 P8 P10

· Module Size： 320*160mm

· Cabinet Size：  960*960mm


Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

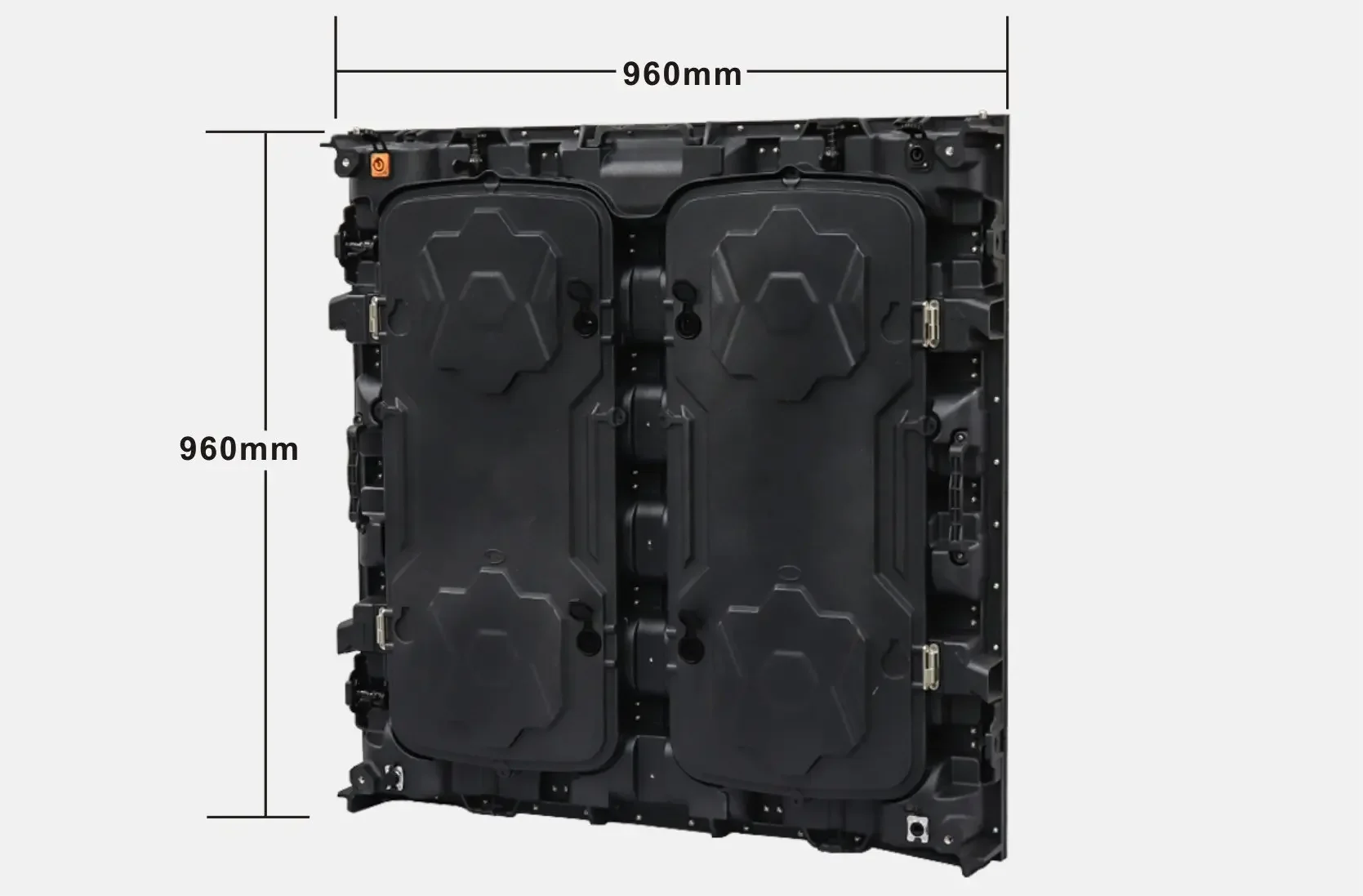

Standard Cabinet Size 960mm x960mm

960x960mm Standard size cabinet design suitablefor all 320x160mm LED display units.


Standard size LED MODULE 320x160mm

960x960mm LED display with panel Standard size:320x160mm.Standard LED displays are quick toinstall and maintain. Changing the pixel spacing isalso very convenient, just change the units becausethey have the same unit size and structure.


Ultra thin

TStandard size series 960x960mm LED display forcabinet with ultra-thin cabinet design, 107mmthickness. Die-cast aluminum cabinet design islight and easy to move, good flatness and smooth.


High refresh rate, contrast andbrightness

The LED display has high brightness, high contrast.high refresh rate of lC drive and high grayscale.The LED display screen has high definition images,clear video display and excellent picture quality.

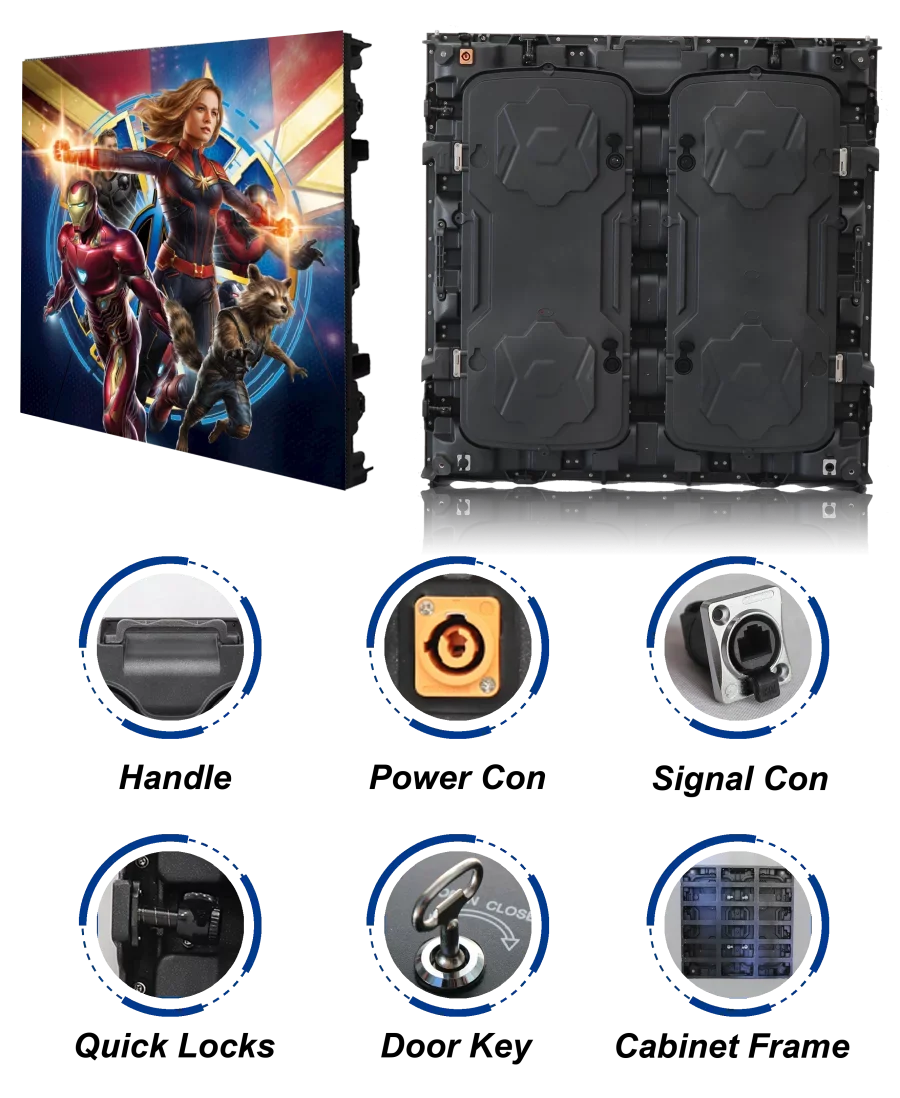

Professional cabin design

960x960mm Series LED Display The product is alighter weight LED display screen with quick locksand precision structure for easy, gaplessinstallation. Humanized handlebar design makesyou move the cabinet more easily.



IP65 waterproof and corrosion resistant

It is for outdoor use with high water level anddustproof level. lt can withstand some bad weatherduring outdoor events.


Excellent heat leakage and water resistance

The outdoor LED screen installed features specialair inlet, air outlet heat dissipation and waterproofstructure, excellent water resistance, uniquestructure design for cooling and completely quiet operation.

Wide viewing angle

The viewing angle is up to 120degrees bothvertically and horizontally, providing a wide viewingangle. Both 120 degrees of horizontal and verticalviewing angle. Looking from any angles, the imagewill still be natural and clear in the LED display.



Specification

Model

P2

P2.5

P4

P5

P8

P10

Pixel Pitch(mm)

2

2.5

4

5

8

10


Pixel Matrix Per
Sq.m

250000

160000

62500

40000

15625

10000

Pixel Configuration

SMD1515/141
5

SMD212
1/1415

SMD2121/19
21

SMD2121/1921

SMD3535

SMD3535/
2727

Scan

1/20

1/16

1/10

1/8

1/5

1/41/2

Brightness(cd/m)

1000/4500

Module Dimension

320×160mm

Cabinet Dimension

960x960mm

Cabinet Material

Die Casting Aluminum

Cabinet Weight

35KG

Power Con. (W/m)
(Max/Avg)

800W/200-300W

Service Access

Front/Rear

Refresh Rate(HZ)

≥3840HZ

Grey Scale (bit)

≥16bit

Viewing Angle(H/V)

120°/140°

IP Rate

IP43/IP65

Input Voltage(AC)

110V/220V


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
