500*1000mm Outdoor LED display aluminum cabinet

Product description:

· LED Module：  P2.604 P2.976 P3.91 P4.81

· Module Size： 250*250mm

· Cabinet Size：  500*1000mm


Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

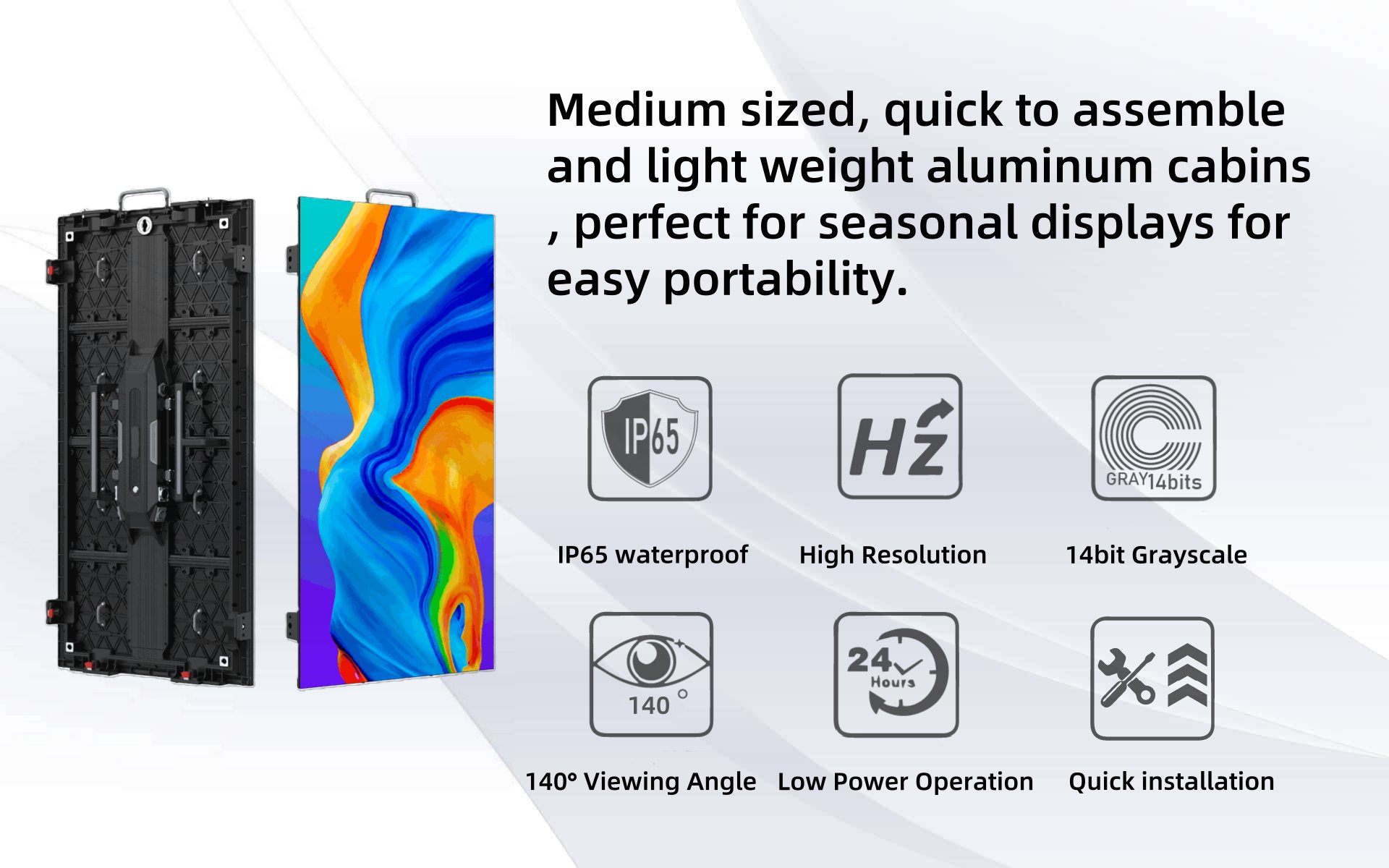

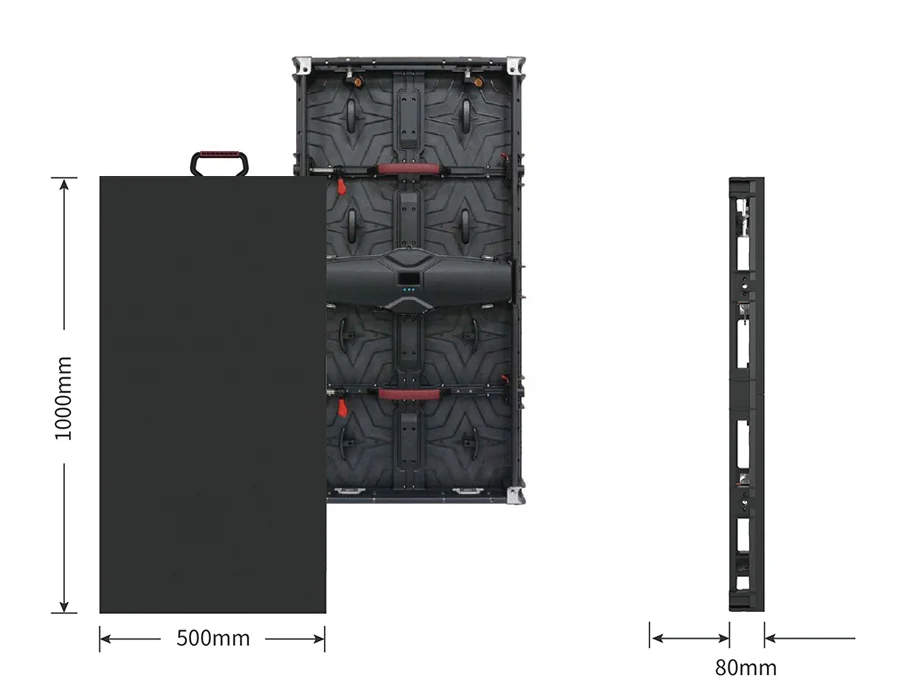

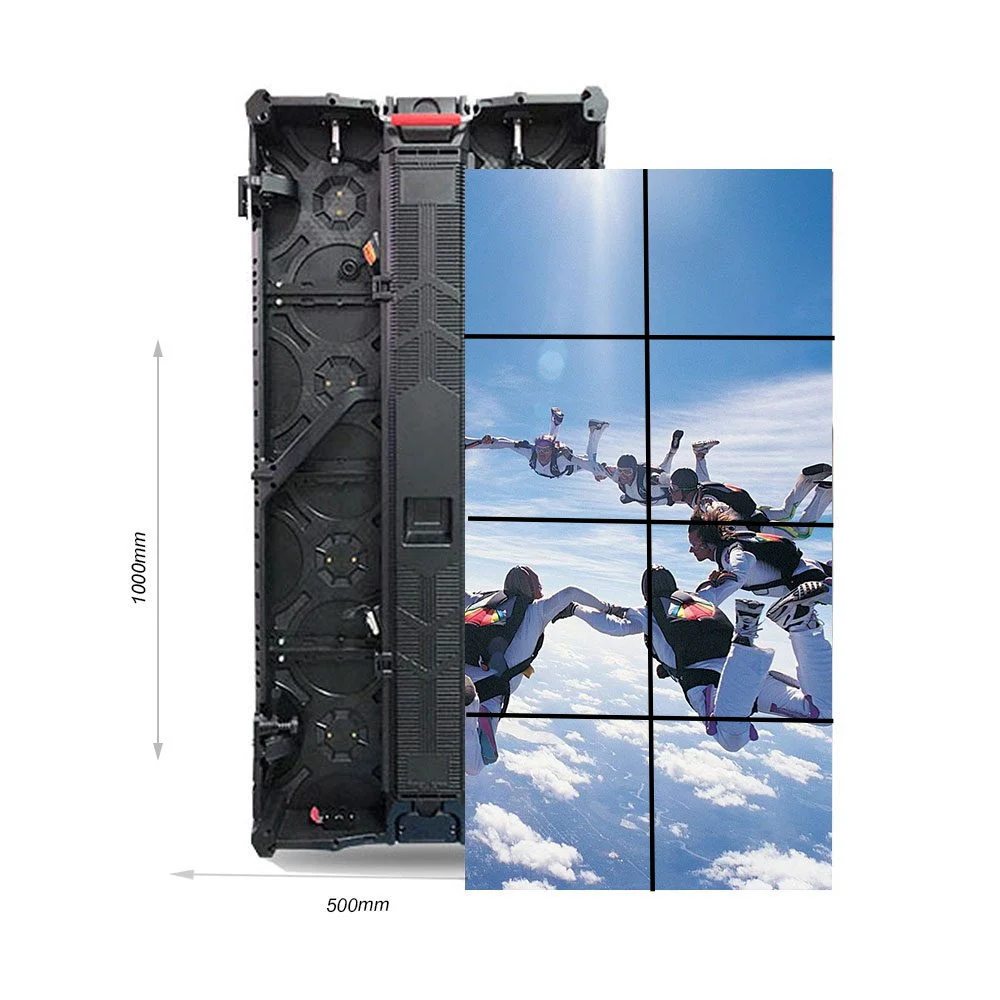

Standard Cabinet Size 500mm x1000mm

500x500mm Standard size cabinet design.Suitablefor all LED display units.250x250mm Double-sidedlock design for more secure installation.

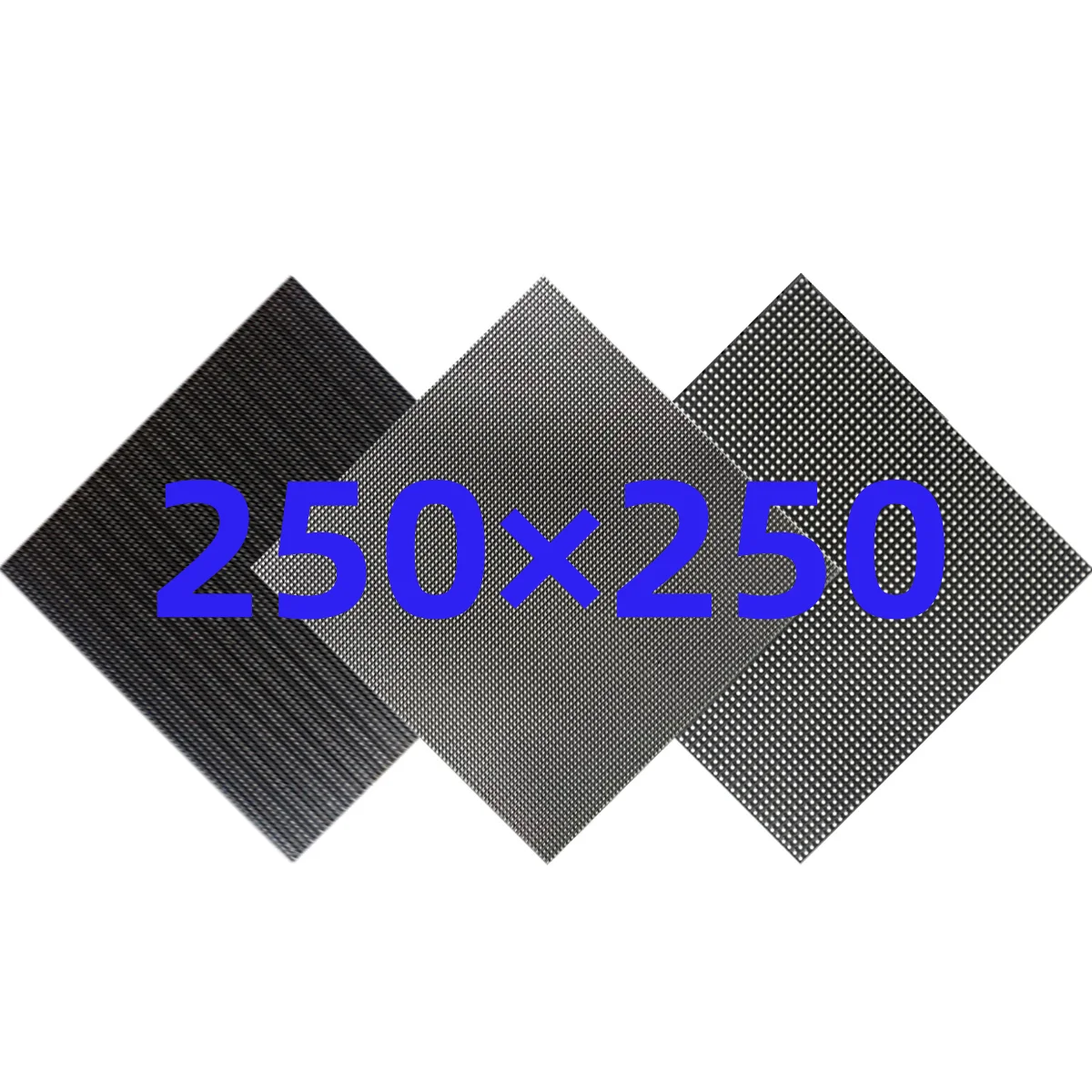

Standard size LED MODULE 250x250mm

500x1000mm LED display with panel Standard size:250x250mm.Standard LED displays are quick toinstall and maintain. Changing the pixel spacing isalso very convenient, just change the units becausethey have the same unit size and structure.


Smooth display and visual effects

The advanced assembled structure producessmooth display and visual effects, providing youwith the perfect visual performance you want fromyour LED display. lmage quality remains high dueto better quality display materials.

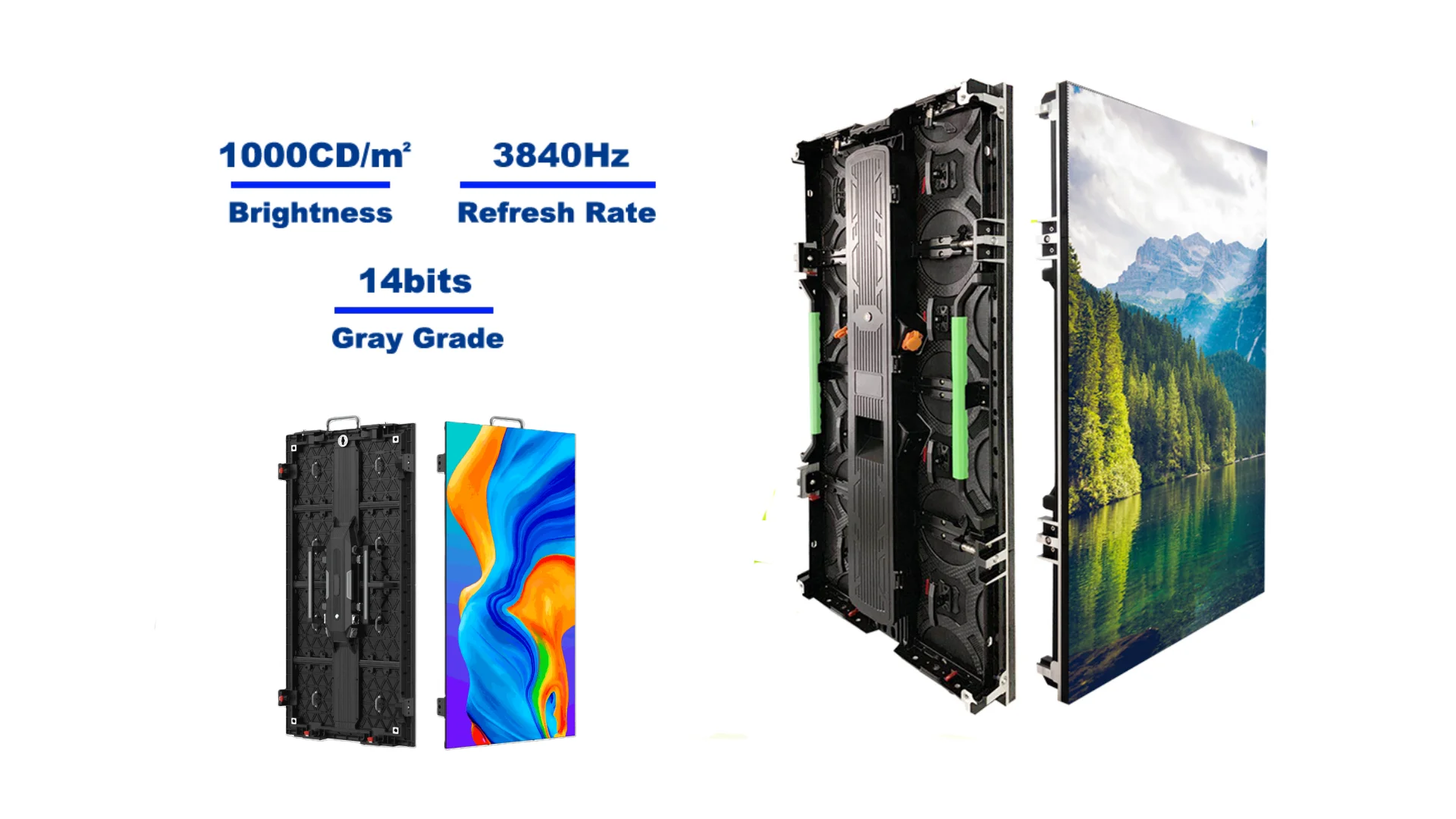

High contrast ratio and refresh rate

HD outdoor rental LED display with industryleading refresh rate of 3840Hz,It can display any HD video smoothly. Using a grayscale of at least 14 bits, photos or videos can bedelivered without compression or damage.

High refresh rate, high contrast,high brightness

Rental LED display has high brightness, highcontrast, high refresh rate, high gray scale.LED display with vivid picture, clean video screenand great picture quality.



IP65 waterproof and corrosion resistant

It is for outdoor use with high water level anddustproof level. lt can withstand some bad weatherduring outdoor events.


Perfect structural design

While adhering to the spirit of innovation, theOutdoor 500X0100 SERlES Rental LED Displayexplains structure design and rigorous qualitytestingThe product has improved the design quality, andembodies the human-centred rule.

Wide viewing angle

The viewing angle is up to 140 degrees bothvertically and horizontally, providing a wide viewingangle. Both 140 degrees of horizontal and verticalviewing angle. Looking from any angles, the imagewill still be natural and clear in the LED display.

f950d89896447238a3876c79ef431eb6



Specification

ModelP2.604P2.976P3.91P4.81
Pixel Pitch(mm)2.604 2.976 3.91 4.81
Pixel Matrix Per
Sqm		147,456112,89665,53643,264
Pixel ConfigurationSMD1515/1415SMD2121/1415SMD2121/1921SMD2121/1921
Scan1/321/211/161/13
Brightness(cd/m)1000/4500
Module Dimension250×250mm
Cabinet Dimension500x1000mm
Cabinet MaterialDie Casting Aluminum
Cabinet Weight25KG
Power Con. (W/m)
(Max/Avg)		800W/200-300W
Service AccessFront/Rear
Refresh Rate(HZ)≥3840hz
Grey Scale (bit)≥16bit
Viewing Angle(H/V)160°/160°
IP RateP43/IP65
Input Voltage(AC)110V/220V



Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
