Screw Front Service

Product description:

· LED Module：  P2 P2.5 P3 P3.076 P4 P5 P6 P8 P10

· Module Size： 320*160mm 192*192mm 256*128mm 126*126mm

· Cabinet Size：  Cusomized



Inquire Now
  • Product Details
  • Specification
  • Support
  • Inquire Now

Product Details

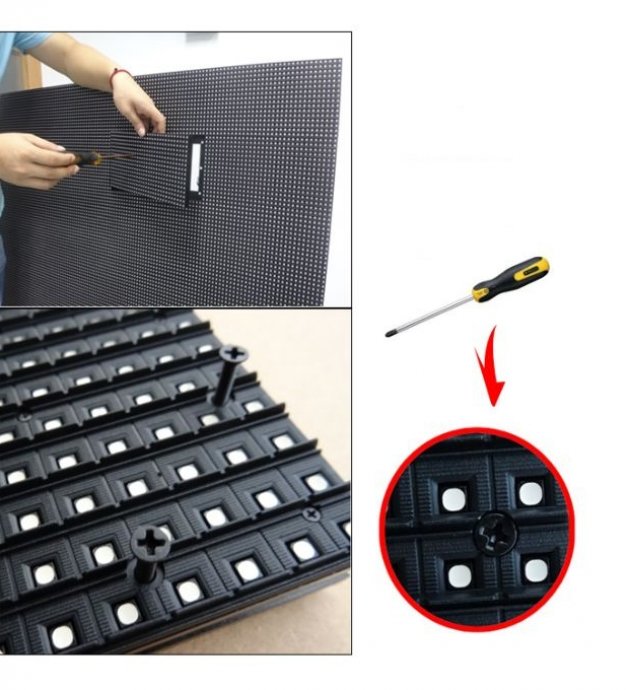

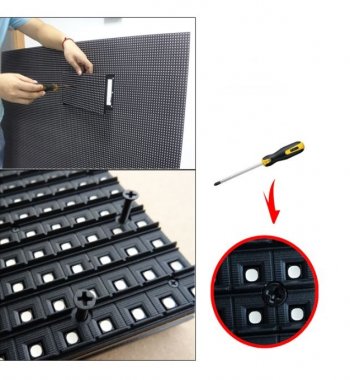

Here are some details related to Cabinet Front Service LED Screen:

Easy To change

Rental & fixed

Rentalscreen standardization

Ouick unloading and installalion

Fast upgrade

Massive supply and popularization

Meet more needs

Larger area

Produet Application

Exhibition halls, hotels, weddings, outdoor slages, concerts, conferences and other places.


Specification

Pixel PitchP10P8 P6P5P4
LED typeSMD3535SMD3535 SMD2727SMD1921SMD 1921
Pixel density10,00015,62527,77740,00062,500
Module dimension320*160mm320*160mm 192*192mm320*160mm320*160mm
Module resolution32*16dots40*20dots 32*32dots64*32dots80*40dots
Drive Method1/2 scan1/5 scan 1/8 scan1/8 scan1/10 scan
Cabinet size(W*H)Customized
Cabinet materialIron or aluminum
Cabinet weight50kg/m²
Brightness≥5500 cd/㎡ Receive Customized
Viewing Angle140*140
Grey Level8-16 Bit
Refresh Rate1920Hz 3840Hz 7680Hz Receive Customized
Power consumption(Avg.)300W/㎡ Conmmon Cathode Can Customized
Power consumption(Max.)800W/㎡ Conmmon Cathode Can Customized
Humidity-operating10%～95%
Operating Temperature-30°～60°C
Screen life≥100000 hours
ControllerSync or Async  Novastar Linsn Colorlight Huidu
CertificatesCE,RoHS,FCC,EMC,LVD
Ingress Protection(IP)IP65


Support

Caixin technology will provide every customer with high-quality after-sales service. We have professional technicians to guide you to solve any problems about LED displays, including installation and debugging, etc. please come and contact us!
