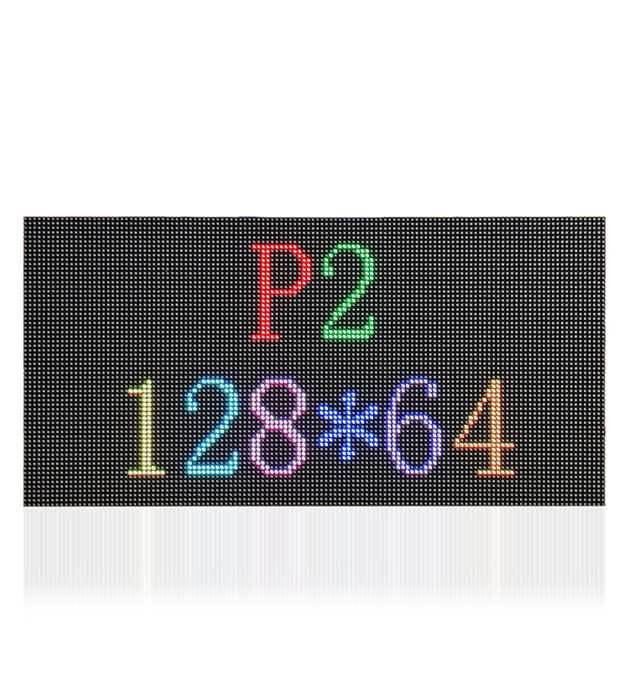

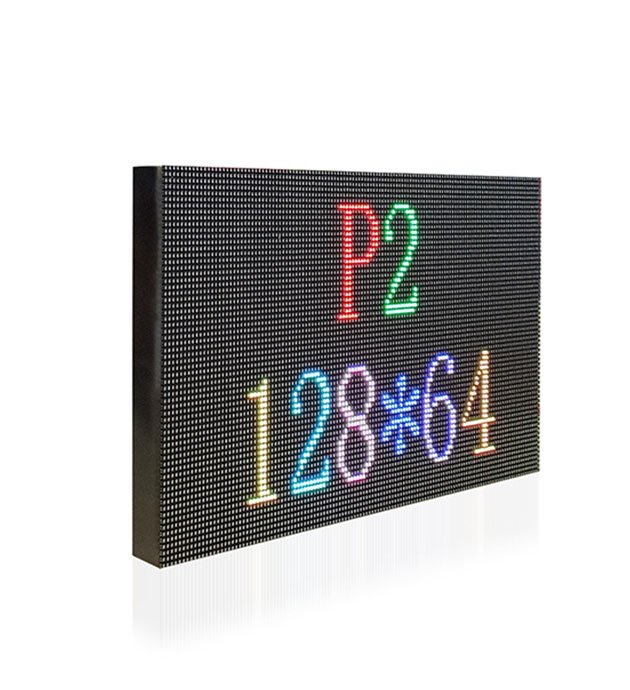

P2 Indoor RGB LED Display LED Screen Panel 256x128mm

Product description:

· Model Number：P2

· Module size：256*128mm

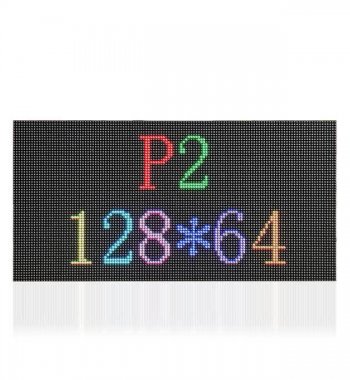

· Pixel resolution：128*64

· Certicificate: CE,RoHS,FCC

· Colour：FullColor

Inquire Now
  • Product Details
  • Specification
  • Related Products
  • Support
  • Inquire Now

Product Details

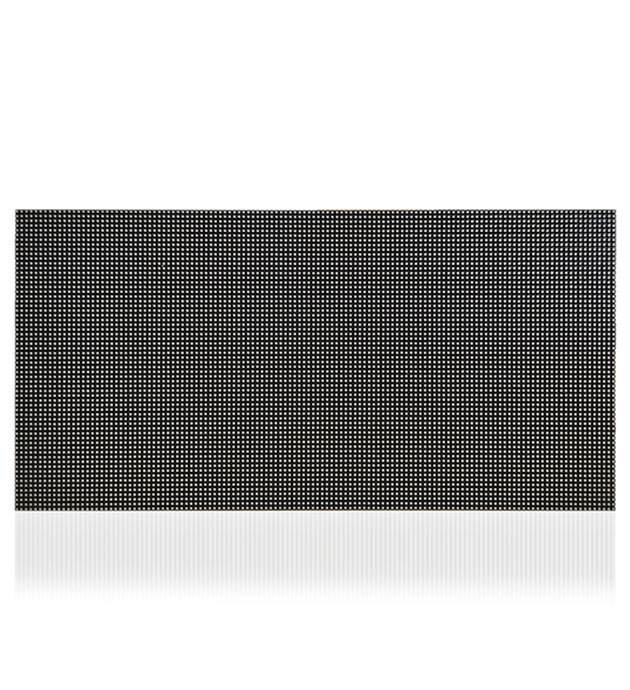

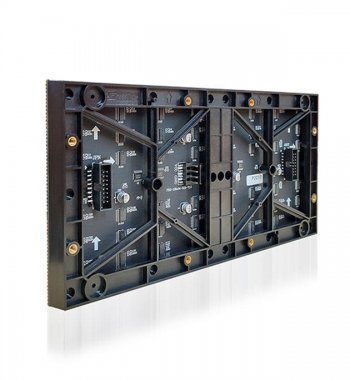

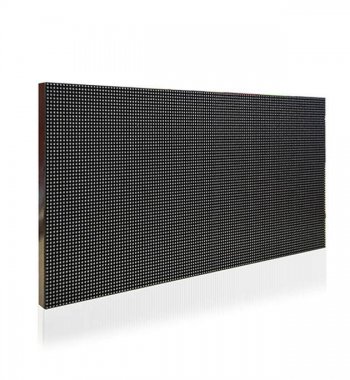

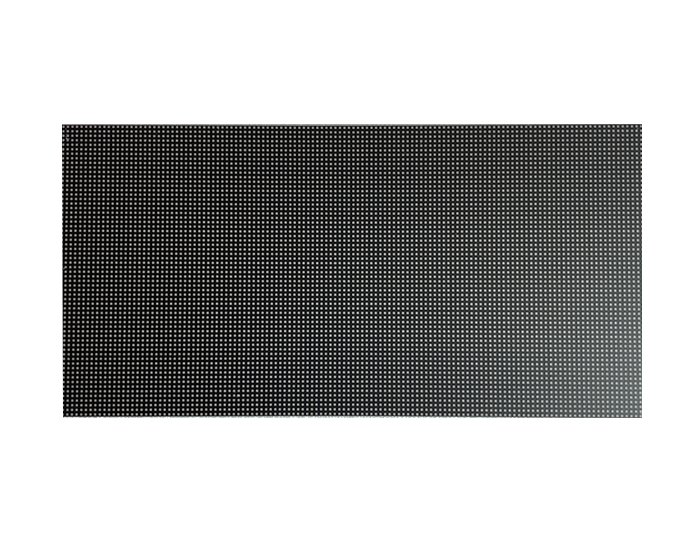

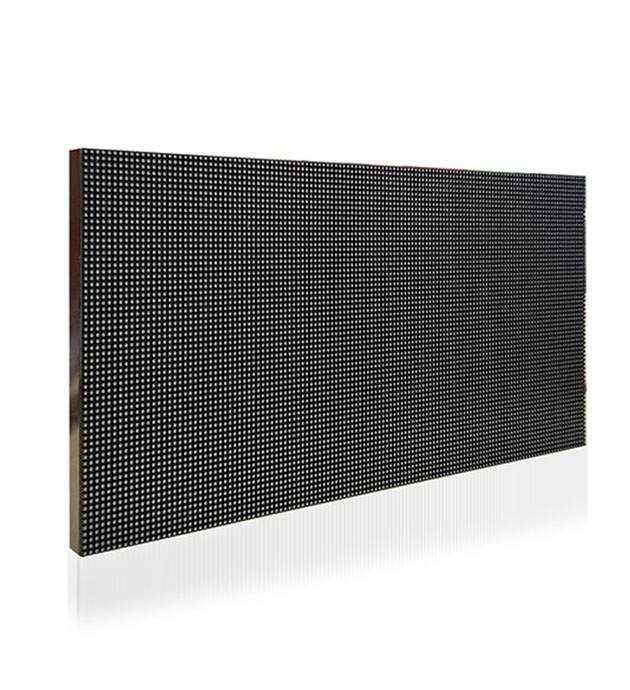

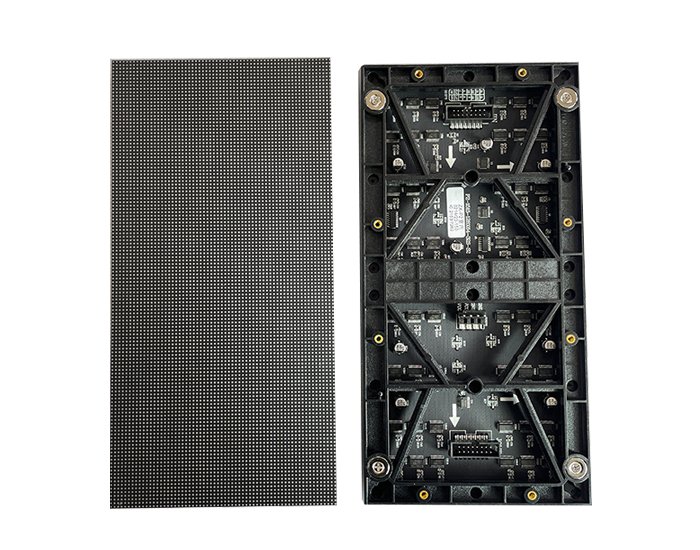

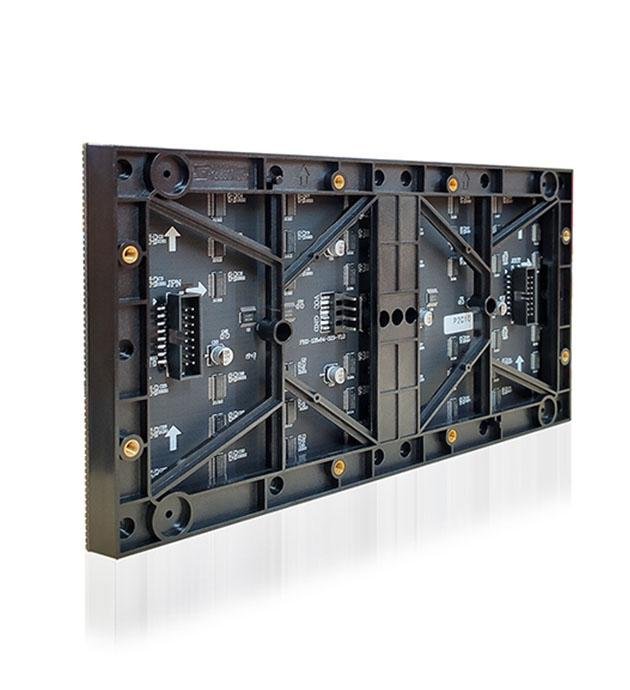

P2 indoor full color LED display module board, size 256*128mm, pixel arrangement 128*64，

SMD1515 lamp beads, RGB full color, conventional driver IC, support most control cards on the market, refresh rate 1920hz, support custom IC , refresh rate up to 3840hz

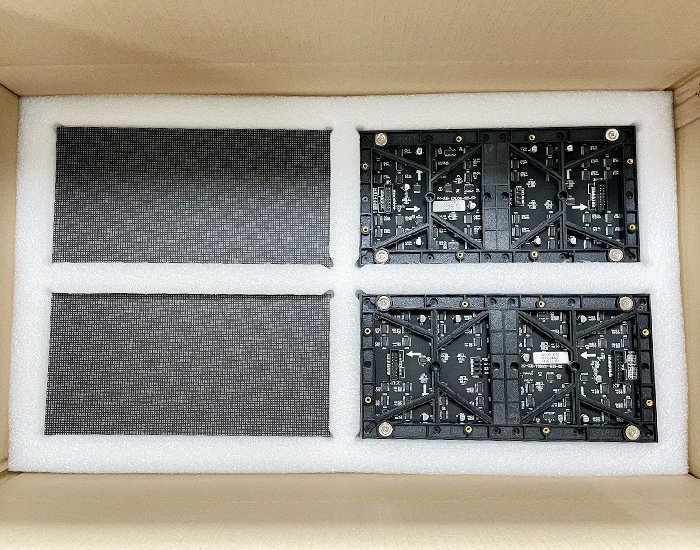

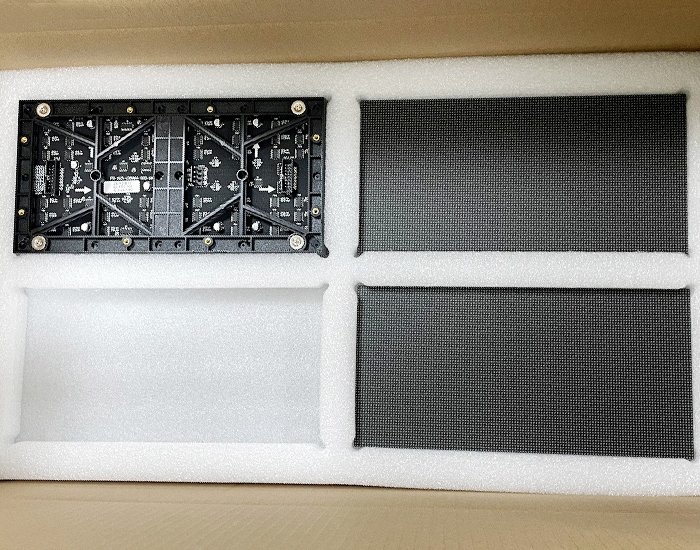

Package



Specification

INDOOR P2 SMD 3IN1 TECHNICAL PARAMETERS
Unit ModuleItemParameter
Model NumberP2-32S
Module size256mm*128mm
Pixel pitch2mm
Pixels Density250000 dots/m2
Pixel configuration1R1G1B
Package modeSMD 3IN1 -1515
Pixel resolution128dots(W)*64 dots(H)
Max Power 23W
Weight0.352KG
Drive typeConstant drive
Scan mode 1/32scan
Port typeHUB75E
Best viewing distance2M～10M
Best viewing angle 140°(W) 120°(H)
Temperaturestorage:-35℃～+85℃
working:-20℃～+50℃
PowerRelative humidity10%-95%
Working voltageDV 5V
Average Power consumption<280W/㎡
Main technical  parameterMax.Power consumption<700W/㎡
Current<15mA(single LED)
Driving deviceConstant drive IC
Refresh frequency>1920HZ
Color65536gray level/16.7M colors
MTBF>9000hours
Lifespan>100000hours
Power switchAutomatic switch
